Reference Number: 140044

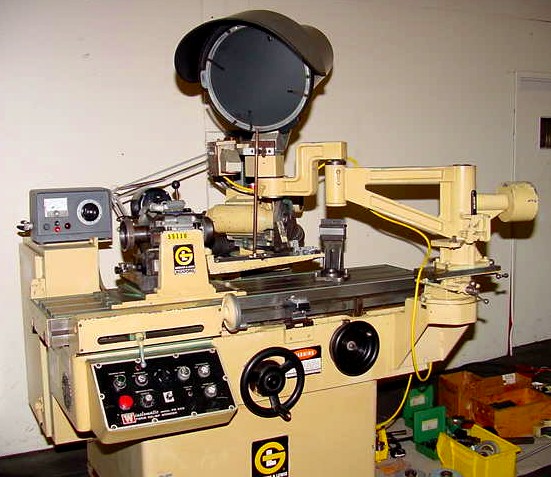

GIDDINGS & LEWIS (WINSLOW ENGINEERING)

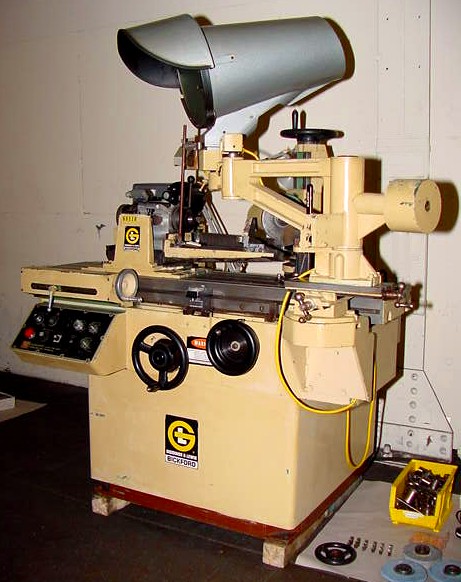

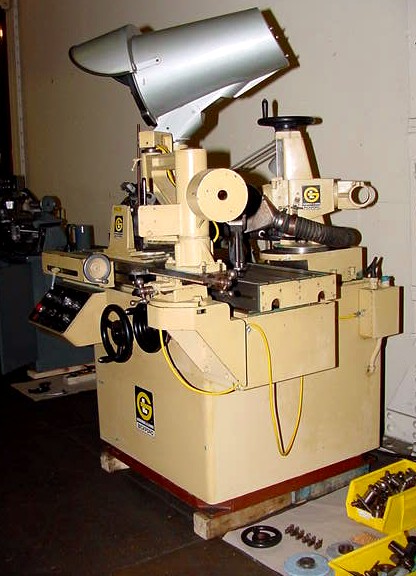

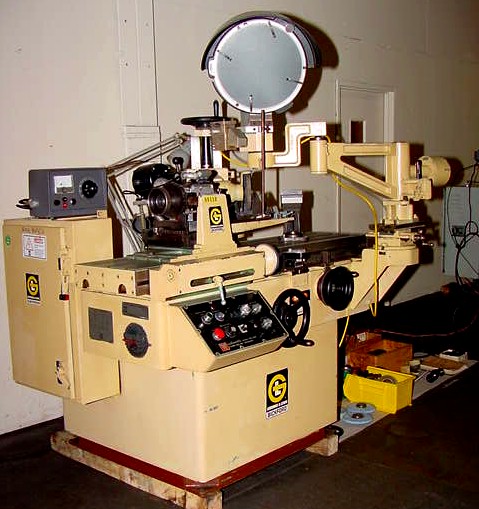

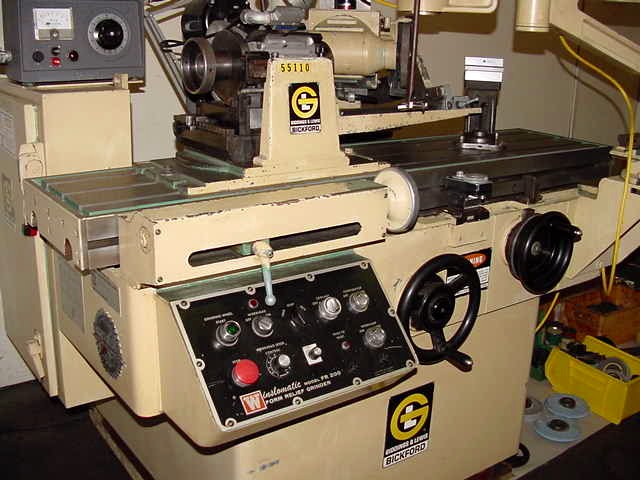

 FORM RELIEVING GRINDER

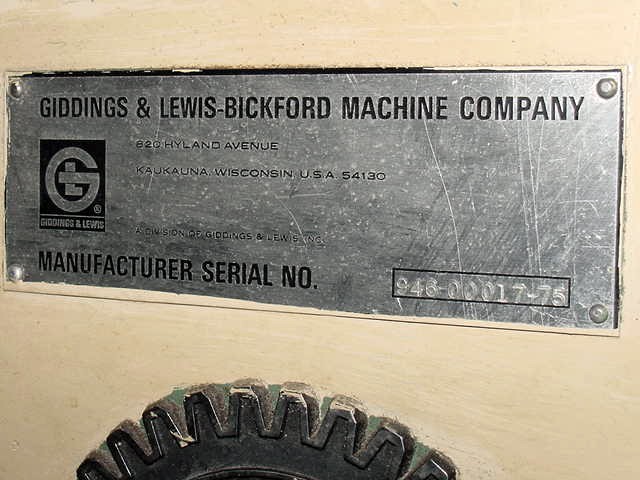

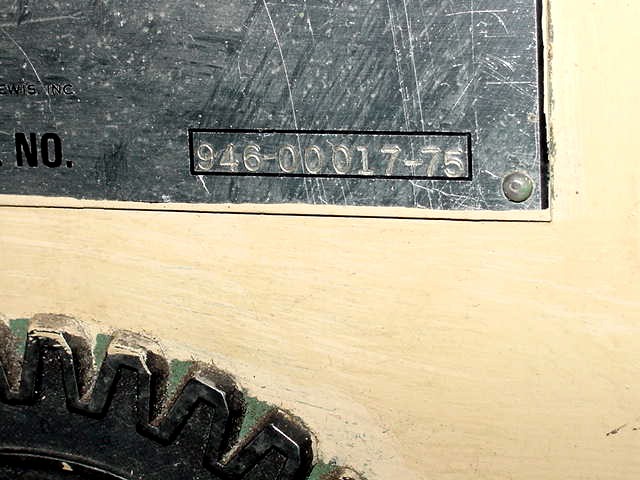

    MODEL:  FR-200    S/N:  946-00017-75    NEW:  1975

 PLATEN TABLE SIZE ............................. 14" X 60"
 PLATEN TABLE TRAVEL ................................. 26"
 CROSS SLIDE HANDWHEEL, GRADUATED TO ............. 0.0005"
 GRINDER SPINDLE VERTICAL TRAVEL .................. 7-1/2"
 GRINDING SPINDLE, MAX. HEIGHT ................... 9- 1/4"
 GRINDING SPINDLE TILTS ...................... +/- 25 DEG.
 GRINDER SPINDLE SWIVELS . ................... 360 DEGREES
 RELIEVING FIXTURE, AXIAL RELIEF ............. 0 TO 0.250"
                   RADIAL RELIEF ............ 0 TO 0.100"

 APPROX. FLOOR SPACE ........................... 86" x 60"
 APPROX. MACHINE WEIGHT ....................... 3,200 LBS.

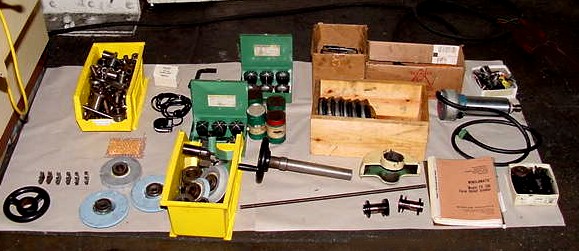

 EQUIPPED WITH:

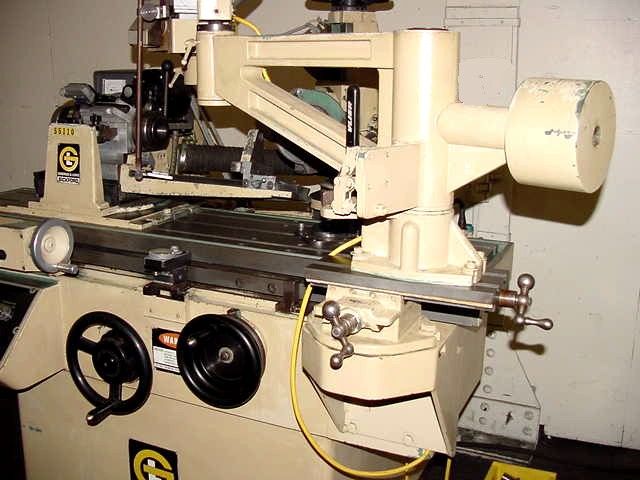

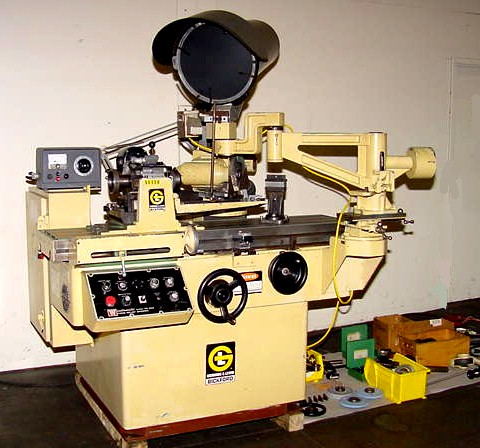

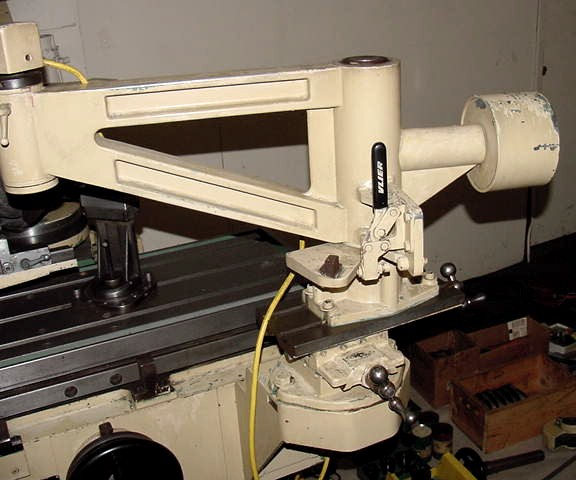

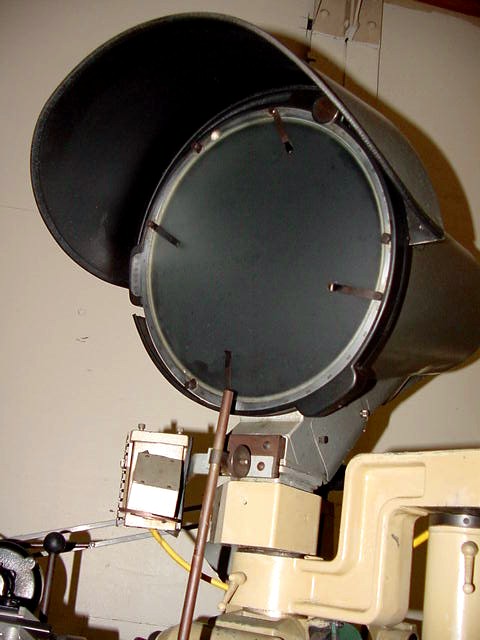

 10" OPTICAL COMPARATOR ATTACHMENT W/LENS
 COMPARATOR IS MOUNTED ON A X-Y COMPOUND

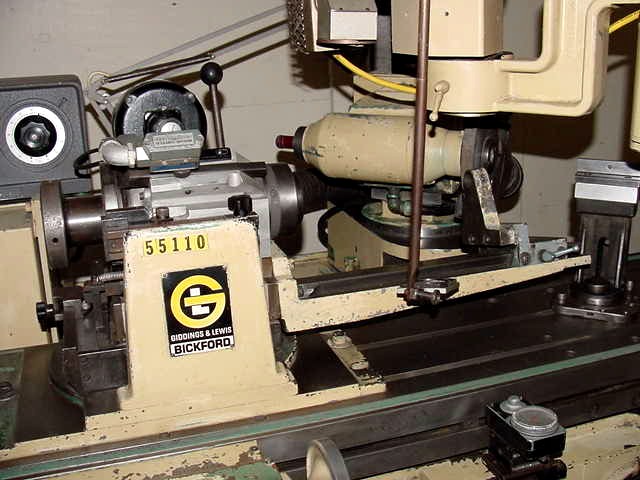

 MOTORIZED RELIEVING FIXTURE W/INFINITELY VARIABLE
  SPEED PROVIDED BY SCR DRIVE

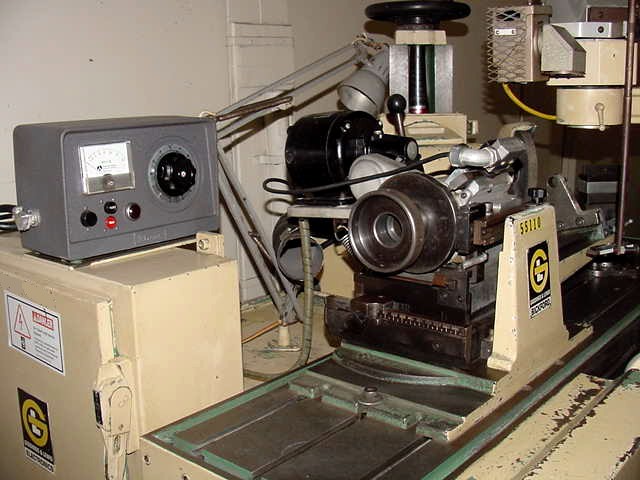

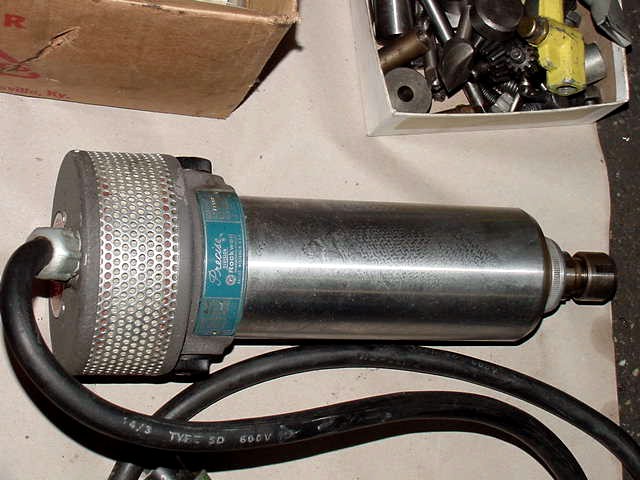

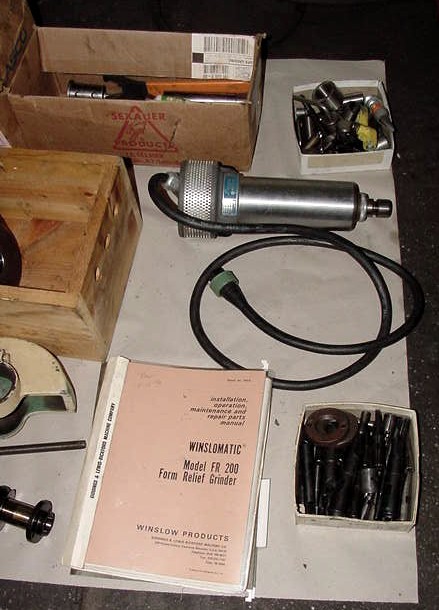

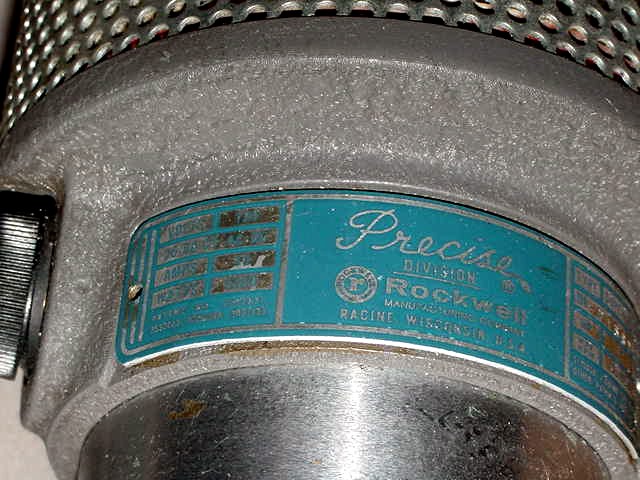

 "PRECISE" HIGH SPEED INTERNAL GRINDING SPINDLE WITH

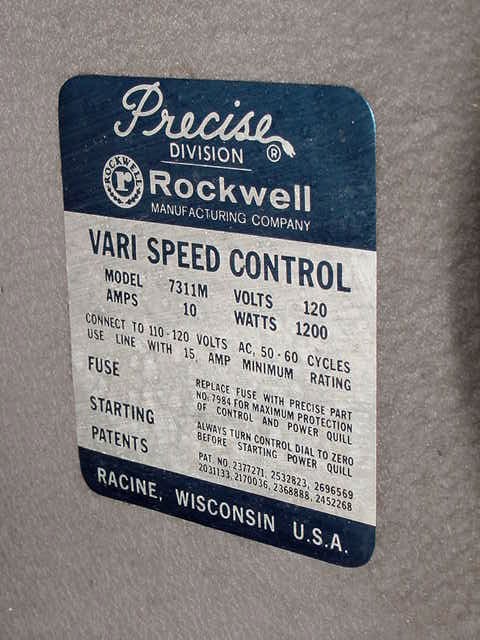

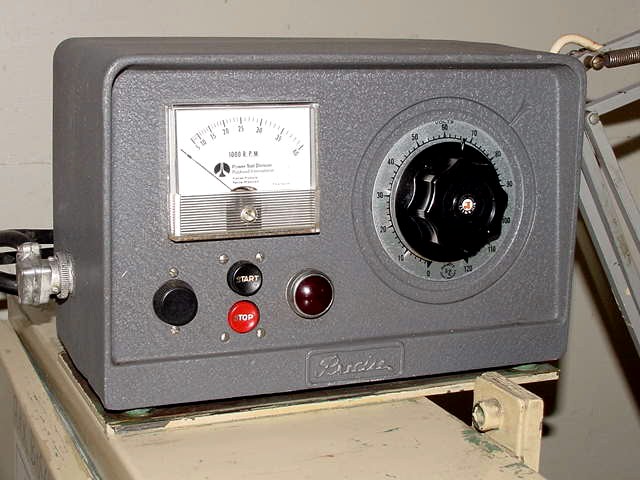

  INDEPENDENT ELECTRONIC VARIABLE SPEED SPINDLE CONTROLLER.
  I.D. SPINDLE IS MOUNTED ON VERTICAL COLUMN BEHIND THE
  O.D. WHEELHEAD.

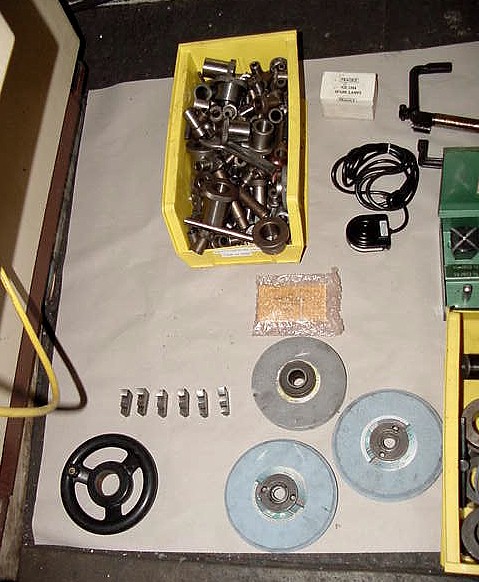

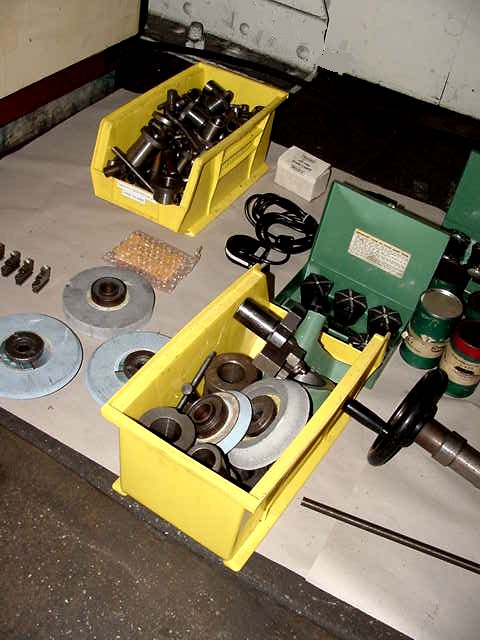

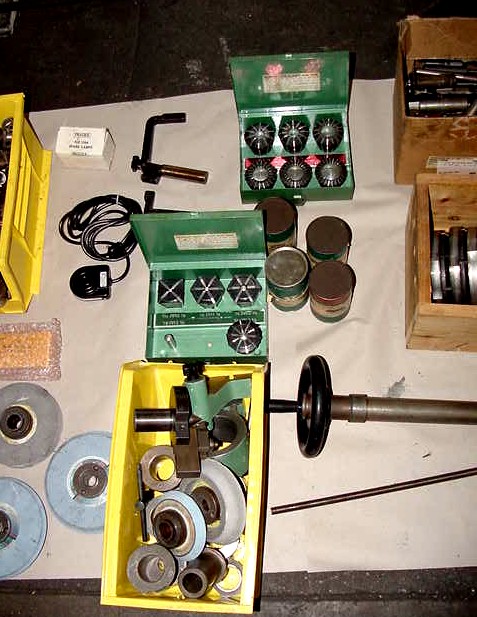

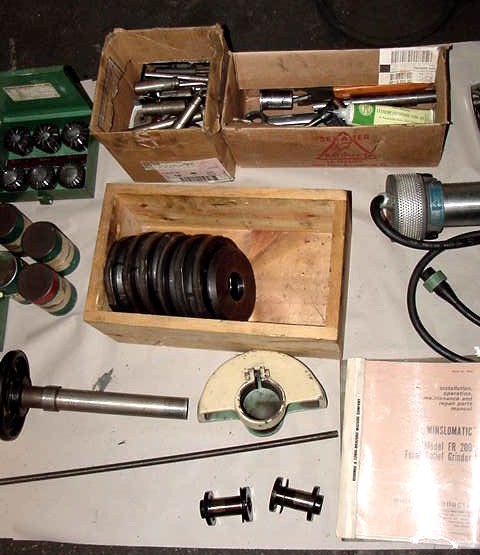

 (6) CAMS WITH INDEX PLATES

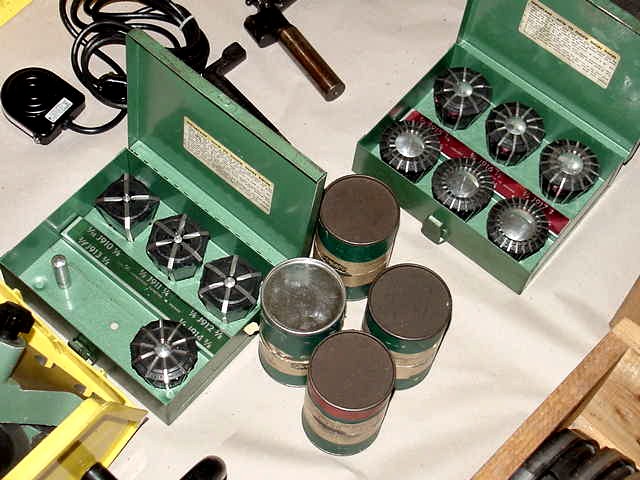

 "JACOBS" RUBBERFLEX" COLLETS (14)
 EXTRA WHEEL HUBS
 EXTRA WHEELS WITH HUBS
 CENTER REST SUPPORT
 TAILSTOCK
 TABLE MOUNTED WHEEL DRESSER w/SWIVEL BASE

 MACHINE FEATURES:

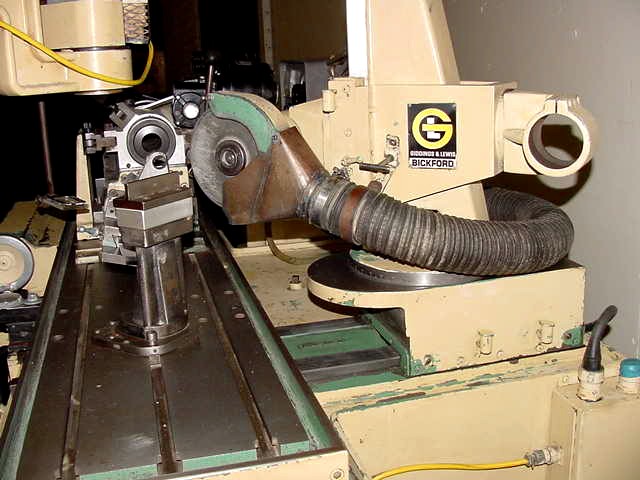

 TABLE SLIDES FREELY ON HARDENED ROUND WAYS & PRECISION
  BALL BUSHINGS FOR EASY OPERATION & LONG LIFE.  HANDWHEEL
  IS OPERATED THROUGH A TWO-SPEED GEARBOX.  COARSE FEED OF
  3- 1/2" PER HANDWHEEL REVOLUTION.  FINE FEED IS .134"
  PER HANDWHEEL REVOLUTION.

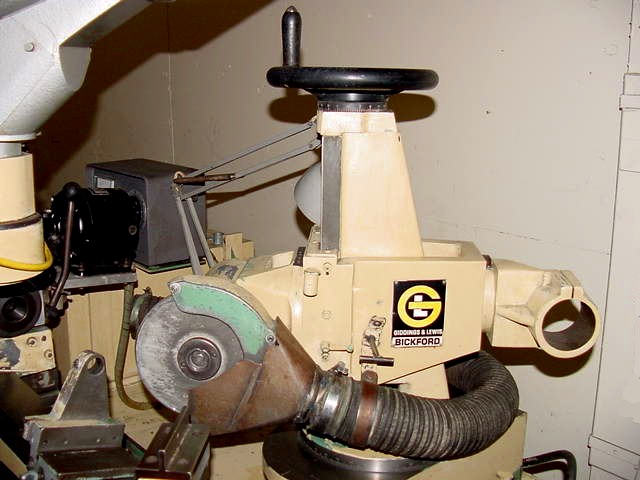

 SPINDLE ASSEMBLY IS MOUNTED ON A FRICTION FREE ROLLER
  BEARING "X" & "Y" AXIS TABLE BASE.
 "POPE" GRINDING WHEEL SPINDLE, 1 H.P. /3/60/230-460 VOLTS
 MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

 IDEAL FOR ALL THESE TYPES OF TOOLS:
 -SUBLAND, STEP & CENTER DRILLS
 -COUNTERSINK, SPOTFACE, PORTING & TREPANNING TOOLS
 -TAPS, REAMERS, PUNCH INSERTS & FORM TOOLS

 CAM-GENERATED MOTION & ROTATION OF THE TOOL ASSURES
  CONCENTRIC CUTTING SURFACES
 GRINDS TOOLS WITH 1 THRU 18 FLUTES


 SPECIAL NOTE:
 G & L SOLD THE COMPLETE "WINSLOW" PRODUCT LINE IN 2001
  TO FORMER WINSLOW ENGINEERS.  THEY HAVE NAMED THE COMPANY
  "WINSLOW ENGINEERING" & ARE LOCATED IN FOND DU LAC, WI.
  THE WEBSITE FOR THEIR INFORMATION IS www.winsloweng.com.
  THIS MACHINE IS OVER $60,000 NEW TODAY!


 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE  **
 *** EXCEPTIONAL CONDITION & APPEARANCE (NEAR NEW!) ***
