Reference Number: 140047

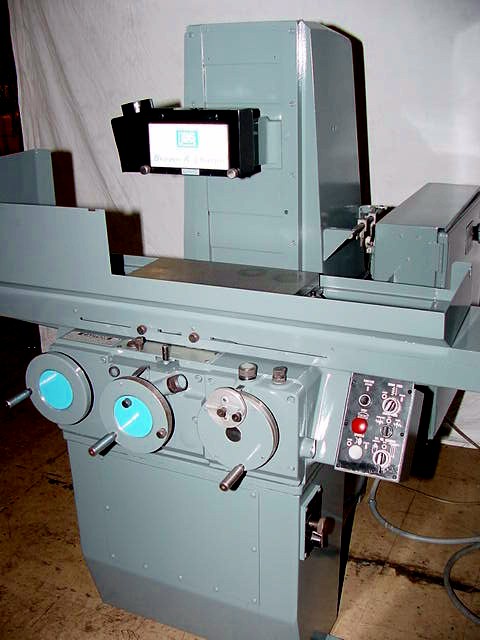

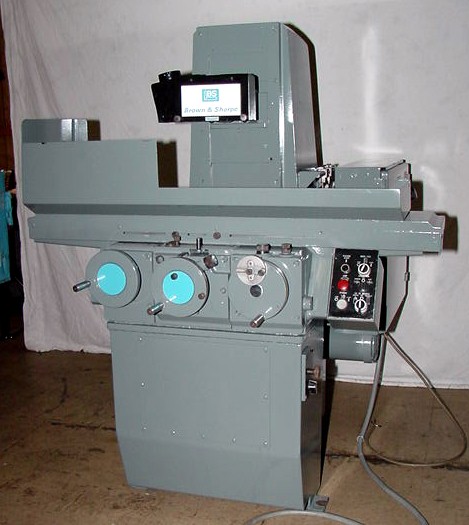

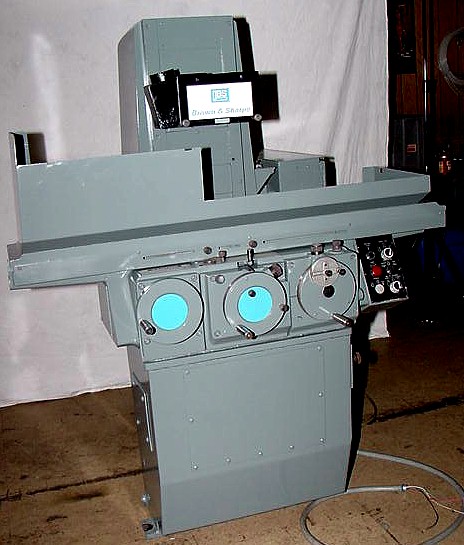

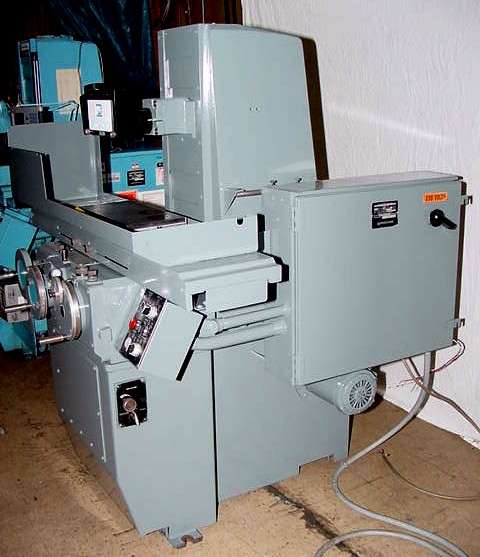

8" x 18"BROWN & SHARPE #818 MICROMASTER SERIES II"Price: On Request
"SUPER-PRECISION" HYDRAULIC SURFACE GRINDER
** AUTOMATIC INCREMENTAL DOWNFEED **

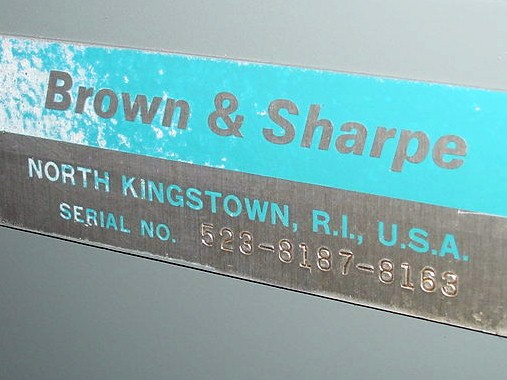

S/N: 523-8187-8163 NEW: 1983
WIDTH & LENGTH GROUND ..................... 8" X 18"
HEIGHT OF WORK GROUND W/7" WHEEL ........... 18"
MAXIMUM LONGITUDINAL TRAVEL ................ 22"
LONGITUDINAL TABLE SPEED ................... 5 TO 100 FPM
MAXIMUM CROSS TRAVEL ....................... 9"
AUTOCROSSFEED INCREMENT PER TABLE PASS ..... UP TO 1/4"
CONTINOUS CROSSFEED RATE FOR TRUING ........ 10" IPM
CONTINOUS CROSSFEED RATE FOR RAPID ......... 12' FPM

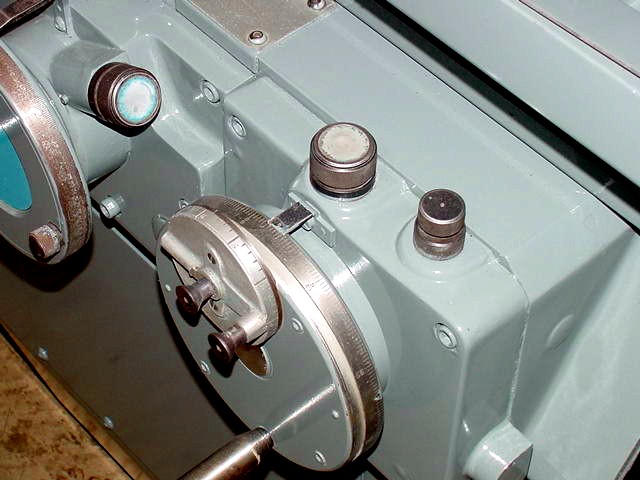

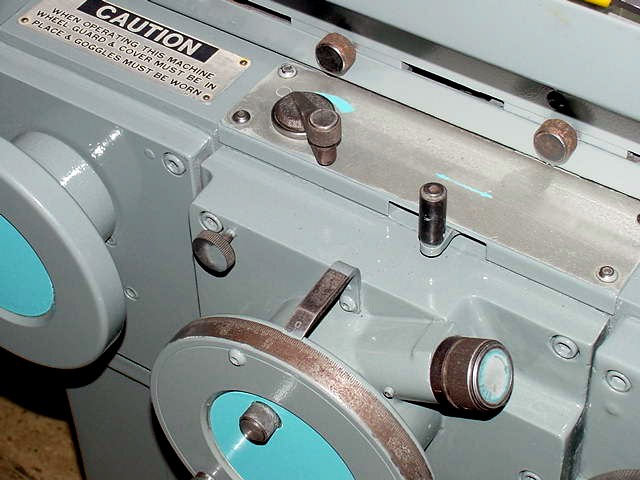

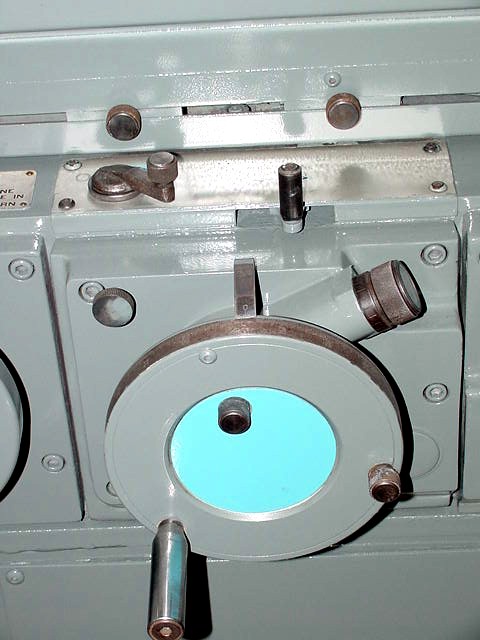

HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED
TO READ TO ................................. 0.0002"
FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL ... 0.0001"
VERTICAL TRAVEL OF SPINDLE ................. 14- 3/4"
AUTO INCREMENTAL DOWNFEED FEED ...... 0.0002" TO .003"
POWER VERTICAL POSITIONING RATE ............ 40" IPM
HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED
TO READ TO ................................ 0.0002"
APPROXIMATE MACHINE WEIGHT ................. 3,000 LBS
APPROXIMATE FLOOR SPACE .............. 56"L X 62"D X 68"
EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED FOR SLOT GRINDING
OPERATIONS.
HYDRAULIC LONGITUDINAL & CROSS FEEDS

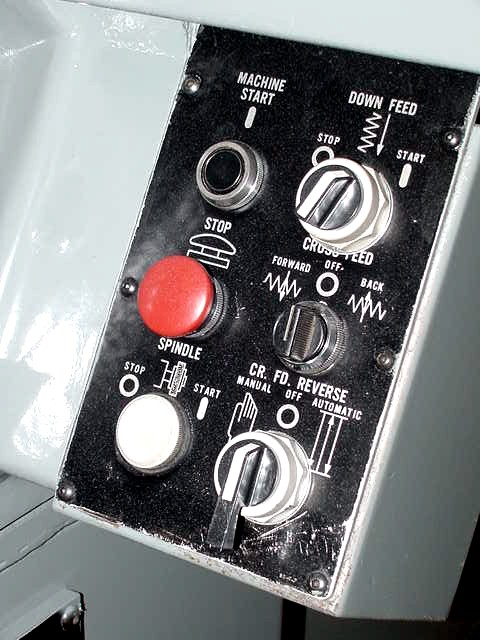

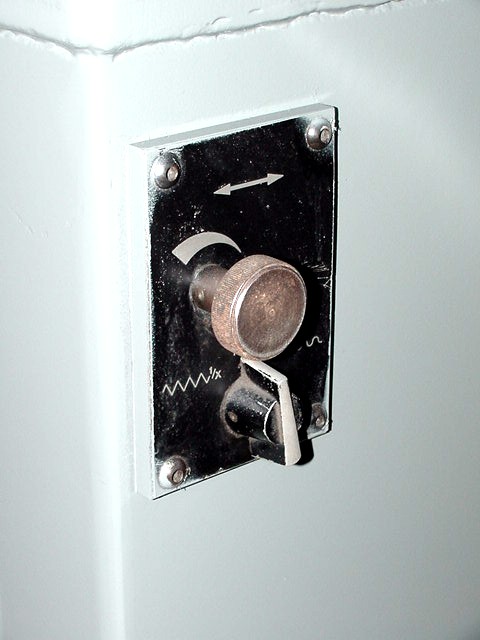

AUTOMATIC ELECTRIC CROSSFEED REVERSAL OPTION
FINE FEED KNOB FOR CROSS FEED HANDWHEEL (.0001" GRADUATION)
7" DIAMETER x 1/2" WIDE x 1- 14" BORE GRINDING WHEEL
2 H.P. BROWN & SHARPE SUPER-PRECISION DIRECT DRIVE SPINDLE,
3/60/230-460 VOLT MOTOR

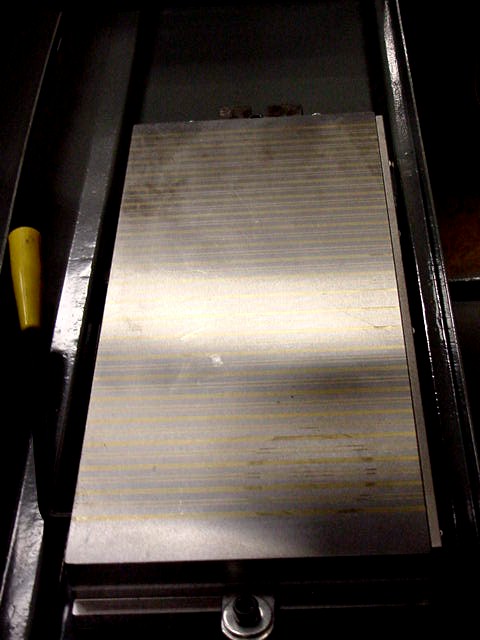

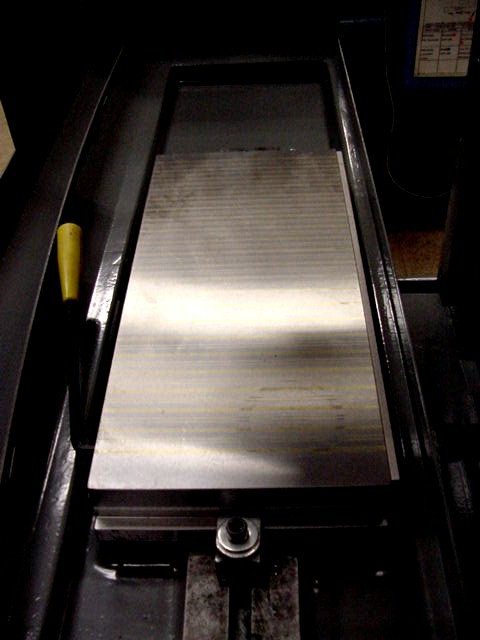

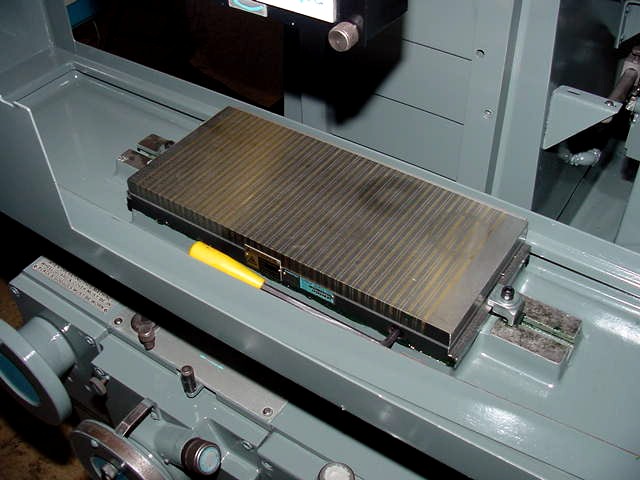

8" X 18" BRAND NEW "KANETSU" FINE-DIVISION
PERMANENT MAGNETIC CHUCK

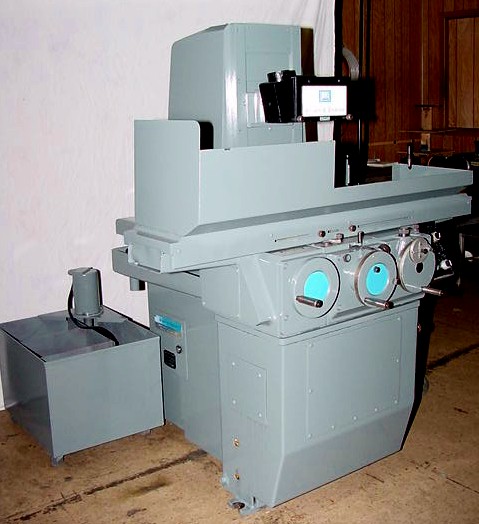

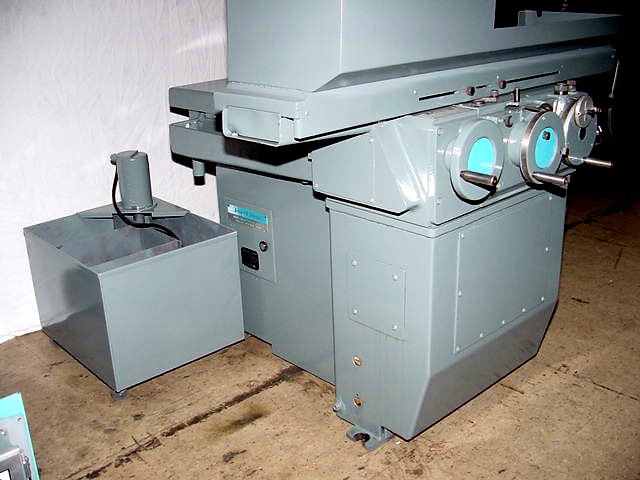

COOLANT TANK & PUMP w/GUARDING & PIPING

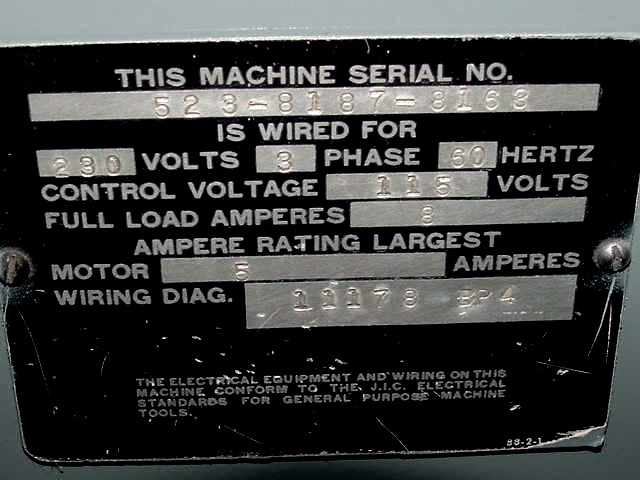

MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS
** SERVICED BY MR. FRANK CROUWTHER OF BOURN & KOCH MACHINE
TOOL CO., ROCKFORD IL (THE OEM FOR B & S GRINDERS)
(WEEK OF JUNE 15TH, 2007) **
** SPINDLE WAS REMANUFACTURED BY ATLANTA PRECISION
SPINDLES, LAWRENCEVILLE, GA (678) 225-7855. JOB # 647,
SALES #569, SERIAL NUMBER ATLPS #125. DATE OF
REMANUFACTURE 6/1/2007, COST OF $2,633.29. **
** EXCELLENT CONDITION & APPEARANCE**
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
