Reference Number: 140052

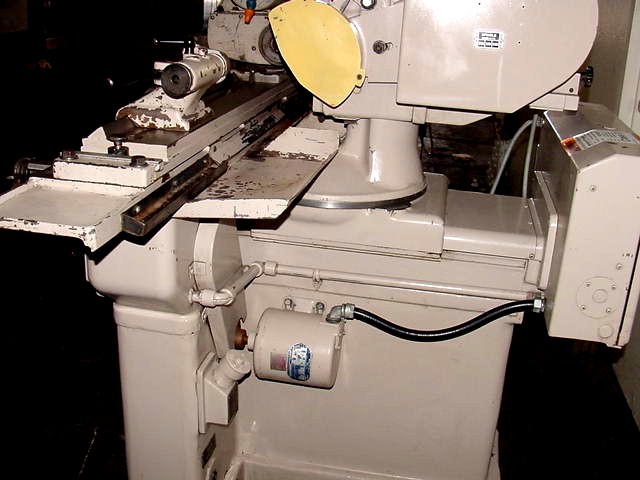

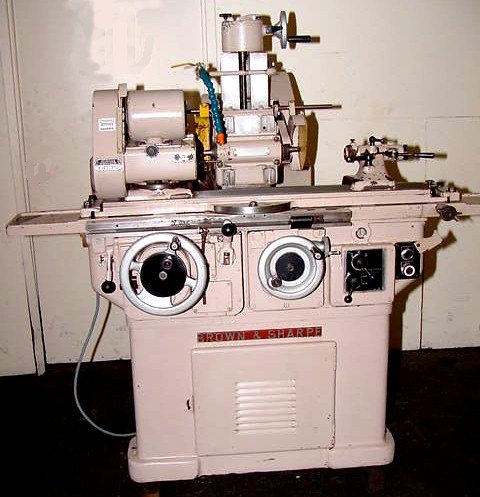

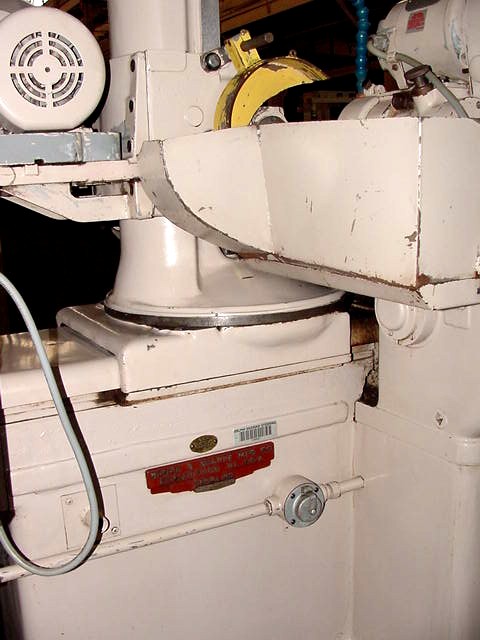

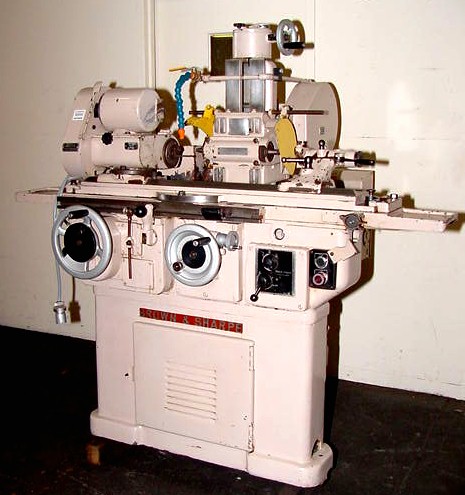

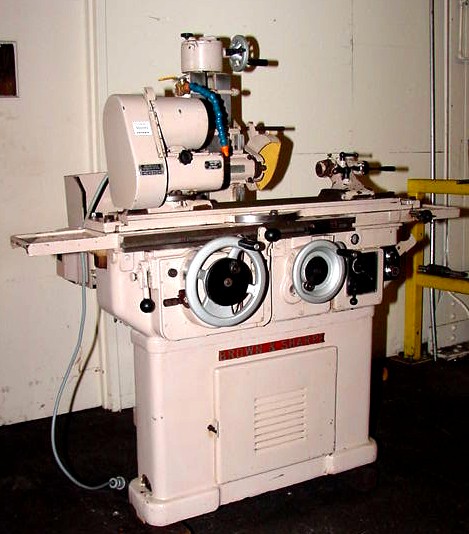

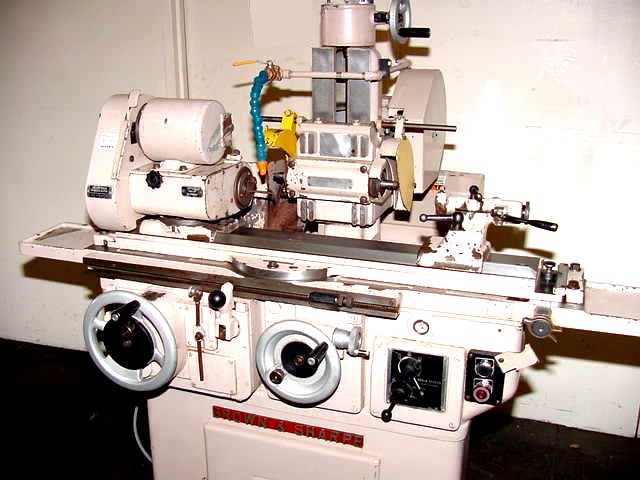

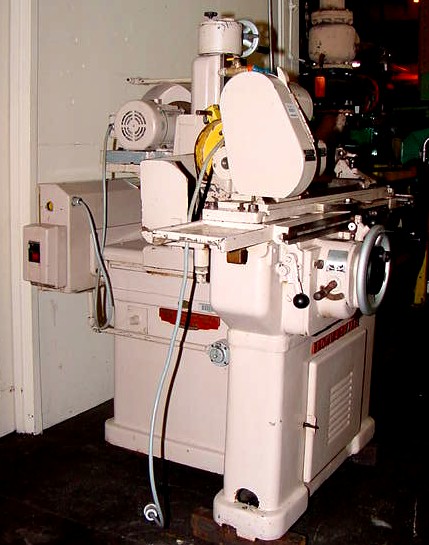

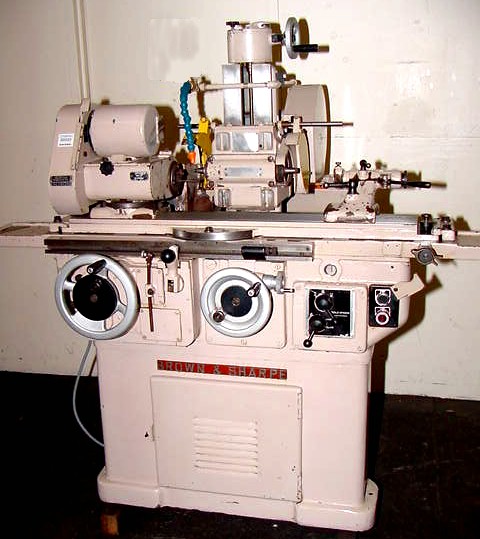

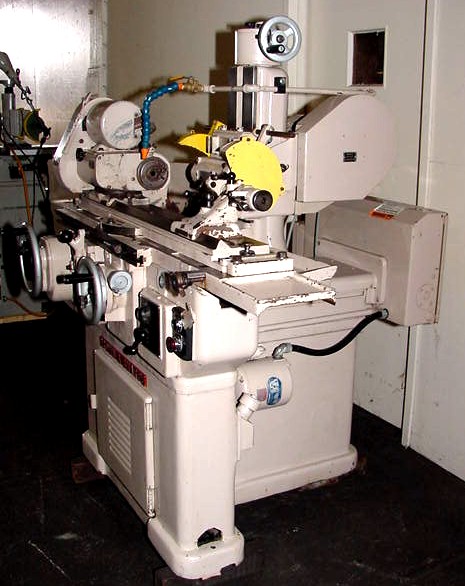

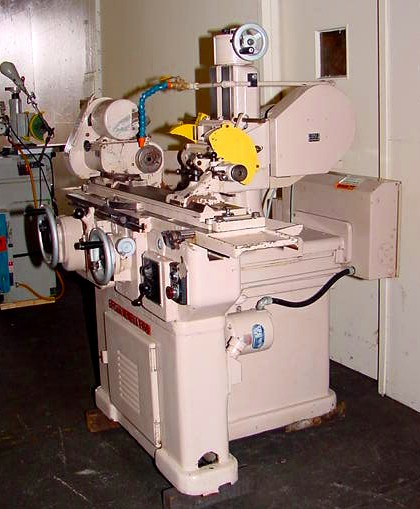

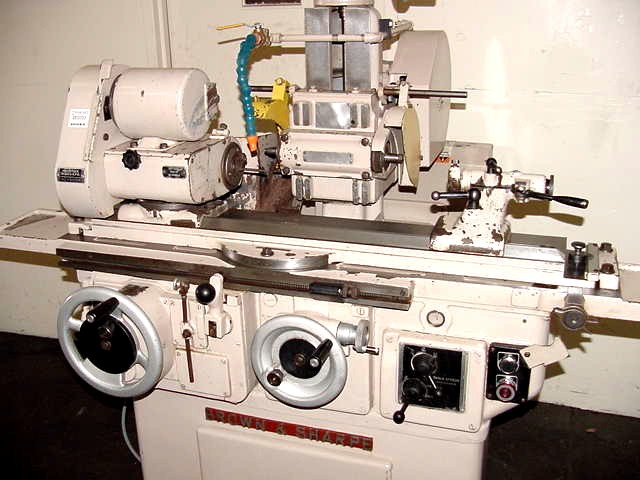

  BROWN & SHARPE #13 UNIVERSAL & TOOL GRINDING MACHINE

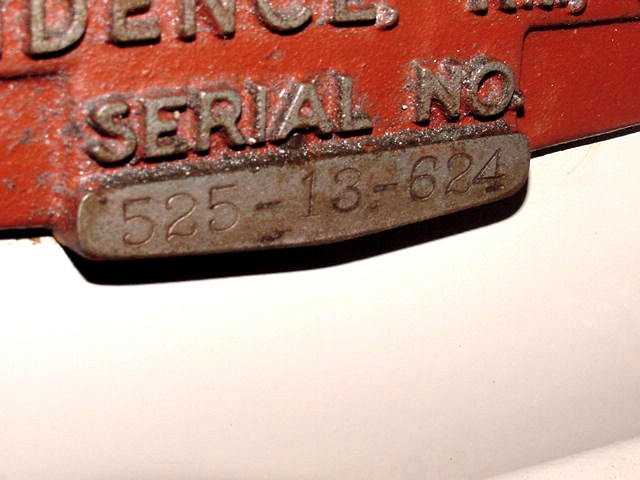

        S/N: 525-13-624     NEW: 1955

  CAPACITY:
 - GRINDS WORK UP TO ..................... 8" DIAMETER
 - GRINDS LENGTH ................................. 14"
 - DISTANCE BETWEEN CENTERS ...................... 24"

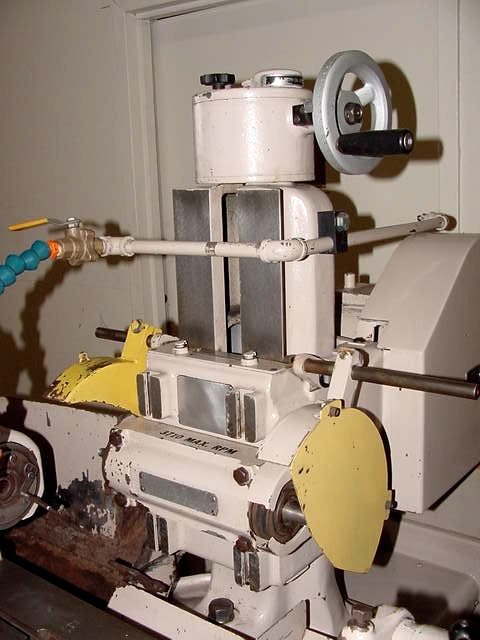

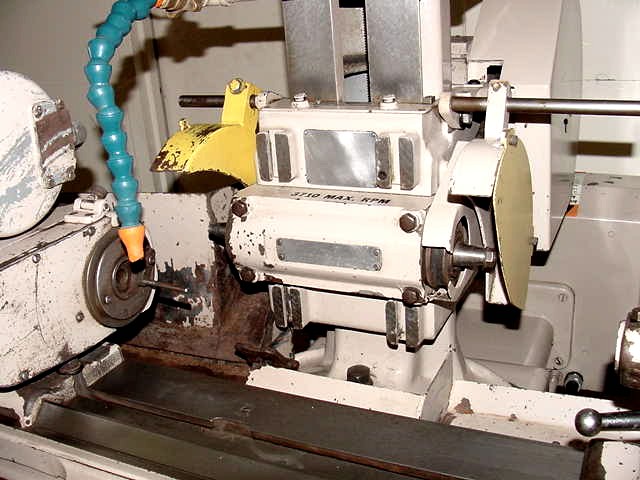

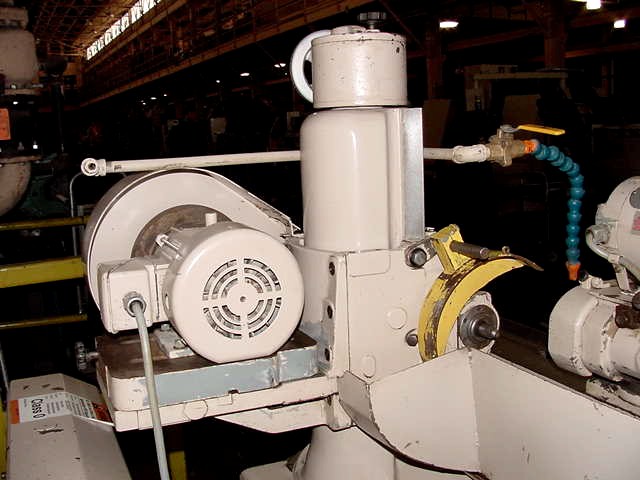

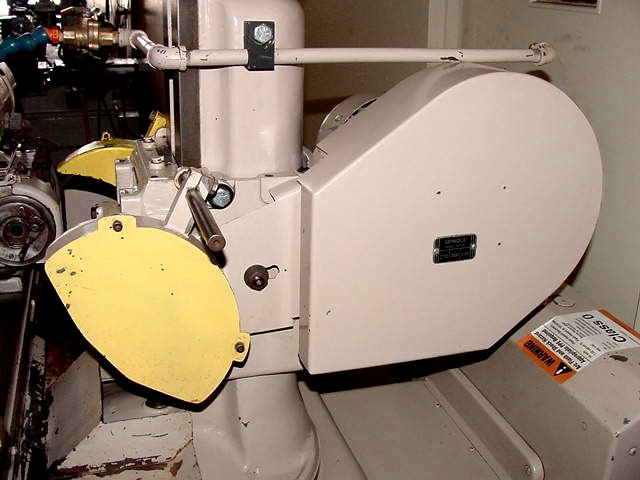

  WHEELHEAD:
 - GRINDING WHEEL SIZE .......... 5, 7" OR 10" DIAMETER

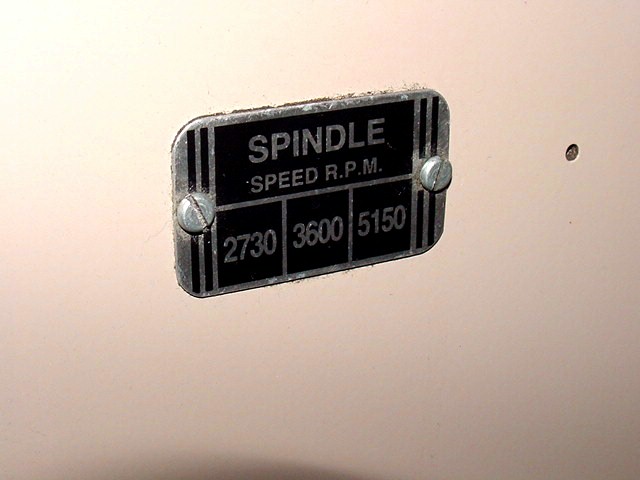

 - GRINDING WHEEL SPEEDS (3) .... 2730, 3600 & 5150 RPM
 - WHEELHEAD TRAVEL ........................... 8-3/8"
 - WHEELHEAD SWIVELS, LEFT & RIGHT ....... 110 DEGREES
 - VERTICAL ADJUSTMENT ........................ 8-3/8"

  SWIVEL TABLE:
 - TABLE SIZE ..................... 6- 1/8" x 44- 1/8"

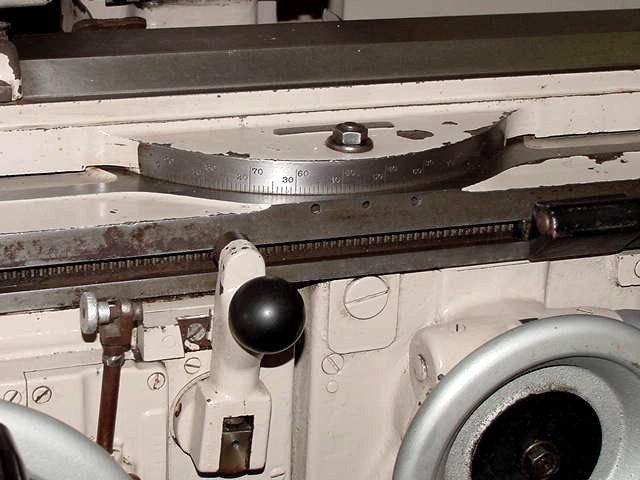

 - ANGULAR SETTING TO LEFT & RIGHT ........ 90 DEGREES
 - FINE SCREW ADJ. FOR SETTING TAPERS UP TO 3" PER FT.
 - TABLE TRAVEL .................................. 22"

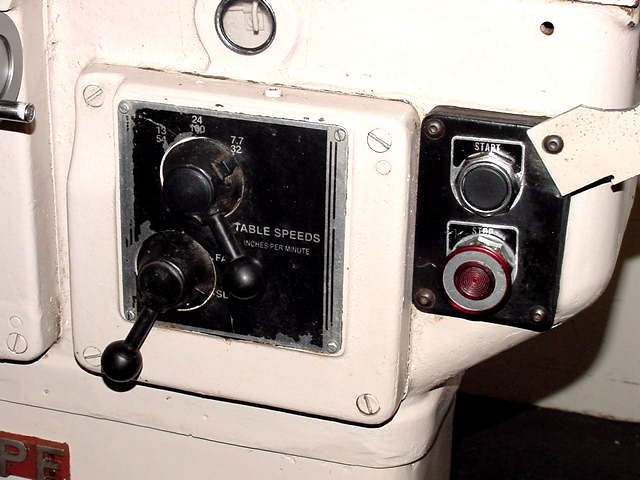

 - POWER TABLE SPEEDS (6) ......... 7-3/4" TO 100" IPM

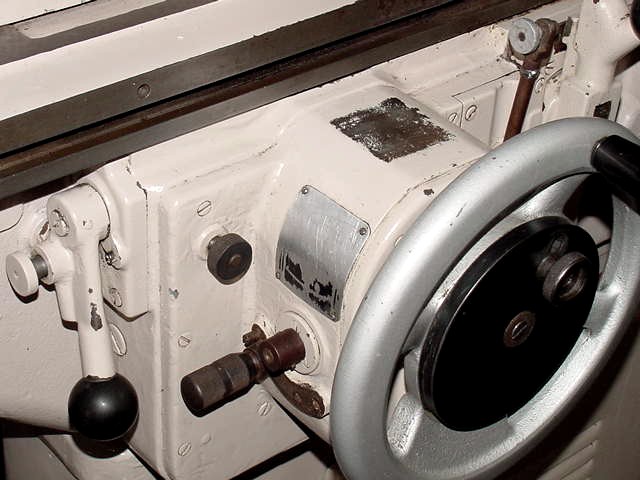

 - TRAVEL PER REV. OF HANDWHEEL ............ 1/4" SLOW
                                          6-1/4" FAST

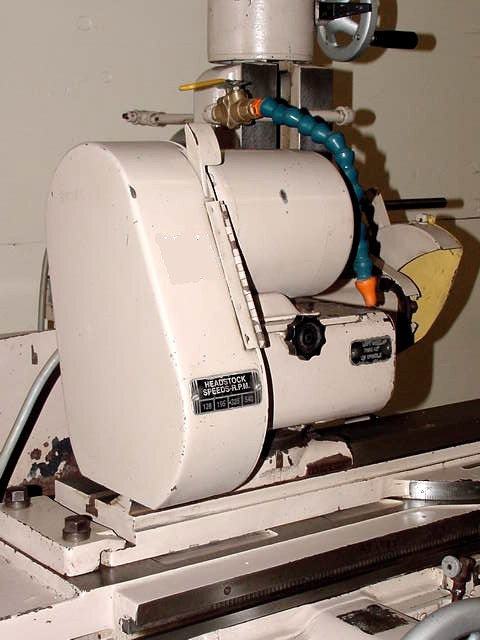

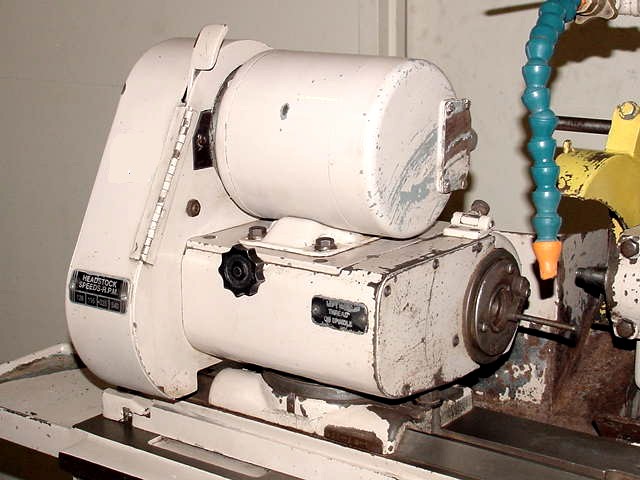

  HEADSTOCK:
 - SWIVELS LEFT & RIGHT .................. 100 DEGREES

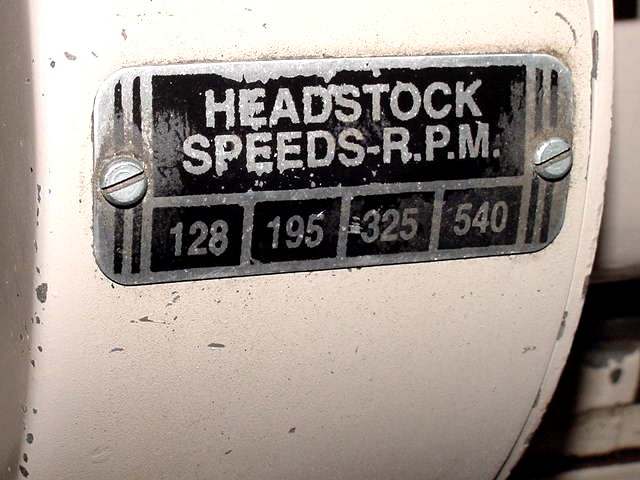

 - SPINDLE SPEEDS (4) ................. 128 TO 540 RPM
 -SPINDLE TAPER ............................. #7 B & S

 APPROX. WEIGHT ........................... 3,000 LBS.


  MACHINE FEATURES:
 UNIVERSAL WHEELHEAD, TABLE & WORKHEAD
 DOUBLE ENDED WHEEL SPINDLE
 MACHINE CAN USE 5", 7" OR 10" DIAMETER GRINDING WHEELS
 DUAL LIVE/DEAD HEADSTOCK SPINDLE
 POWER TABLE TRAVERSE OPTION
 FINE CROSS FEED KNOB (.0001" ON WORK DIA.)

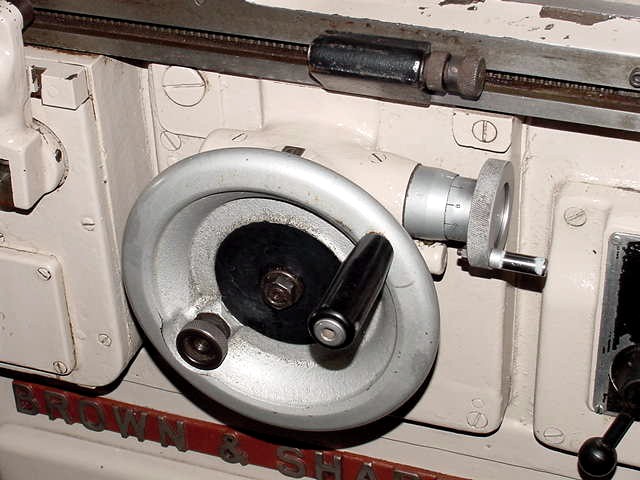

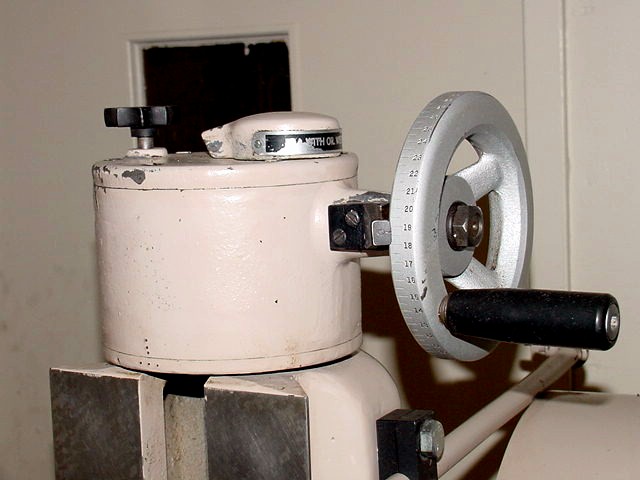

 VERTICAL HANDWHEEL GRADUATED TO READ .0005"
 ANTI-FRICTION BEARING WHEELHEAD SPINDLE
 1 H.P. WHEELHEAD MOTOR
 1/6 H.P. WORKHEAD MOTOR
 3/60/220-440 VOLT MOTORS


  ** VALUED BY TOOLMAKERS FOR THEIR VERSATILITY, THIS
 MACHINE HAS BROAD ADAPTABILITY FOR GRINDING THE
 CONTOURS OF MILLING CUTTERS, REAMERS, FORM TOOLS
 DOING CYLINDRICAL GRINDING AS REQUIRED BY THE
 TYPICAL SHOP.

  * * VERY GOOD CONDITION & APPEARANCE * *
 ** INSPECT UNDER POWER IN OUR N.Y.C., N.Y. WAREHOUSE **
