Reference Number: 140104

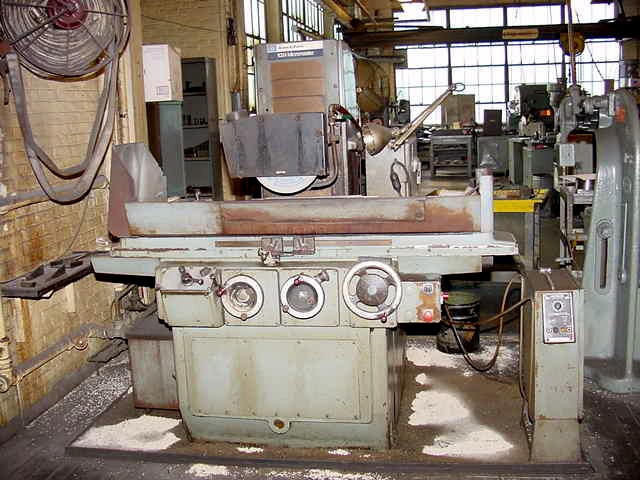

10" X 24" BROWN & SHARPE "SUPER-PRECISION"Price: On Request
(MADE IN USA) HYDRAULIC SURFACE GRINDER
MODEL: #1024 MICROMASTER

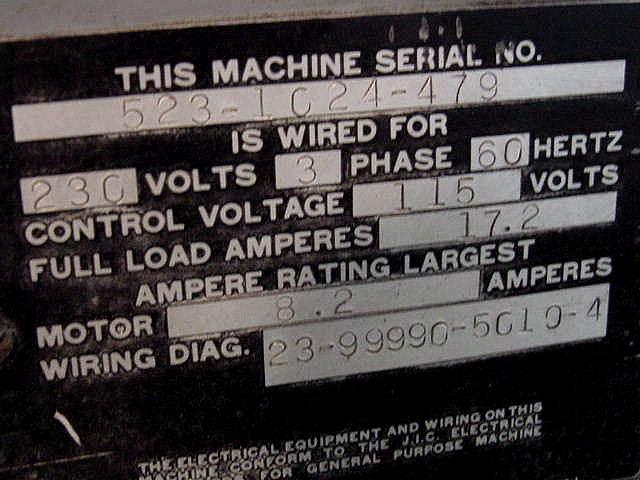

S/N: 523-1224-479
NEW: 1978
WORKTABLE SIZE.............................. 10" X 24"
GRINDS WORK TO HEIGHT OF............ 18" (W/14" WHEEL)
WHEEL SIZES........................ 14" X 1- 1/2" X 5"
DIRECT DRIVE SPINDLE MOTOR............ 5 HP - 1800 RPM
LONGITUDINAL TABLE SPEED ................ 10 - 125 FPM
AUTO CROSSFEED PER TABLE REVERSAL ...... 0.010 - .500"
POWER WHEEL TRUING ........................... 10" IPM

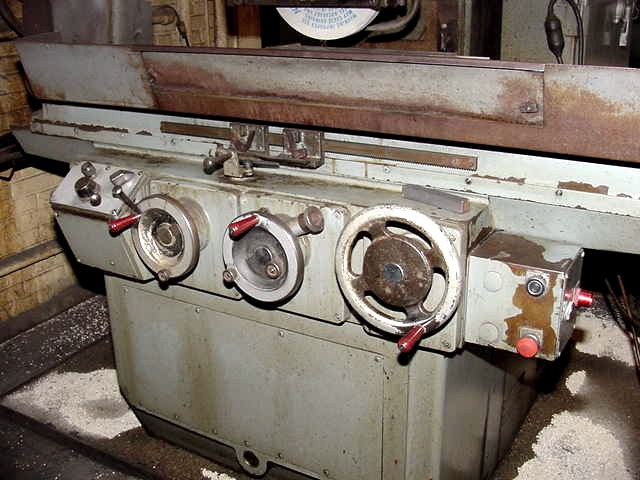

CROSS HANDWHEEL, GRAD. ....................... 0.0002"
RAPID TRAVERSE POSITIONING.................... 150 IPM
RAPID VERTICAL POWER POSITIONING............... 40 IPM
VERTICAL HANDWHEEL, GRAD. .................... 0.0002"
FINE FEED KNOB (GRAD.) FOR VERTICAL FEED ..... 0.0001"
APPROX. MACHINE WEIGHT ..................... 6,000 LBS
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
POWER RAPID WHEELHEAD POSITIONING (UP & DOWN)
14" GRINDING WHEEL

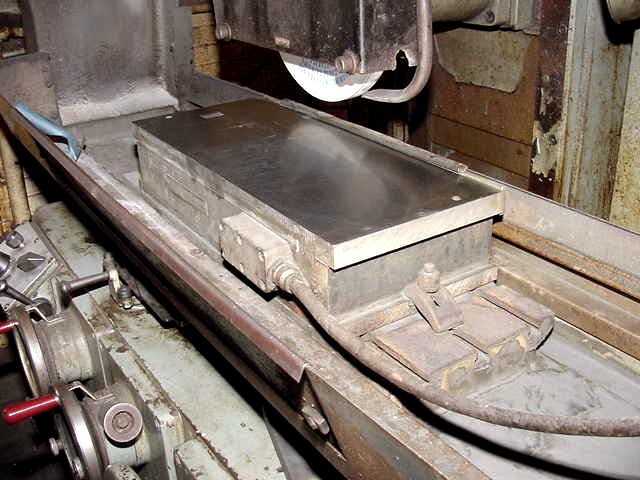

10" x 24" "HITACHI" CROSS POLE FINE-DIVISION
ELECTRO-MAGNETIC CHUCK
"ELECRO-MATIC" 300 WATT NEUTROFIER CONTROL
W/VARIABLE HOLD CONTROL
FINE FEED KNOB FOR VERTICAL HANDWHEEL (.0001" GRAD.)
COOLANT SYSTEM
AUTO LUBRICATION
5 H.P. 3/60/230-460 VOLT BROWN & SHARPE SUPER-PRECISION
DIRECT DRIVE SPINDLE
OIL COOLER UNIT W/FAN
PRESENTLY WIRED FOR 3/60/230 VOLTS
* EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) *
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
