Reference Number: 140123

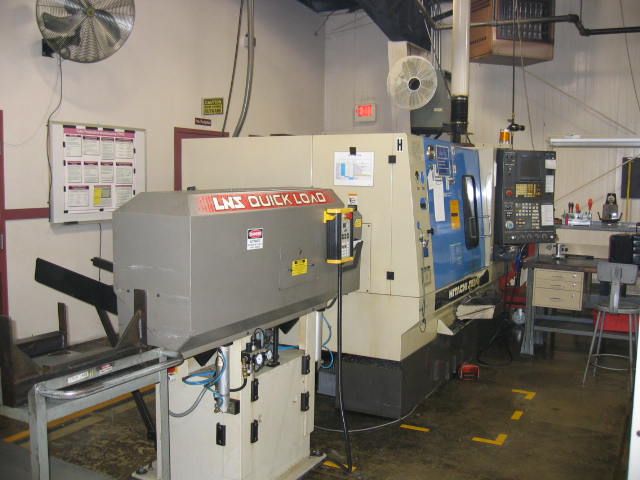

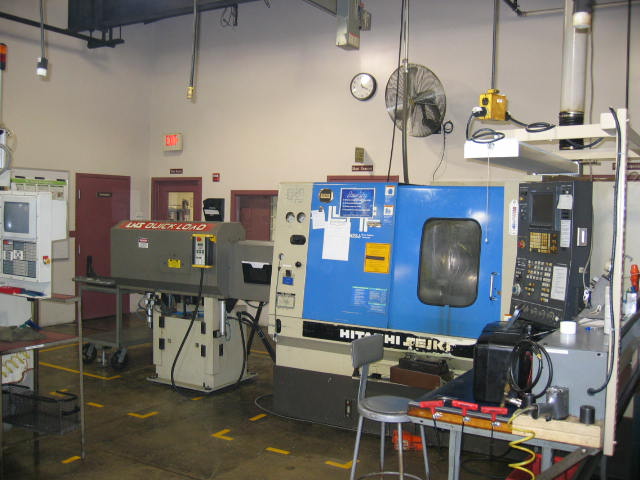

NEW 1999: HITACHI SEIKI HT23J High Performance CNC Turning Center,Price: On Request
S/N HTJ3409HL w/KV QC Tool Turret
Swing over bed: 17.7"
Collet chuck, Hardinge: S30 collet pads
Maximum turning diameter: 13.3"
Standard turning diameter: 10"
Maximum turning length: 24.8"
Bar work capacity: 2.75"
Spindle speed: 20 – 4000 rpm
Number of speed ranges: Stepless
Spindle nose: A2-8
Spindle through hole diameter: 3.0
Main bearing ID: 4.3"
X-axis travel: 8.5"
Z-axis travel: 24.8"
No. of tools: 10
Turning tool dimension OD/ID: 1/1.5"
Indexing time: 0.1 sec.
Rapid traverse, X & Z axes: 1181 ipm
Feed per revolution: 0.0001" – 20"
Jog feedrate: 0 – 200 ipm
Tailstock travel: 20.5"
Tailstock spindle taper: MT#5
Tailstock travel type: Power op.
Spindle drive motor: 20 HP
Feed drive motor, X & Z axes: 2.4 HP
Electric power supply: 22 kVA
Machine weight: 10,560 lbs.
EQUIPPED WITH:
- Seicos L Multi CNC Control
- LNS Quick Load Bar Feeder
- Chip Conveyor
- Hardinge S30 Collet Chuck for S30 Pads
- "Q" (Quick) Tool Setter
- Power Tailstock
- Coolant System
- 20 HP Main Motor
- Spindle Liners
- (10) Tool Holders
