Reference Number: 140133

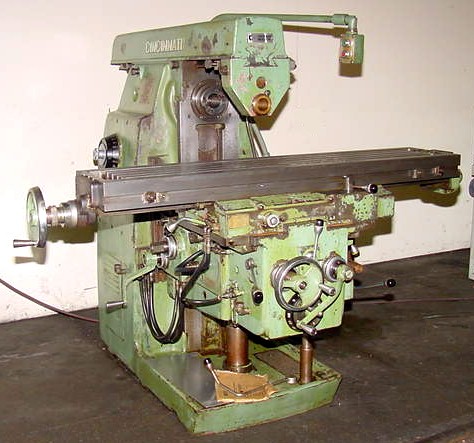

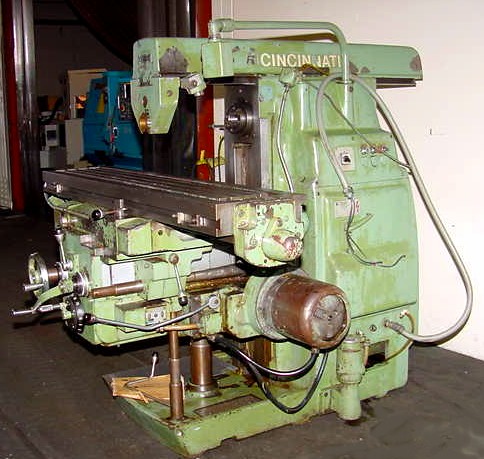

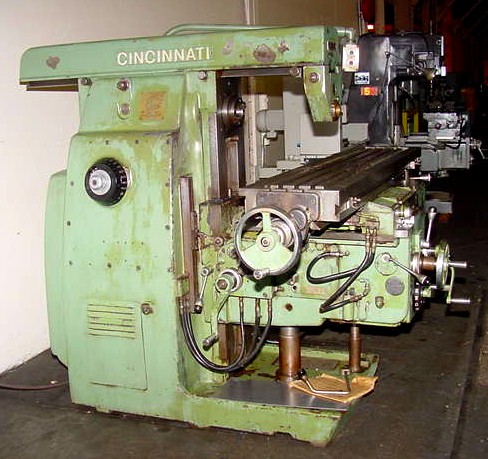

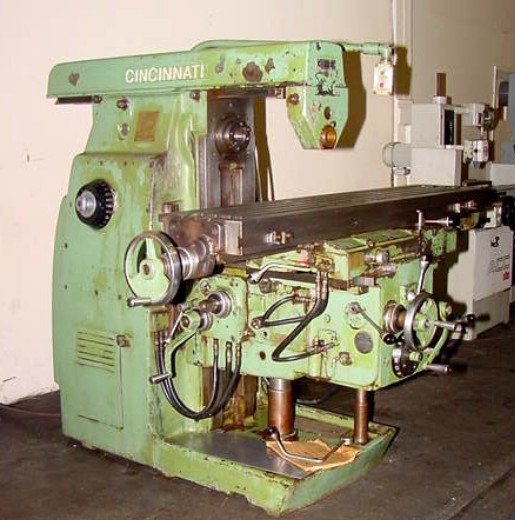

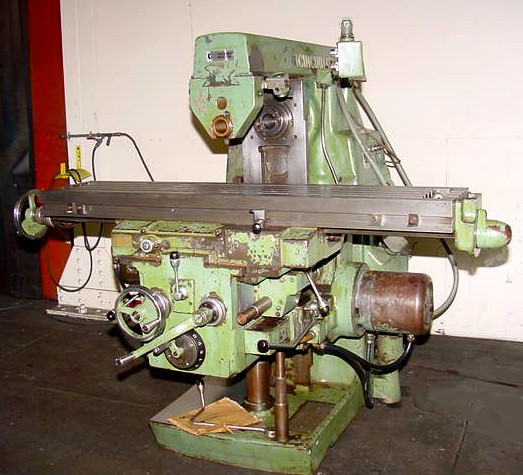

CINCINNATI-MILACRON PLAIN HORIZONTAL MILL

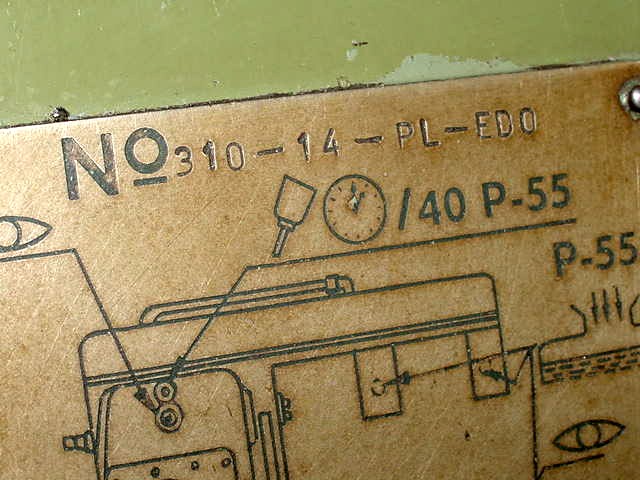

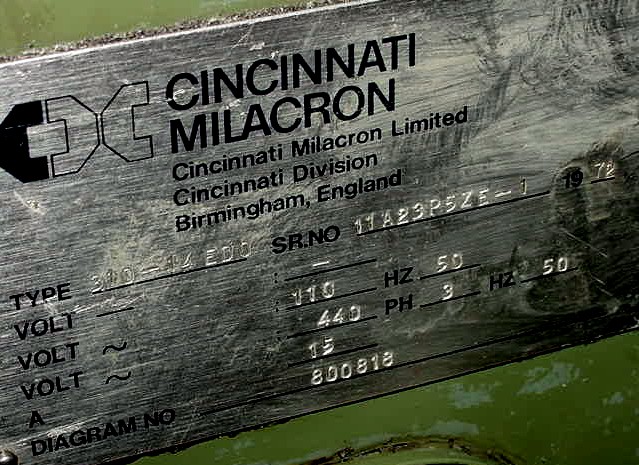

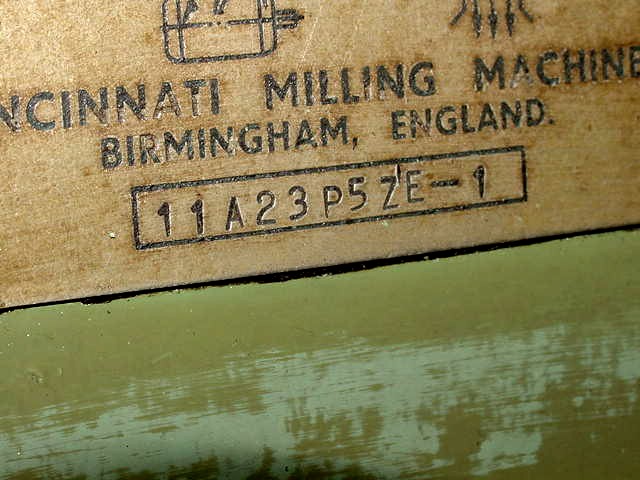

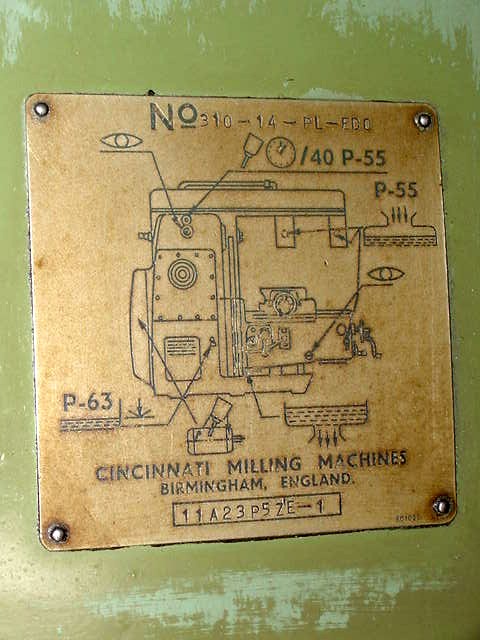

MODEL: 310-14, S/N: 11A23P5ZE-1, NEW: 1972
SPECIFICATIONS:

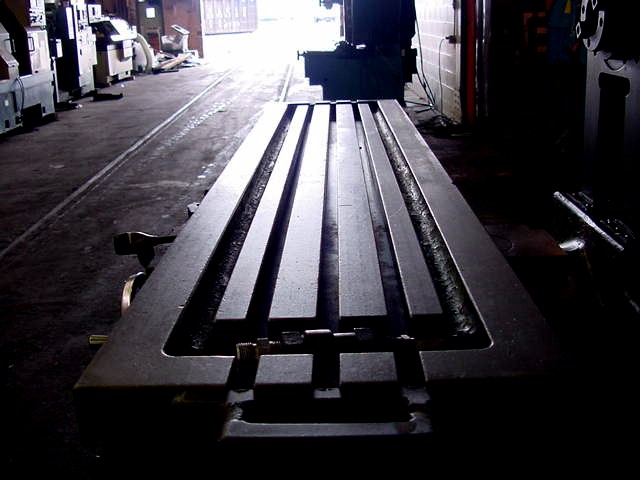

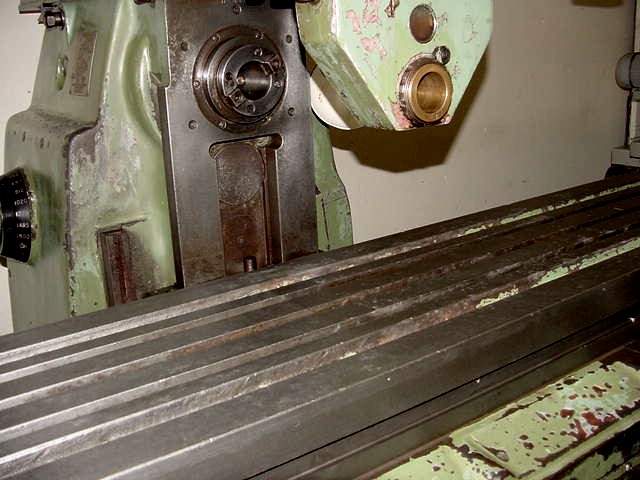

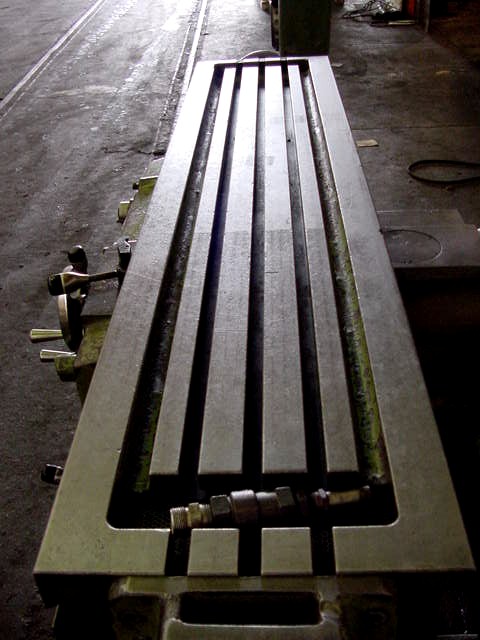

WORKING SURFACE OF TABLE ................ 65-1/4" X 14"
LONGITUDINAL TRAVEL OF TABLE ...................... 34"
CROSS TRAVEL OF TABLE ............................ 12"
VERTICAL TRAVEL OF KNEE ........................... 20"
DISTANCE SPINDLE TO TABLE .......... 0" MIN. / 20" MAX.
SPINDLE TAPER ..................................... #50

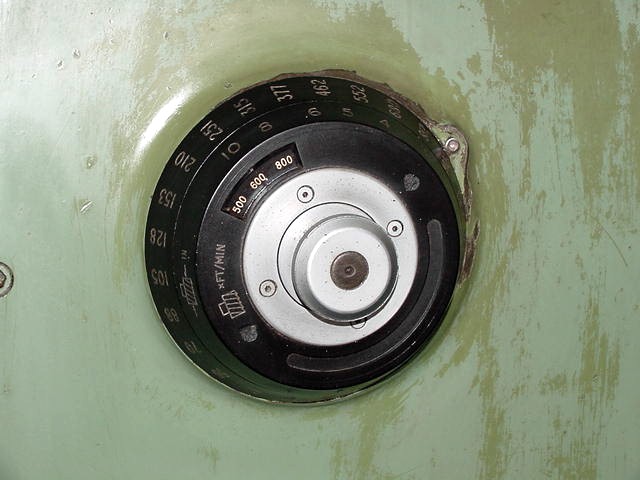

SPINDLE SPEED RANGE (24) ................ 18 - 1800 RPM
TABLE FEEDS LONGITUDINAL & CROSS (16) .... 1/2 - 60 IPM
VERTICAL KNEE FEEDS .............. 1/2 OF LONG. & CROSS
POWER RAPID TRAVERSE FOR LONG & CROSS ......... 150 IPM
POWER RAPID TRAVERSE FOR VERTICAL KNEE ......... 75 IPM
APPROXIMATE WEIGHT ......................... 10,000 LBS
EQUIPPED WITH:

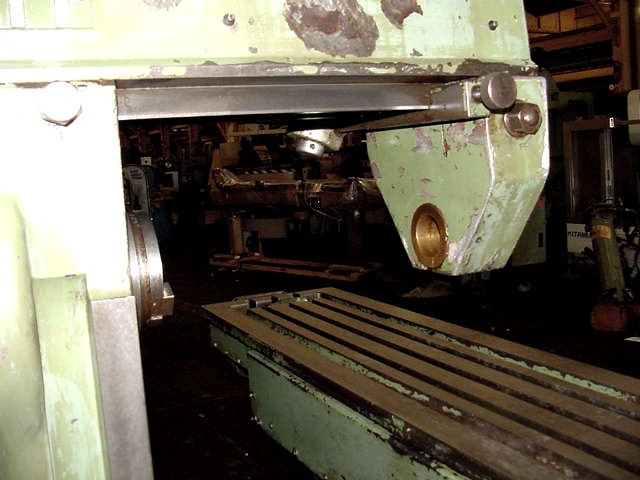

ARBOR SUPPORT
10 HP DRIVE MOTOR
*INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE*
