Reference Number: 140141

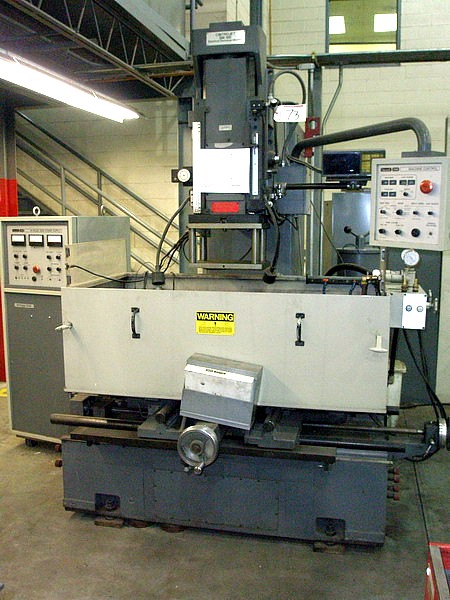

HANSVEDT "VERY LARGE CAPACITY" RAM TYPE EDM

 **** MADE IN USA ****


 MODEL: CINTROJET 18E      S/N: J12101      NEW: 06/1992



 WORK TABLE SIZE ...................... 41" x 25- 1/2"
 LONGITUDINAL TABLE TRAVEL ............ 40"
 CROSS TRAVEL ......................... 20"
 WORTANK SIZE (INSIDE DIMS.) .......... 60" x 30" x 18"H

 PLATEN SIZE .......................... 10" x 15- 3/8"
 PLATEN TO TABLE ...................... 11" MAX., 23" MIN.
 THROAT DISTANCE ...................... 22- 1/4"
 RAM TRAVEL ........................... 12"
 MAX. WEIGHT ON PLATEN ................ 1,650 LBS.
 MAX. WORKPIECE WEIGHT ON TABLE ....... 4,000 LBS.

 DIELECTRIC RESEVOIR (MACHINE BASE).... 210 GALS.
 WORKTANK TANK CAPACITY ............... 140 GALS.
 HYDRAULIC RESEVOIR ................... 20 GALS.

 APPROX. WEIGHT ....................... 10,700 LBS.
 APPROX. DIMS. ........................ 116" x 114" x 93"H

 EQUIPPED WITH:

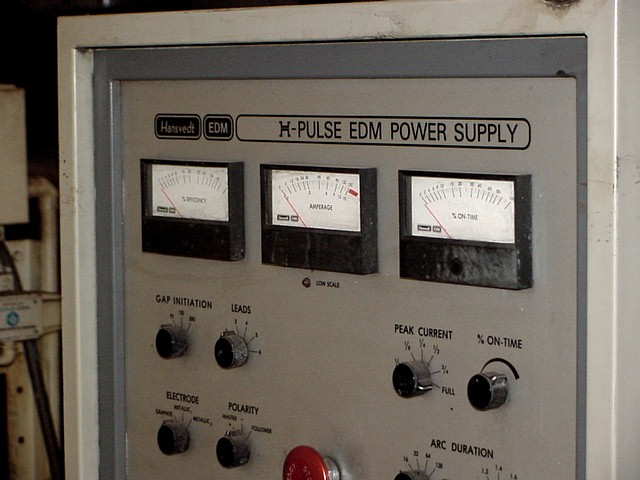

 HANSVEDT "H-PULSE" MODEL #1506 150 AMP POWER SUPPLY
  (S/N: AR12706) (NEW 06/1992)

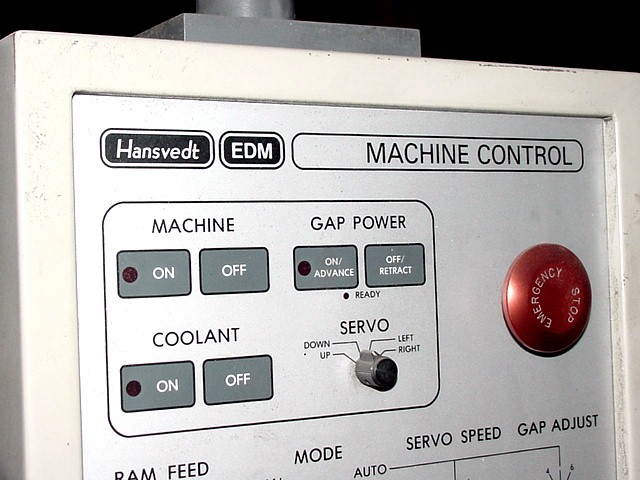

  -SIMPLE, UNDERSTANDABLE SPARK & SERVO CONTROLS
  -SERVO CONTROLS FEATURING DITHER, MANUAL, EDGE FINDER,
  AUTO RETRACT, AUTO LOCK, ORBIT STOP, ORBIT LOCK,
  SERVO SPEED & GAP ADJUST
  -LOW PEAK CURRENT, ARC DURATION (.5 TO 1843 MICROSECONDS)
  & % ON-TIME SELECTIONS FOR ULTRA-FINE FINISHING

 "FUTABA" 3-AXIS DIGITAL READOUT DISPLY
 RAM CYCLER OPTION
 MICROMETER DOWN STOP

 MACHINE IS WIRED FOR 3/60/440 VOLTS

 PARTS & SERVICE AVAILABLE FROM THE "OEM":

 www.hansvedtedm.com

 ** F.O.B. HARRISON, N.J. **
 ** EXCEPTIONAL CONDITION & APPEARANCE **
