Reference Number: 140172

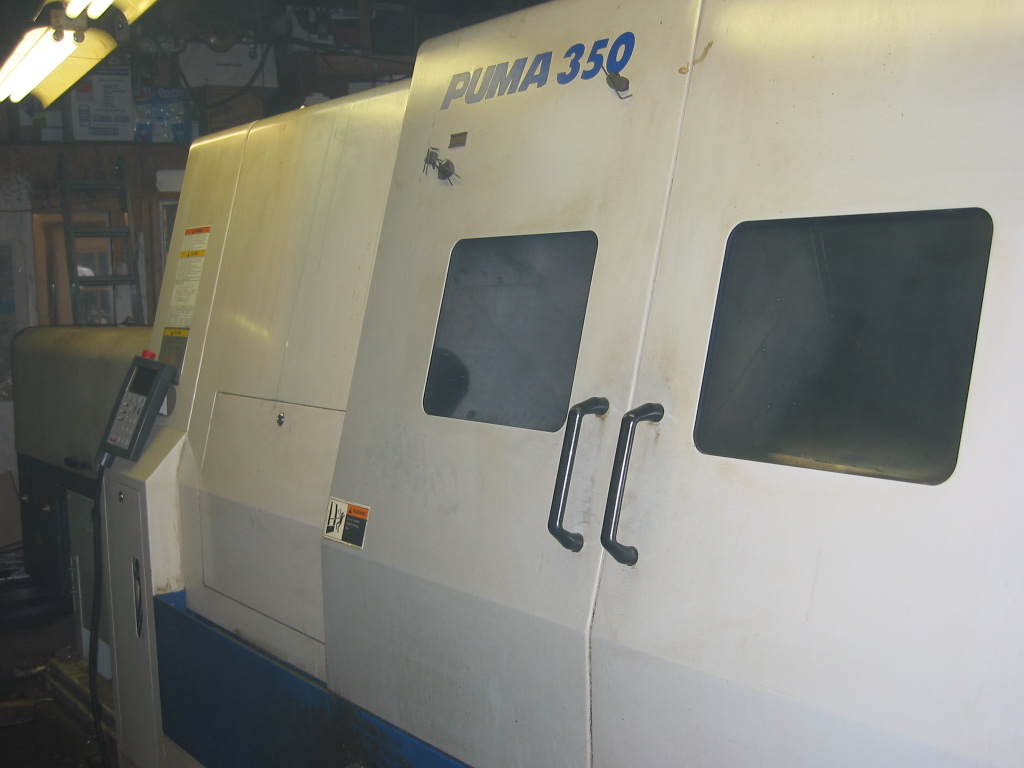

DAEWOO PUMA 350A CNC TURNING CENTER
 NEW: 1999

 CAPACITY:
 Swing over bed                28.0"
 Swing over carriage          18.9"
 Distance between centers     44.1"
 Maximum turning diameter    21.7"
 Maximum turning length       42.5"
 SPINDLE:
 Spindle speed                30 - 3,000 RPM
 Spindle nose                ASA-A2-8
 Draw tube I.D.                3.58"
 Spindle bore diameter          4.02"
 A.C. Spindle Motor (30 min.)    40 HP
 Spindle speed ranges       2
 BED, SADDLE, & CROSS SLIDE:
 X axis travel                14.3"
 Z axis travel             43.5"
 Angle of slant bed          45 degrees
 X axis guideway span          14.2"
 Z axis guideway span          16.5"
 Tailstock guideway span          11.8"
 X axis rapid traverse rate    630 IPM
 Z axis rapid traverse rate    790 IPM
 X / Z axis ball screw dia.    1.6" / 2.0"
 TURRET:
 Number of tools                12
 Turning tool shank size     1.0"
 Boring bar diameter          2.5"
 Turret index time             0.25 sec.
 Tool selection                Bi-directional
 Curvic coupling diameter    12.4"
 TAILSTOCK:
 Tailstock quill diameter    4.7"
 Tailstock quill stroke       4.7"
 Tailstock quill thrust (max.)    2,400 lbs
 Tailstock body stroke       39.4"
 Tailstock spindle taper      MT #5
 COOLANT SYSTEM:
 Coolant pump pressure          65 PSI
 Coolant pump motor          1.5 HP
 Coolant tank  capacity          45 gal.
 HYDRAULIC / LUBRICATION:
 Hydraulic tank capacity          3 gal.
 Way lubrication tank capacity    0.5 gal.
 Floor space (Length X Width)    153" x 94"
 Net weight                    18,970 lbs
 Voltage required             205 - 230 volt / 3 phase
 Power Requirements       47 KVA

 STANDARD EQUIPMENT

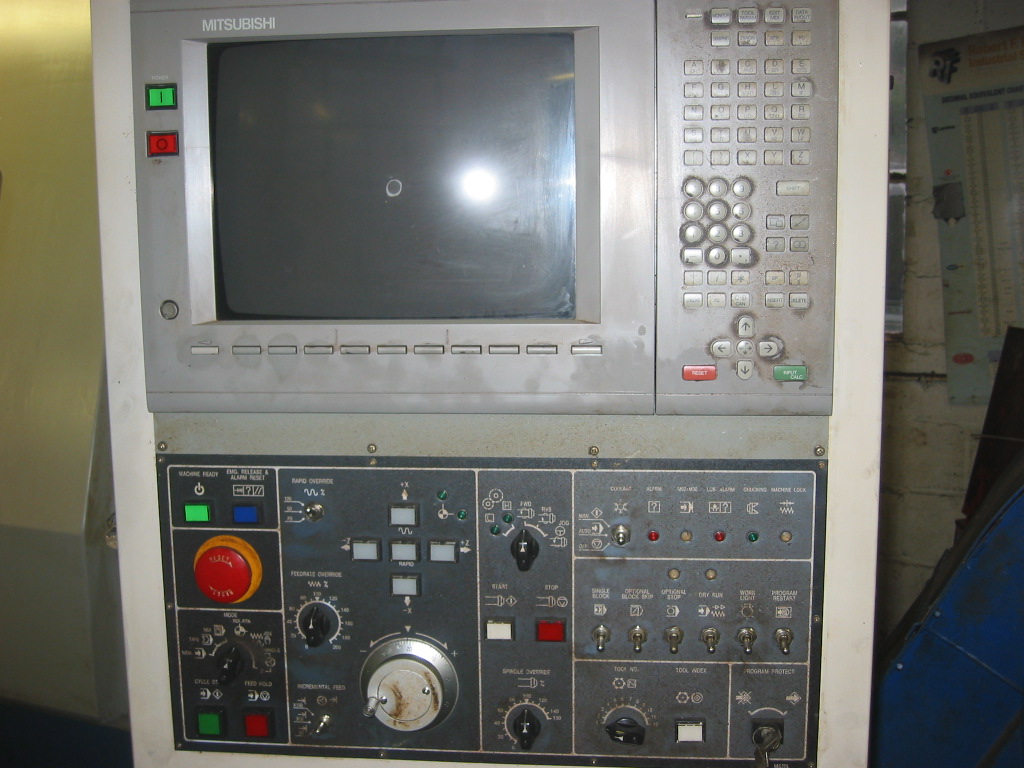

  - Mitsubishi M520L control

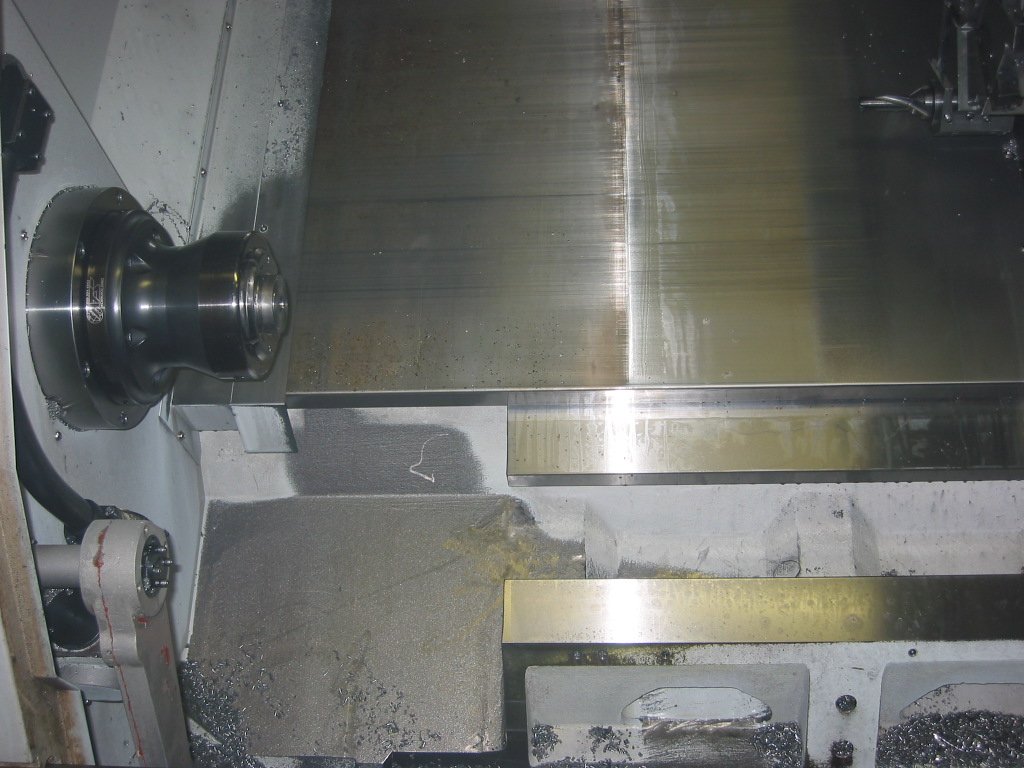

  - Hyd. Collet Chuck
  - Digital A.C. spindle and servo drives

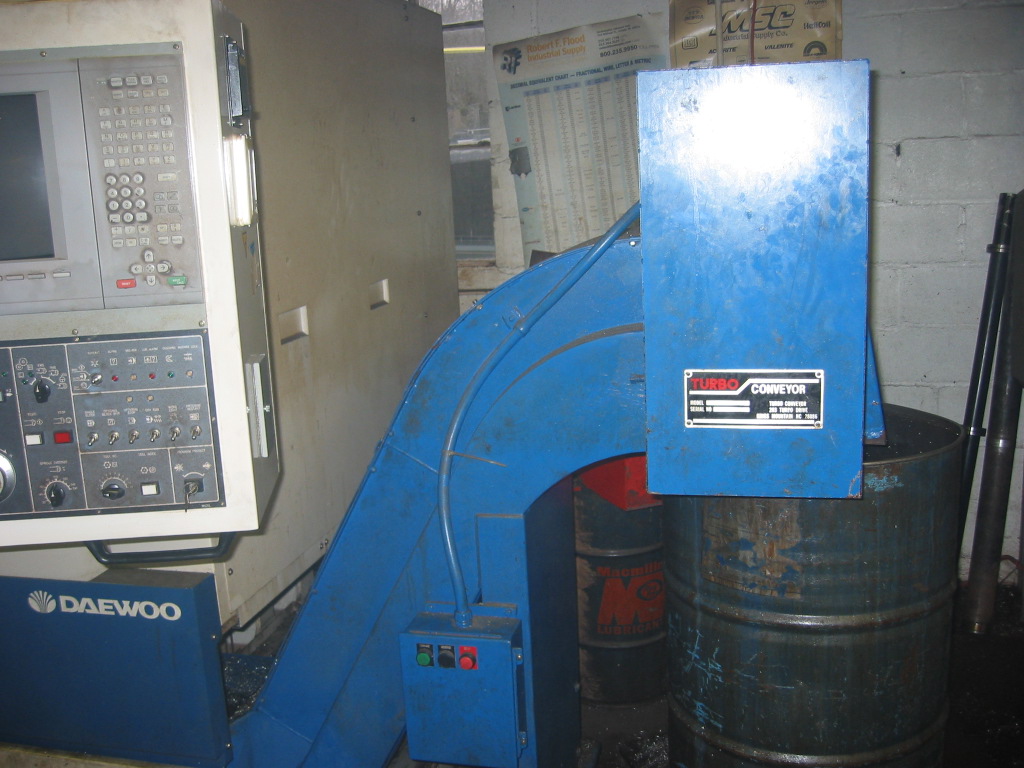

  - Turbo chip conveyor
  - Long stroke hyd. actuator with 3.58" hole (1.97" stroke)

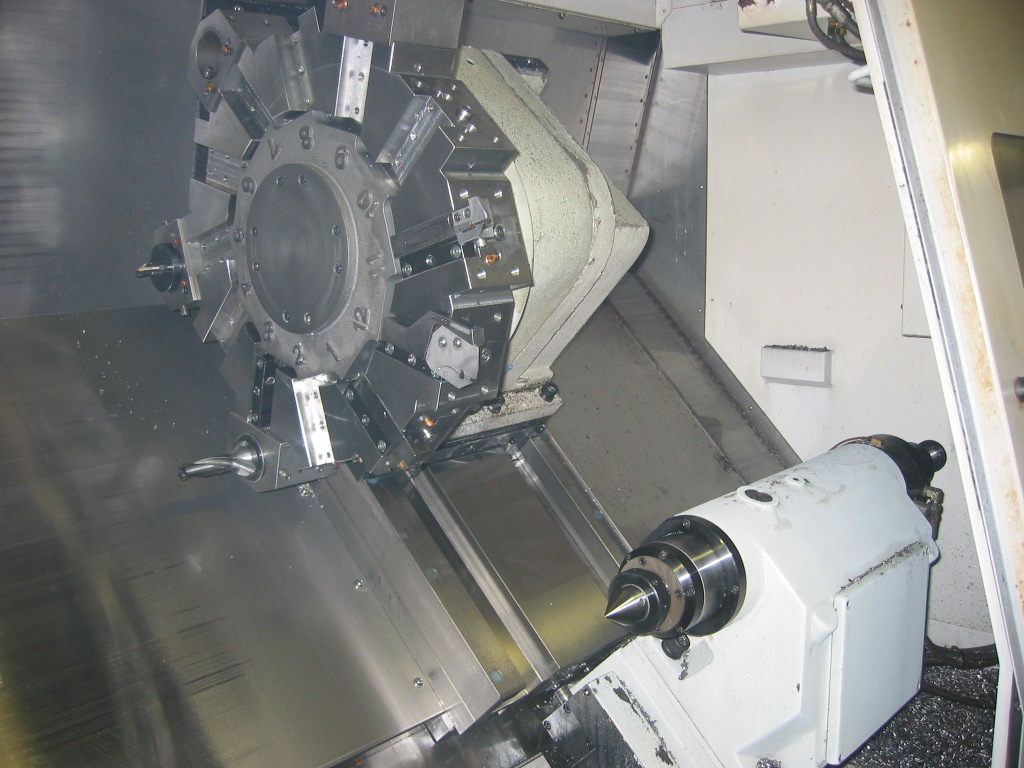

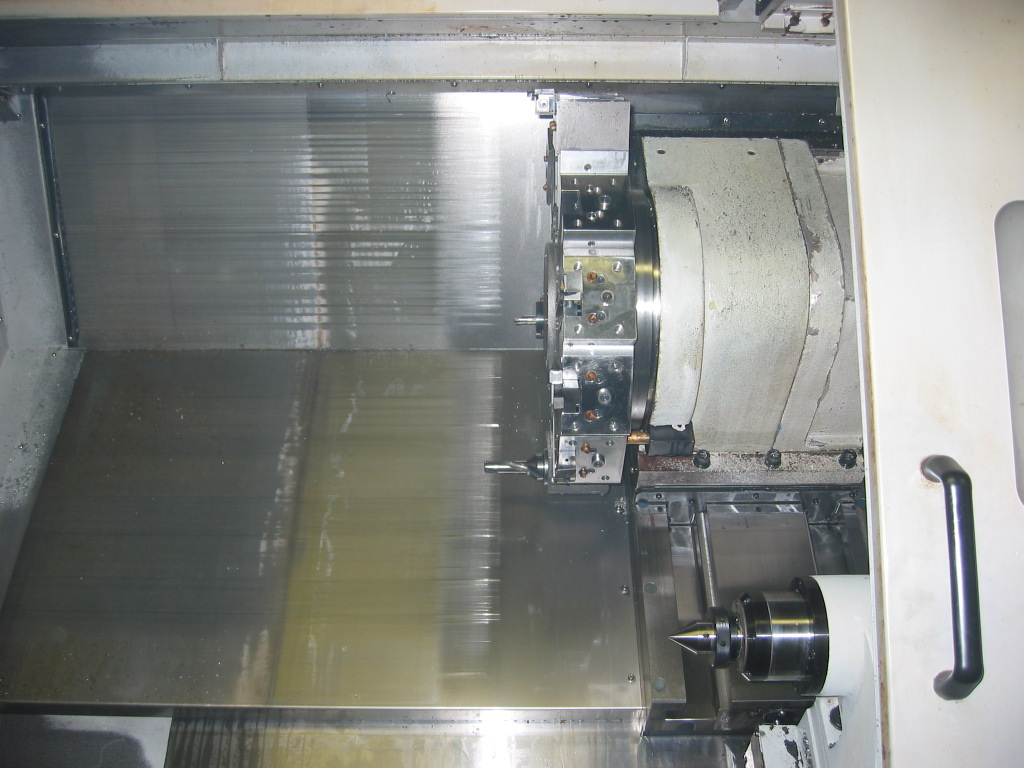

  - Bi-directional 12 station turret with Daikin Index Motor
  - Hydraulic tailstock with programmable body and quill
  - Automatic tool setter
  - MT#5 dead center (tailstock has live spindle)
  - All Available Tool Holders
