Reference Number: 140253

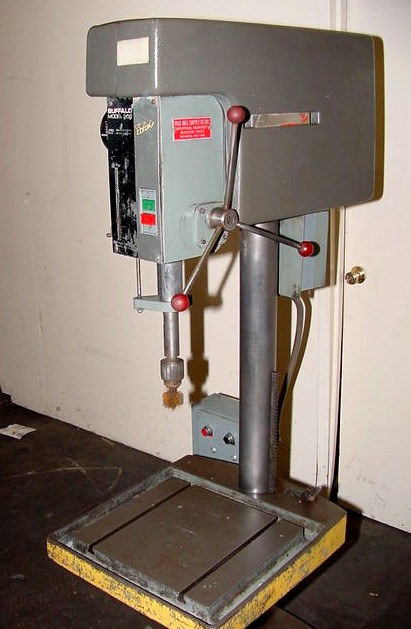

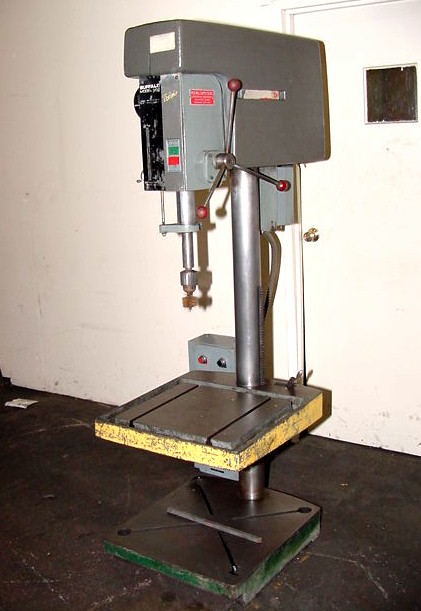

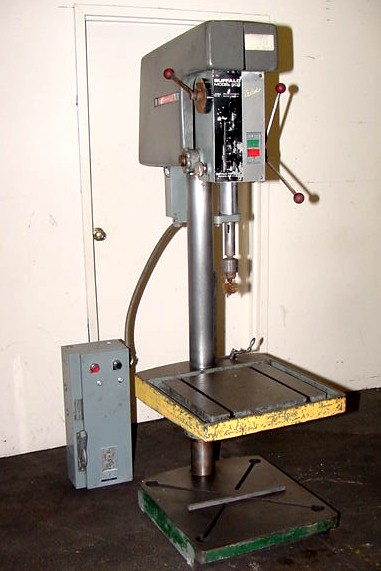

SPECIFICATIONS:20" BUFFALO VARIABLE SPEED DRILL PRESS,
MODEL 200, NEW 1980'S
CAPACITY:
STEEL ............................. 1-1/16" DIAMETER
CAST IRON ......................... 1-1/4" DIAMETER
DRILLS TO CENTER OF CIRCLE ............ 20-1/4" DIAMETER
WORKING SURFACE OF TABLE .............. 16" X 18"
SPINDLE TAPER ......................... #3 MORSE

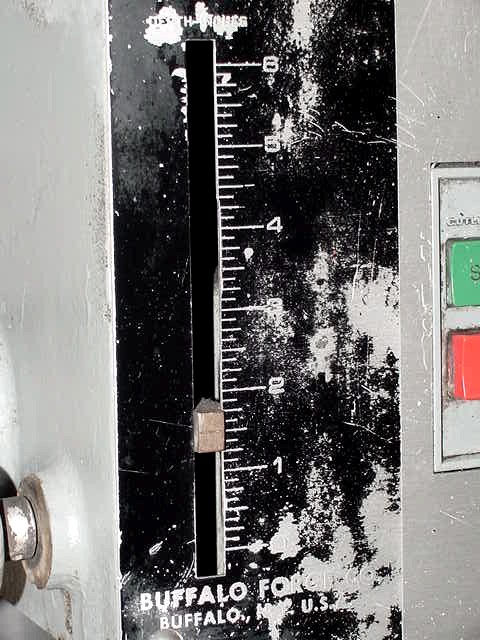

SPINDLE TRAVEL ........................ 6"

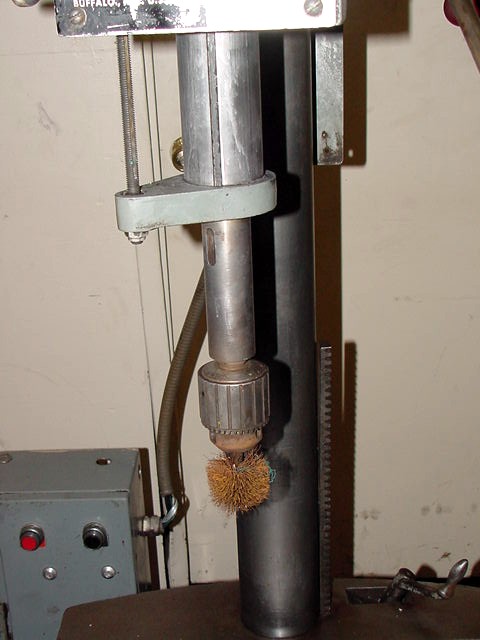

QUILL DIAMETER ........................ 2-3/8"
COLUMN DIAMETER ....................... 3.975" x 1/2" WALL
MAX DISTANCE SPINDLE TO TABLE ......... 33-1/2"
MAX DISTANCE SPINDLE TO BASE .......... 41"
BASE WORKING SURFACE .................. 13" X 15-1/2"

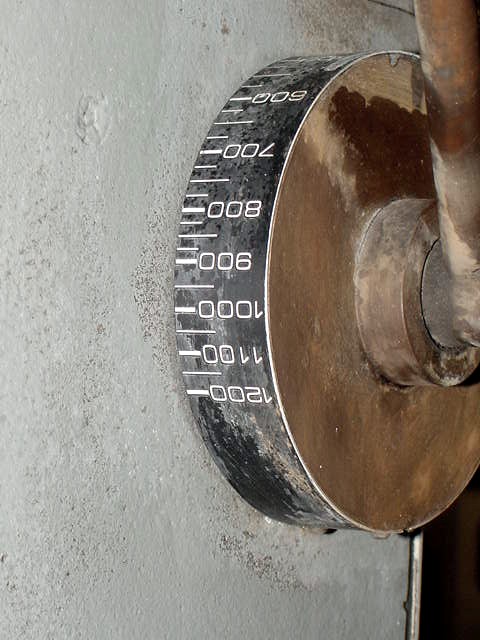

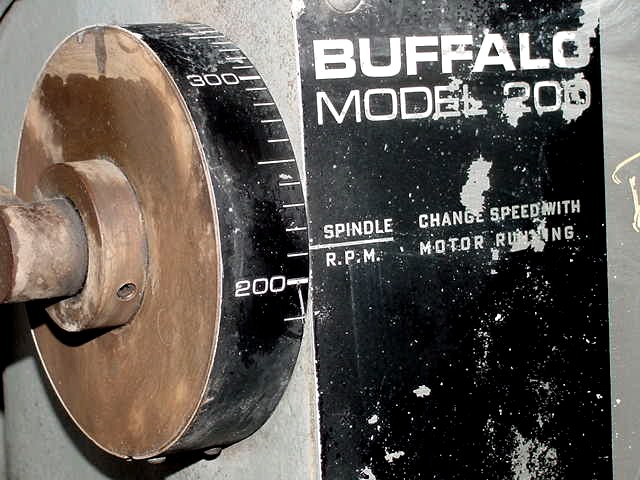

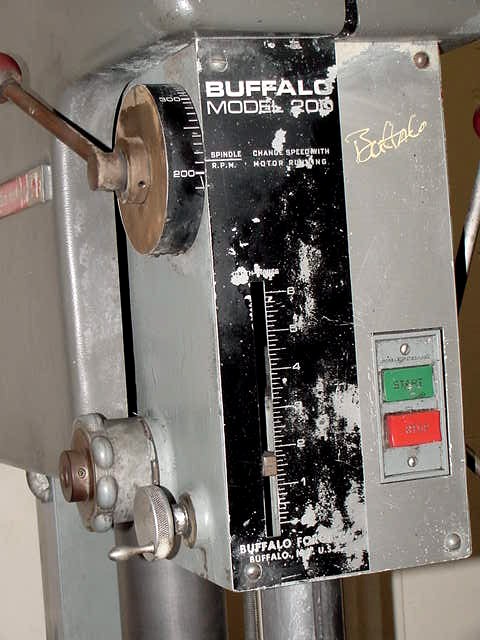

SPINDLE SPEEDS INFINITELY VARIABLE .... 190 - 1,200 R.P.M.
APPROXIMATE WEIGHT .................... 640 LBS.
EQUIPPED WITH:

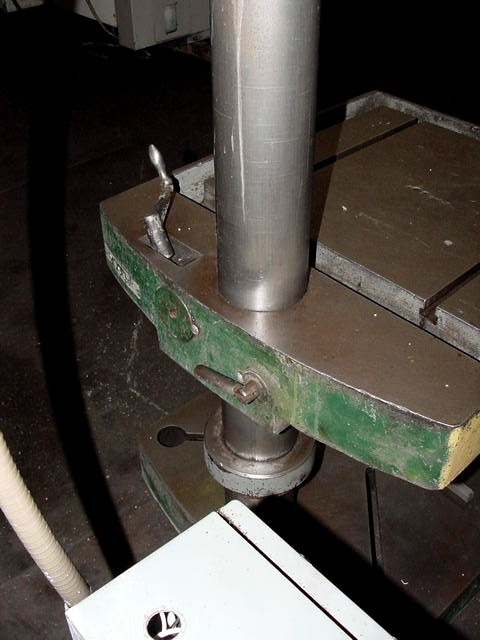

* MANUALLY OPERATED RATCHET-TYPE MECHANISM FOR RAISING/LOWERING OF TABLE

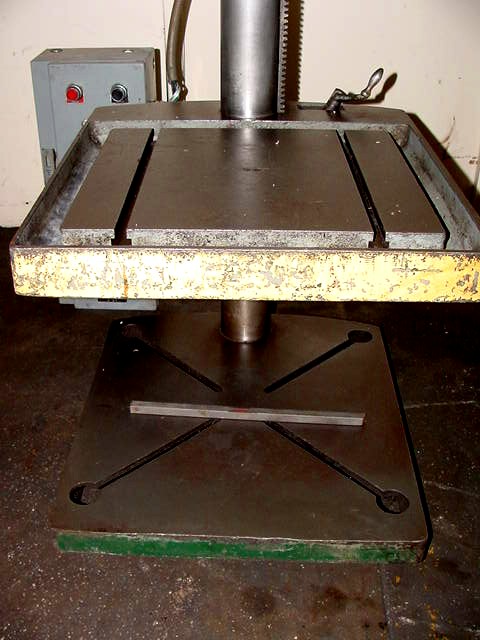

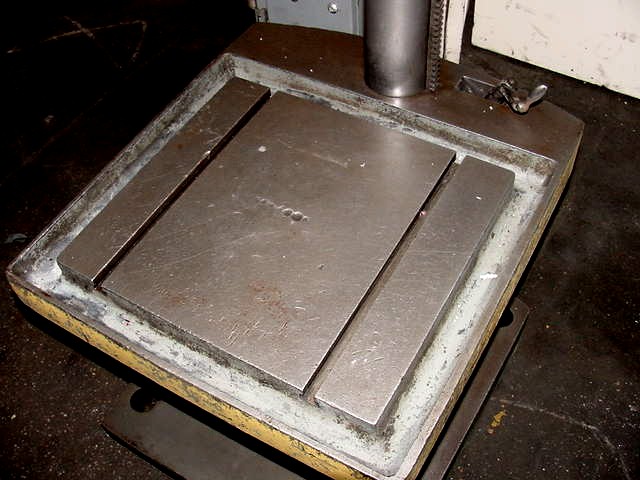

* T-SLOTTED TABLE & BASE

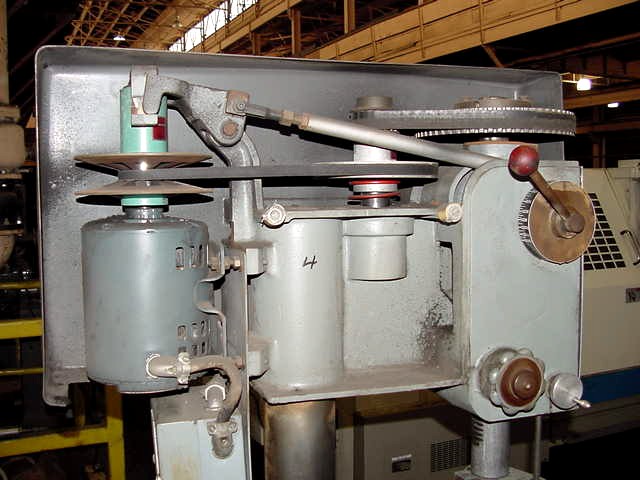

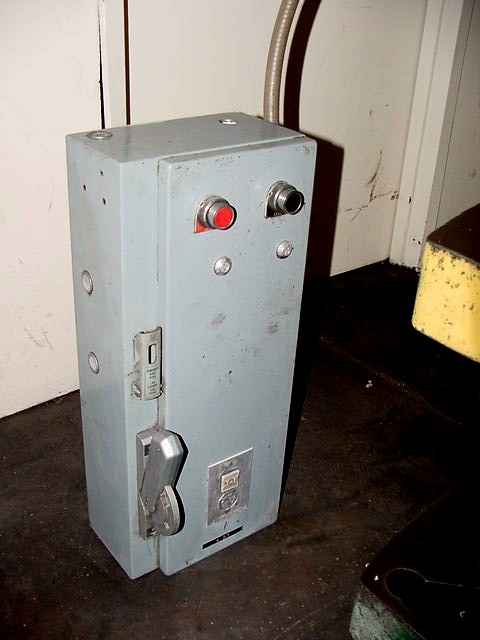

* 1-1/2 H.P. 3/60/440 VOLT DRIVE MOTOR AND ELECTRICAL
CONTROLS
MADE IN AMERICA
CONDITION: **** VERY GOOD ****
