Reference Number: 140344

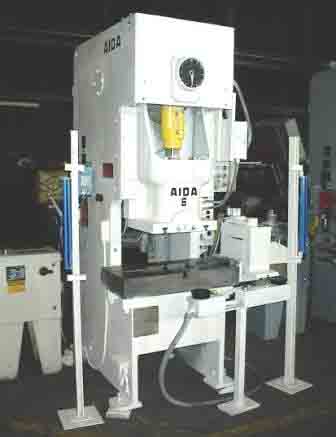

Price: $26,500AIDA
MODEL NC1-6
GAP FRAME SINGLE CRANK PRESS
NEW 1986
SPECIFICATIONS:
CAPACITY: 66 TON
STROKE: 3.54"
SHUT HEIGHT OVER BOLSTER (SDAU): 12.6"
SLIDE ADJUSTMENT (MOTORIZED): 2.75"
BED AREA: 34.25" (L-R) X 15.75" (F-B)
SLIDE FACE AREA (T-SLOTTED): 18.9" (L-R) X 15.8" (F-B)
OPENING THROUGH BACK: 22"
THROAT DEPTH: 11.5"
SPEED (VARIABLE): 60-120 SPM
PNEUMATIC WET CLUTCH & BRAKE WITH SELECTOR CONTROLS
ARRANGED FOR KNOCKOUT L-R
WELDED ALL STEEL FRAME
WEIGHT (APPROX): 11,000 LBS.
DIMENSIONS (APPROX): 51" (L-R) X 51" (F-B) X 105" (H)
EQUIPPED WITH:
(2) AIR COUNTERBALANCE CYLINDERS TO SLIDE
HYDRAULIC OVERLOAD PROTECTION
BOLSTER PLATE 5" THICK
AUTOMATIC LUBRICATION SYSTEM
ELECTRICAL VARI-SPEED DRIVE
MAIN DRIVE MOTOR 7.5 HP
ELECTRICAL CONTROLS
DUAL PALM BUTTON OPERATION
