Reference Number: 140446

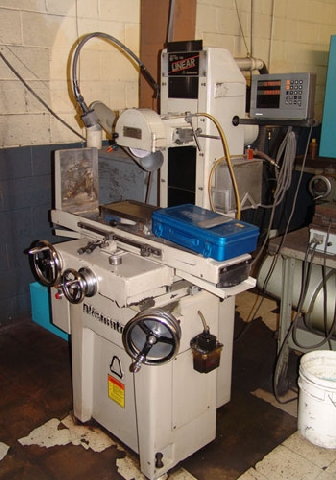

6" x 12" OKAMOTO "PRECISION" HAND FEED SURFACE GRINDERPrice: On Request
w/ROLLER BEARING TABLE
"HEIDENHAIN" 2X DIGITAL READOUT (.00005" RESOLUTION)
MODEL: LINEAR 612/14 S/N: 2928U NEW: 1993
WIDTH & LENGTH GROUND ........................... 6" X 12"
TABLE TO SPINDLE CENTER .............................. 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ............... 11"
LONGITUDINAL TABLE TRAVEL .............................14"
CROSS TRAVEL ......................................... 8"
GRINDING WHEEL CAPACITY ............ 8" X 1" X 1-1/4" BORE
CROSS FEED HANDWHEEL VERNIER READS TO ........... 0.0001"
VERTICAL FEED PER REV. OF HANDWHEEL
(0002" GRAD.) ....................... .......... 0.0500"
APPROX. WEIGHT ............................... 1,500 LBS.
APPROX. DIMENSIONS ...................... 58" X 46" X 71"H
EQUIPPED WITH:
"HEIDENHAIN" 2-AXIS DIGITAL READOUT (.00005" RESOLUTION)
LONGITUDINAL TABLE TRAVEL ON LINEAR BALL BEARINGS DRIVEN
BY CABLE SYSTEM
HARDENED AND GROUND WAYS ON TABLE, SADDLE AND COLUMN
MANUALLY OPERATED ONE SHOT LUBRICATION SYSTEM
O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK
HALOGEN WORK LIGHT
SET-UP FOR DRY GRINDING
2 H.P. 3/60/230-460 VOLT HIGH PRECISION CARTRIDGE-TYPE
SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS
PRESENTLY WIRED FOR 230 VOLT OPERATION
* * EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
