Reference Number: 140456

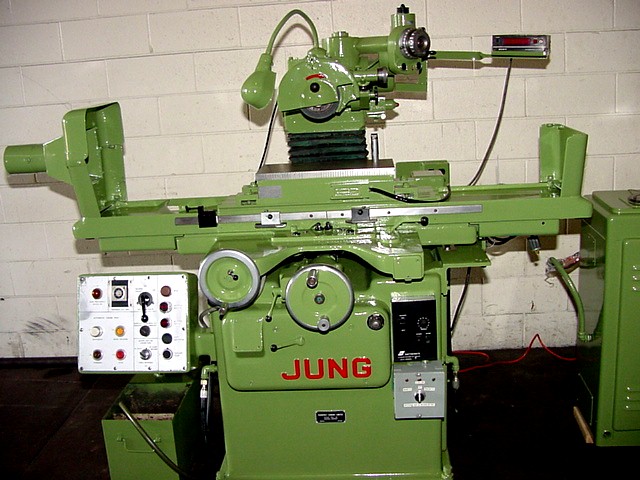

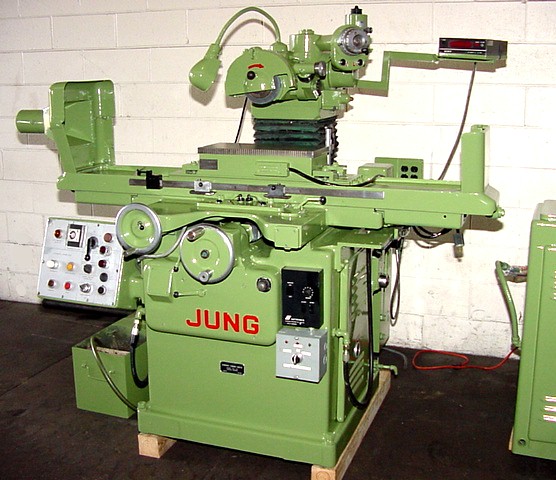

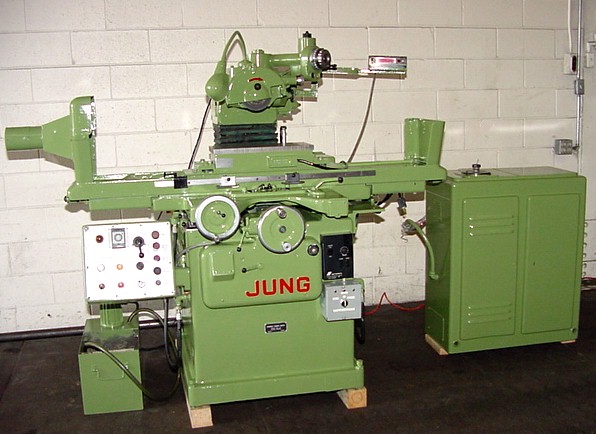

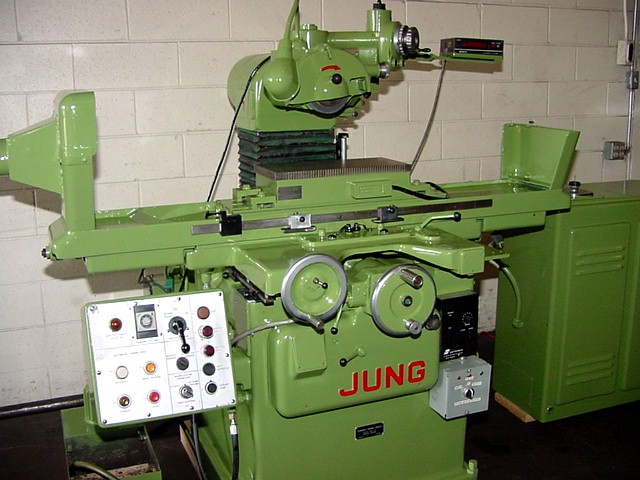

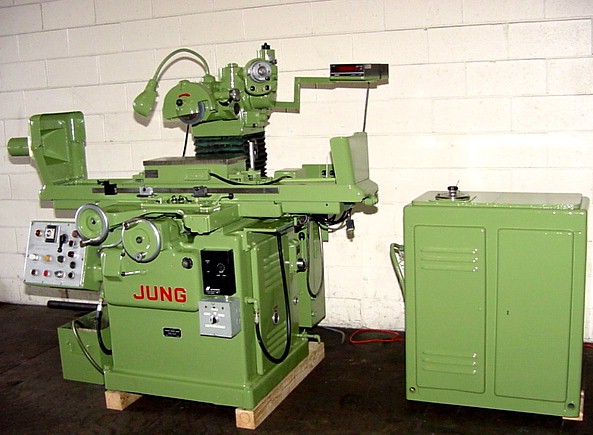

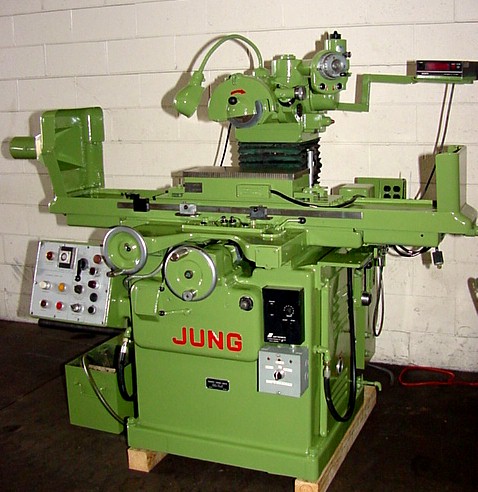

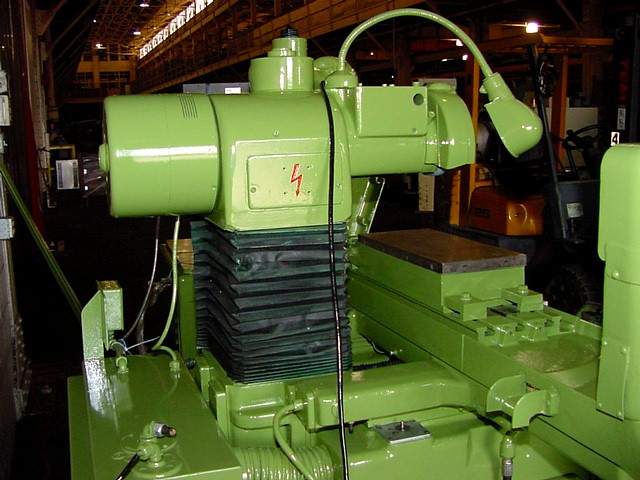

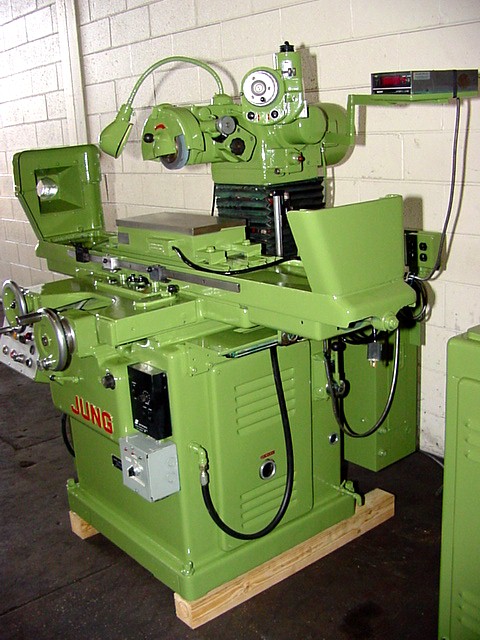

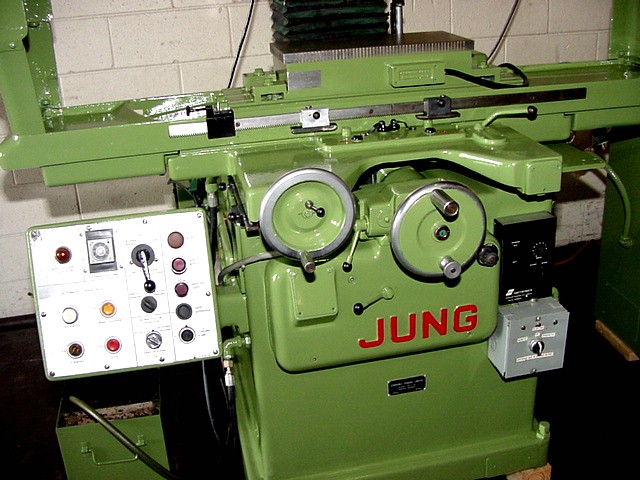

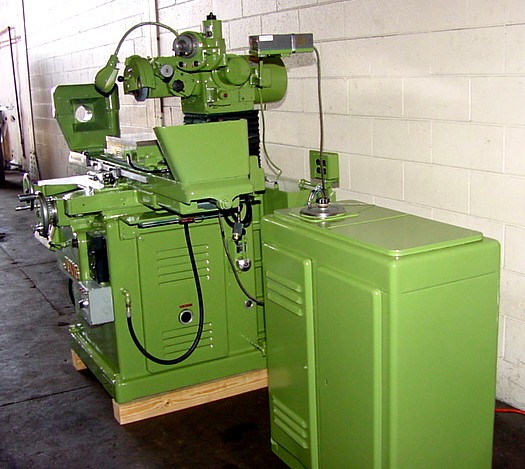

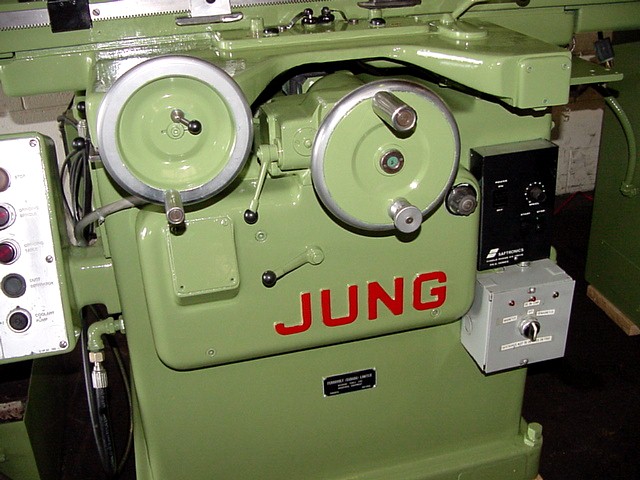

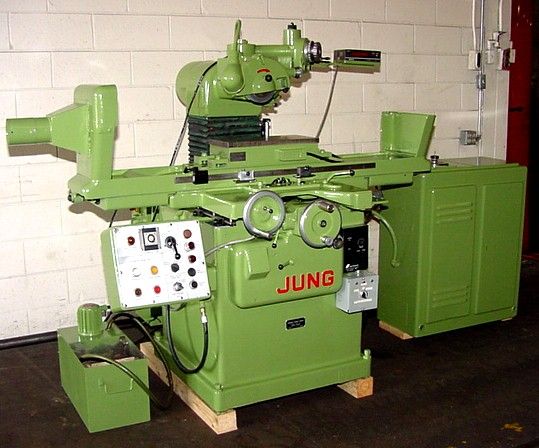

JUNG (GERMAN) "HIGH PRECISION" SURFACE GRINDERPrice: On Request
WITH AUTO INCREMENTAL DOWNFEED
MODEL: HF5ORD NEW: 1968
** SPECIAL NOTE:
THIS IS A SPECIAL MACHINE FOR THE DISCERNING BUYER.
DESIGNED FOR THE USER WHO NEEDS THE HIGHEST PRECISION
TOLERANCES. COMPLETE WITH ORIGINAL FACTORY SET-UP FOR
FORM GRINDING (ELECTRONIC VARIABLE SPEED SPINDLE).
THIS MACHINE PRESENTS AN UNUSUAL OPPORTUNITY FOR
THOSE "IN THE KNOW". **
WIDTH & LENGTH GROUND ........................ 8" X 20"
MAXIMUM DISTANCE BETWEEN TABLE SURFACE AND
GRINDING SPINDLE CENTER ......................... 16"
HYDRAULIC, LONGITUDINAL TABLE SPEED ... 3' TO 65.6' FPM
AUTOMATIC CROSS INCREMENT ............. 0.008" TO 0.30"

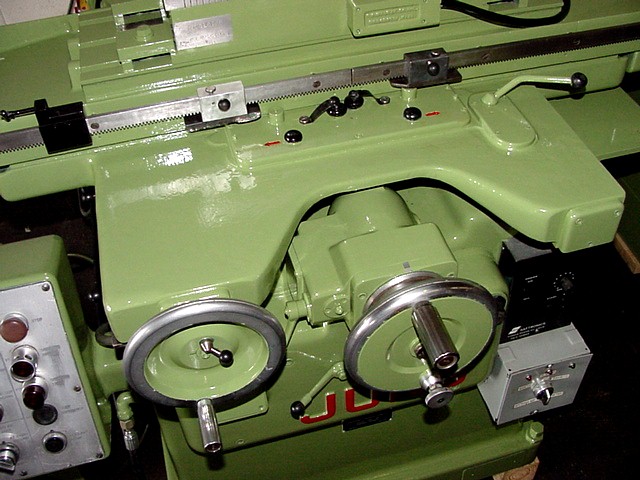

CROSS HANDWHEEL W/ADJUSTABLE DIAL, GRAD. ....... 0.001"
FINE CROSS ADJUSTMENT, GRAD. .................. 0.0005"
AUTOMATIC INCREMENTAL DOWNFEED ..... 0.00005" TO .0005"
VERTICAL ADJUSTMENT, HANDWHEEL GRADUATIONS .... 0.0001"
GRINDING SPINDLE SPEED, INF. VARI. ... 1000 TO 4000 RPM
APPROX. MACHINE WEIGHT ...................... 3,750 LBS
EQUIPPED WITH:

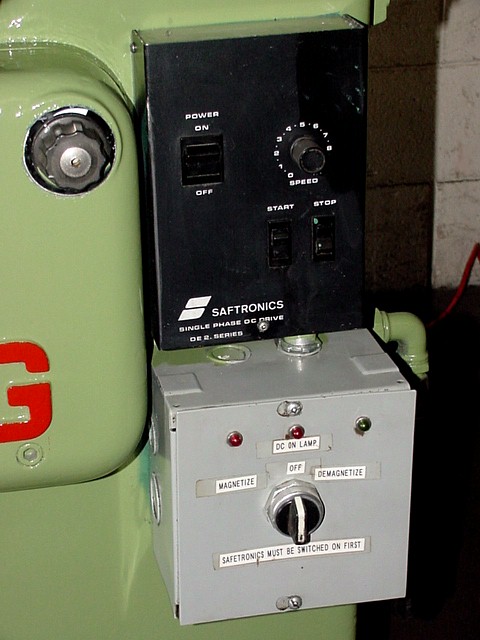

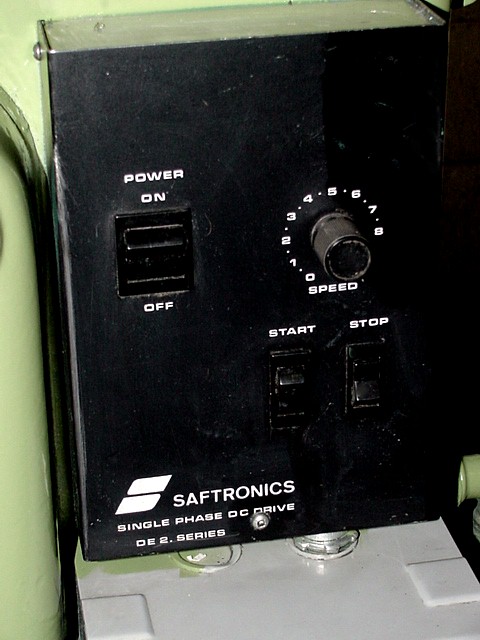

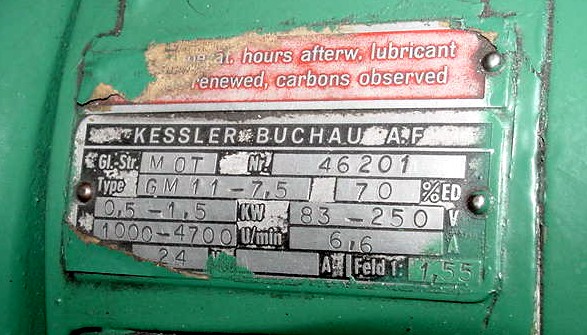

ELECTRONIC INFINITELY VARIABLE SPINDLE SPEEDS FROM
1,000 TO 4,000 RPM

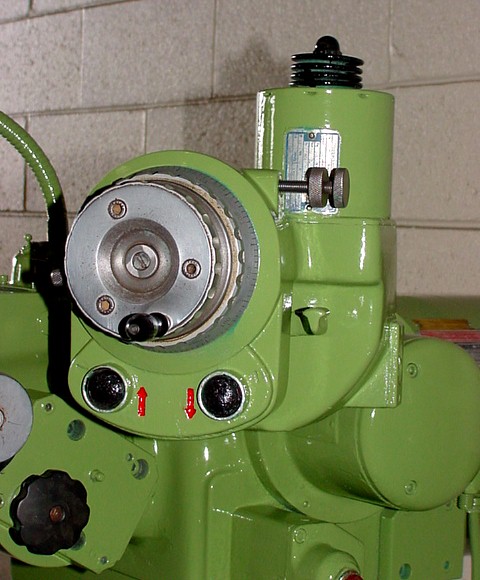

AUTOMATIC INCREMENTAL DOWNFEED
POWER RAPID WHEEL POSITIONING
HYDRAULICALLY POWERED LONGITUDINAL AND CROSS FEEDS

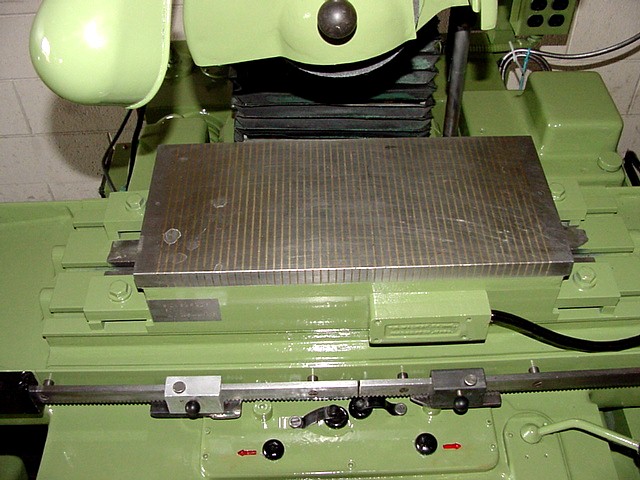

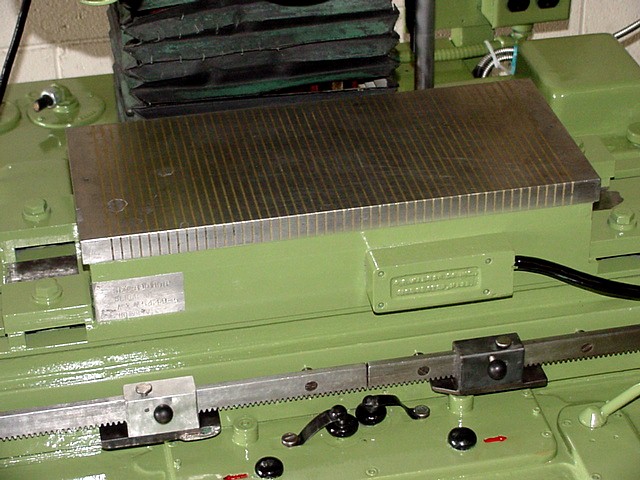

8" x 18" O.S. WALKER CROSS POLE FINE-DIVISION

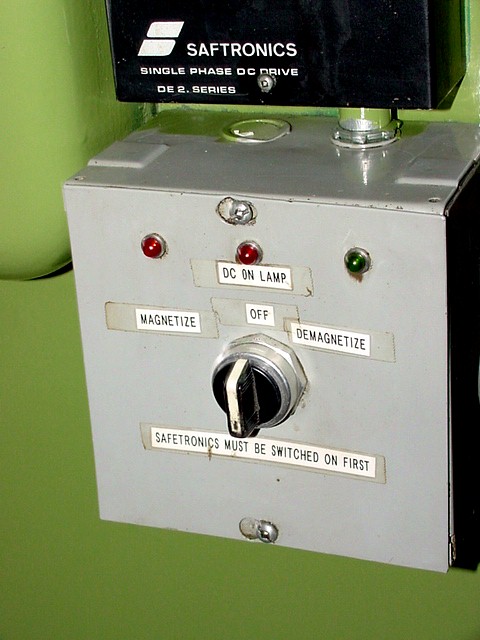

ELECTRO-MAGNETIC CHUCK & NEUTROFIER CONTROL

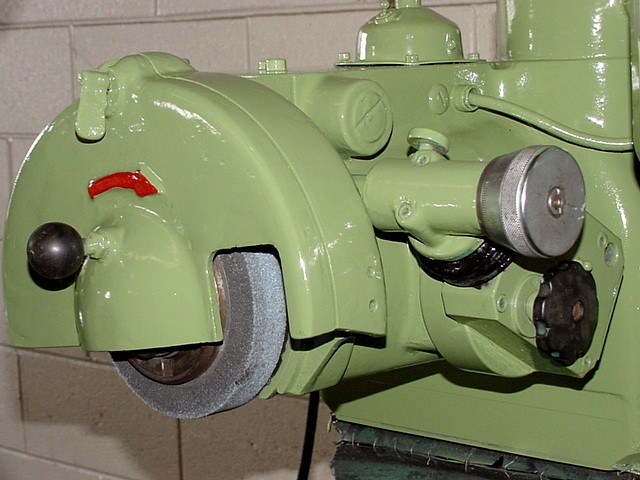

SWING AROUND WHEEL DRESSER

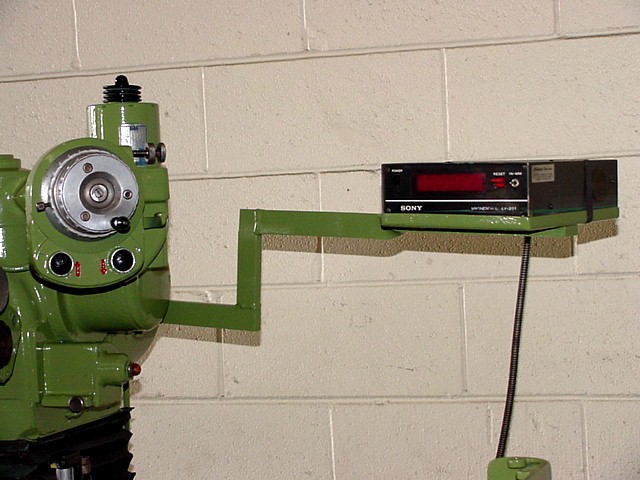

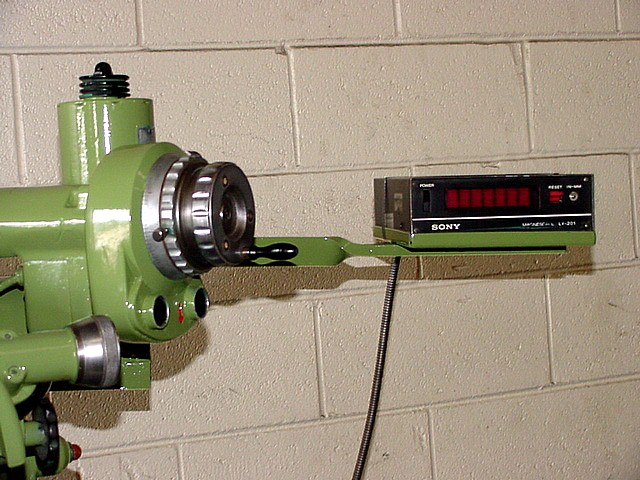

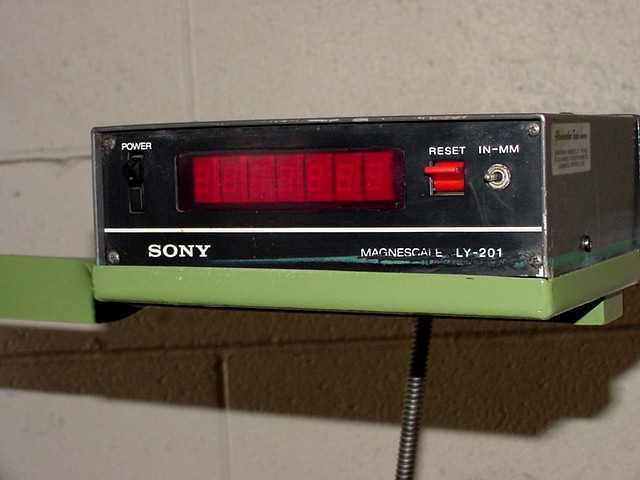

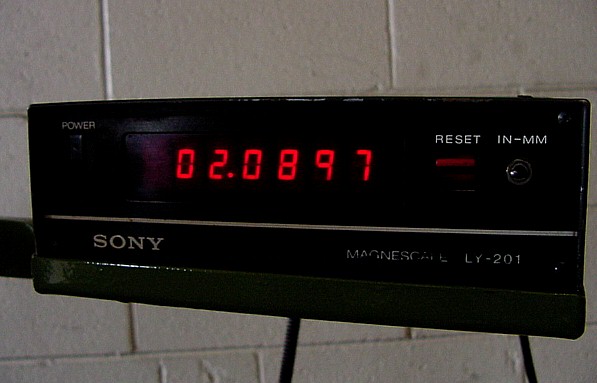

SONY MODEL #LY-201 1-AXIS DIGITAL READOUT DISPLAY
FOR THE CROSS AXIS

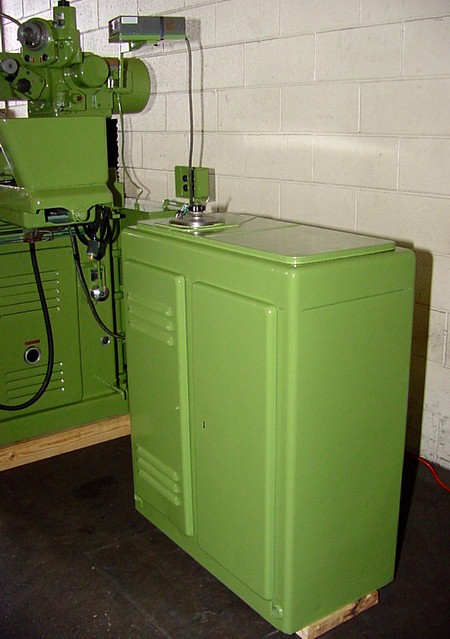

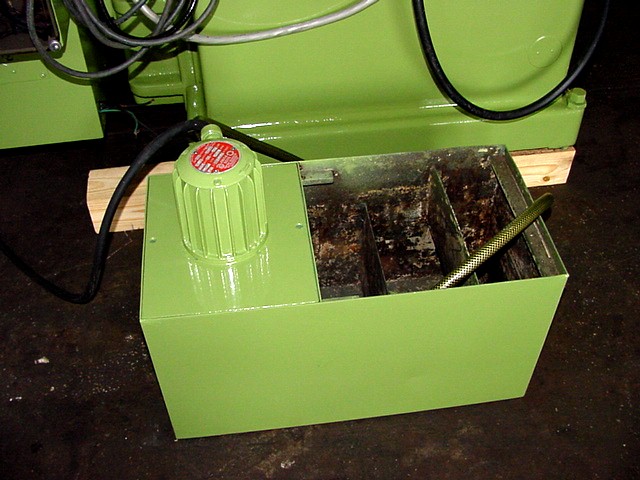

COOLANT SYSTEM

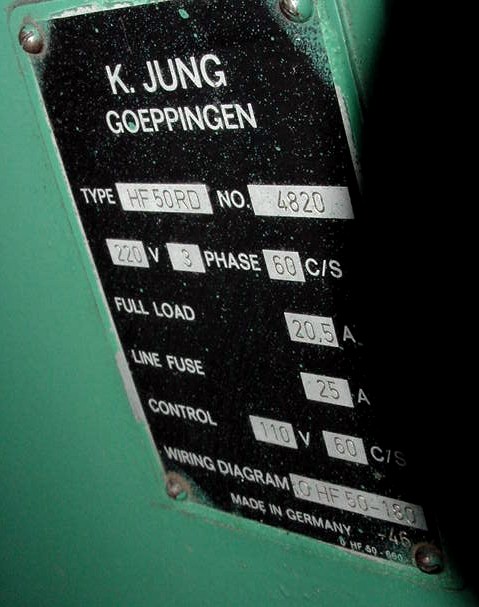

WIRED PRESENTLY FOR 3/60/208 VOLTS
* * TRULY SUPERB MACHINE - RUNS BEAUTIFULLY * *
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
