Reference Number: 140489

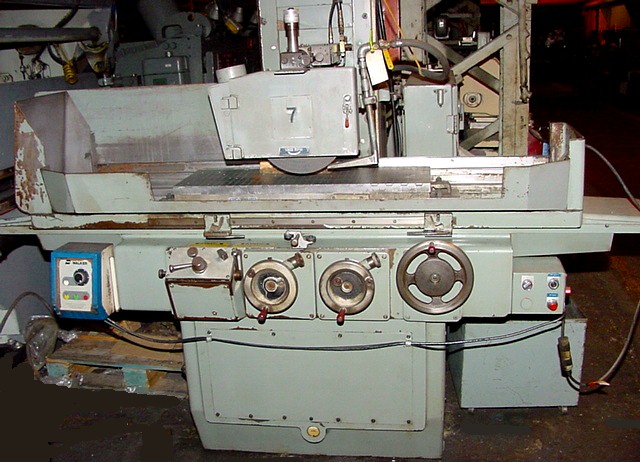

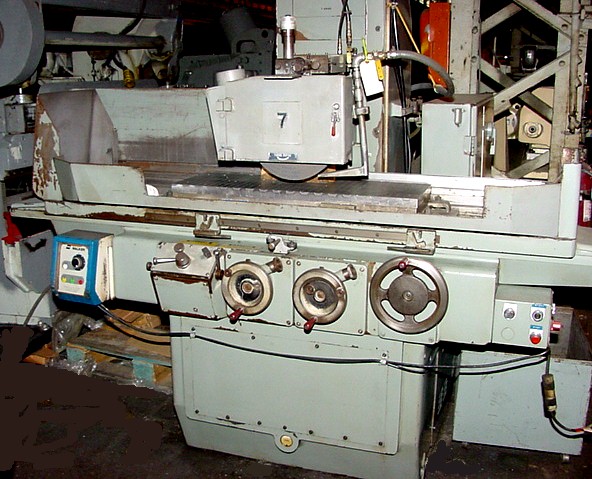

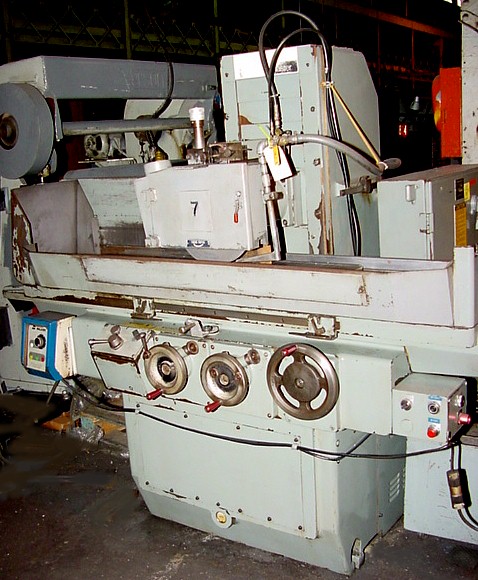

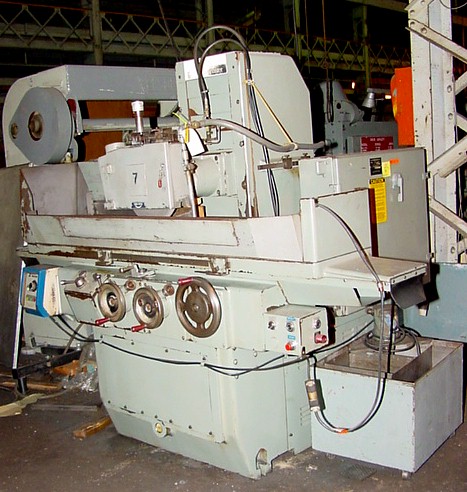

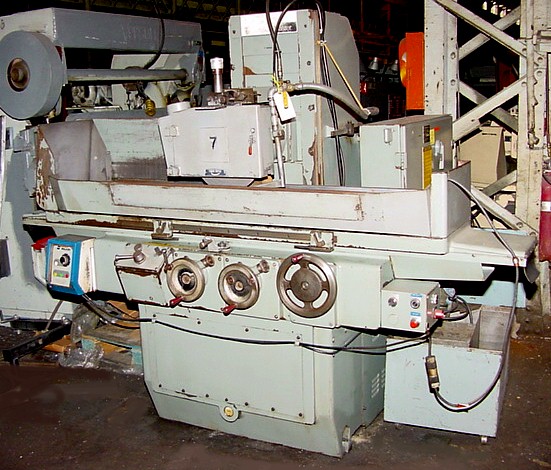

12" X 36" BROWN & SHARPE "PRECISION"
 HYDRAULIC SURFACE GRINDER

 (SUPERIOR QUALITY MACHINE - MADE IN USA)
 ORIGINAL AQUISITION COST WAS $80,135.00

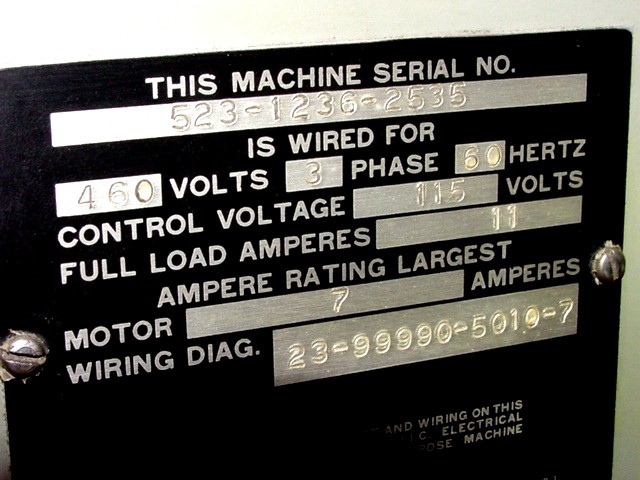

 MODEL: #1236 MICROMASTER   S/N: 523-1236-2535    NEW: 1989

  SPECIFICATIONS:
 WORKTABLE SIZE.............................. 12" X 36"
 GRINDS WORK TO HEIGHT OF............ 18" (W/14" WHEEL)
 WHEEL SIZES........................ 14" X 1- 1/2" X 5"
 DIRECT DRIVE SPINDLE MOTOR............ 5 HP - 1800 RPM
 LONGITUDINAL TABLE SPEED ............... 10 - 125 FPM
 AUTO CROSSFEED PER TABLE REVERSAL ..... 0.010 - .500"
 POWER WHEEL TRUING ........................... 10" IPM

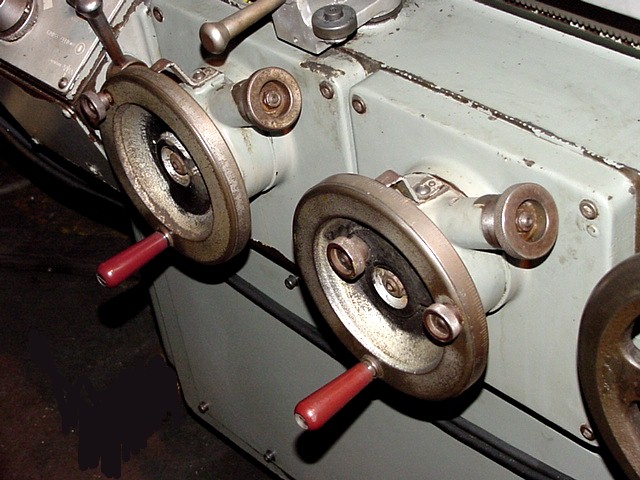

 CROSS HANDWHEEL, GRAD. ....................... 0.0002"
 CROSS FINE FEED KNOB, GRAD. .................. 0.0001"
 RAPID TRAVERSE POSITIONING.................... 150 IPM
 RAPID VERTICAL POWER POSITIONING............... 40 IPM
 VERTICAL HANDWHEEL, GRAD. .................... 0.0002"
 FINE FEED KNOB, VERTICAL, GRAD. .............. 0.0001"
 APPROX. MACHINE WEIGHT ..................... 6,000 LBS

  EQUIPPED WITH:
 HYDRAULIC LONGITUDINAL & CROSS FEEDS
 POWER RAPID WHEELHEAD POSITIONING (UP & DOWN)

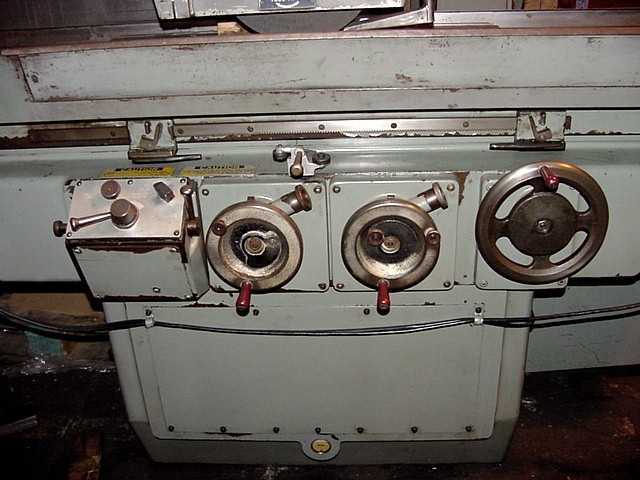

 FINE FEED KNOBS FOR VERTICAL & CROSS AXES W/.0001" GRAD.

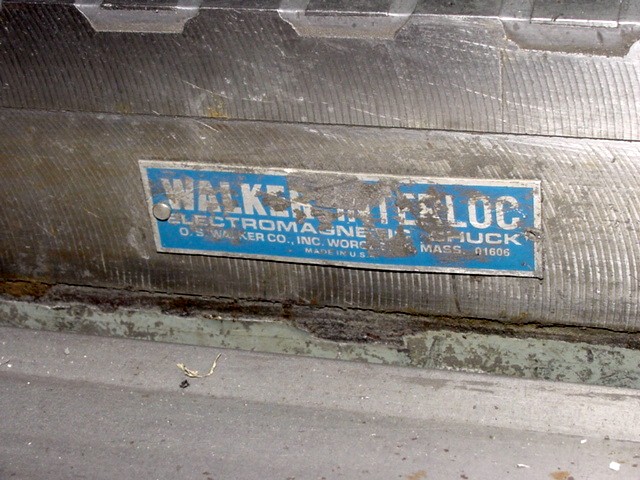

 12" x 36" O.S. WALKER "INTERLOCK" LOW-PROFILE GRID
  ELECTRO-MAGNETIC CHUCK.  THE CHUCK HAS A VERY LOW HEAT
  SIGNATURE, WHICH PERMITS THE OPERATOR TO LEAVE THE
  WORKPIECE ON THE CHUCK FOR LONG PERIODS WITHOUT DISTORTING
  THE PART.  ALSO, VERY ADVANTAGEOUS FOR THINNER PARTS WHERE
  HEAT CAN CAUSE PART SIZE TO VARY.  THIS IS A VERY
  EXPENSIVE CHUCK, WITH A REPLACEMENT COST OF $

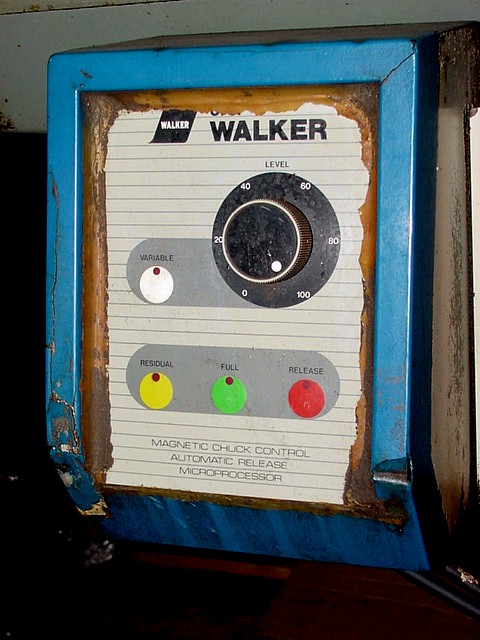

 "O.S. WALKER" VARIABLE HOLD NEUTROFIER CONTROL

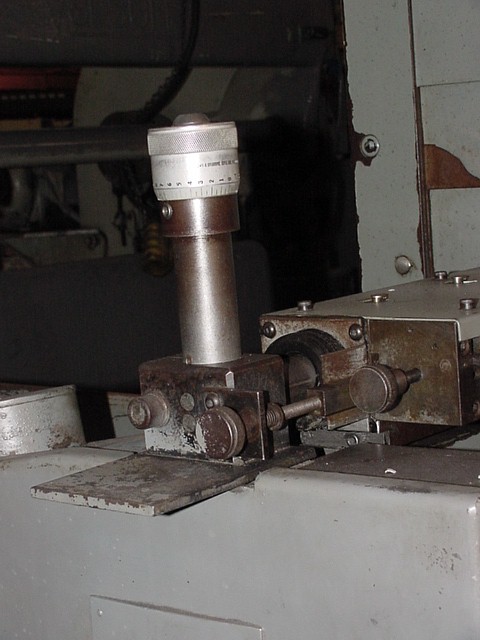

 HYDRAULICALLY POWERED OVER-THE-WHEEL DRESSER w/MICROMETER
  FINE FEED ADJUSTENT OF THE DIAMOND.

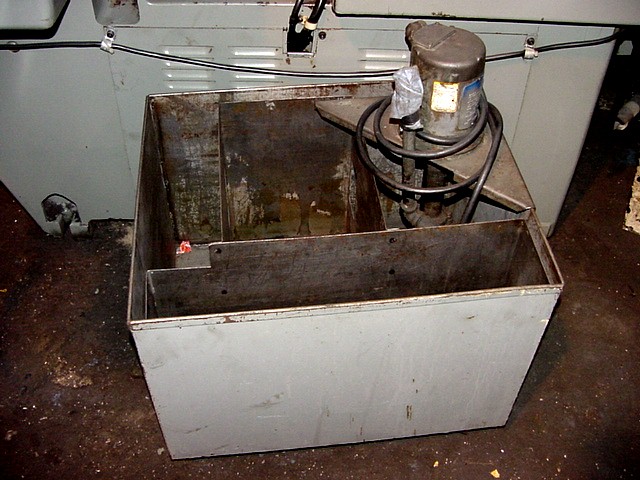

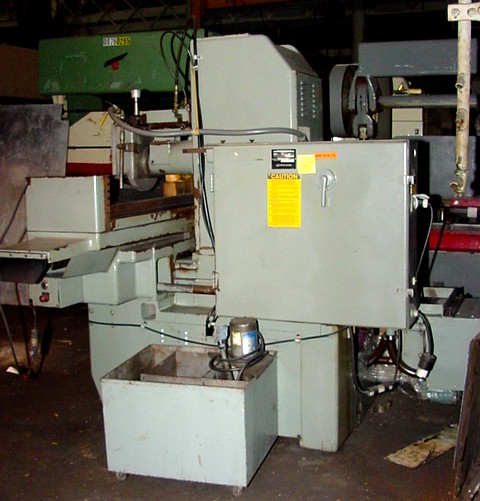

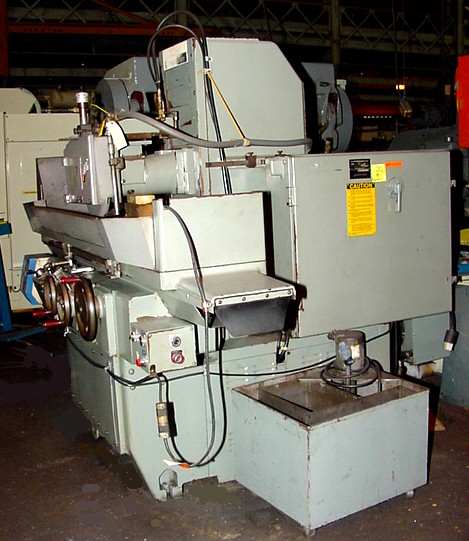

 COOLANT SYSTEM W/TANK, PUMP, GUARDS, PIPING, ETC.
 AUTO LUBRICATION
 OIL CHILLER

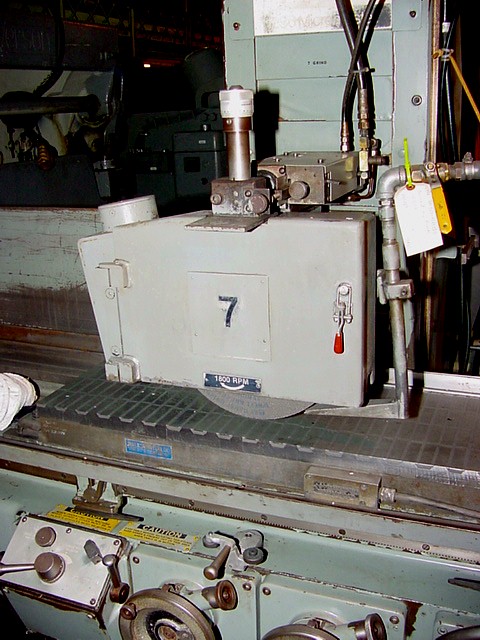

 14" GRINDING WHEEL

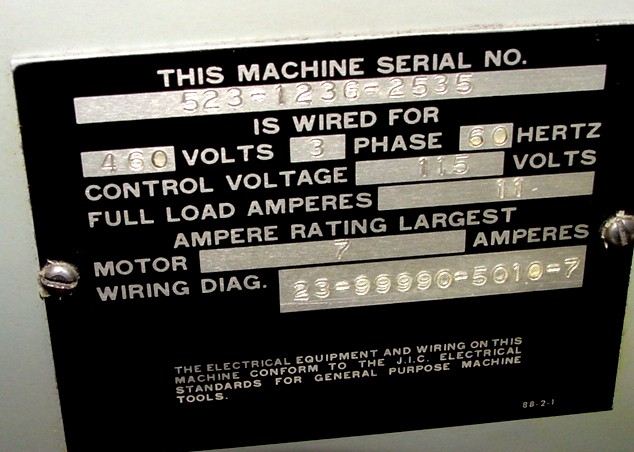

 5 H.P. 3/60/230-460 VOLT BROWN & SHARPE SUPER-PRECISION
  DIRECT DRIVE SPINDLE


 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
 **** EXCELLENT CONDITION & APPEARANCE ****
