Reference Number: 140558
Price: On Request

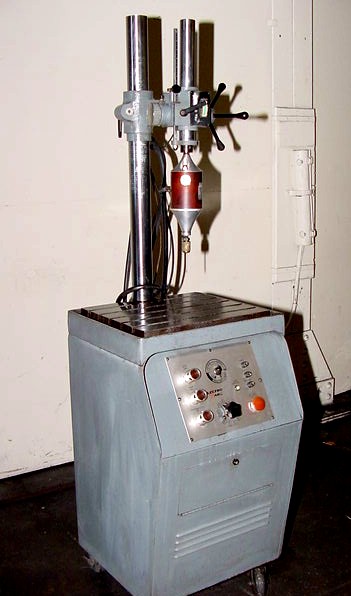

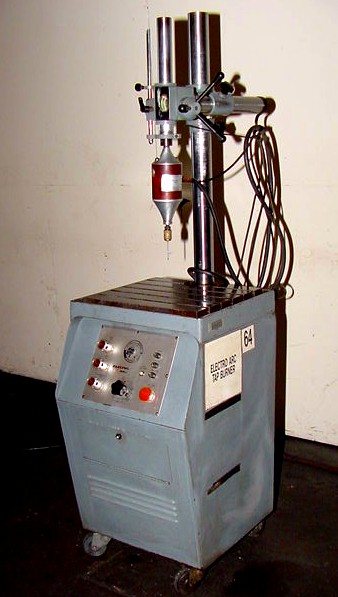

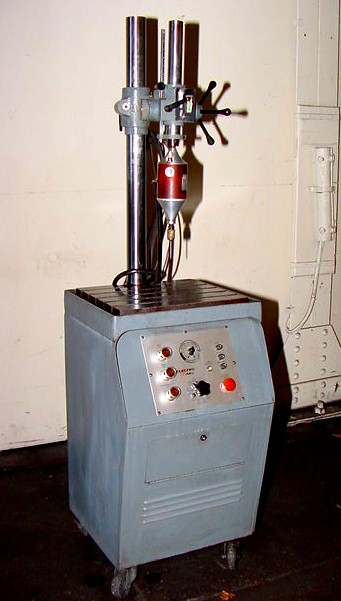

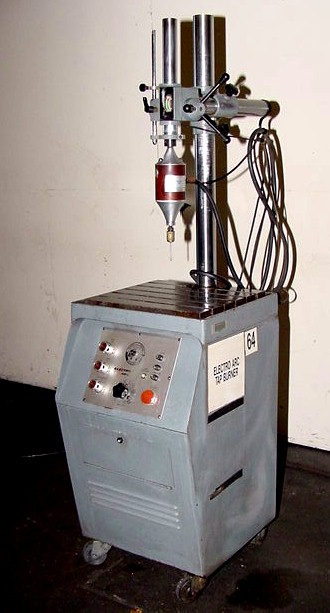

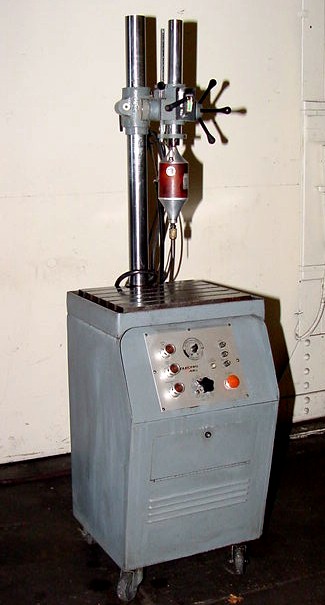

ELECTRO-ARC TAP DISINTEGRATOR

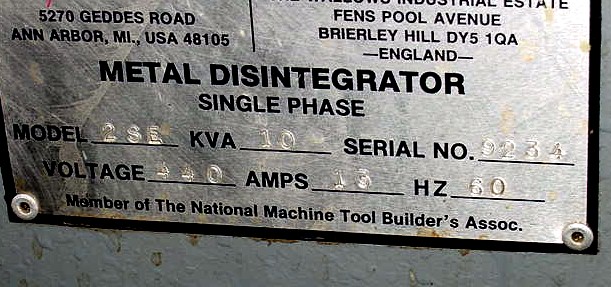

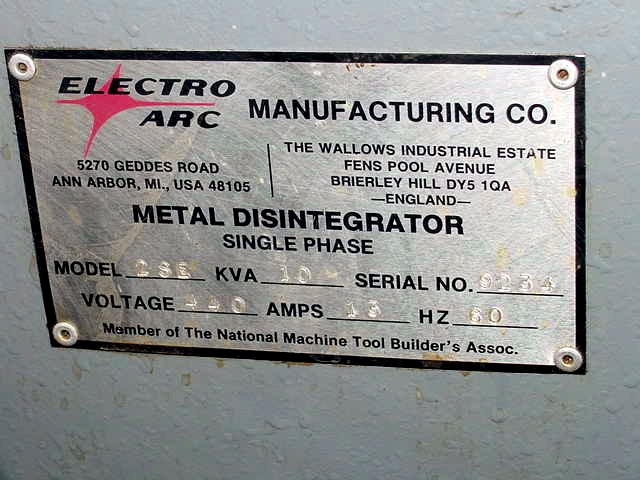

MODEL: 2-SE S/N: 9234 NEW: 1988

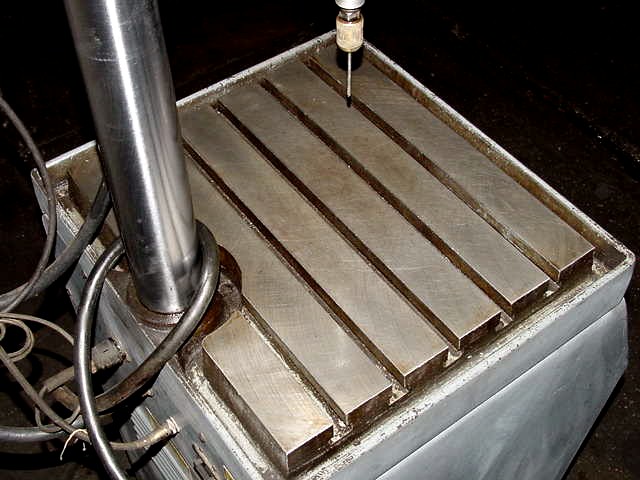

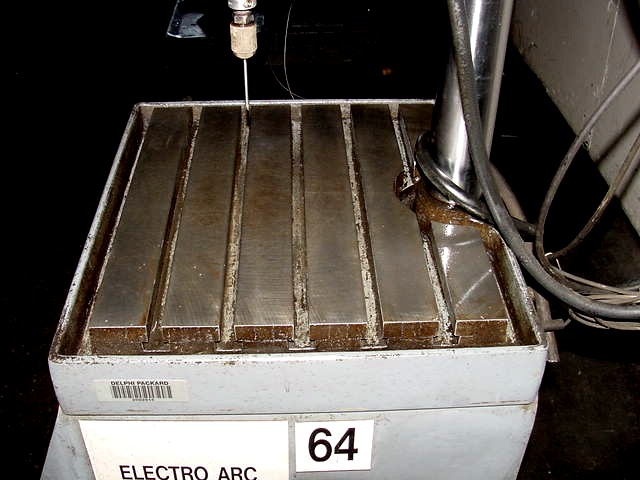

CAST IRON WORKTABLE SURFACE .............. 20"W X 18"D
ADJ. WORK HEIGHT FROM THE
DISINTEGRATOR HEAD TO THE TABLE IS ...... 36" TO 72"
FROM THE FLOOR
APPROX. MACHINE WEIGHT ...................... 390 LBS.
CUTTING SPEEDS:
1/4".............1 MIN.
5/16"............1-1/2 MIN.
3/8".............1-3/4 MIN.
1/2".............2 MIN.
5/8".............3-1/2 MIN.
3/4".............4 MIN.
EQUIPPED WITH:
MACHINE IS PORTABLE ON CASTERS

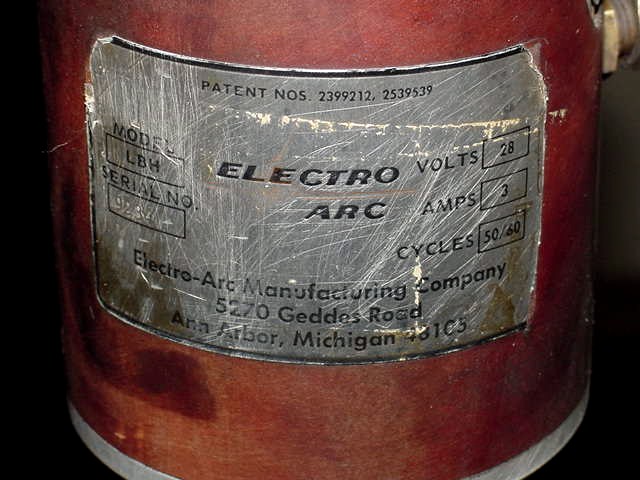

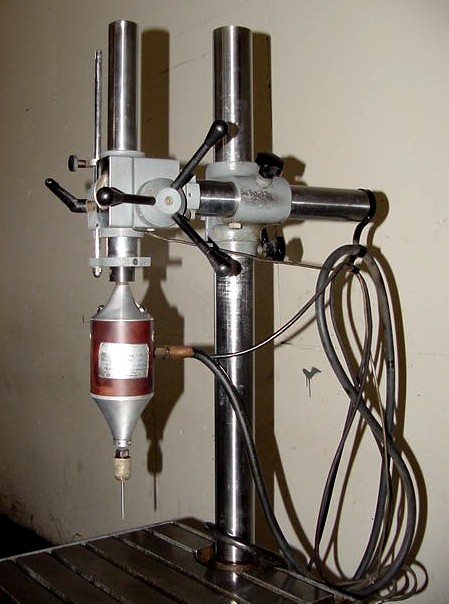

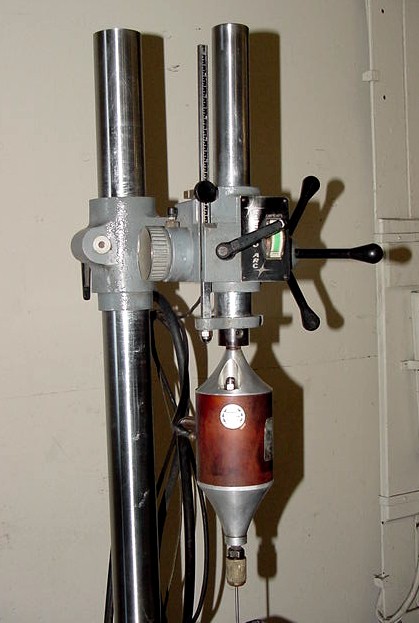

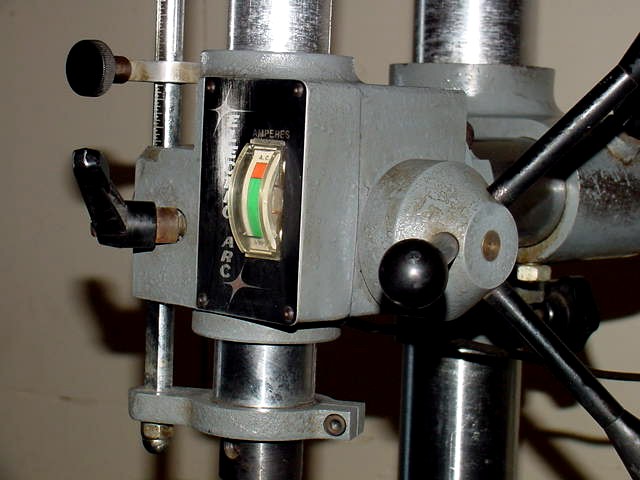

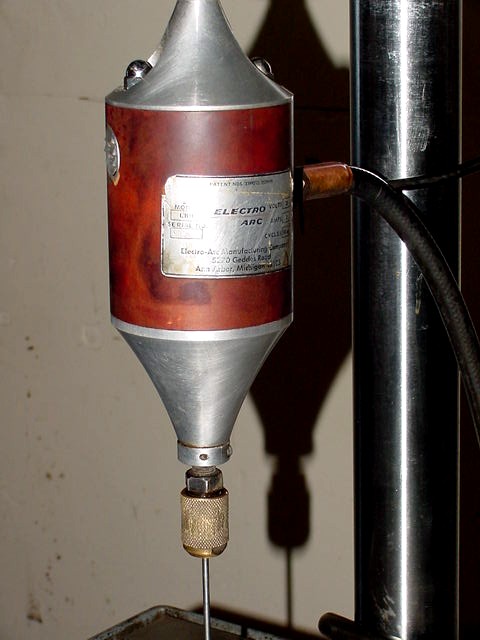

ELECTRO-ARC MODEL "LBH" PORTABLE TAP DISINTEGRATOR HEAD

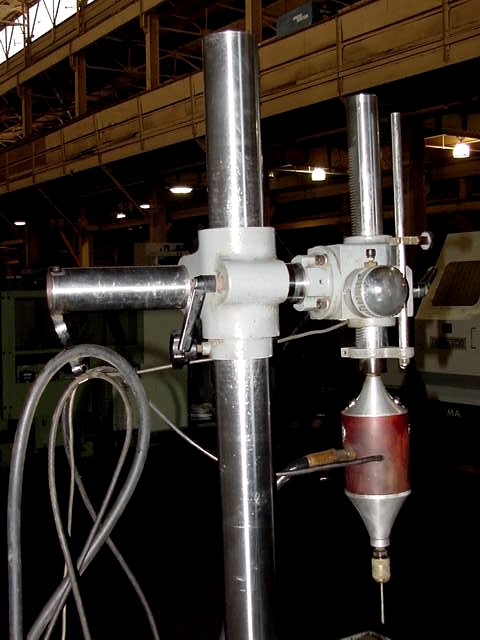

RADIAL CROSSARM, HARD-CHROME PLATED, 2 1/4" DIA. AND
15" LONG. FULL 360 DEG. ROTATION AROUND THE COLUMN.
COLUMN IS HARD-CHROME PLATED, 2- 3/4" DIA. x 36" LONG.

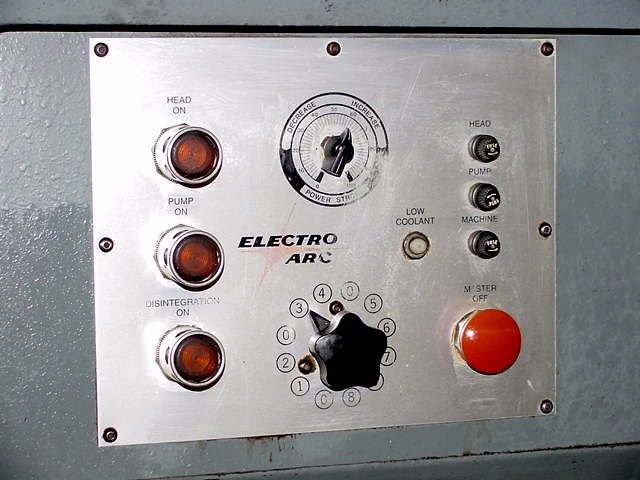

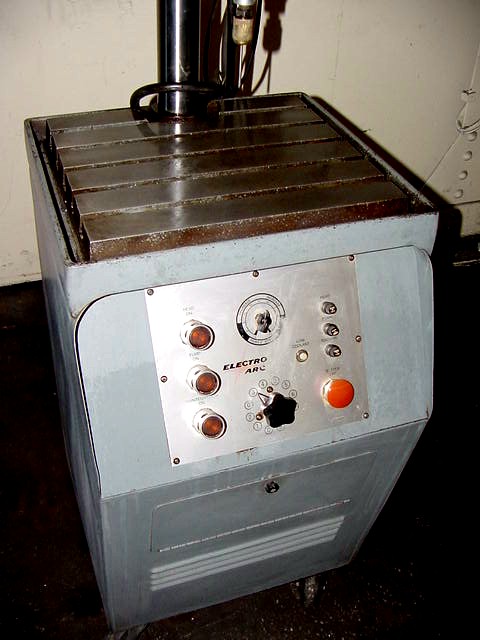

ADJUSTABLE CUTTING HEAT SETTINGS
MACHINE IS WIRED FOR 440 VOLTS SINGLE PHASE
10 KVA/13 AMPS POWER RATING
* * INSPECT IN OUR HARRISON, N.J. WAREHOUSE * *
** EXCELLENT CONDITION & APPEARANCE **
