Reference Number: 140585

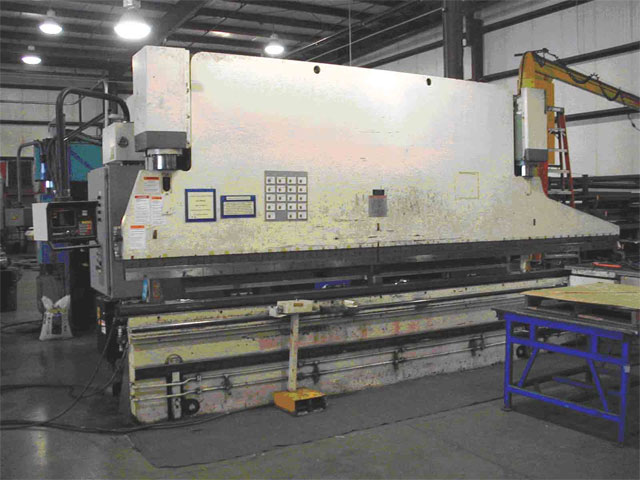

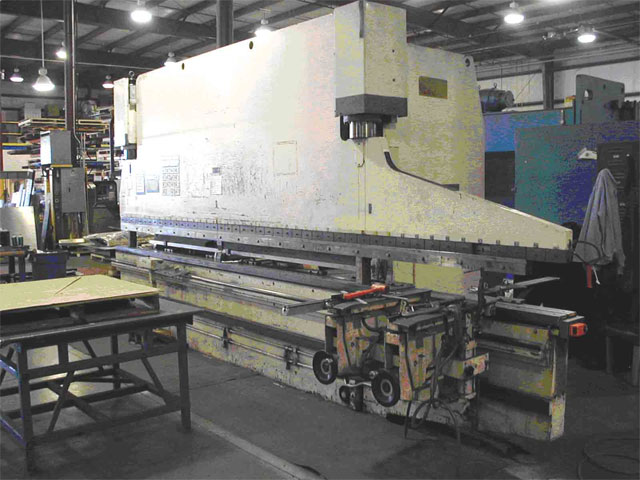

Price: $54,500165 TON LVD HYDRAULIC PRESS BRAKE TONNAGE CAPACITY: 165 TONS
MODEL 165BH15N NEW 1989
OVERALL LENGTH OF BED & RAM: 217"
DISTANCE BETWEEN HOUSINGS: 148"
STROKE: 5.9"
RAM ADJUSTMENT: 4.7"
OPEN HEIGHT: 12.2"
CLOSED HEIGHT: 7.09"
SPEEDS
APPROACH 236 INCHES PER MINUTE
FORM 23 INCHES PER MINUTE
RETURN 177 INCHES PER MINUTE
WIDTH OF BED: 7"
THROAT DEPTH: 9.8"
FLOOR TO TOP OF BED: 36"
MAIN MOTOR HORSEPOWER: 480/3/60
EQUIPPED WITH

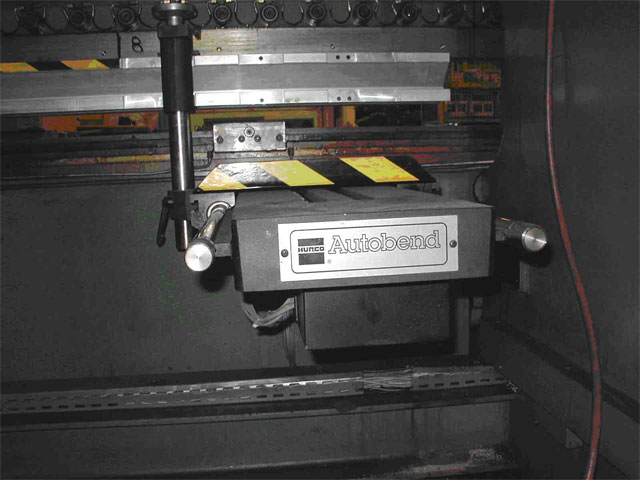

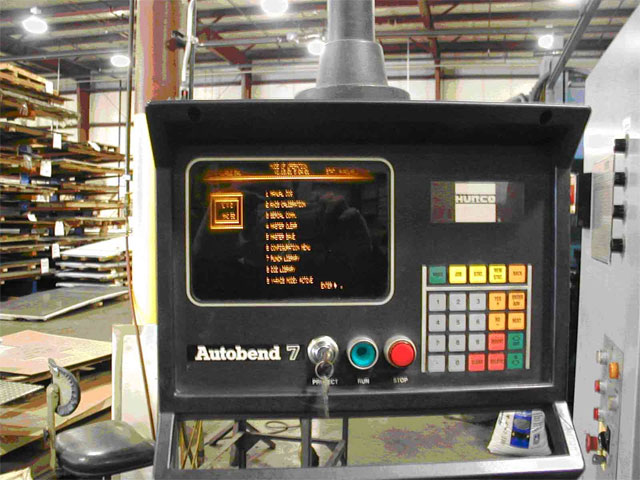

HURCO AB7 CNC 3 AXIS BACK GAGE (2003)
24" TRAVEL
138" BACK GAGE BAR
HIGH SPEED HYDRAULIC SYSTEM
PNEUMATIC FRONT SHEET SUPPORTS
BED DOVETAIL SLOTTED FRONT AND REAR
FULLY ADJUSTABLE SPEED CHANGE POINT
ADJUSTABLE TONNAGE
HYDRAULIC OVERLOAD PROTECTION VIA RELIEF VALVE
PEDESTAL PALM STATIONS
FOOT SWITCH
BED MACHINED FOR ANGLES
