Reference Number: 140586
Price: $24,500OVERALL BED & RAM LENGTH ------------------ 78"

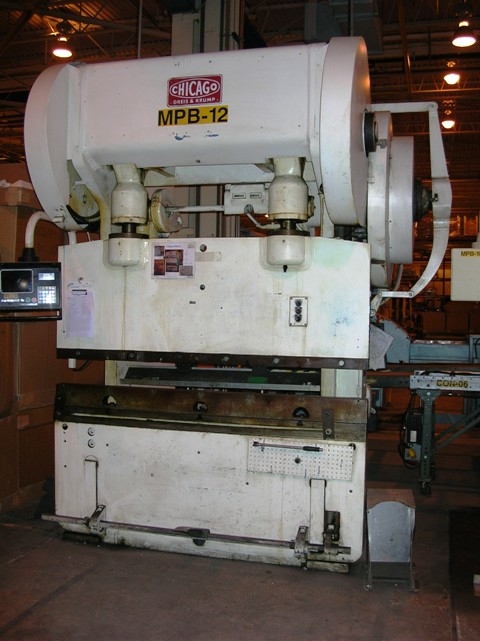

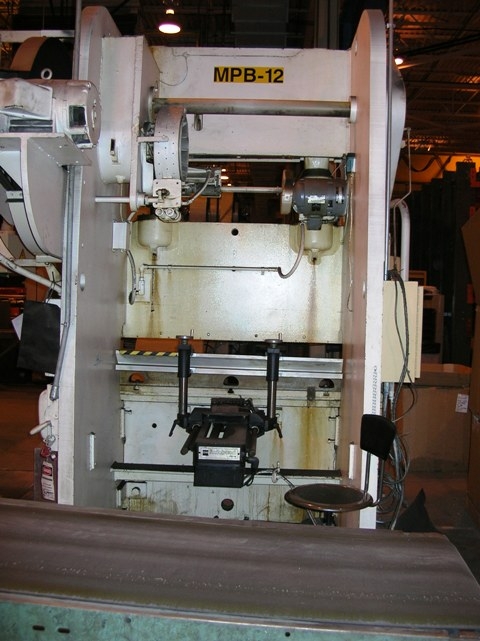

225 TON X 6' DREIS & KRUMP MECH. BRAKE
MODEL 225D4 NEW 1978
DISTANCE BETWEEN HOUSINGS ----------------- 54"
TONNAGE CAPACITY, MID STROKE -------------- 150 TON
TONNAGE CAPACITY, NEAR BOTTOM ------------- 225 TON
THROAT DEPTH ------------------------------ 8"
BENDING CAPACITY, MILD STEEL -------------- 6' X 3/8"
STROKE ------------------------------------ 3"
RAM ADJUSTMENT, MOTORIZED ----------------- 5"
STROKES PER MINUTE ------------------------ 30
DIE SPACE ( S.D.A.U. ) -------------------- 12"
DOUBLE GEARED TWIN-DRIVE POWER TRAIN
MAIN DRIVE MOTOR -------------------------- 10 HP A.C.
FLOOR MOUNTED, NO PIT REQUIRED
APPROXIMATE MACHINE WEIGHT ---------------- 22,000 LBS
EQUIPPED WITH:

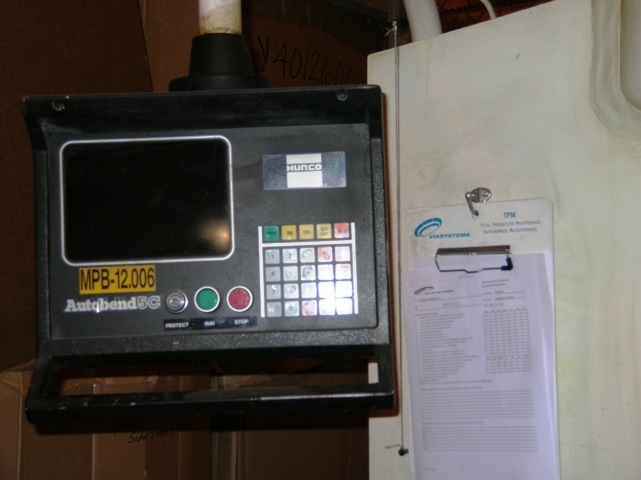

HURCO AUTOBEND 5C SINGLE AXIS BACK GAUGE
ELECTRIC FOOT CONTROL
AIR OPERATED MECHANICAL CLUTCH
POWER RAM ADJUSTMENT
DUAL PALM BUTTON CONTROL
LOWER DIE HOLDER
ONE SHOT LUBRICATION
