Reference Number: 140613

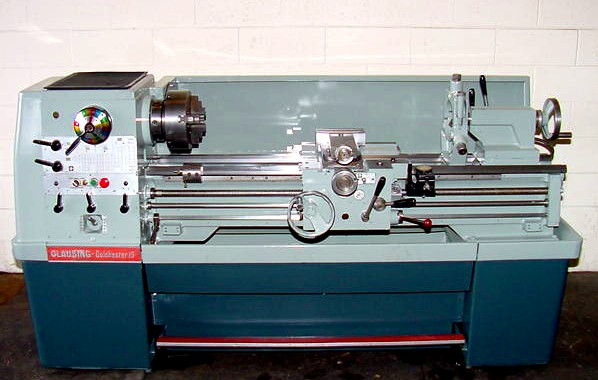

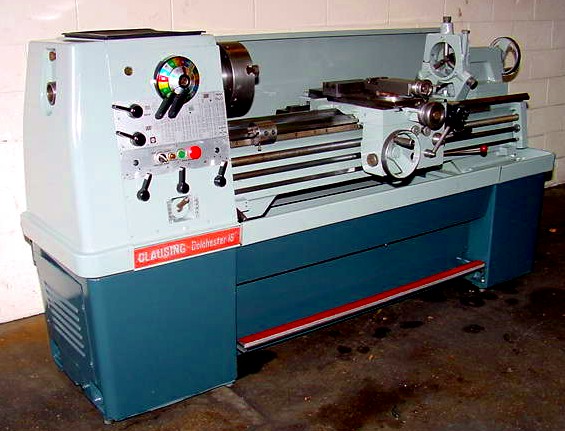

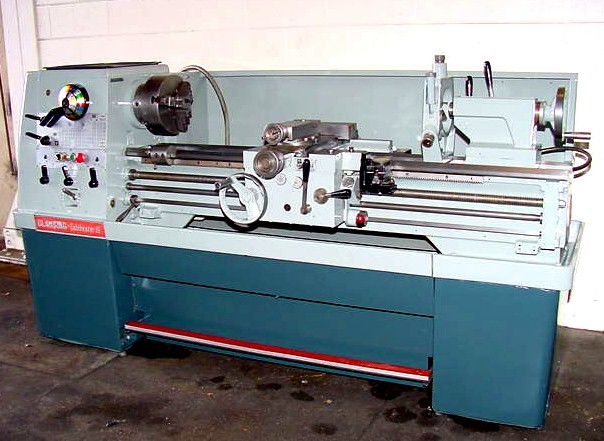

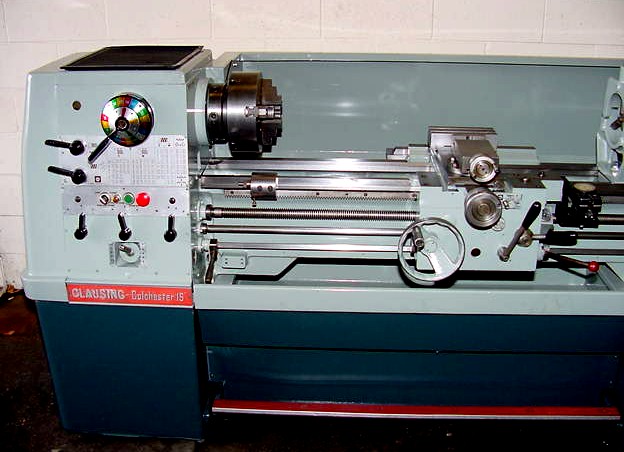

15" x 50" CLAUSING-COLCHESTER ENGINE LATHE

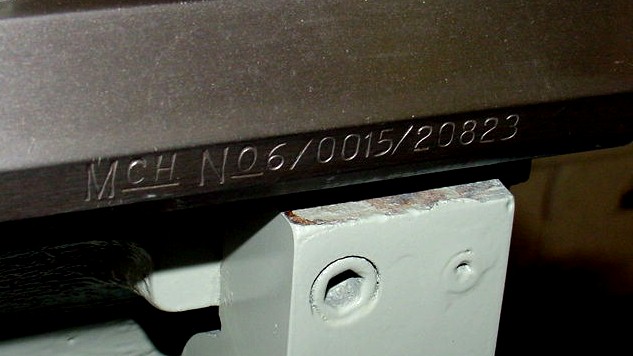

MODEL: 8031, S/N: 6/00156/20823, NEW: 1975
SPECIFICATIONS:
SWING OVER BED ....................... 15-1/4"
SWING OVER CROSS SLIDE ............... 9-1/2"
DISTANCE BETWEEN CENTERS ............. 50"
BAR CAPACITY THROUGH SPINDLE ......... 2-1/8"
HOLE THRU SPINDLE .................... 2-3/16"
SPINDLE NOSE, CAMLOCK SIZE ........... D1-6"

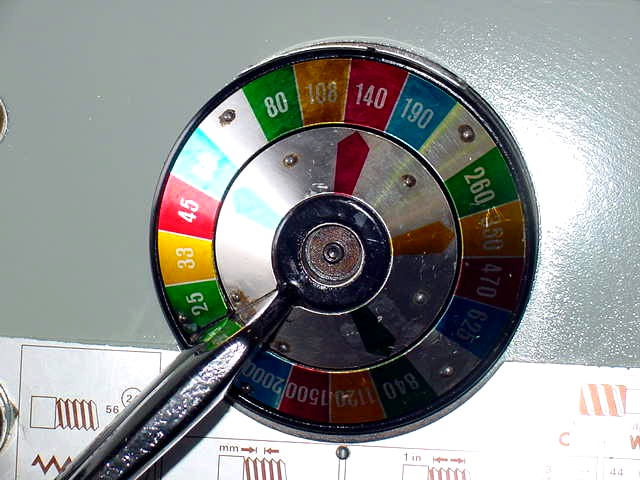

SPINDLE SPEEDS (16) .................. 25 - 2000 RPM
HEADSTOCK & TAILSTOCK SPINDLE TAPER .. #4 MORSE

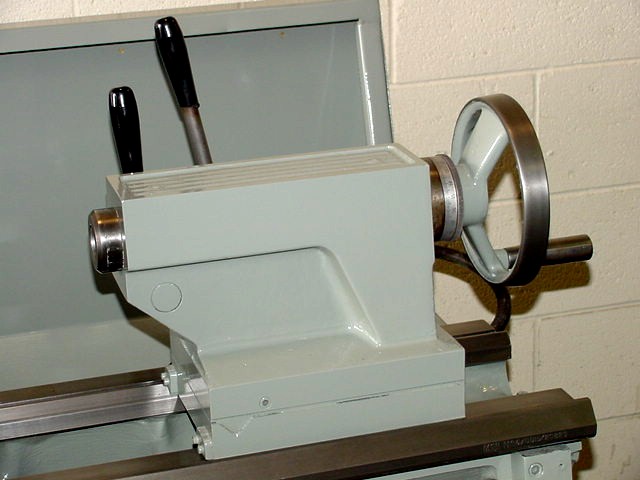

TAILSTOCK SPINDLE TRAVEL ............. 6-1/8"
TAILSTOCK SPINDLE DIAMETER ........... 2-5/16"
WIDTH OF BED ......................... 11"
FEEDS:
LONGITUDINAL (45) .............. .0015 - .040 IPR
CROSS (45) ..................... .00075 - .020 IPR
THREADS:
INCH (45) ...................... 2 - 72 TPI
METRIC (39) .................... .2 - 14 mm
DIMENSIONS ........................... 96" x 38" x 52"
APPROX WEIGHT ........................ 3,500 LBS
EQUIPPED WITH:

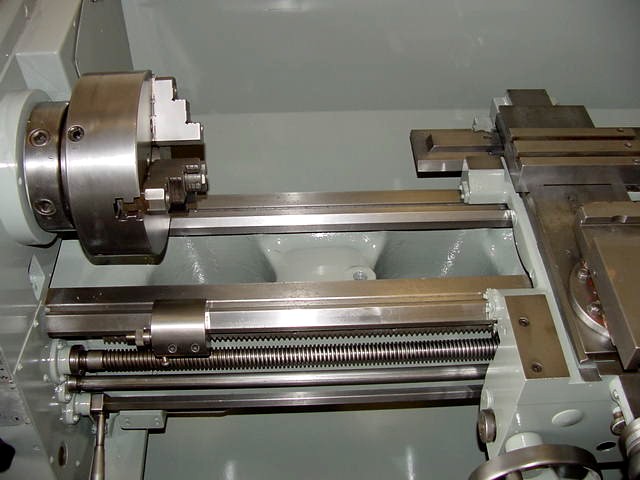

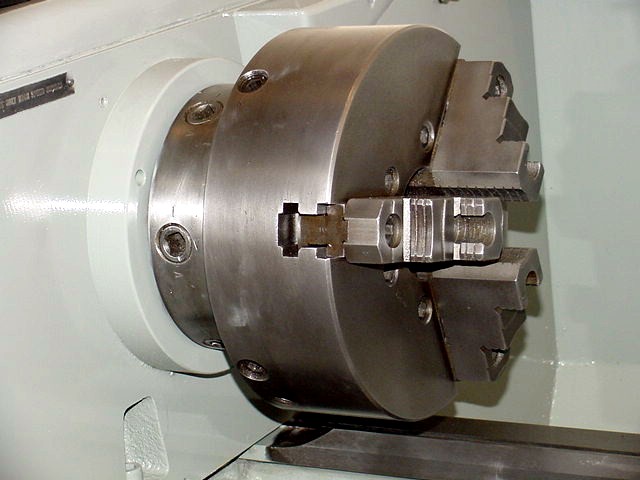

- 10" 3-JAW CHUCK

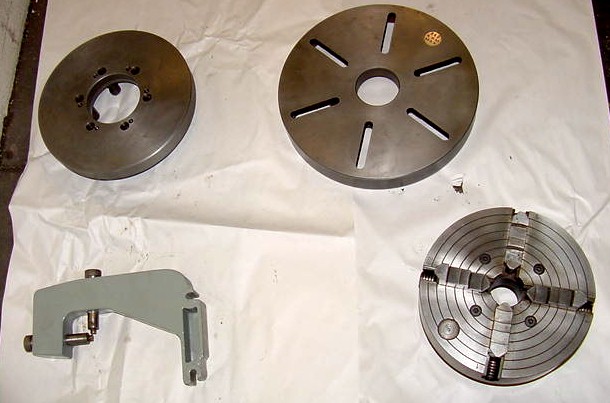

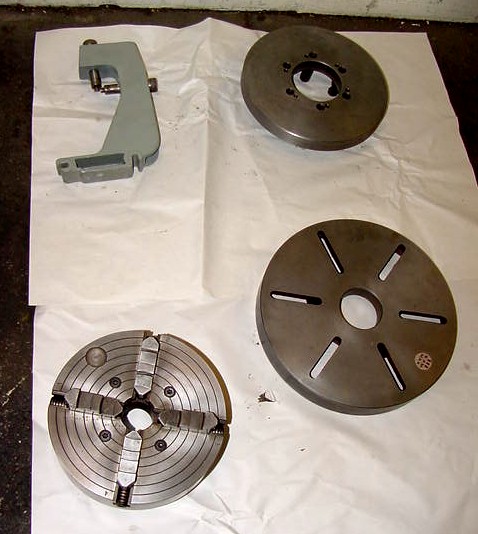

- 10" 4-JAW CHUCK

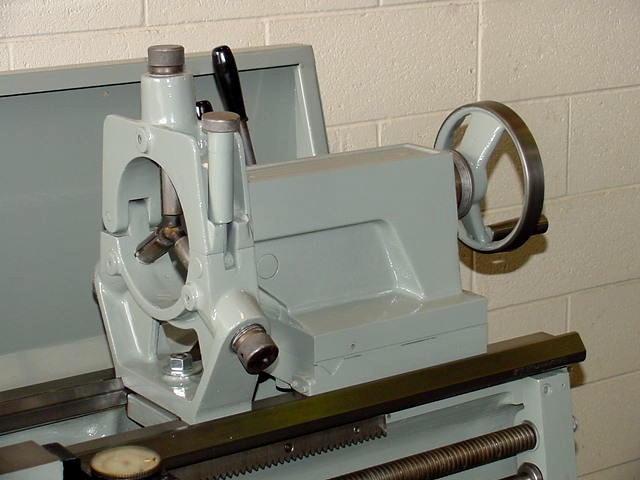

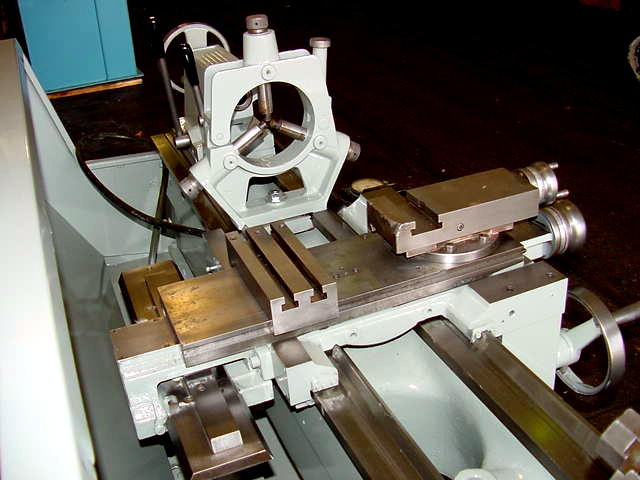

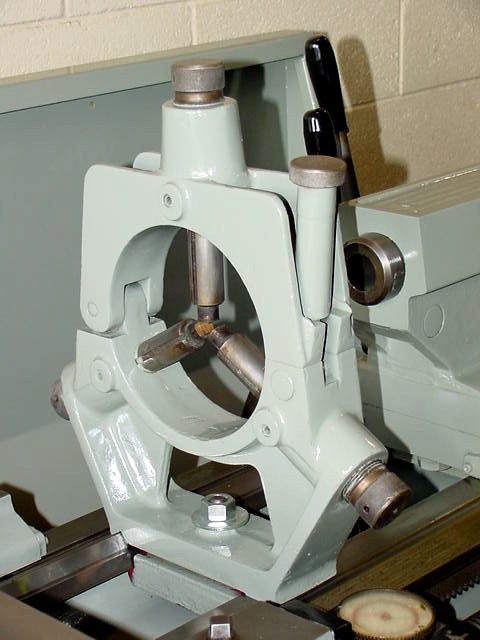

- STEADY REST WITH BOTH ROLLER & BONZE TIPS
- FOLLOW REST
- FACEPLATE

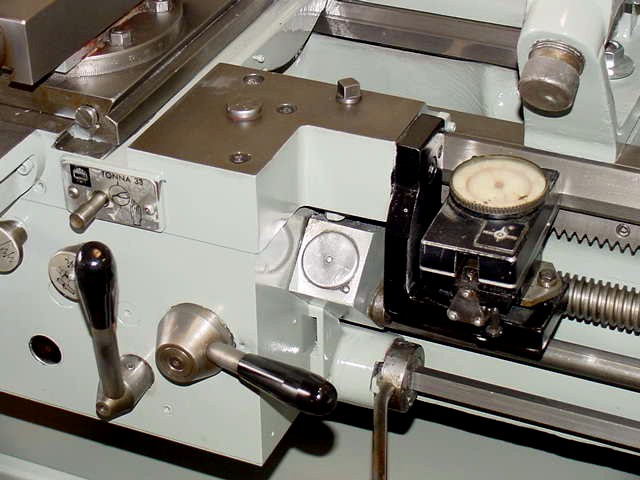

- TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
- INDUCTION HARDENED BEDWAYS

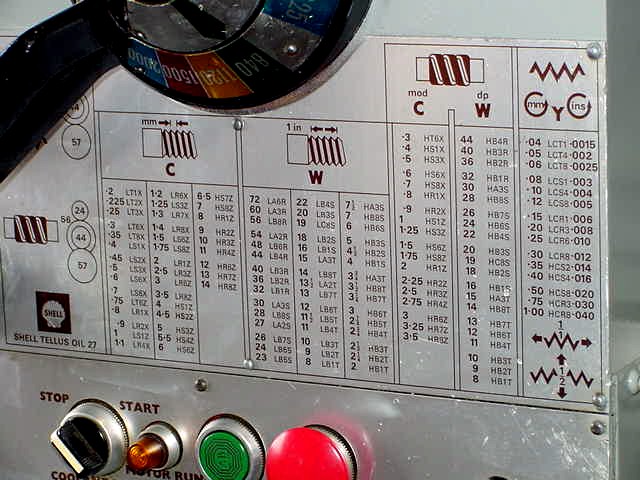

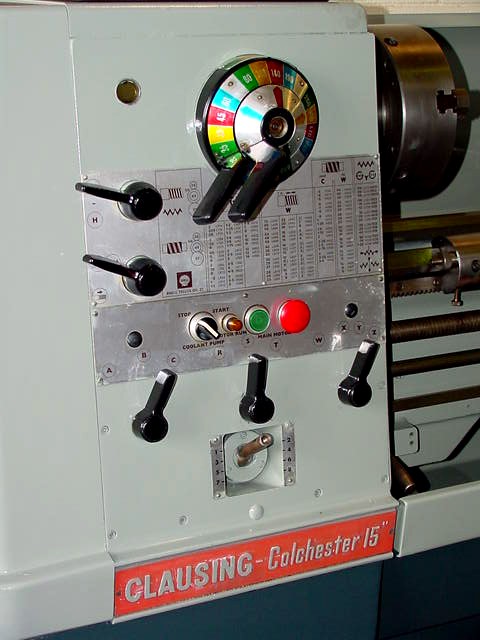

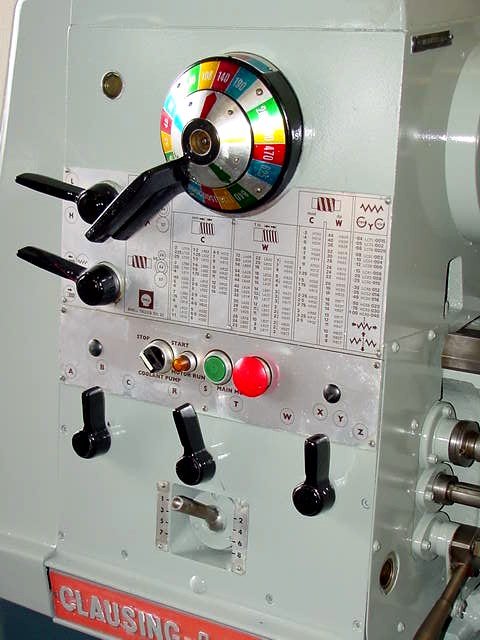

- QUICK CHANGE UNIV GEARBOX PROVIDES WIDE RANGE OF INCH/METRIC FEEDS & THREADS
- THREADING DIAL

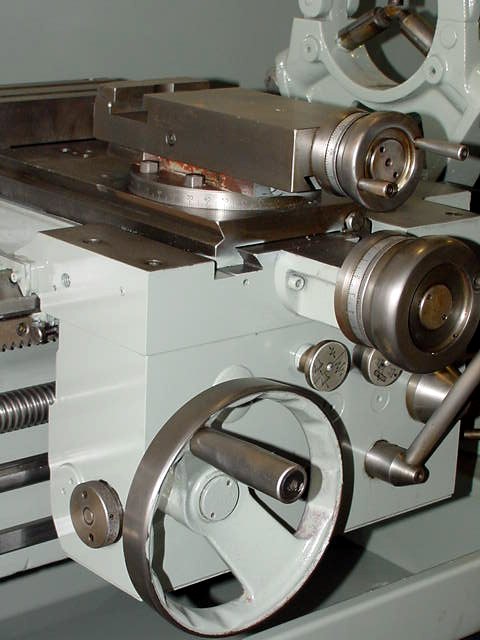

- MICROMETER CARRIAGE STOP
- DRILL CHUCK FOR TAILSTOCK
- FOOT BRAKE
- SELF CONTAINED COOLANT SYSTEM w. FULL LENGTH REAR SPLASH GUARD
- 7.5 HORSE POWER SPINDLE DRIVE MOTOR

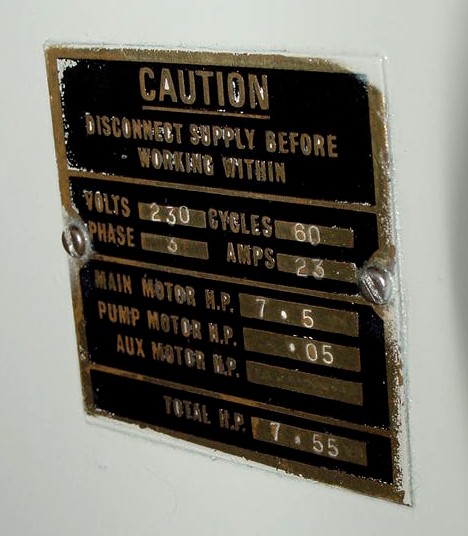

PRESENTLY WIRED FOR 230 VOLT OPERATION
CONDITION: **** EXCELLENT ****
