Reference Number: 140632

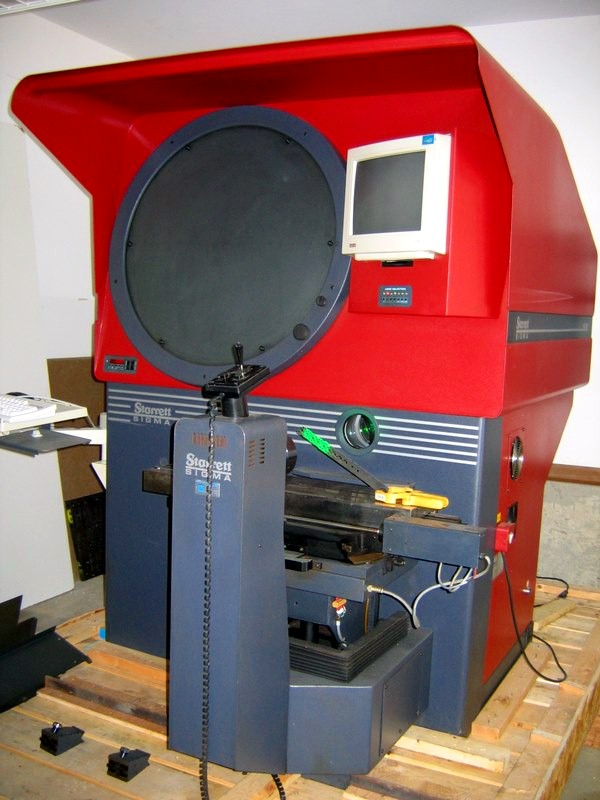

31.50" Starrett CNC Horizontal Projection
  Floor Model Optical Comparator

 Model: No. HCS800 CNC    S/N: 0014    NEW: 1997

  Features

 Side bed (HCS) system

 Motorized X and Y axes

 Vertically correct and unreversed image

 31.5" (800mm) viewing area

 5-position motorized internal lens turret

 Constant 9-1/4" (231mm) front working
     distance (regardless of magnification)

 20" (500mm) horizontal travel and 10" (250mm)
     vertical travel

 3" (75mm) focal travel

 Nickel plated steel stage with cross roller
     bearings

 32" x 8" (800x200mm) staging area

 Dual fixture slots

 Screen-mounted overlay chart clips

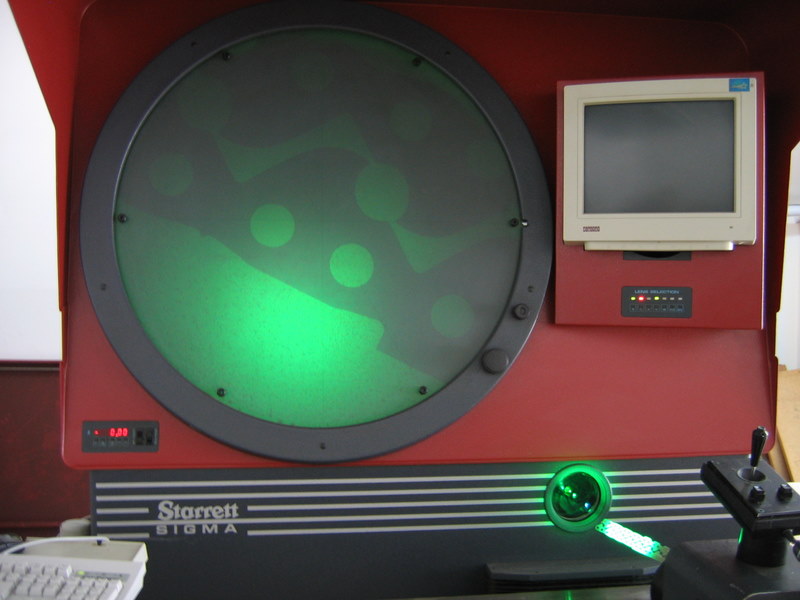

 Frosted glass screen with crosshairs,
     calibration marks and 30°/60°

 500 lb. (227 kg) capacity

 Profile illumination - high-power, fan-
     cooled, mercury arc lamp with yellow/green
     filter

 Surface illumination - through the lens

 Helix angle stage adjustable +/- 15º

 Built-in digital protractor with DD/DMS
     conversion

 Heidenhain  .00005" (.001mm) resolution
     scales

 Centrally mounted vertical (Y-axis) scale
     (in-line with lens/workpiece

 Threadless X-axis quick-release for "zero"
     backlash

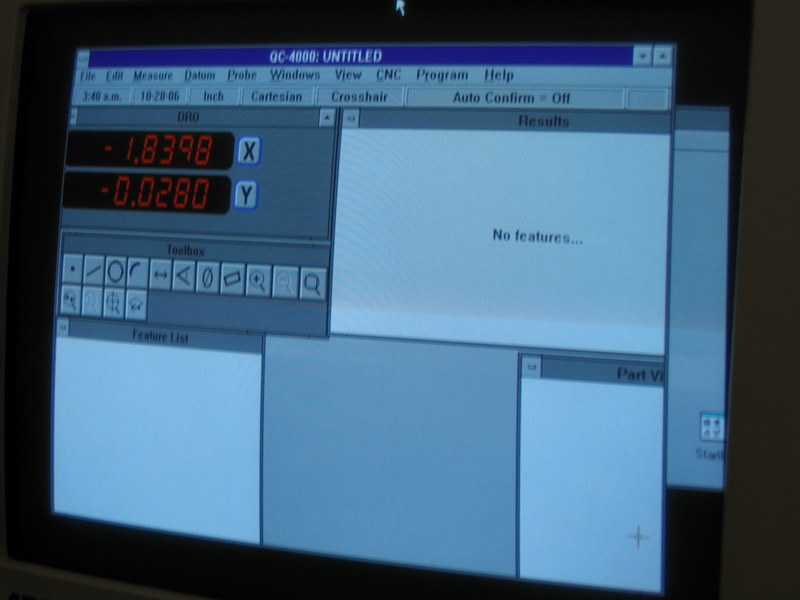

 QC4205 system/software

 Internal optical edge detection

 Integral hood

 Optional extended canopy and new curtains

 Projection lens: 10x, 20x, and 50x
     magnifications

 CNC option

 This machine is in very good condition.


       comes with some extra bulbs

 ** Inspect Under Power in Charlotte, NC **

 ** Like New Condition & Appearance **
