Reference Number: 140644

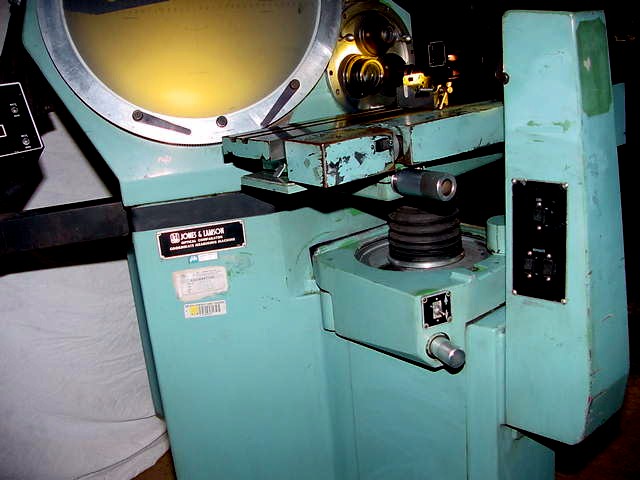

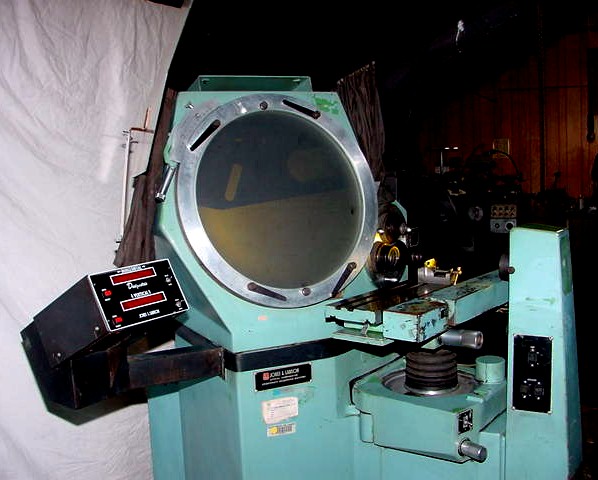

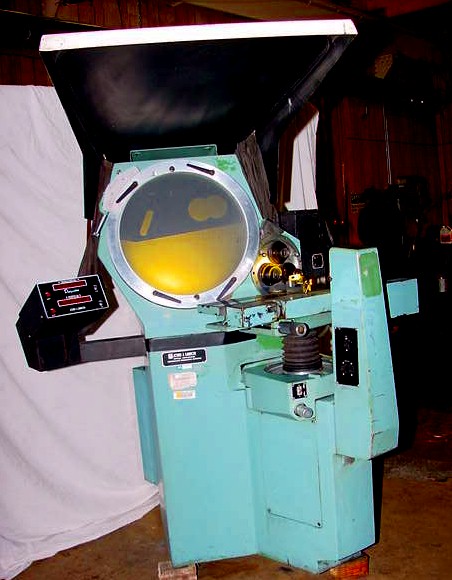

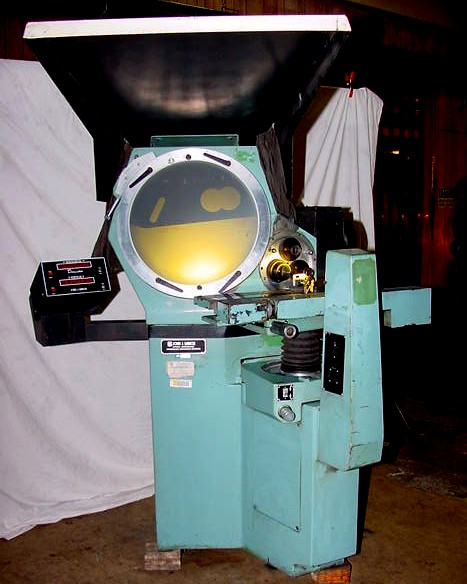

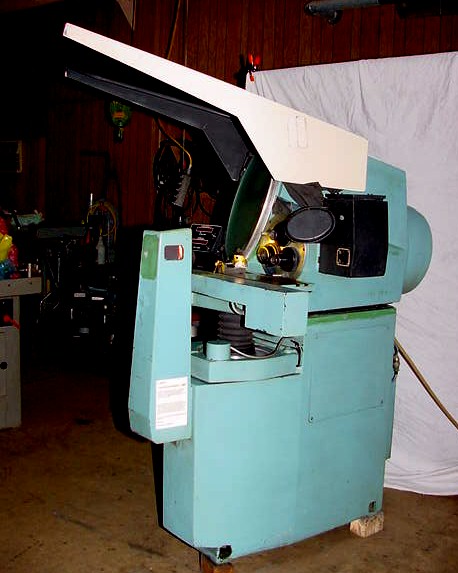

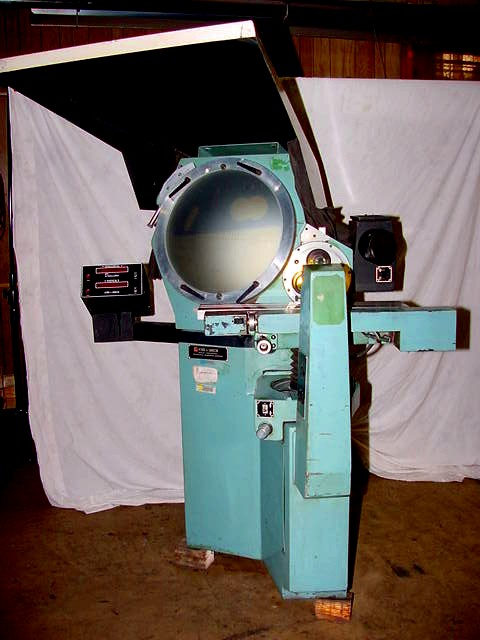

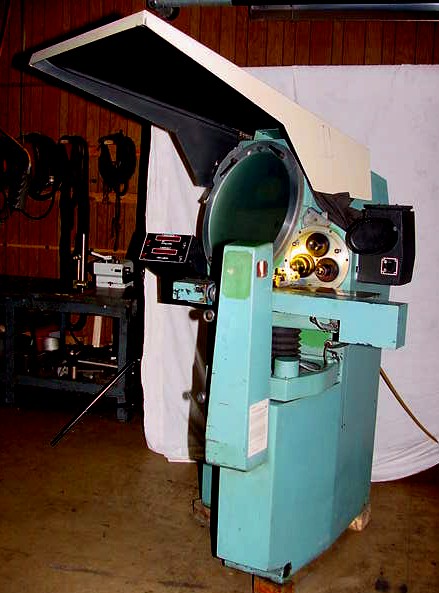

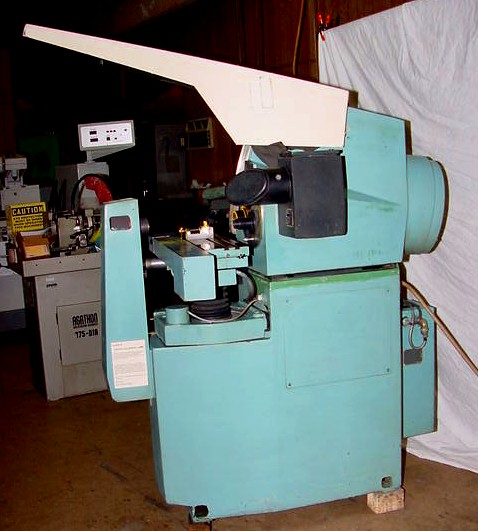

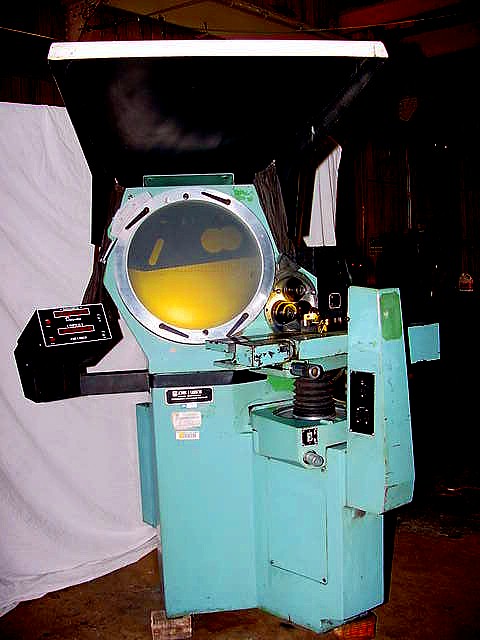

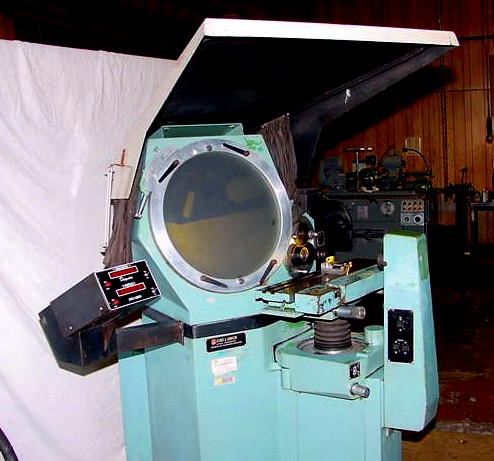

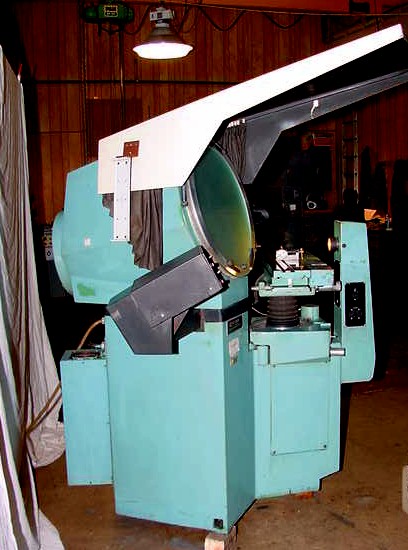

20" JONES & LAMSON OPTICAL COMPARATORPrice: On Request
w/J & L "DECI-METRIC" 2-AXIS DIGITAL READOUT

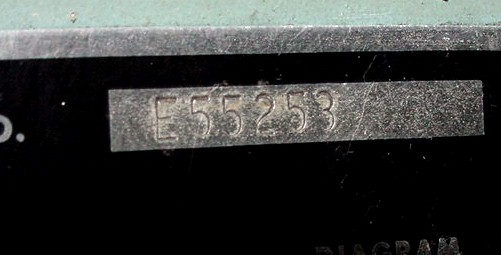

MODEL CLASSIC 20 S/N: E55253 NEW : 1978
SPECIFICATIONS:
SCREEN DIAMETER........................... 20"
TABLE SIZE................................ 6" X 30"
MEASURING CAPACITY (TABLE TRAVEL)
LONGITUDINAL: ..... 8"
VERTICAL:.......... 6"

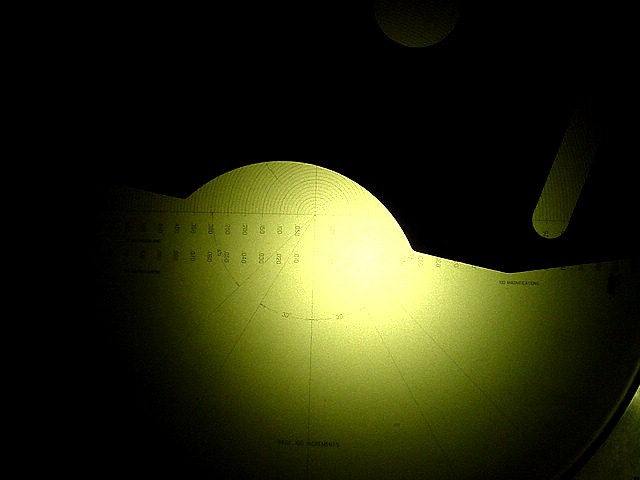

ANGULAR MEASURING CAPACITY.... 360 DEGREE CHART ROTATION
CROSS TRAVEL FOR FOCUSING................. 1.5"
HELIX ROTATION-TABLE SWIVELS.. 15 DEGREES LEFT & RIGHT
DISATANCE, LENS CENTERLINE TO TABLE ...... 8- 1/4" MAX.
2- 1/4" MIN.
FLOOR SPACE: 43" L-R X 57" F-B X 72" HIGH
WEIGHT: 1,400 LBS. (APPROX.)
EQUIPTMENT:

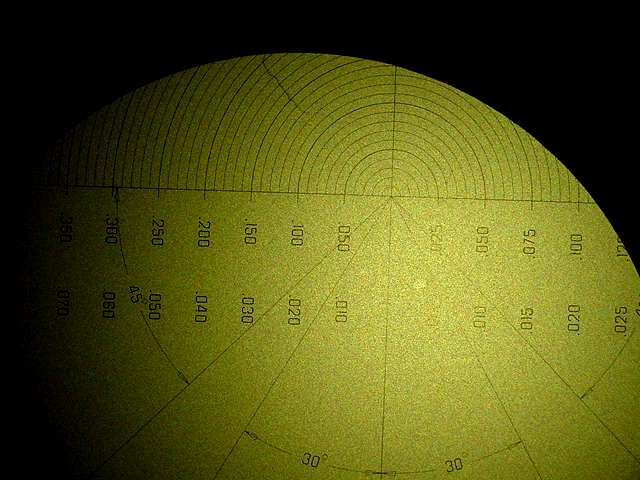

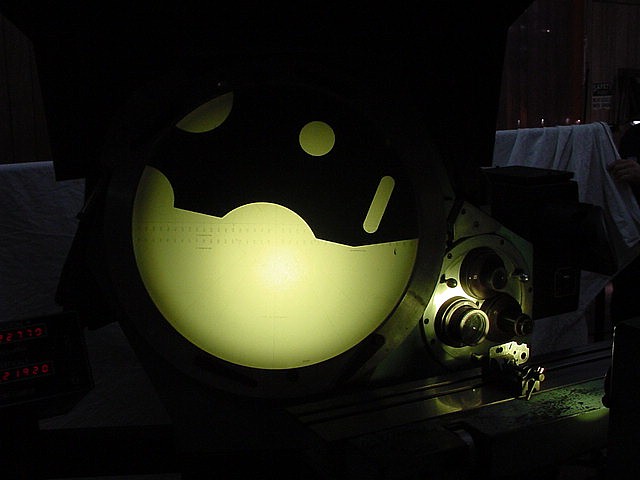

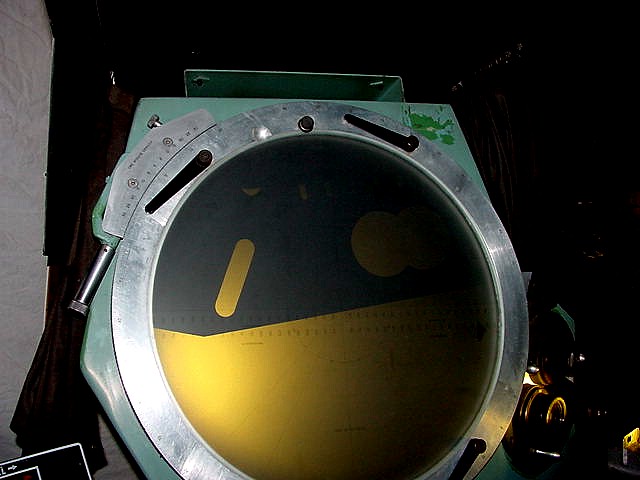

20" DIAMETER SCREEN

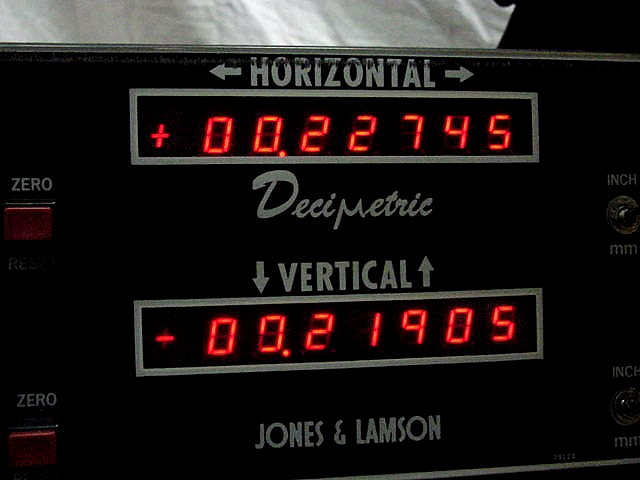

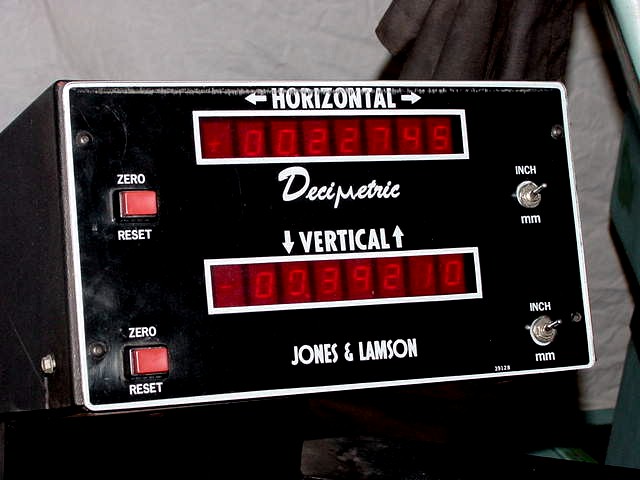

J & L "DECI-METRIC" 2-AXIS DIGITAL READOUT DISPLAY
SIDE SCREEN VIEWING
SINGLE SPINDLE TABLE SUPPORT
J & L REFLECTION (SURFACE ILLUMINATION) ATTACHMENT

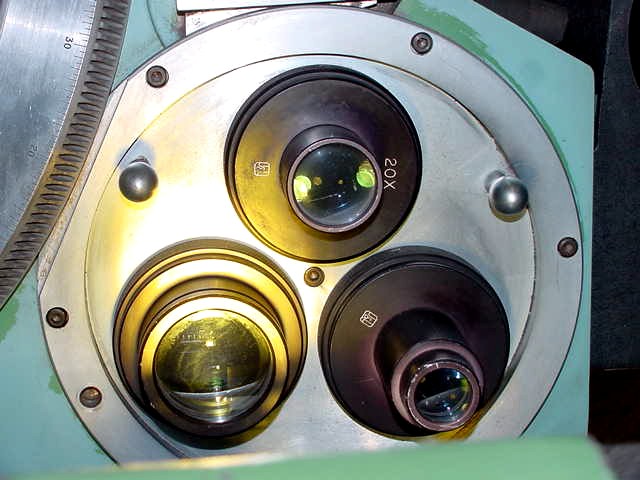

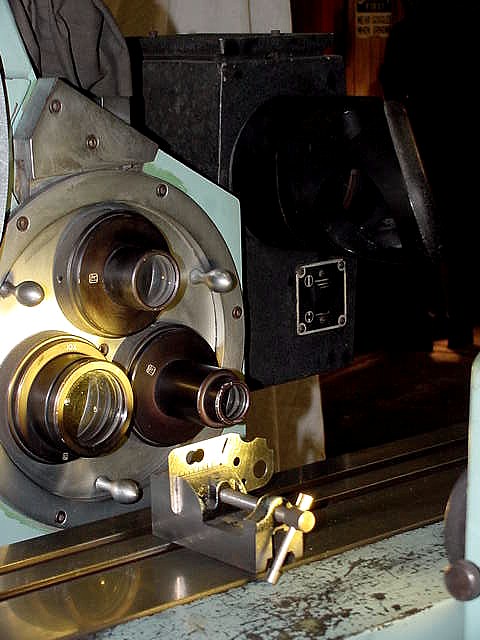

THREE POSITION LENS TURRET W/10X, 20X & 50X LENSES
TABLE SWIVELS (HELIX ADJUSTMENT) +/- 15 DEGREES

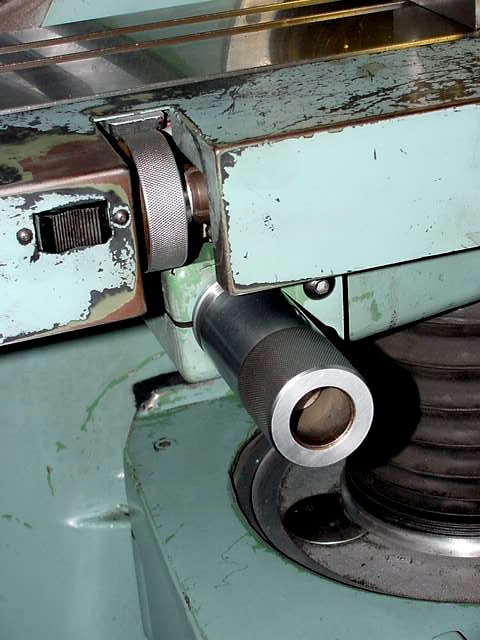

POWER TABLE TRAVERSE

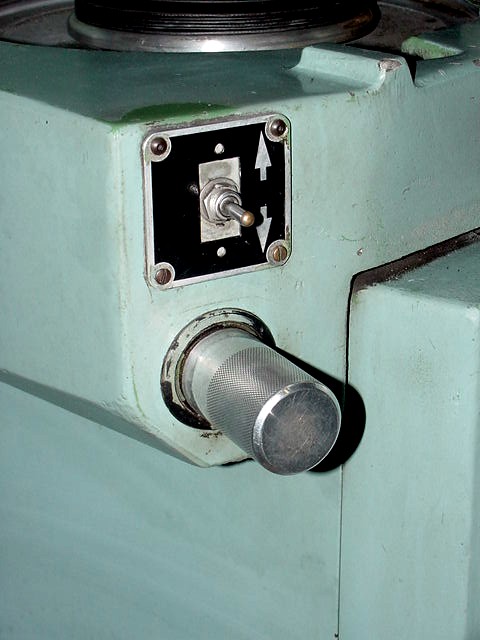

POWER TABLE ELEVATION

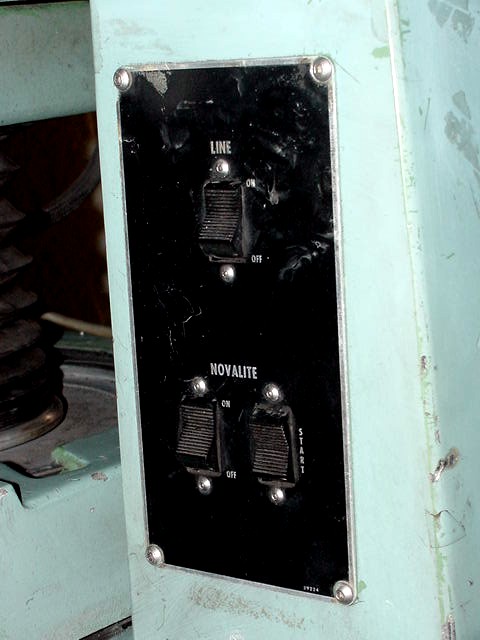

NOVALITE MERCURY ARC PROJECTION

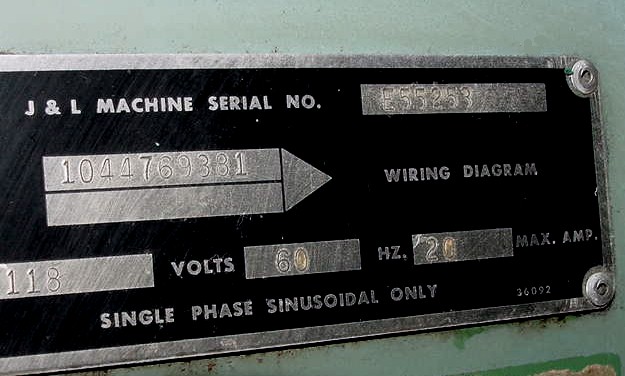

ELECTRICAL- 1/60/118 VOLT
LAST CALIBRATED BY:
R.L. GUIMONT CO., INC.
9071 TECHNOLOGY DRIVE
FISHERS, INDIANA 46038
CALIBRATION DATE: 6/29/2006
NEXT DUE DATE: 6/29/2008
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
* ALL ORIGINAL CONDITION & APPEARANCE ***
