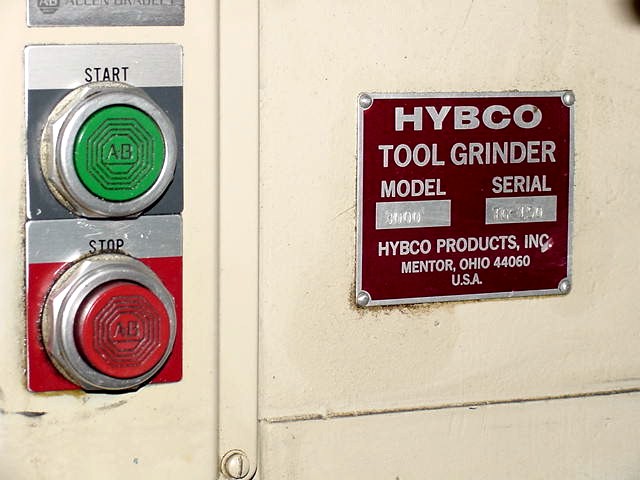

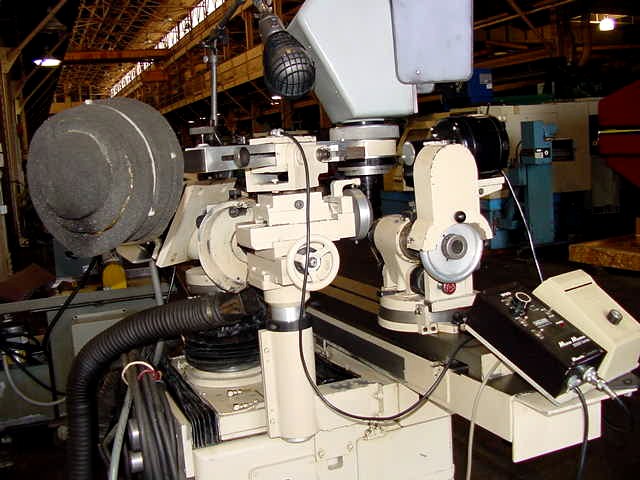

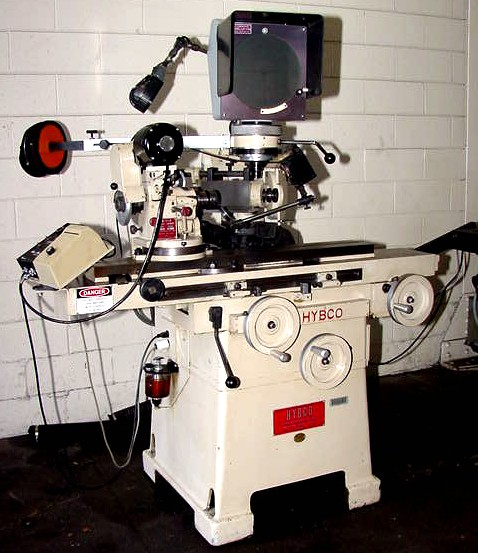

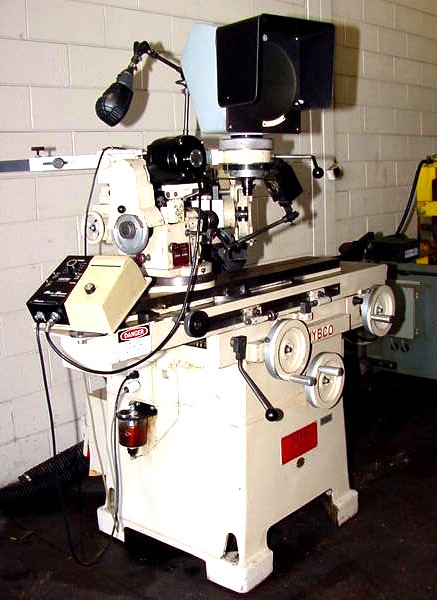

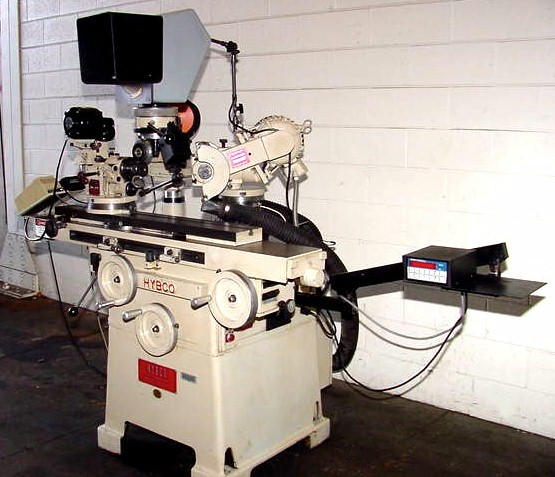

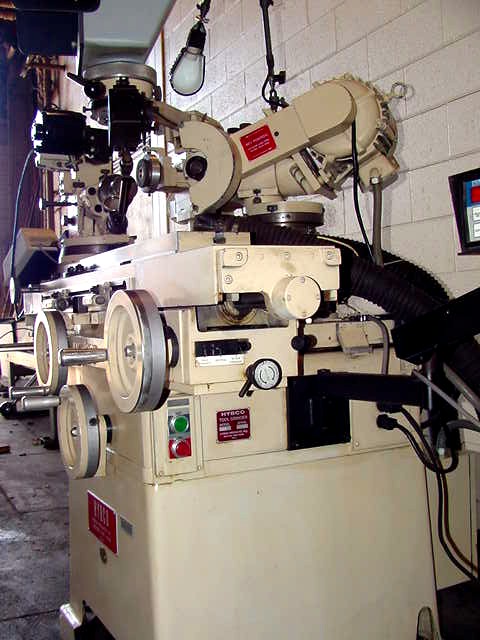

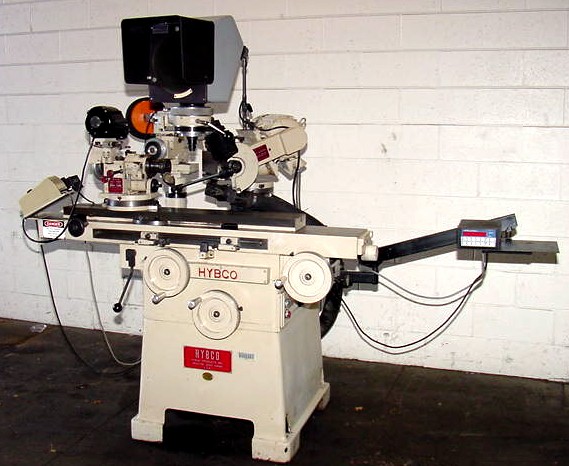

Hybco "Precision" Form Relieving Grinder

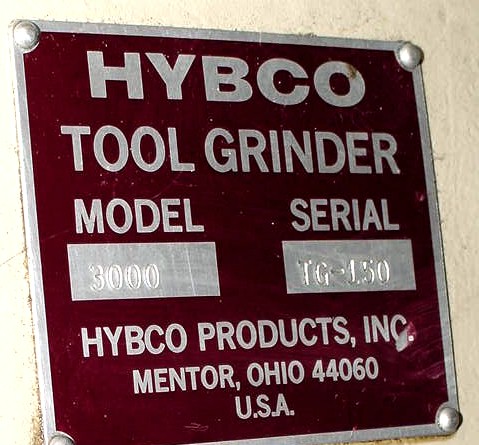

 Model No.: 3000    Machine S/N: TG-150     New: April, 1994

 Specifications:

 10" Optical Comparator
 Table Working Surface: 6" x 36"
 Longitudinal Travel: 14-1/2"
 Cross Travel: 8-1/4"
 Grinding Spindle Vertical Travel: 7-1/4"
 Grinding Spindle Rotation: 360 Degrees
 Grinding Spindle Tilt,
  either side of Horizontal: 25 Degrees

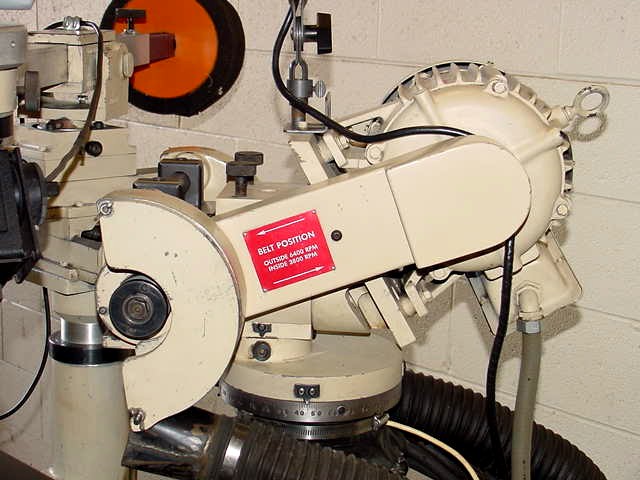

 Grinding Spindle Speeds: 3800 & 6400 RPM
 Grinding Spinele Motor: 1.5 HP, 230/460/3/60, 3430 rpm
 Grinding Wheel Max. Diameter: 7"

 Floor Space: 55" x 72"
 Approx. Weight: 2000 lbs

 Model 2100 SB Two-Way Relieving Fixture w/Swivel Base
 Spindle Center Height: 7-1/2"
 Standard Collet Capacity: 1-1/16" thru Spindle

 Machine Features:
 Wheelhead Infeed Movement Provided by a BALL SCREW
  W/Anti-Backlash Double Nut.  Handwheel is Graduated
  with .0005" Divisions.
 Longitudinal Table Feed is Provided by Rack & Pinion
  with Auxilary Lever for Short Stroke Work.  Handwheel
  is Graduated in .0005" Divisions.

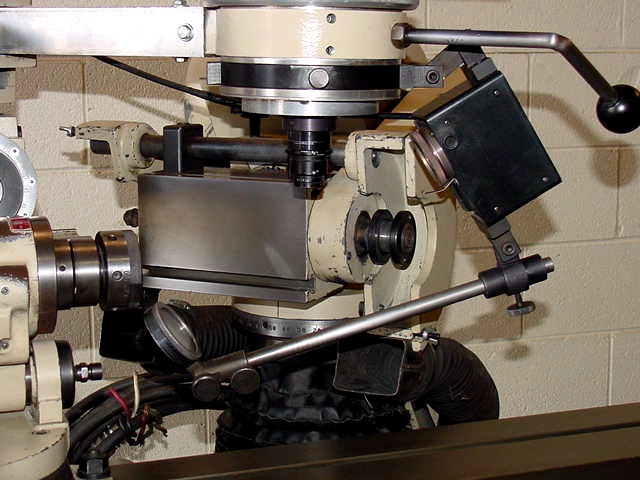

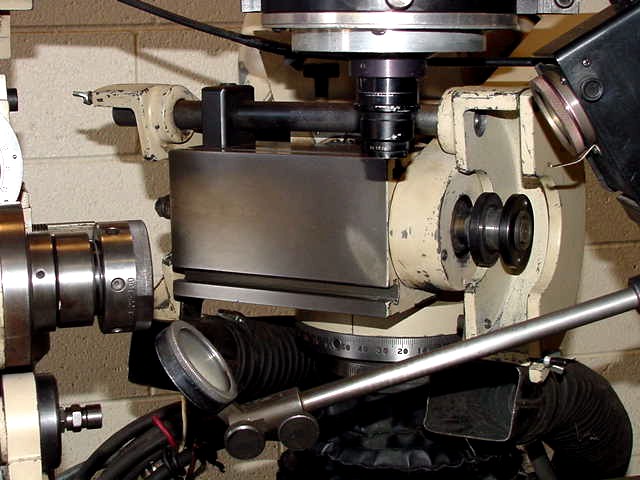

 Preloaded Cross Roller Bearing on Wheelhead and
  Longitudinal Slides.
 Heavy Duty Cast Iron Machine


 Equipped with:

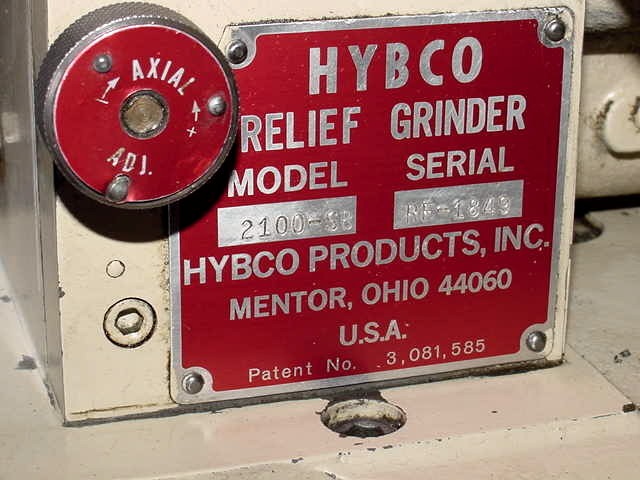

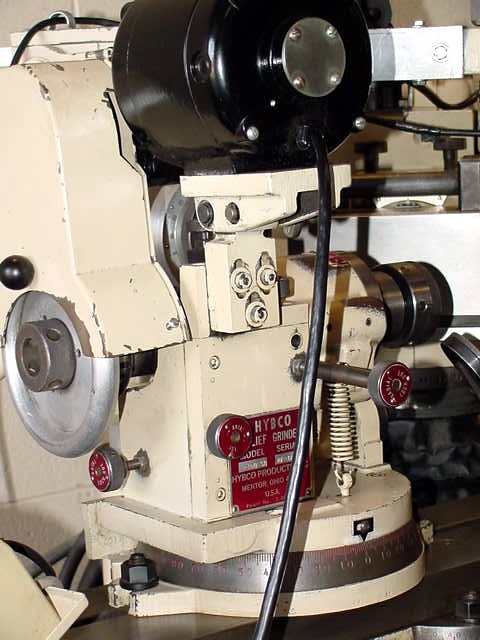

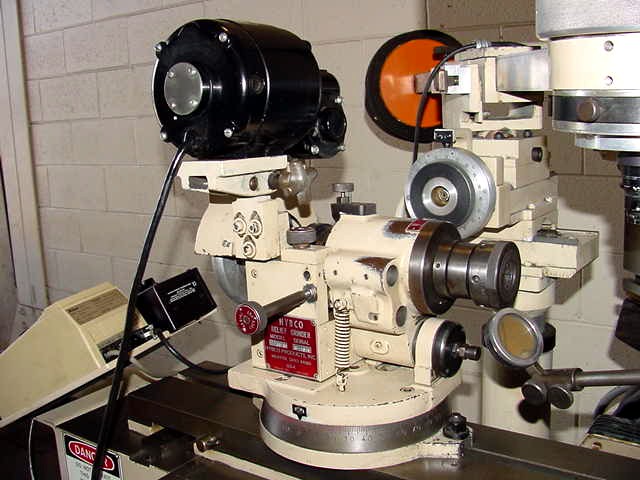

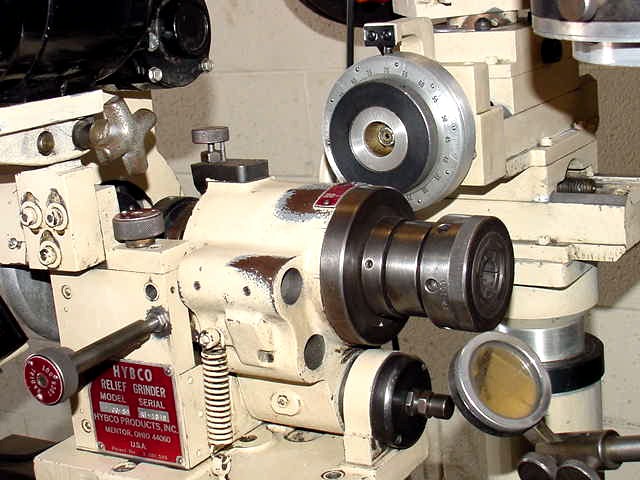

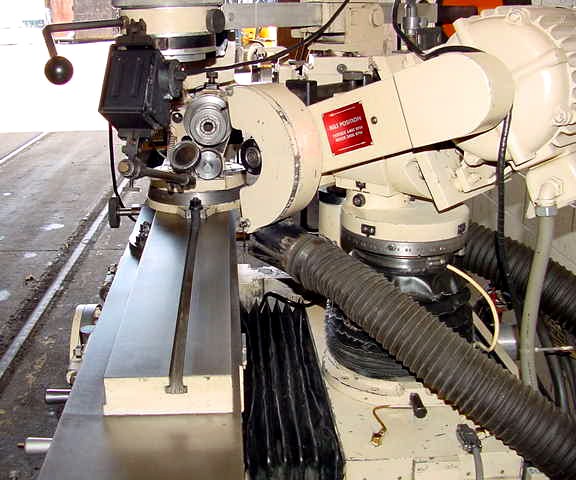

 Hybco #2100-SB (S/N: RF-1849) Motorized Universal Two-Way
  Relieving Fixture

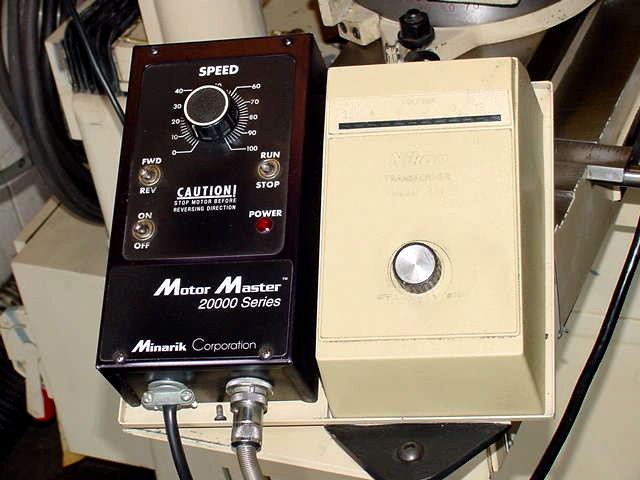

 Minarik Corp. "Motormaster 2000" Variable Speed Controller
  for the Relieving Fixture

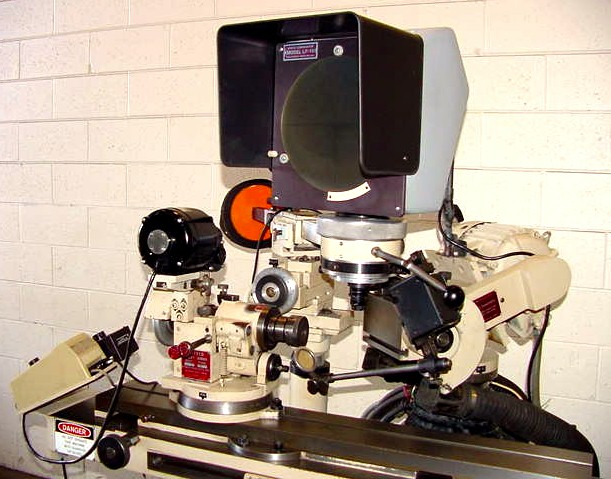

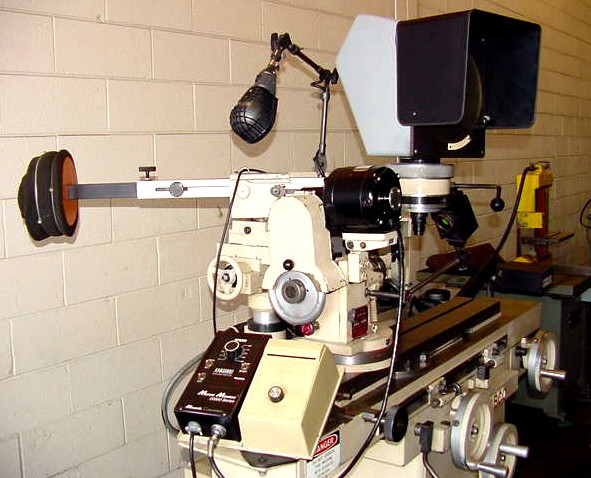

 Nikon #LP-10 Optical Comparator w/Variable Intensity
  Controller

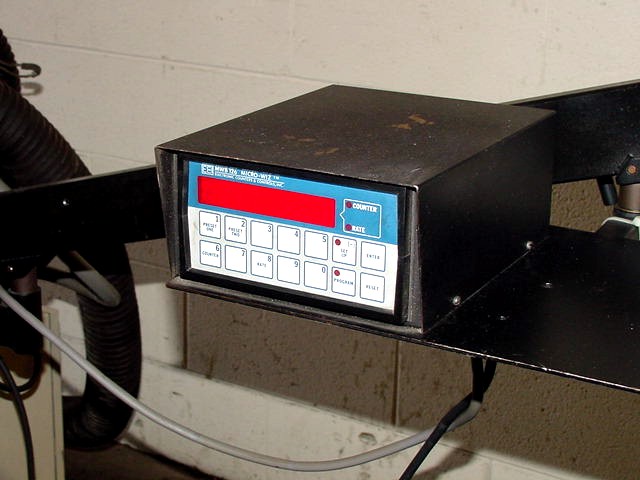

 MWB 126 Micro-Wiz Electronic Counter & Controls, Inc.
  Single Axis Digital Readout Display.  Display for Angular
  Readout in .1 Degree Increments on Graduated Column.
 (1) Cam & Index Plate

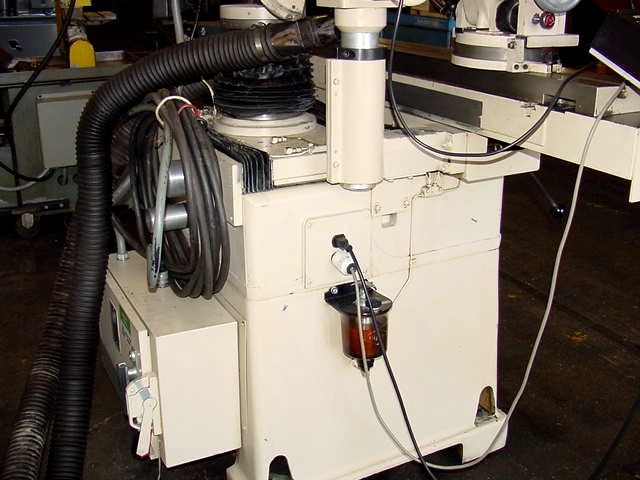

 One Shot Bijur Lubrication
 3/60/230-460 Volt Spindle Motor
 Machine is Presently Wired for 460 Volts

 Tooling

 Cams
 #12, #13, #14, &3, 10&2,&17, &19
 2100-10-3&, &18, &13HR

 ** Inspect Under Power in our Harrison, NJ Warehouse **
 ** Superb Condition & Appearance **
