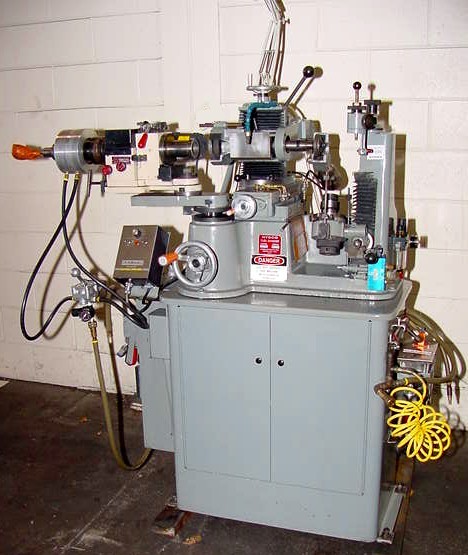

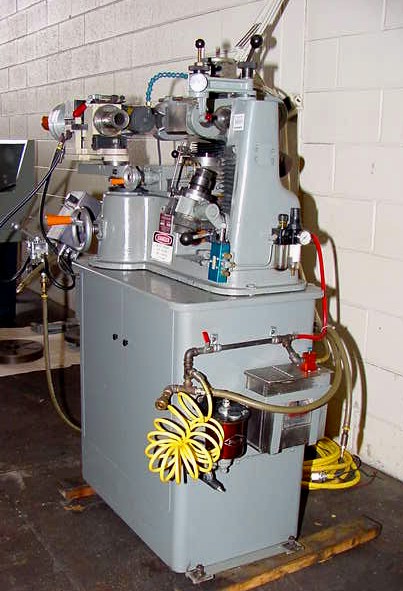

HYBCO UNIVERSAL TOOL & CUTTER GRINDER

 "A COMPLETE TOOL RESHARPENING SYSTEM FOR DRILL POINTS,
  TAPS, STEP DRILLS, REAMERS, COUNTER SINKS, END MILLS,
  MILLING CUTTERS & MORE"

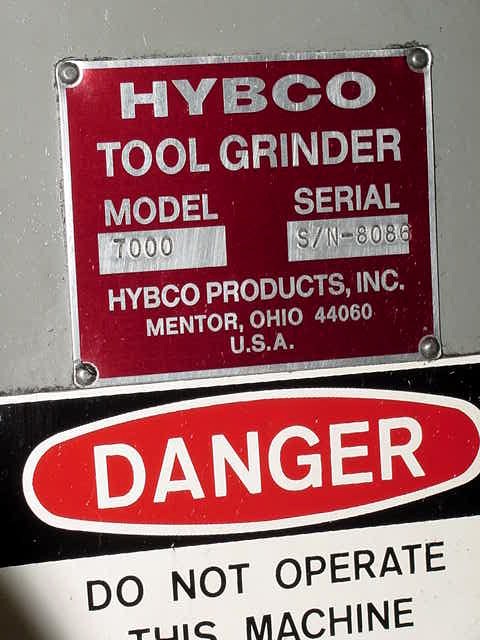

 MACHINE MODEL No.: 7000     S/N:  8086       NEW: 1997


 Various drill points that are generated:
 -Chisel Point
 -Crown Point
 -Four Facet
 -Apex Point
 -"S" Point
 -Plastic Point
 -Flat Bottom
  (Included Angles of 60-180 Degrees)

 Camfer Angles are quickly resharpened and can be
  modified to meet users requirements:
 -Taps
 -Reamers
 -Core Drills
 -Weldon Counter Sinks
 -Ford Countersinks
 -Multi-Flute Counter Sinks
 -Half Round Drills

 New design grinding wheel spindle adds rigidity and
  versatility to Hybco T & C Grinder
 Double end spindle mounted on four "O" precision bearings
  3" taper/ft. both ends. Takes standard mounting hub
 -Elevating adjustment 3"
 -Tilt adjustment 20° either side of horizontal
 -Pivot 90° either side of "O".

 Model 6100 FLUTE HEAD:
  Gives unique operator overview on flute sharpening
  applications:
 -Drill Point Applications
 -Split Points
 -Web Thining
 -Lip Correction
 -"C" Grind
 -Crank Shaft
 -Chip Breaker

 The tilting spindle enables the Model 6000 fixture to be
 used as a dividing head. The axial and oscillatory motions
 are simply locked out. A 12 notch index plate is provided
 For sharpening the end teeth on milling cutters, etc.

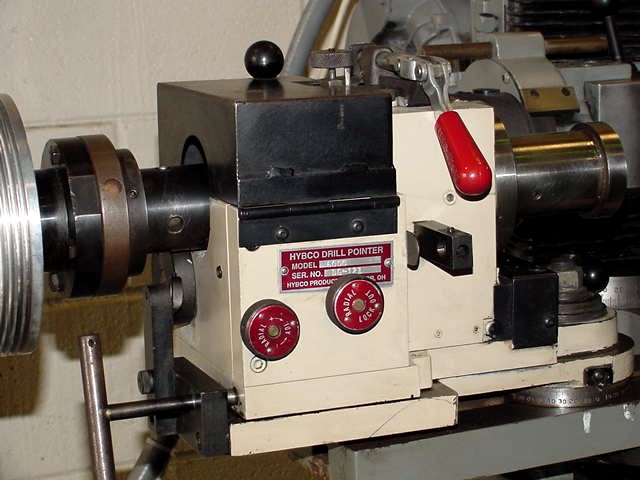

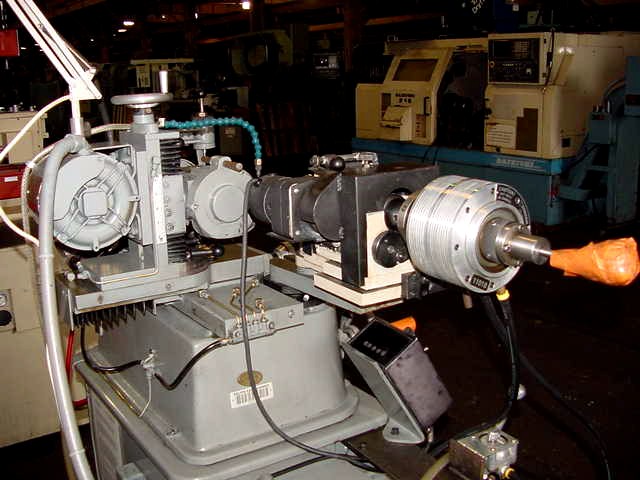

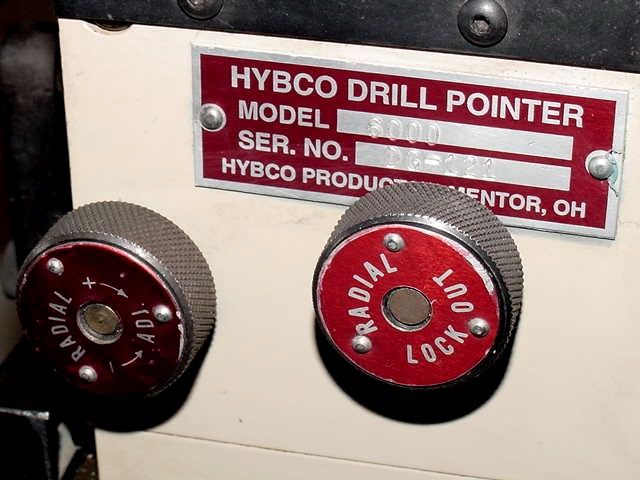

 #6000 MOTORIZED FIXTURE (S/N: DG-121)
 The Model 6000 drill point grinding attachment provides
 circular, axial and oscillatory motions that operate
 separately or together to generate the geometry needed to
 re-sharpen and or produce special drill points as well as
 re-sharpen other types of face cutting tools such as taps,
 step drills, counter sinks, reamers and core drills.

 Some of the unique features Hybco Model 6000 are:
 -The spindle has a 5C-collet cavity.
 -A dial indicator shows the exact amount of adjustable
  axial caming motion, eliminating the need for offset
  Tool projections for diameter changes.
 -Adjustable height timing gauge for chisel point angle
  modifications.
 -The spindle is mounted on special Timken "0" precision
  taper roller bearing.
 -The attachment features a D.C. 1/40 HP motor drive package
  featuring quick acting engagement with toggle clamp.
 -The oscillating motion is generated from a drive gear
  mounted on the spindle which in turn drives a circular
  turning crank arm that is attached to the lever arm. This
  motion is engaged by inserting a "T" handle taper end
  wrench to lock the lever arm into place.
 -The axial motion is on preloaded cross roller bearings
  and ways.
 -The Model 6000 fixture can be mounted on many different
  makes of tool and cutter grinders.

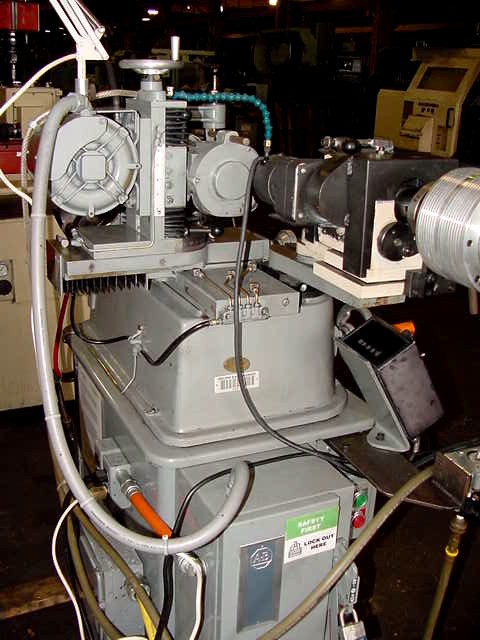

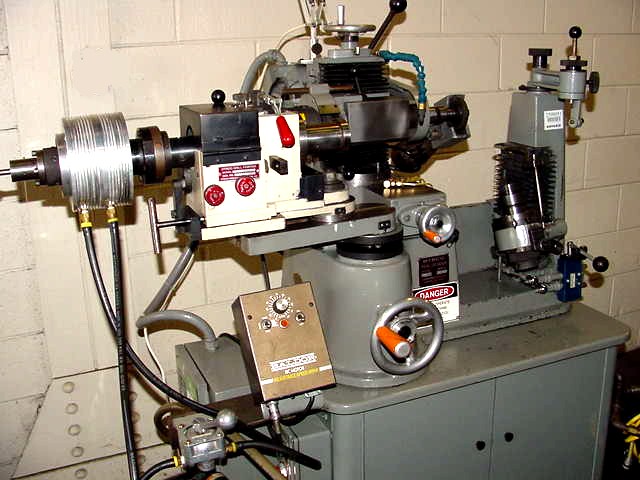

 EQUIPPED WITH:

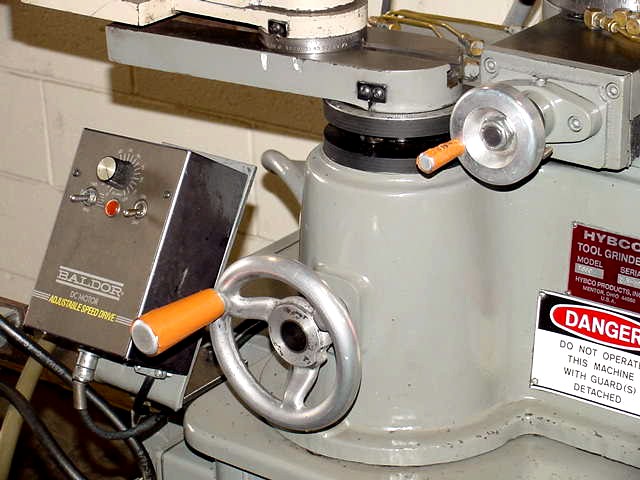

 #6000 Workhead w/"BALDOR" DC Motor Adjustable Speed Drive
  & "DUNHAM" 5C Pneumatic Coller Closer

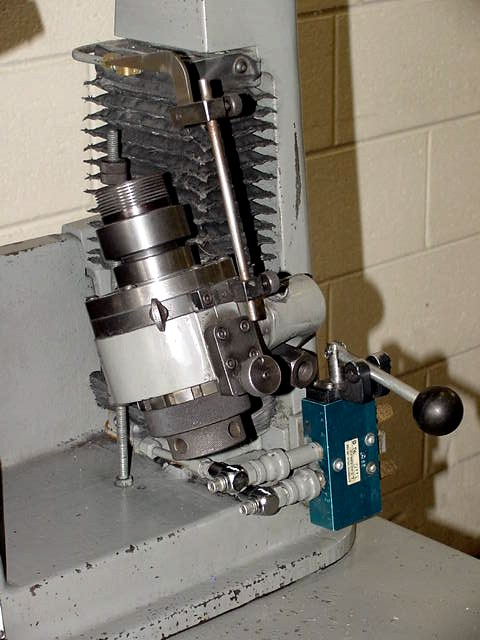

 #6100 Fluting Head

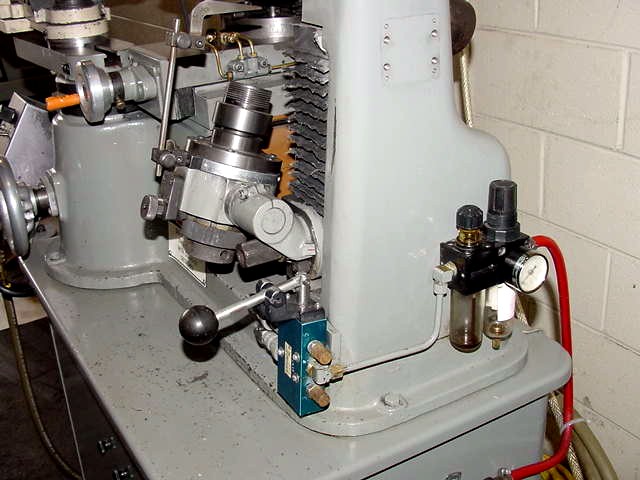

 Pneumatic Vertical Slide for Fluting Head w/5" Travel

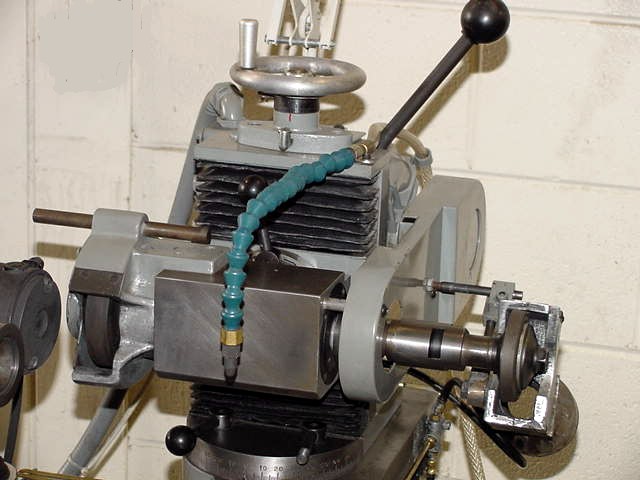

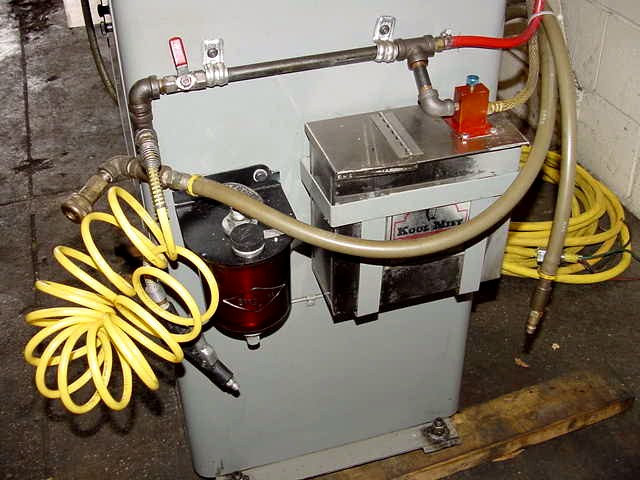

 "KOOL MIST" Air Powered Coolant System
 BIJUR One-Shot Lubrication System
 3/4 H.P./3/60/230-460 Volt Grinding Wheelhead Motor
 Presently Wired for 3/60/460 Volt Operation

 ** Inspect Under Power in our Harrison, N.J. Warehouse **

 ** EXCEPTIONAl Condition & Appearance (Original Paint) **
