Reference Number: 140785

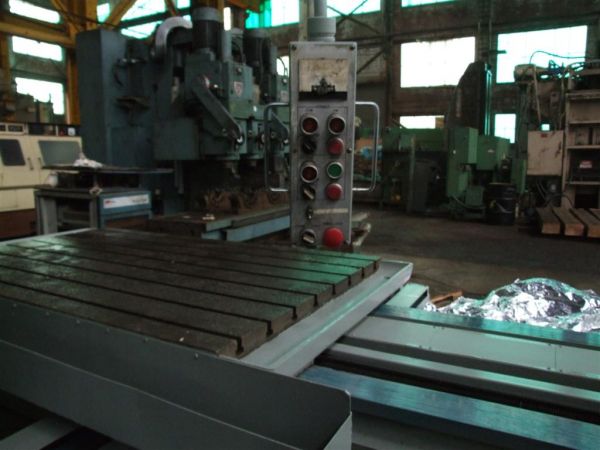

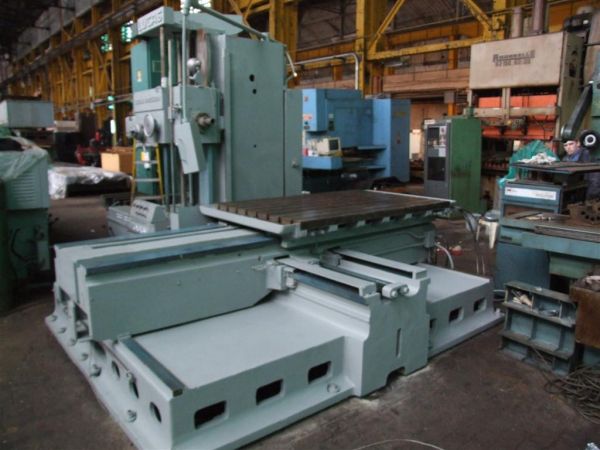

Price: $39,5004" LUCAS TABLE TYPE HORIZONTAL BORING MILL, SPECIFICATIONS:
MODEL 20B-64, S/N: 41B-3621, NEW 1974
DIAMETER OF SPINDLE .................. 4"
TAPER IN SPINDLE ..................... NO.50 POWER TOOL LOCK
SPINDLE LONGITUDINAL TRAVEL .......... 24"
HEADSTOCK VERTICAL TRAVEL ............ 48"
TABLE SIZE ........................... 48" X 74"
TABLE CROSS TRAVEL ................... 72"
TABLE LONGITUDINAL TRAVEL ............ 48"
SADDLE LENGTH ........................ 132"
DISTANCE ACROSS 4 BED WAYS ........... 120"
SPINDLE SPEEDS (25) .................. 15 TO 1550 RPM
FEEDS (81) ........................... .0001-.925 IPR
RAPID TRAVERSE RATE .................. 112 IPM
APPROX. WEIGHT ....................... 45,000 LBS
DIMENSIONS ........................... 190"x 143"x 116 ½"
EQUIPPED WITH:
- AIR LIFT TO TABLE
- 132" OVERSIZED SADDLE LENGTH
- 120" OVERSIZED 4-WAY BED WIDTH
- NO.50 POWER TOOL LOCK
- HARDENED BED AND GROUND WAYS
- BUILT-IN HARDENED 4-WAY BED
- PENDANT CONTROL
- COOLANT TANK
- POWER RAPID TRAVERSE
- WORK LIGHT
- DP8, 3AXES NEWALL DIGITAL READOUTS
- (1) NO.50 TOOL HOLDER
- 15 HP 3/60/220-440 VOLT MOTOR WITH CONTROLS
