Reference Number: 140787
Price: On Request

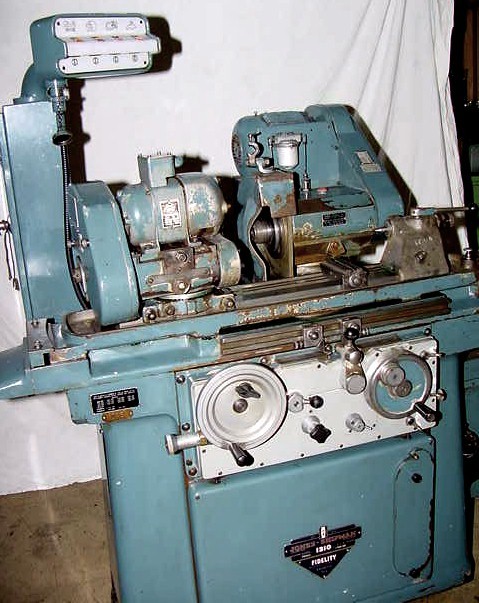

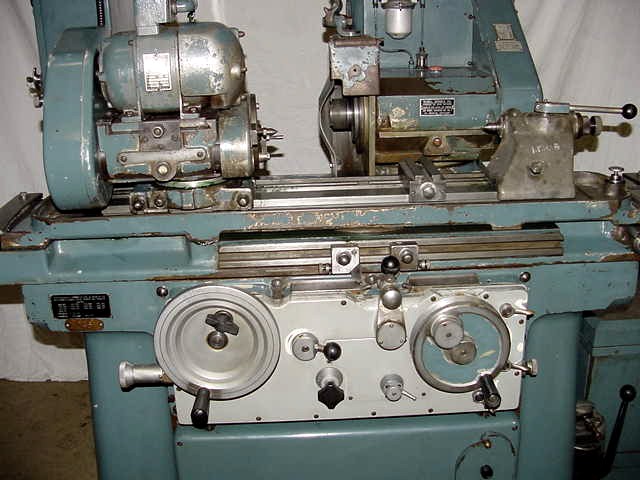

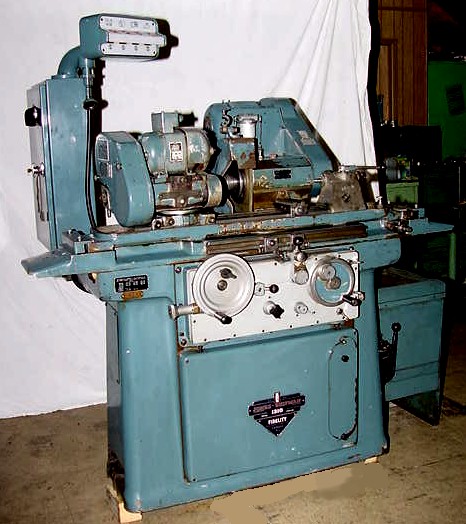

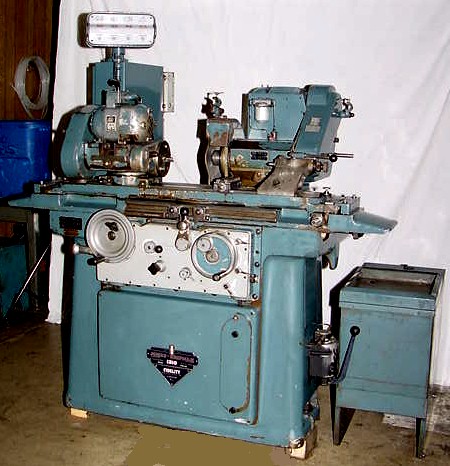

8" X 18" JONES & SHIPMAN "SUPER-PRECISION"
UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

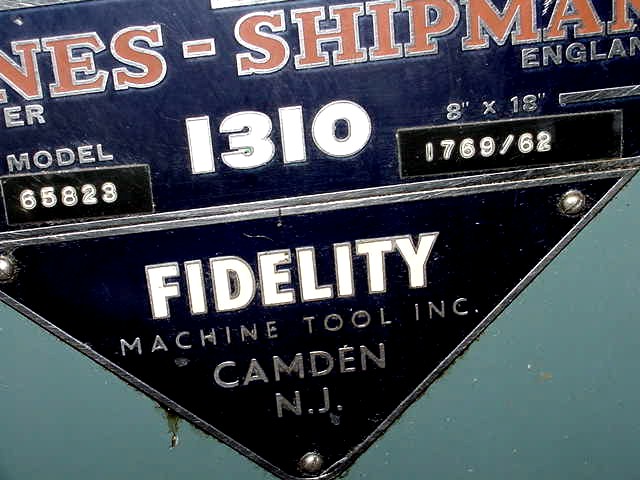

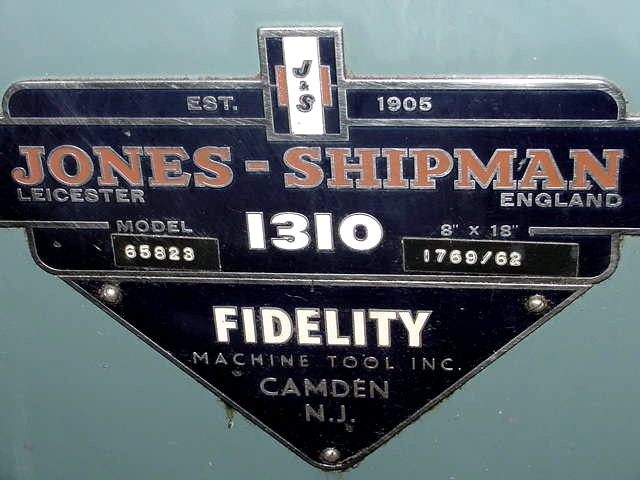

MODEL: 1310 S/N:1769-62 NEW: 1968
MAXIMUM SWING ..................................... 8"
DISTANCE BETWEEN CENTERS .......................... 18"

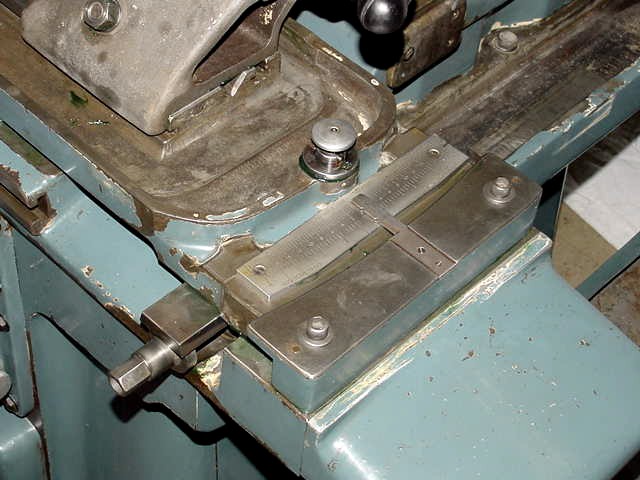

TABLE SWIVEL INCLUDED ANGLE:
CLOCKWISE ................................ 19 DEGREES
COUNTERCLOCKWISE ......................... 20 DEGREES
LONGITUDINAL TABLE SPEED (HYDRAULIC) ... 3" TO 144" IPM

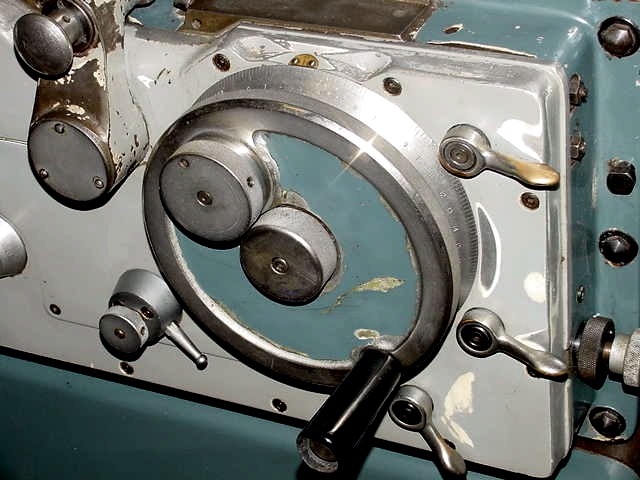

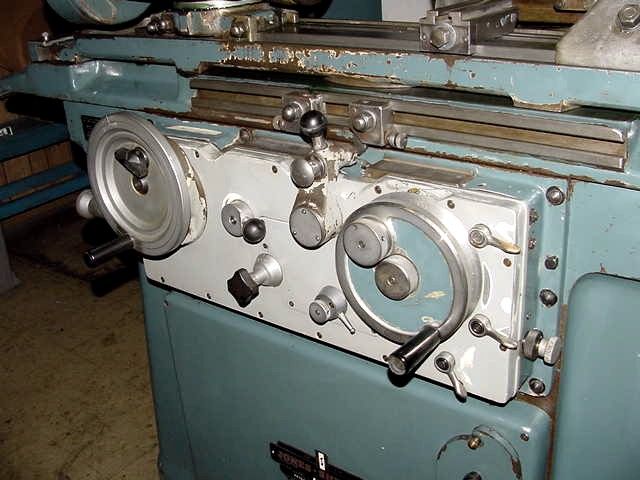

MANUAL TRAVERSE, HANDWHEEL PER REV. ............. 0.50"
FINE HAND TRAVERSE KNOB GRAD. ................. 0.0005"

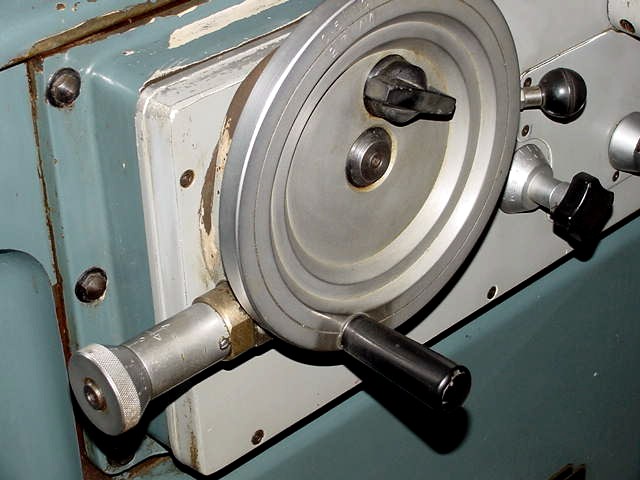

FINE HAND TRAVERSE KNOB PER REV. ................ 0.01"

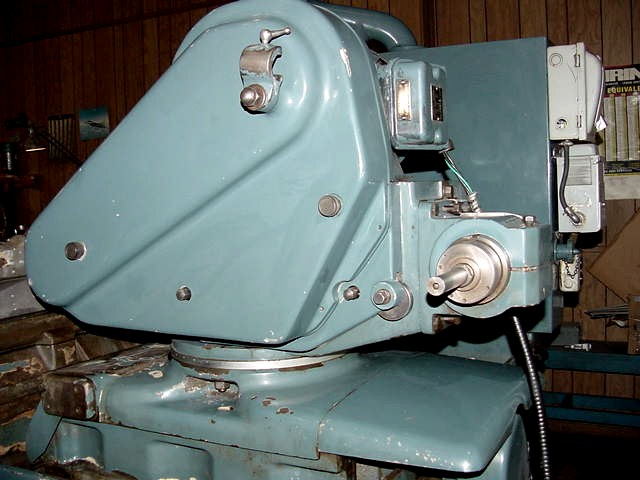

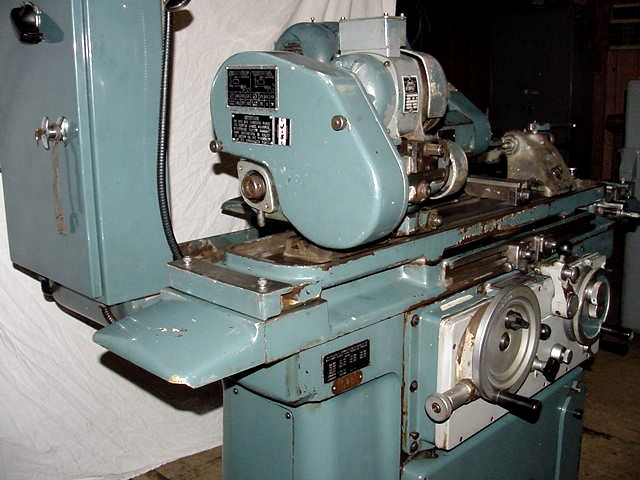

WHEELHEAD:

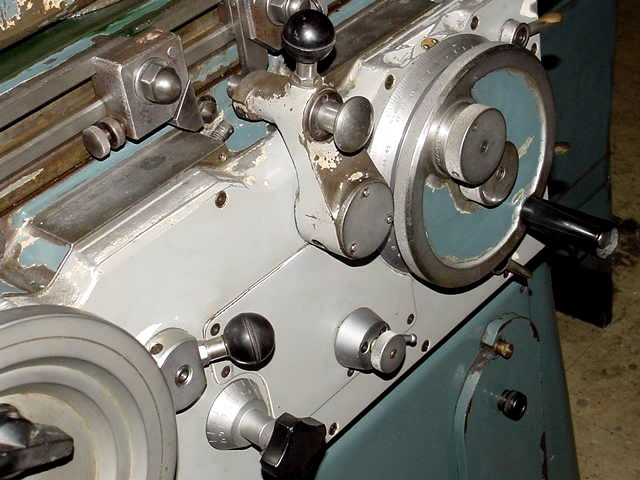

CROSS FEED HANDWHEEL GRAD. .................... 0.0002"
ONE DEPRESSION OF FINE FEED LEVER KNOB ........ 0.0001"
AUTO INFEED @ TABLE REVERSALS ...... 0.0001" TO 0.0006"
FEED @ REVERSAL OF TABLE,
REDUCTION IN DIAMETER .............. 0.0002" TO .0012"
CONTINUOUS (PLUNGE) INFEED RATE ..... 0.0001" TO .0006"
(PLUNGE) REDUCTION IN DIA. FROM ... 0.004" TO .072" IPM
MAX. RANGE OF PLUNGE INFEED ... 0.8 REV. OF THE HANDWHEEL
WHEELHEAD SLIDE ADJUSTMENT ....................... 7"
SWIVEL OF WHEELHEAD (EIU TYPE)............. 360 DEGREES
WHEEL SIZE .............................. 12" X 1" X 5"
WHEEL SPEEDS (2) .................... 2,000 & 2,650 RPM
WHEELHEAD MOTOR ................................ 2.0 HP

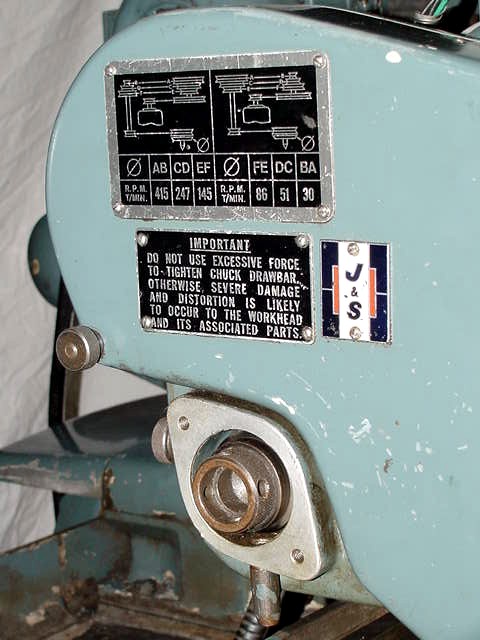

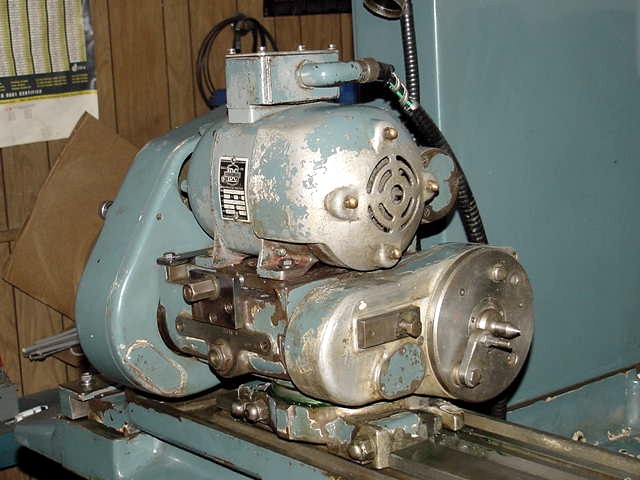

WORKHEAD SPINDLE SPEEDS (6) ............. 36 TO 500 RPM
WORKHEAD SPINDLE TAPER ........................... #3MT
APPROXIMATE DIMS. OF MACHINE .................. 66" X 48"
APPROX. FLOOR SPACE REQUIRED FOR OPERATION .... 80" X 54"
APPROX. MACHINE WEIGHT ........................ 4,000 LBS
EQUIPPED WITH:

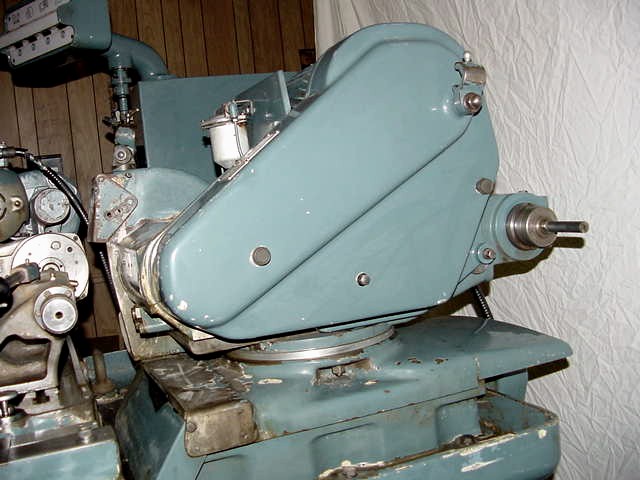

SWING AROUND INTERNAL GRINDING ATTACHMENT
w/I.D. SPINDLE
HYDRAULIC OPERATION FEATURING:
- POWER TABLE TRAVERSE
- AUTO INFEED
- PLUNGE (CONTINUOUS) INFEED
FINE FEED MECHANISM FOR INFEED OF WHEELHEAD
FINE FEED KNOB FOR TABLE TRAVERSE
DUAL LIVE/DEAD WORKHEAD SPINDLE

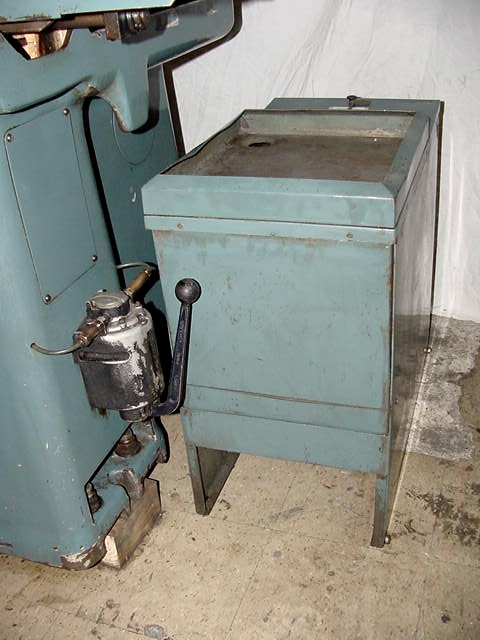

COOLANT SYSTEM
3/60/220-440 VOLT MOTORS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
