Reference Number: 140813
Price: On Request

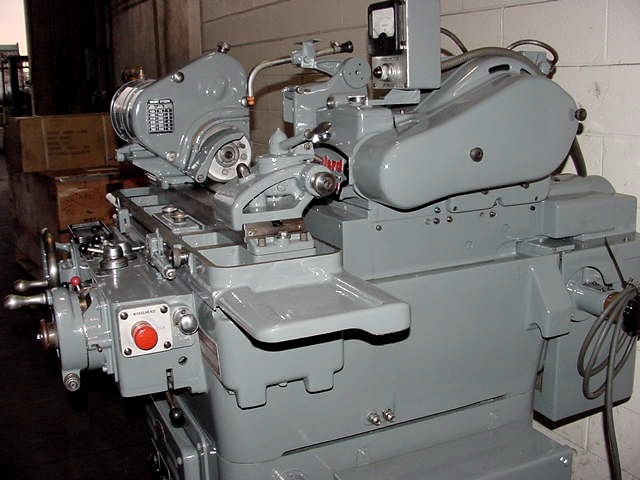

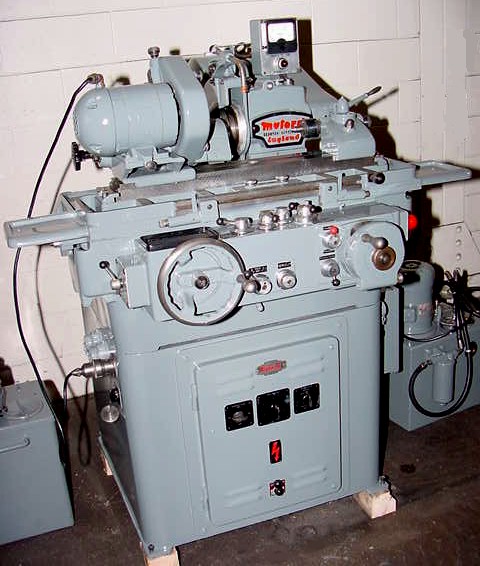

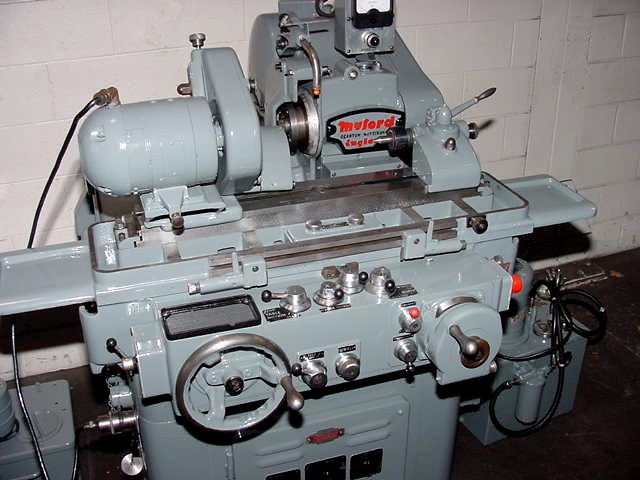

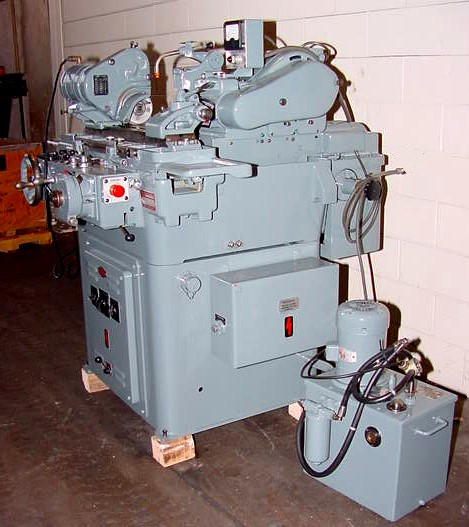

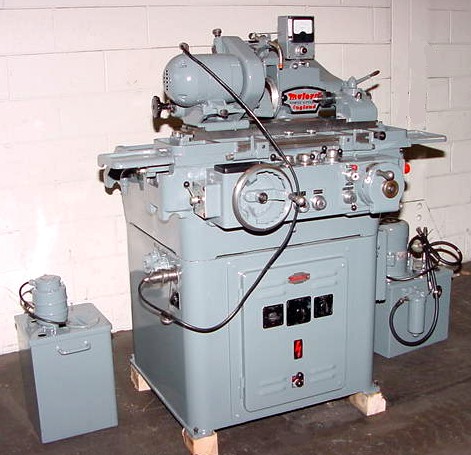

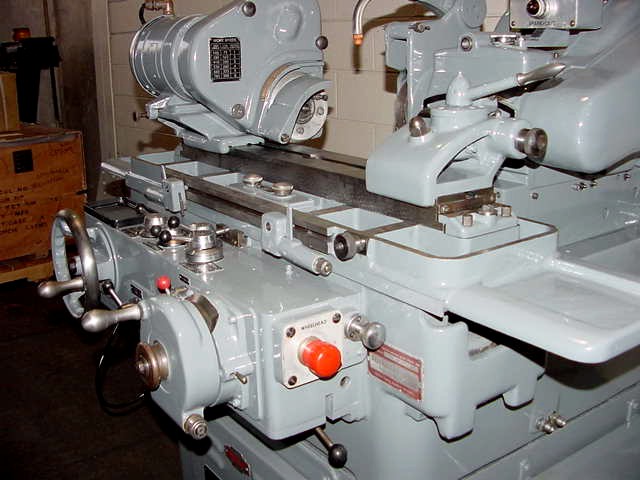

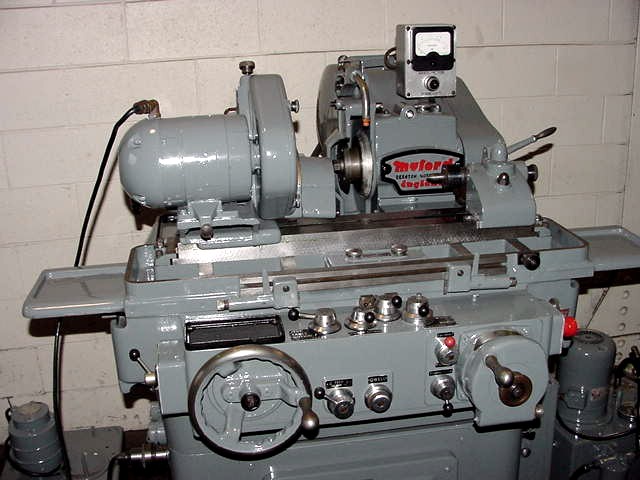

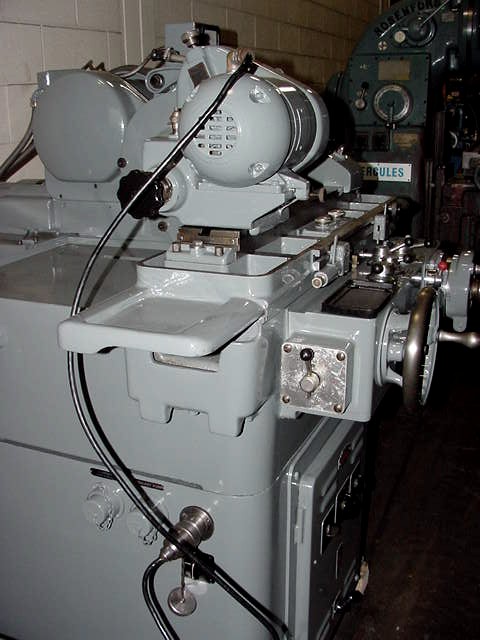

5" X 12" MYFORD "PRECISION"
HYDRAULIC PLAIN CYLINDRICAL GRINDER

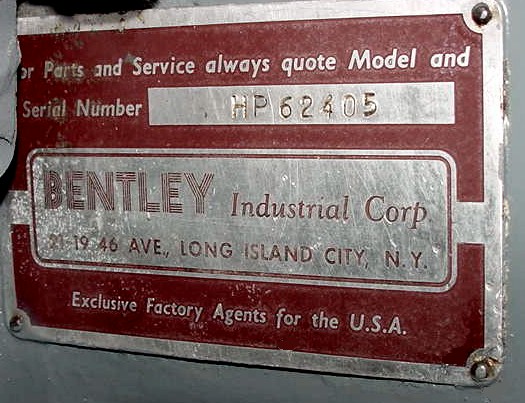

MODEL: MG12-HP S/N: HP-62405 NEW: 1964
MAXIMUM GRINDING DIAMETER .......................... 3"
SWING OVER TABLE ................................... 5"
MAXIMUM TABLE TRAVEL .......................... 13-3/4"
DISTANCE BETWEEN CENTERS .......................... 12"
TABLE SWIVELS EITHER WAY ...................... 10 DEG.
TABLE TRAVEL PER REV. OF HANDWHEEL .............. 0.44"
HYD. TABLE TRAVERSE ..................... 0 TO 120" IPM

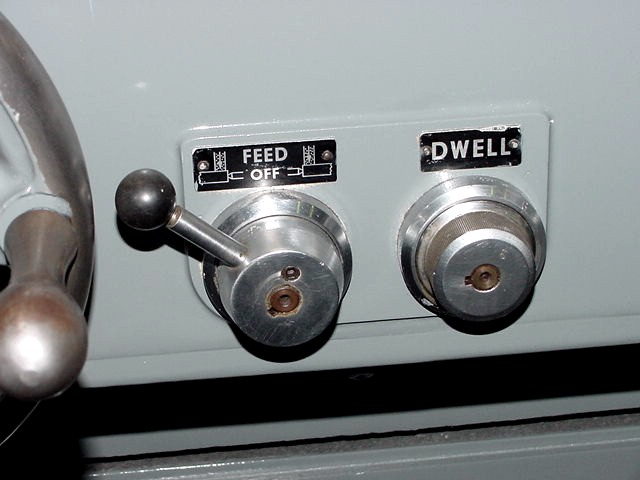

DWELL (CARRIAGE) ......................... 0 TO 8 SECS.

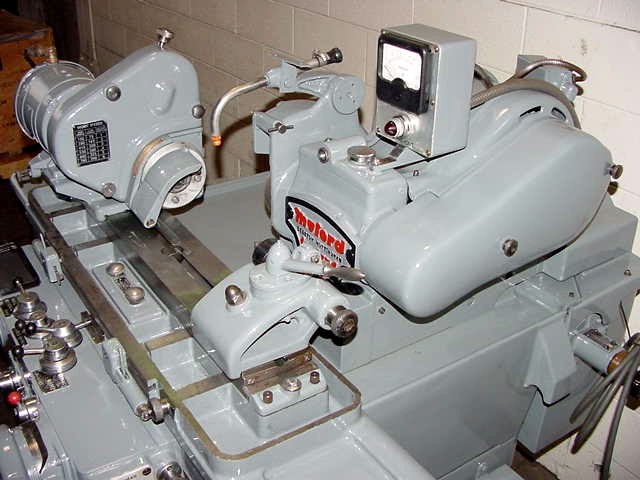

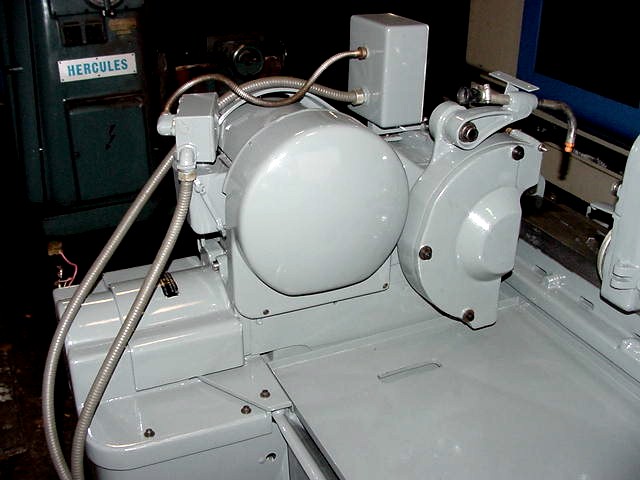

WHEELHEAD:
TOTAL TRAVEL BY FEEDSCREW .................... 3-7/8"
HYD. RAPID RETRACTION ........................ 1-1/8"
INFEED PER REV. OF HANDWHEEL ................. 0.025"
WHEELHEAD GRAD. (INFEED) .................... 0.0001"
FINE FEED TO DEAD STOP .................... 0.000025"

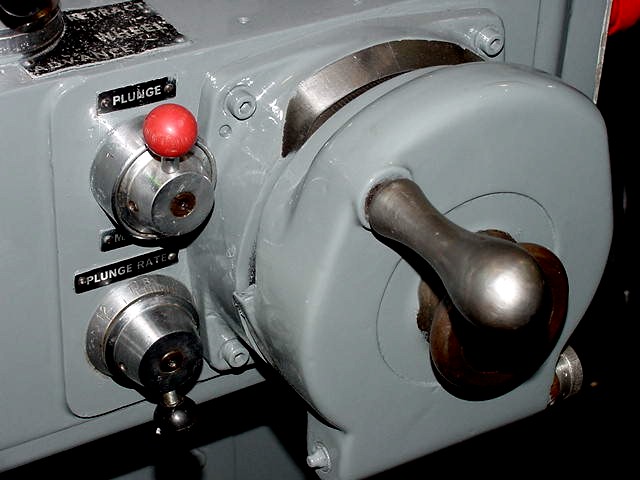

PLUNGE INFEED RATE PER MINUTE ...... 0.0025" TO .125"
AUTOMATIC INFEED RATE .............. 0.0001" TO .001"
GRINDING WHEEL (RECESSED) ............. 10" X 1" X 3"
WHEEL SPINDLE SPPEDS (2) ...........2,200 & 2,500 RPM
WHEELHEAD MOTOR ................................ 2 HP

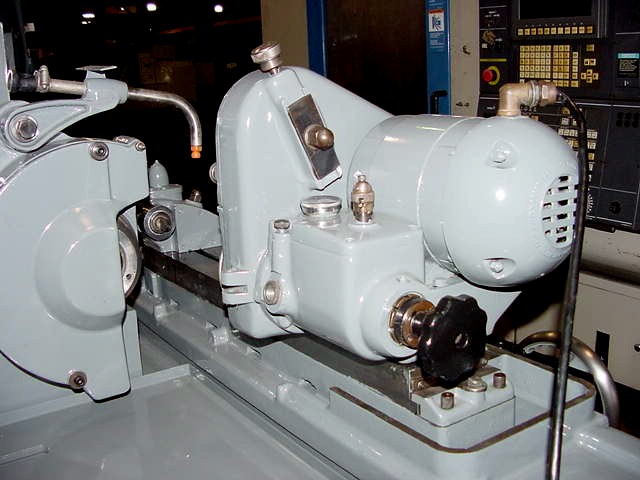

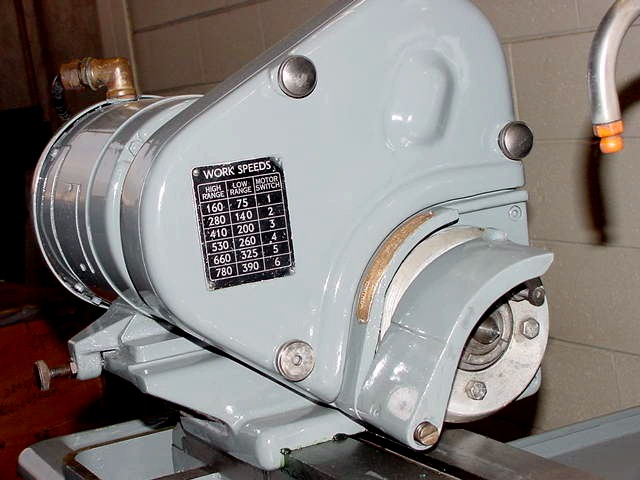

WORKHEAD:
WORKSPEEDS, INFINITELY VARIABLE ...... 100 TO 900 RPM
CAPACITY THRU STD. DRAW TUBE ................... 3/4"
MAXIMUM COLLET CAPACITY ........................ 3/4"
WORKHEAD MOTOR ............................... 1/4 HP
APPROXIMATE MACHINE WEIGHT ................. 2,000 LBS.
EQUIPPED WITH:

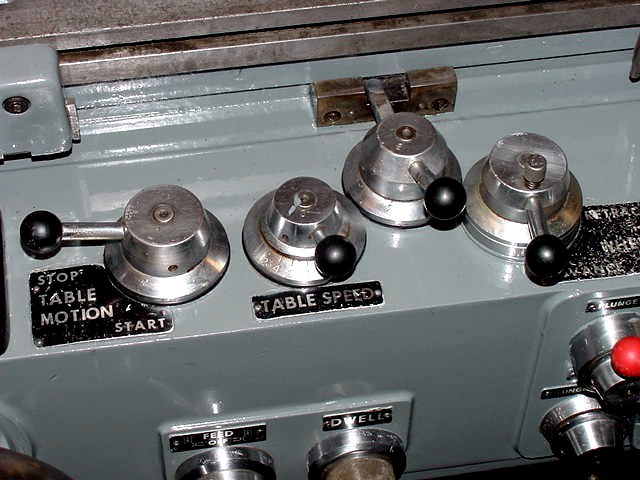

HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED

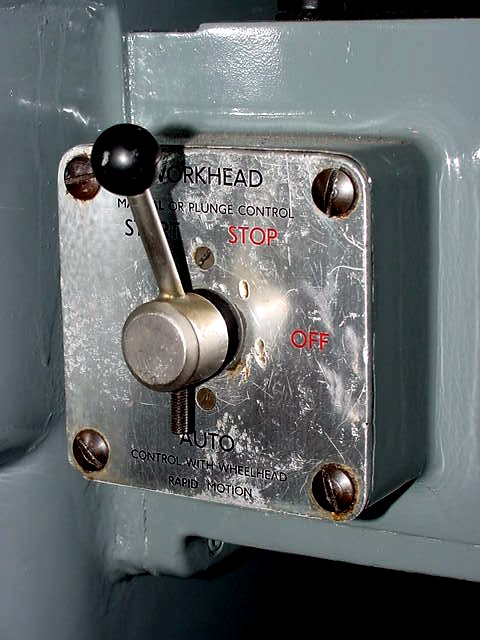

AUTOMATIC PLUNGE INFEED
VARIABLE DWELL @ EACH TABLE MOVEMENT

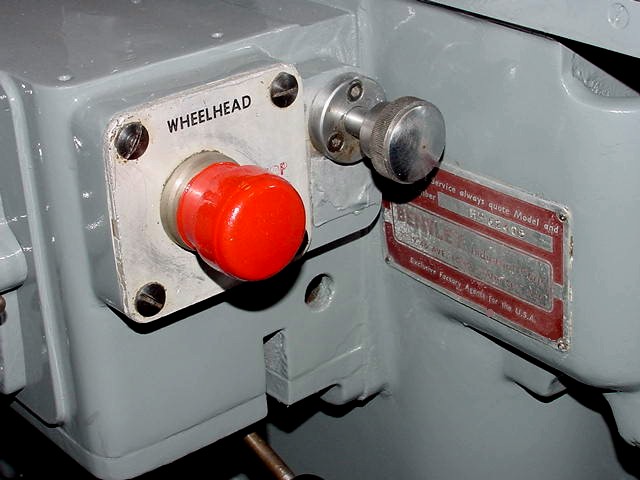

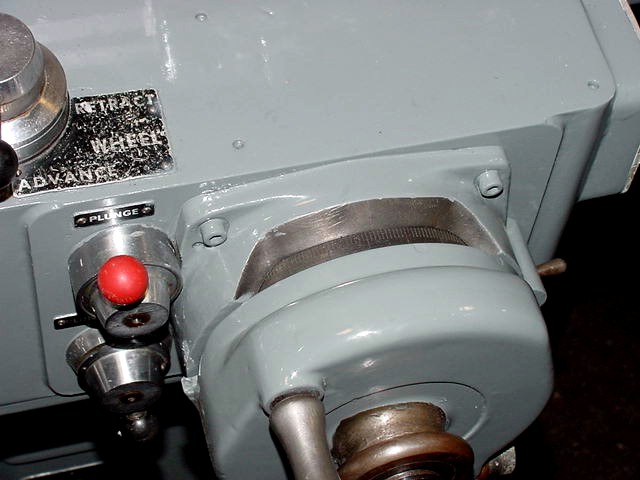

RAPID WHEELHEAD ADVANCED/RETRACTION

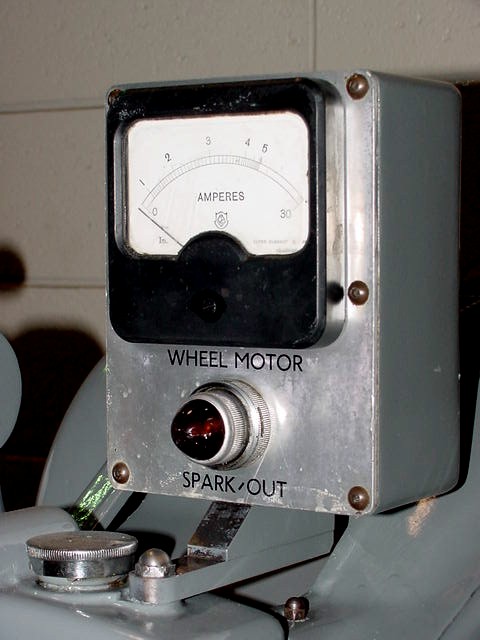

SPARKOUT TIMER
DUAL LIVE/DEAD WORKHEAD

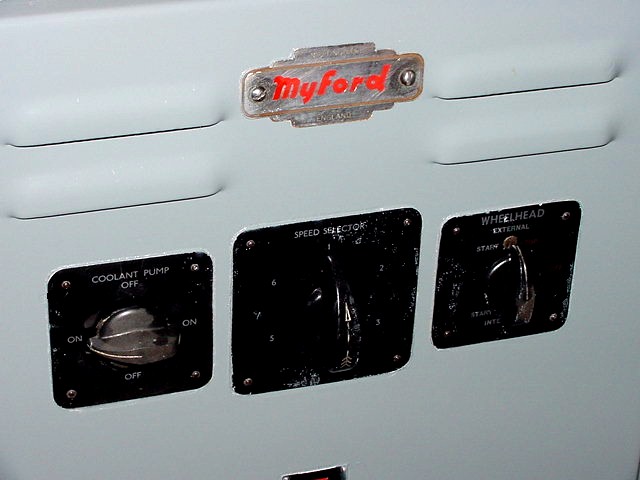

COOLANT SYSTEM

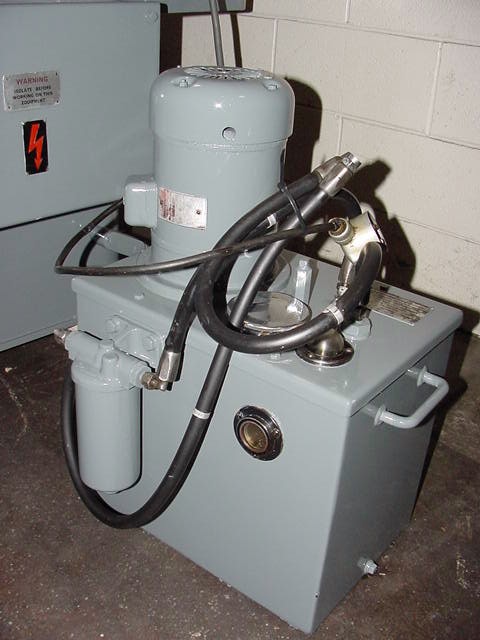

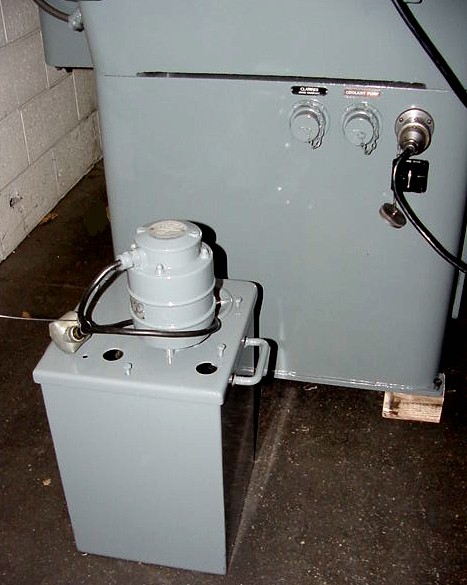

EXTERNAL HYDRAULIC PUMP & TANK
(1) WHEEL FLANGE
3/60/220-440 VOLT ELECTRICS
** EXCELLENT CONDITION * *
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
