Reference Number: 140825

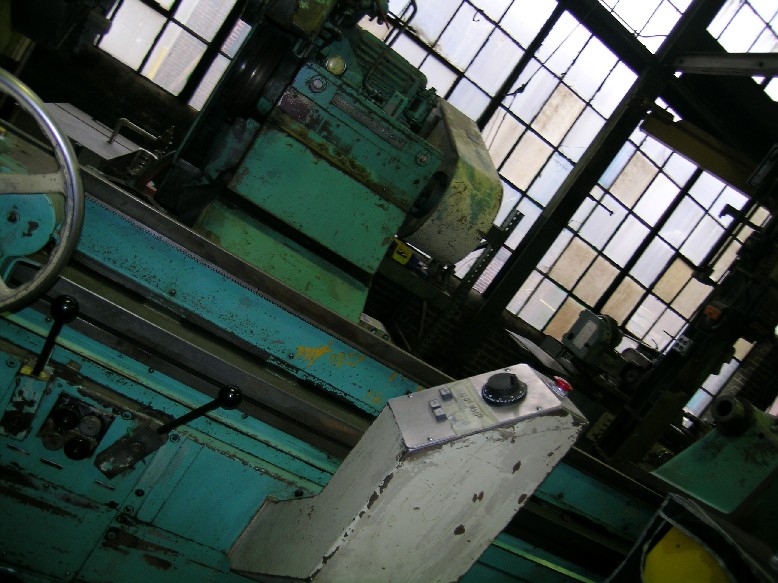

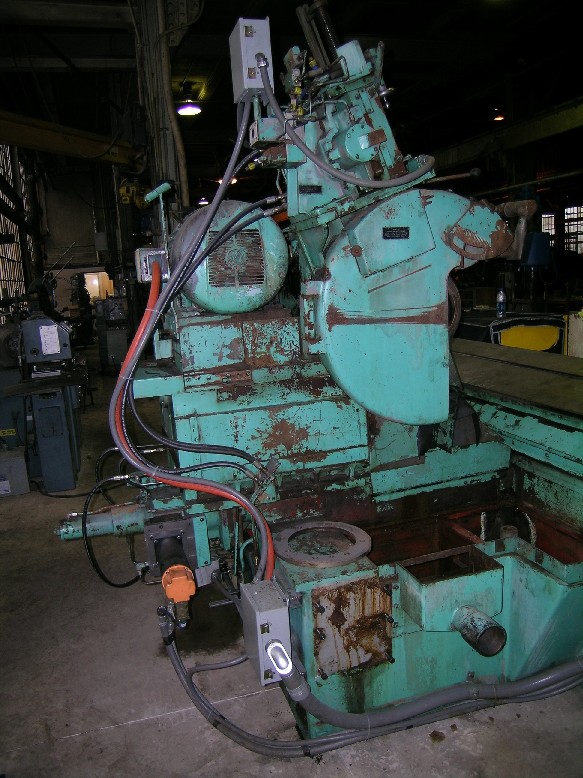

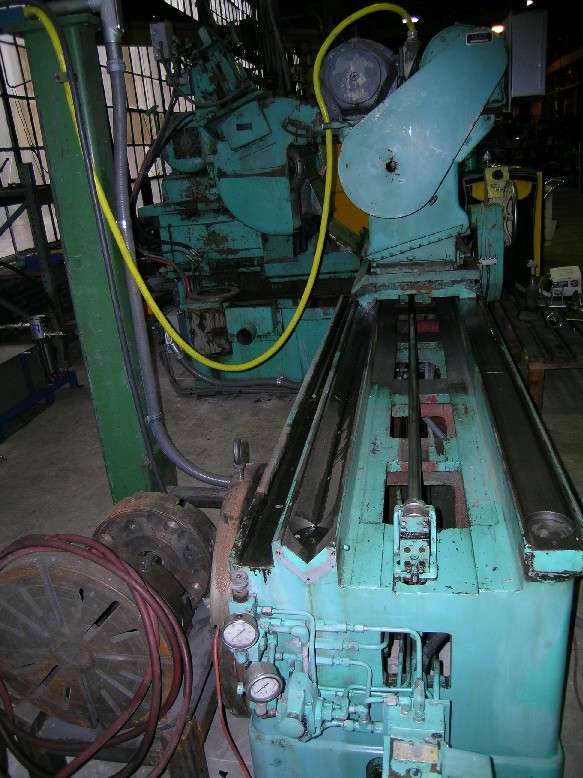

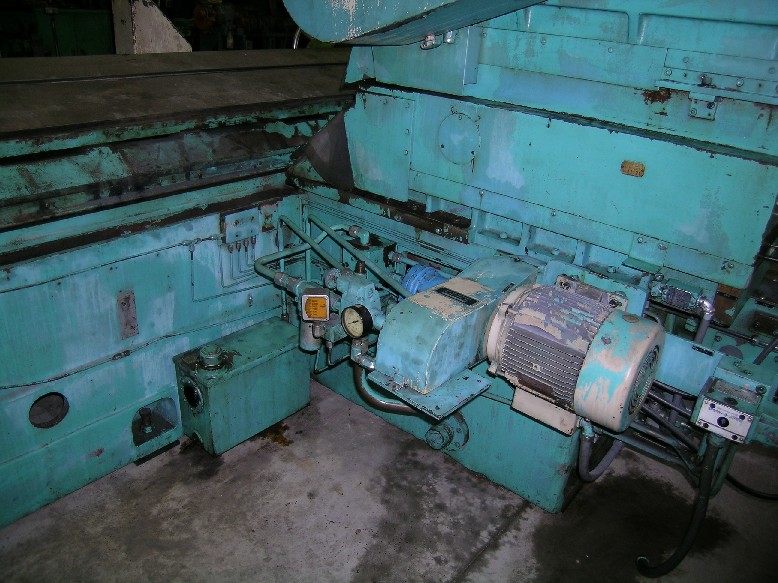

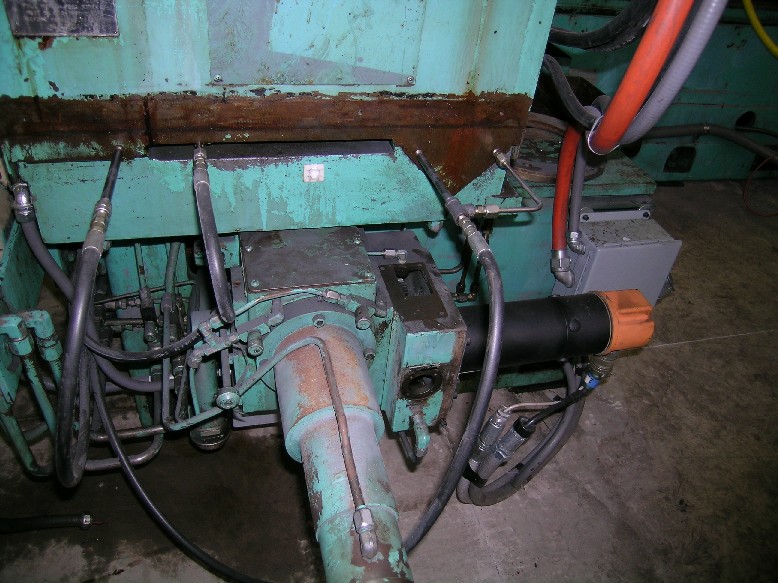

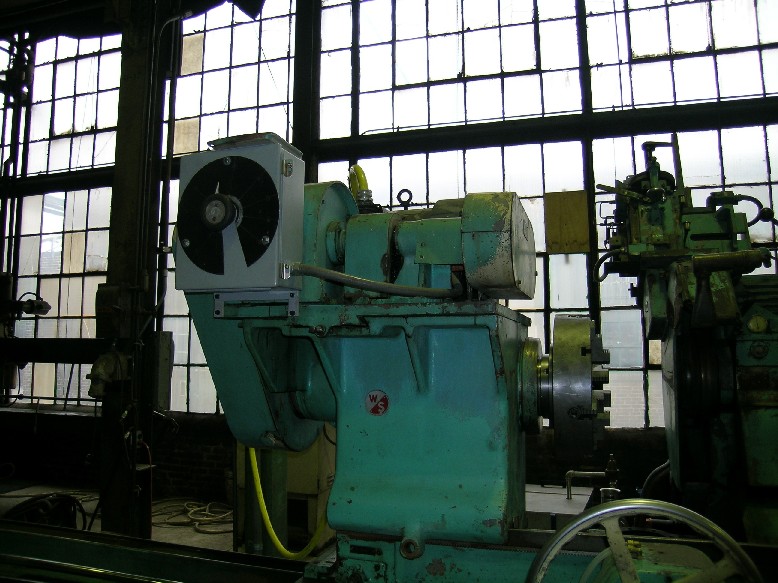

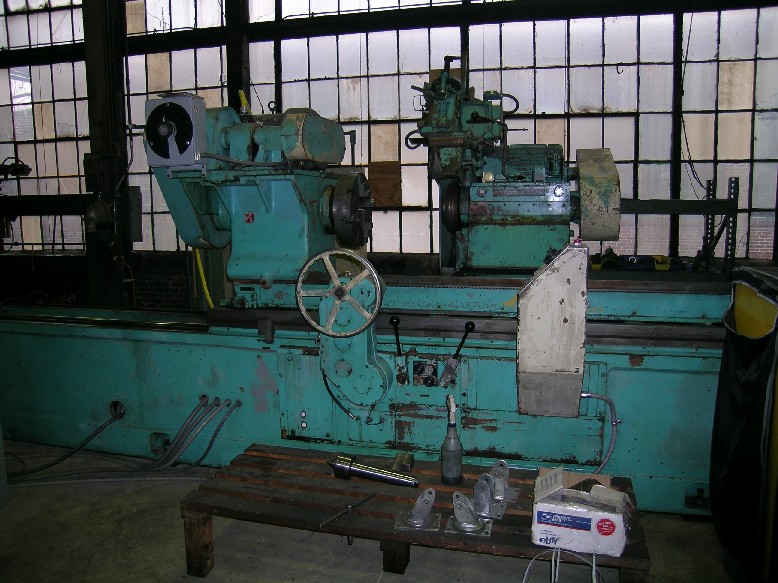

Price: On RequestUsed 30" x 96" WARNER & SWASEY/NORTON Semi-Automatic Plain Cylindrical Grinder,
Model LCTU, New 1977 Specifications:
Swing Over Table: 30"
Distance Between Centers: 96"
Maximum Weight on Centers: 6500 Lbs.
Table Traverse Speeds: 2" – 240" / Min.
Headstock Work Speeds (Variable): 14 – 55 RPM
Headstock and Tailstock Taper: No. 20 Jarno
Headstock Spindle Diameter: 4-7/8"
Grinding Wheel Size: 30" x 3" x 12"
Wheelhead Rapid Infeed Stroke: 4"
Grinding Wheel Motor (2-Speed): 20/13.3 HP 480V 3/60 1750/1180 RPM
Headstock Motor: 2 HP DC
Overall Dimensions (Approx.): 268" L-R x 120" F-B x 108" H
Weight (Est.): 27,250 Lbs.
Equipped With:
Hydraulic Profile Wheelhead Dresser
28" Face Plate
Adjustable Rapid Hydraulic Wheelhead Traverse w/ Automatic Cushioning
Adjustable Automatic Rotating Screw-Type Grinding Wheel Feed w/ Dwell
Automatic Rapid Wheelhead Retraction
Automatic Lubrication to Table and Wheel Slide Ways
Improvements (2006)
New Digital Readout

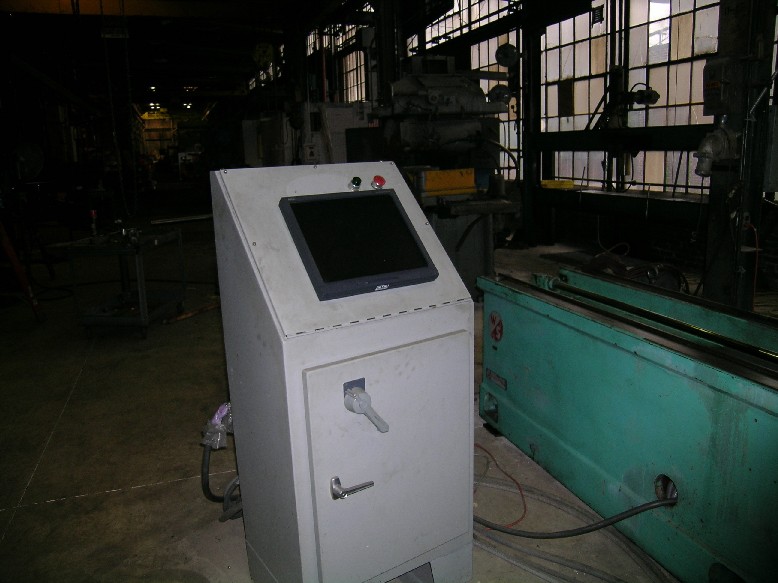

New Touch-Screen Controls
New Dead Center & Live Center
Four-Jaw Chuck Adapter Plate
Secondary S.S. Coolant Tank and Pumping System
New Servo Drive w/ Hardware & Software for Wheel Slide
New Lubrication Pump
