Reference Number: 140845

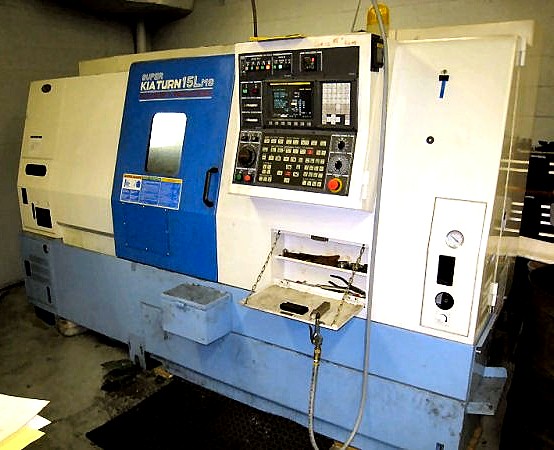

USED KIA MODEL 15 LMS MILL/TURN CNC LATHEPrice: $49,500
SERIAL NO. SKT15LMS007 NEW: 2005
SPECIFICATIONS:
SWING OVER BED 21.6"
MAXIMUM MACHINING DIAMETER 10"
CHUCK SIZE - MAIN SPINDLE 6"
CHUCK SIZE - SUB-SPINDLE 5"
SWING OVER CROSS SLIDE 13.8"
MAXIMUM TURNING LENGTH 20.8"
BAR CAPACITY 1.5"
SPINDLE SPEED - MAIN SPINDLE 6,000 RPM
SPINDLE SPEED - SUB-SPINDLE 5,000 RPM
SPINDLE NOSE A2-6
TURRET - NUMBER OF TOOLS 12
INDEXING TIME (1 STEP / FULL) 0.3 SECONDS / 0.6 SECONDS
LIVE TOOLING ROTATING SPEED 4,000 RPM
X-AXIS TRAVEL 8.7"
Z-AXIS TRAVEL 21.6"
B-AXIS TRAVEL 29.5"
RAPID TRAVEL (X, Z AXES) 1,417 IPM
RAPID TRAVEL (B-AXIS) 1,181 IPM
MAIN SPINDLE MOTOR 15/10 HP
SUB SPINDLE MOTOR 5/3 HP
ELECTRIC POWER SUPPLY 30 KVA
APPROXIMATE FLOOR SAPCE 116" L X 65" W X 74" H
APPROXIMATE WEIGHT 9,100 LBS.
ELECTRICS 220 V/3/60
EQUIPPED WITH:

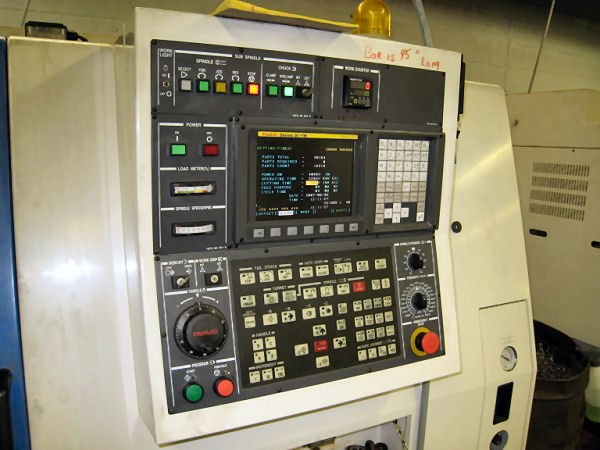

FANUC OI-TB 4-AXIS CONTROL
POLAR COORDINATE INTERPOLATION (SIMULATES Y-AXIS)
TOOL TOUCH PROBE

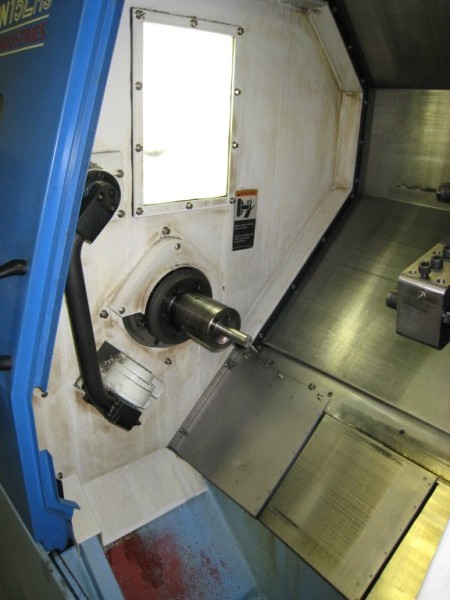

SUB-SPINDLE

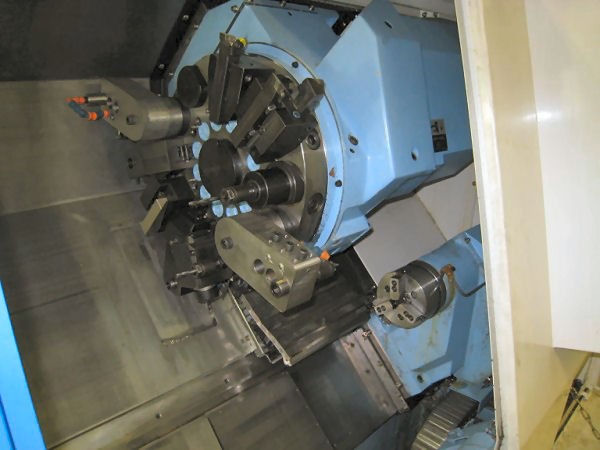

12 POSITION LIVE TURRET
FULL C-AXIS ON MAIN SPINDLE
5 DEGREE INDEXING ON SUB-SPINDLE
WORK COUNTER
6.5" 3-JAW HYDRAULIC CHUCK ON MAIN SPINDLE
5.3" 3-JAW HYDRAULIC CHUCK ON SUB-SPINDLE
16 C COLLET NOSE
PARTS CATRCHER
COOLANT SYSTEM
ALL AVAILABLE MANUALS
4,045 TOTAL ON HOURS
2,242 OPERATING HOURS
733 CUTTING HOURS
