Reference Number: 140864
Price: On Request

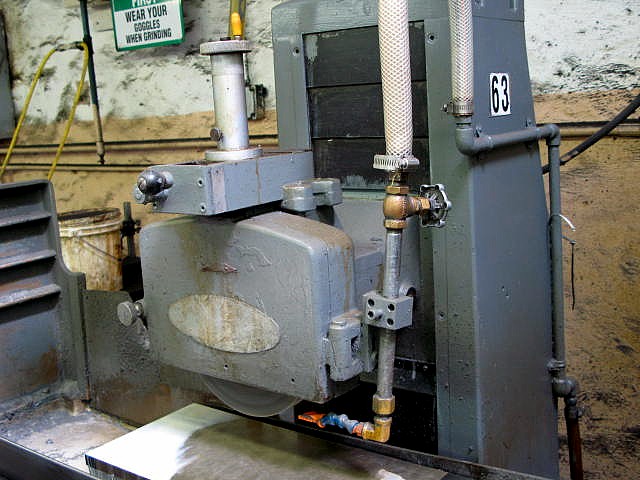

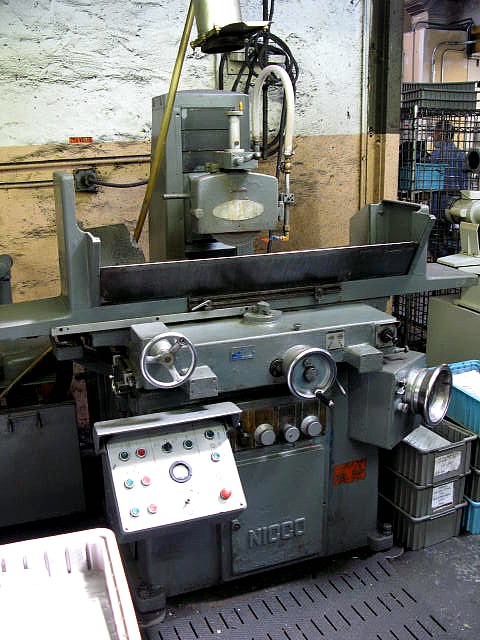

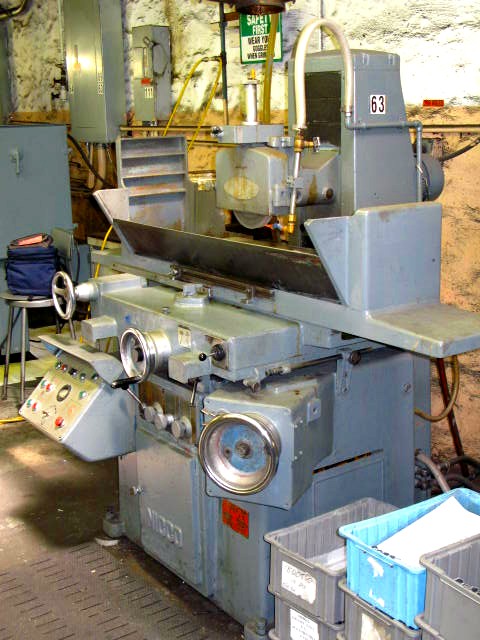

8" X 20" NICCO PRECISION (JAPANESE BUILT)
SURFACE GRINDER
MODEL: NSG S/N: 76-111 NEW: 1978
WIDTH & LENGTH GROUND................. 8" X 20"
LONGITUDINAL TABLE TRAVEL............. 23"
CROSSFEED TRAVEL...................... 9"
DISTANCE, SPINDLE CENTER TO TABLE
TOP (MAX.) .......................... 16"
LONGITUDINAL TABLE SPEEDS............. 3' TO 82' FPM
AUTOMATIC CROSSFEED PER TABLE
REVERSAL............................. 0.12" TO 0.8"
CONTINUOUS CROSSFEED SPEEDS........... 6.6' TO 16' FPM
MANUAL CROSSFEED PER DIVISION ON
HANDWHEEL............................ 0.0005"
GRINDING WHEEL SIZE .................. 10" X 1" X 3"
RAPID TRAVERSE RATE................... 14" IPM
MANUAL VERTICAL FEED PER DIVISION
ON HANDWHEEL......................... 0.0001"
APPROX. MACHINE WEIGHT................ 3,300 LBS.
MACHINE DIMENSIONS ................... 61" X 50" X 64"
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
POWER RAPID WHEELHEAD POSITIONING UP & DOWN

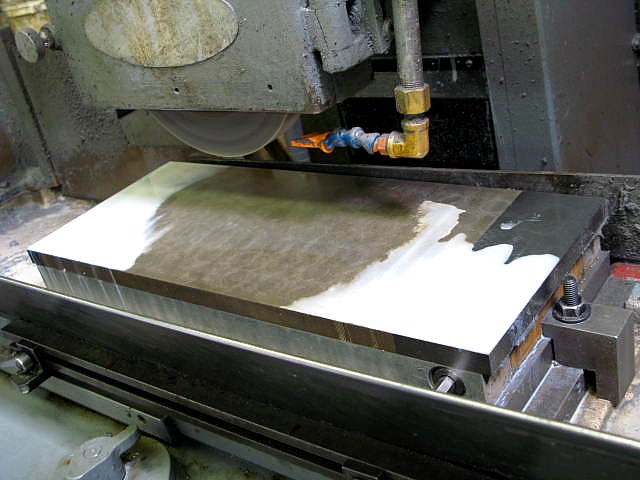

8" x 20""BRAILLON" (MADE IN FRANCE) ULTRA-FINE
DIVISION PERMANENT MAGNETIC CHUCK
AUTOMATIC LUBRICATION FOR WAYS & SCREWS

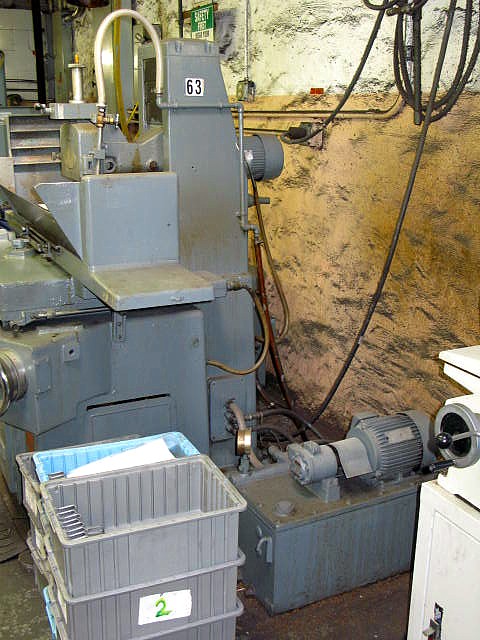

EXTERNAL HYDRAULIC POWER UNIT
COOLANT SYSTEM

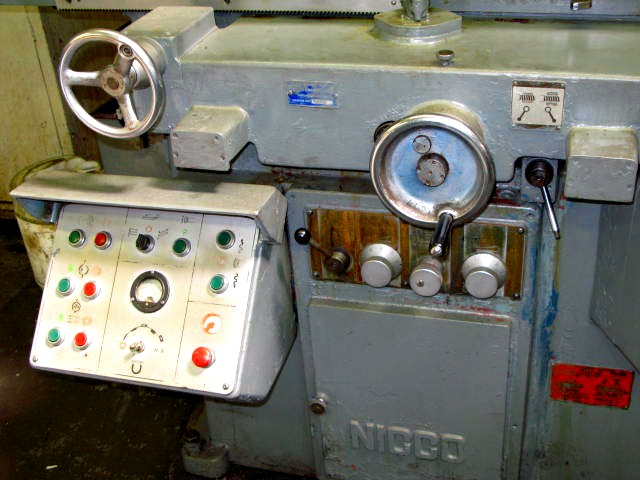

ALL (3) HANDWHEELS @ OPERATOR'S HIP LEVEL
FINE DOWNFEED BY RATCHET MECHANISM (.0001" GRAD.)
EXTERNAL HYDRAULIC SYSTEM, 2 H.P. MOTOR
2 H.P./3/60/220-440 VOLT SPINDLE MOTOR
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
* EXCEPTIONAL CONDITION & APPEARANCE **
