Reference Number: 140948

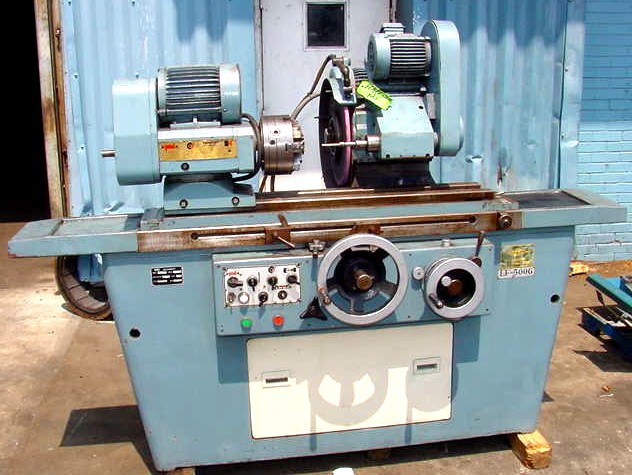

13" x 32" "KBC" UNIVERSAL I.D./O.D. CYLINDRICAL GRINDERPrice: On Request

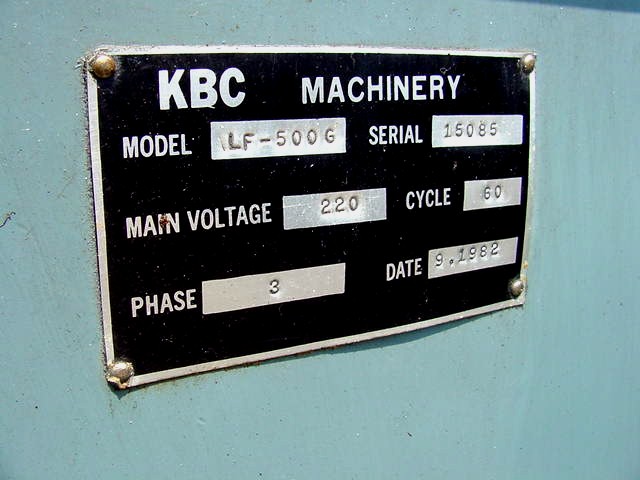

MODEL: LF-500G S/N: 18065 NEW: 1982
SWING OVER BED .................................... 13"
DISTANCE BETWEEN CENTERS ........................... 32"
TABLE SWIVELS LEFT & RIGHT ................... 5 DEGREES
TABLE SPEEDS, POWER ...................... 0 TO 200" IPM
AUTOMATIC POWER INFEED OF WHEEL
@ TABLE REVERSAL (2 OPTIONS) ......... 0.0002" OR .0004"
ONE REV. OF INFEED HANDWHEEL = .................... 0.04"
INFEED HANDWHEEL GRAD. .......................... 0.0002"
FINE FEED KNOB GRAD. ............................ 0.0001"
GRINDING WHEEL SIZE ...................... 14" X 2" X 5"
GRINDING WHEEL SPEEDS (2) ................ 1,700 & 2,150
WHEELHEAD SWIVELS ........................... 90 DEGREES
WORKHEAD SWIVELS ........................... 360 DEGREES
WORKHEAD SPINDLE SPEEDS (8) .............. 35 TO 310 RPM
WORKHEAD SPINDLE TAPER ........................... #4 MT
WORKHEAD SPINDLE HOLE ............................. 3/4"
TAILSTOCK SPINDLE TAPER .......................... #3 MT
APPROX. WEIGHT .............................. 3,100 LBS.
APPROX. DIMENSIONS .................... 80" X 40" X 60"H
EQUIPPED WITH:
SWING DOWN INTERNAL GRINDING ATTACHMENT W/I.D. SPINDLE
SELF-CONTAINED HYDRAULIC SYSTEM
POWER TABLE TRAVERSE
AUTO INFEED OF WHEEL @ TABLE REVERSAL
TABLE MOUNTED DRESSER

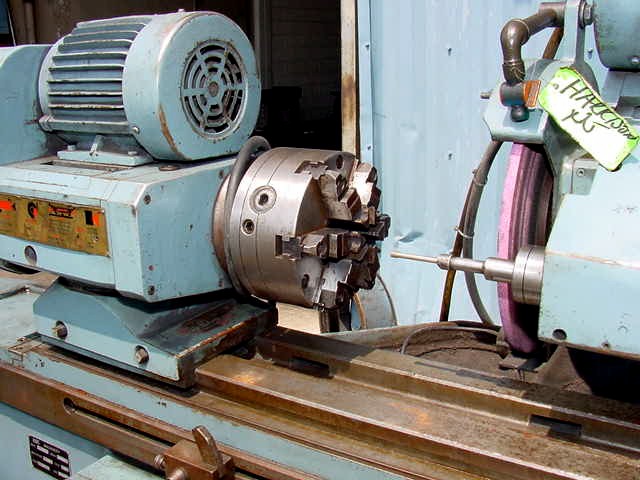

8" 6-JAW PRECISION CHUCK MOUNTED ON WORKHEAD SPINDLE
DUAL LIVE/DEAD WORKHEAD SPINDLE
COOLANT SYSTEM
3 H.P./3/60/220-440 VOLT WHEELHEAD MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
