Reference Number: 141001

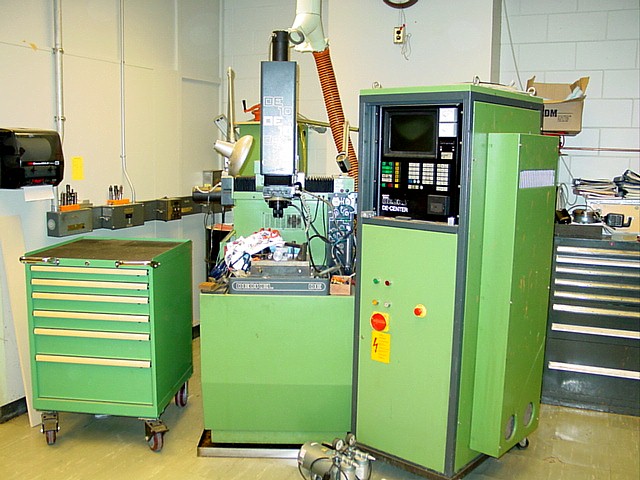

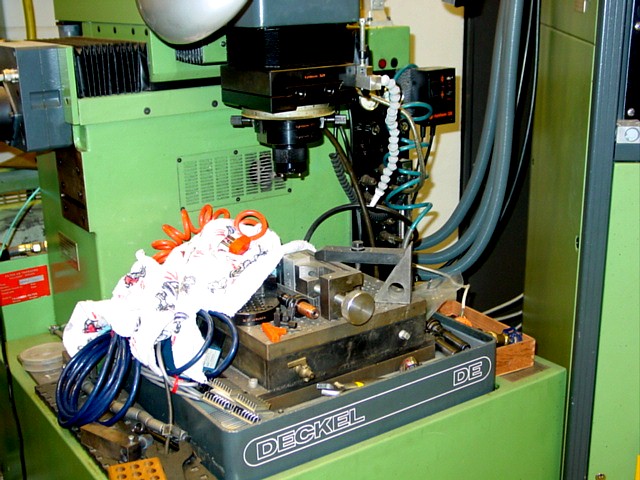

DECKEL CNC 4-AXIS (X, Y, Z & C) RAM-TYPE EDM MACHINEPrice: On Request
MODEL: DE 10-C
S/N: 0497-0166
NEW: 1984
WORK TANK USEABLE INTERNAL
DIMENSIONS (W x L x H) .......... 20" x 15" x 12"
TABLE AREA (L x W) ................ 14" x 9"
AXIS TRAVEL (X,Y,Z) ............... 8" x 6" x 10"
PLATEN TO TABLE CLEARANCE ........ 9" MIN./19" MAX.
RESERVOIR CAPACITY ................ 65 GALS.
PERMISSIBLE WORKPIECE ON TABLE .... 440 LBS.
RAM WORK LOAD ..................... 220 LBS.
RAPID TRAVERSE RATE ............... 30" IPM
CREEP FEED RATE ................... 3" IPM
INPUT RESOLUTION .................. 1 MICRON
(40 MILLIONTHS OF AN INCH)
APPROX. MACHINE WEIGHT ............... 2,200 LBS.
EQUIPPED WITH:
DECKEL TYPE G45 CNC CONTROL & 45 AMP POWER SUPPLY
4-AXIS CNC MACHINING, X/Y/Z/C AXES
"DIALOG" MODE, CONVERSATIONAL PROGRAMMING
C-AXIS (4TH AXIS) WITH .001 DEGREE INPUT RESOLTION
SERVO MOTORS
SYMETRICAL GUIDE WAYS & PRE-LOADED V-TYPE NEEDLE ROLLER
RACE WAYS
RISE & FALL WORKTANK
"TRANSER" MADE IN SWEDEN EDM FILTRATION SYSTEM
CABINET WITH COMPLIMENT OF "SYSTEM 3R" TOOLING
** EXCEPTIONAL CONDITION - LOW HOURS **
** F.O.B. OUR HARRISON, NJ WAREHOUSE **
