Reference Number: 141119

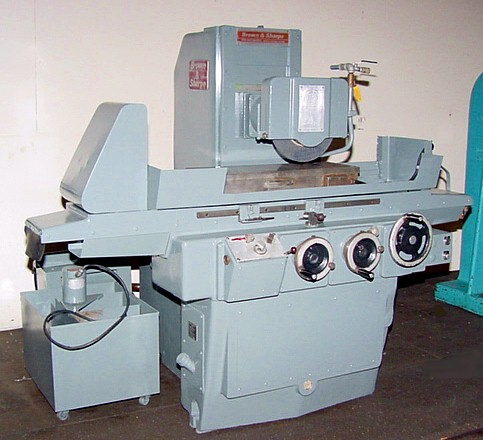

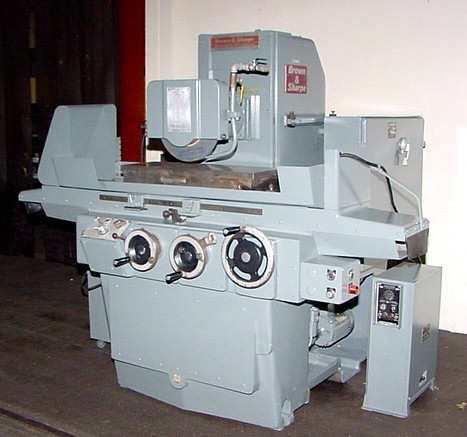

10" X 30" BROWN & SHARPE HYDRAULIC SURFACE GRINDER

 MODEL: #1030 MICROMASTER
 S/N: 523-1030-359
 NEW: 1974

 WORKTABLE SIZE.............................. 10" X 30"
 GRINDS WORK TO HEIGHT OF........ 13- 1/2" W/14" WHEEL)
 WHEEL SIZES........................ 14" X 1- 1/2" X 5"
 DIRECT DRIVE SPINDLE MOTOR............ 5 HP - 1800 RPM
 LONGITUDINAL TABLE SPEED ............... 10 - 125 FPM
 AUTO CROSSFEED PER TABLE REVERSAL ..... 0.010 - .500"
 POWER WHEEL TRUING ........................... 10" IPM
 CROSS HANDWHEEL, GRAD. ....................... 0.0002"
 RAPID TRAVERSE POSITIONING.................... 150 IPM
 RAPID VERTICAL POWER POSITIONING............... 40 IPM
 VERTICAL HANDWHEEL, GRAD. .................... 0.0002"
 VERTICAL, FINE FEED KNOB GRAD ................ 0.0001"
 WEIGHT...................................... 5,000 LBS

  EQUIPPED WITH:
 HYDRAULIC LONGITUDINAL & CROSS FEEDS
 POWER RAPID WHEELHEAD POSITIONING (UP & DOWN)
 10" x 30" "MAGNA-LOCK" ELECTRO-MAGNETIC CHUCK
  & NEUTROFIER CONTROL
 FINE FEED KNOB FOR VERTICAL FEED (.0001" GRAD.)
 COOLANT SYSTEM
 AUTO LUBRICATION
 5 H.P. 3/60/230-460 VOLT BROWN & SHARPE SUPER-PRECISION
 DIRECT DRIVE SPINDLE

  **** EXCELLENT CONDITION ****
 ** INSPECT IN OUR HARRISON, N.J. FACILITY **
