Reference Number: 141137

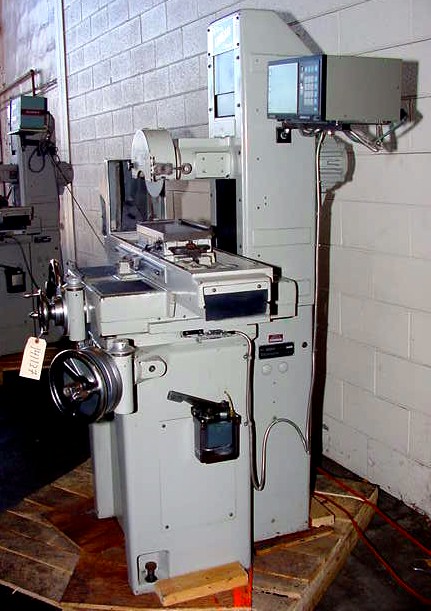

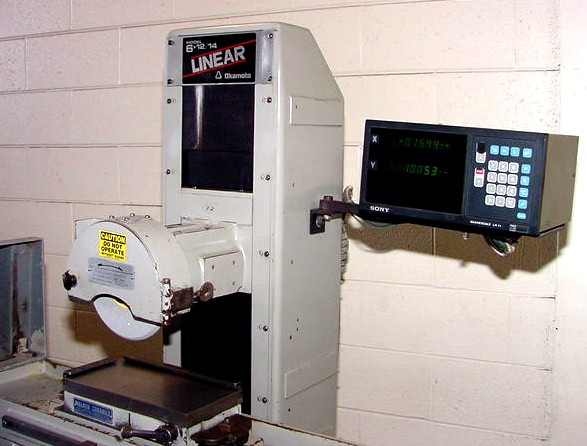

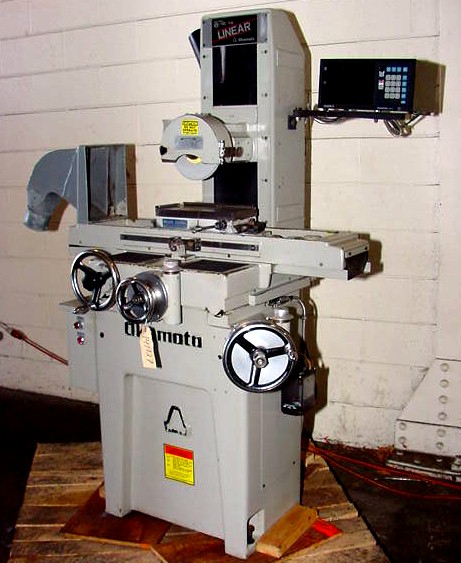

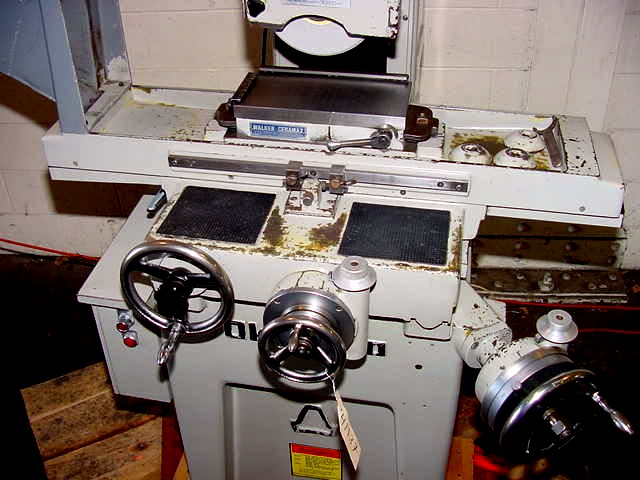

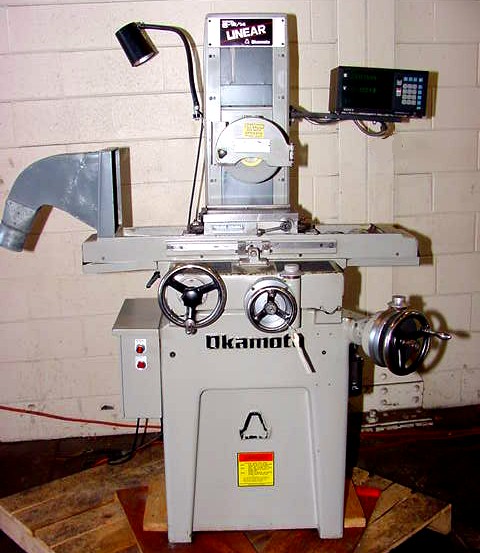

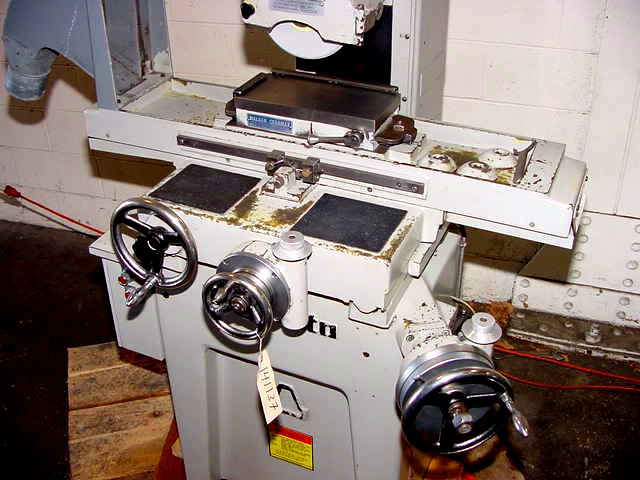

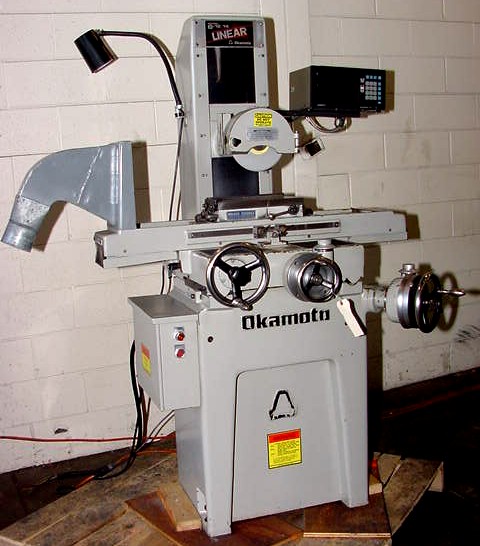

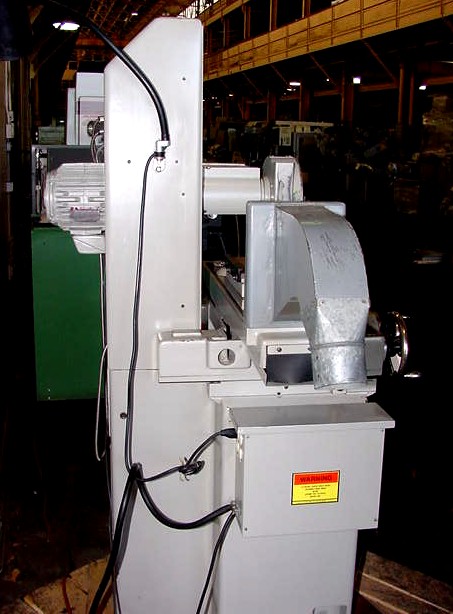

 6" X 12" OKAMOTO "LINEAR 612/14""HIGH-PRECISION"
 HAND FEED SURFACE GRINDER

 ** SONY #LH11-2R 2-AXIS DIGITAL READOUT **

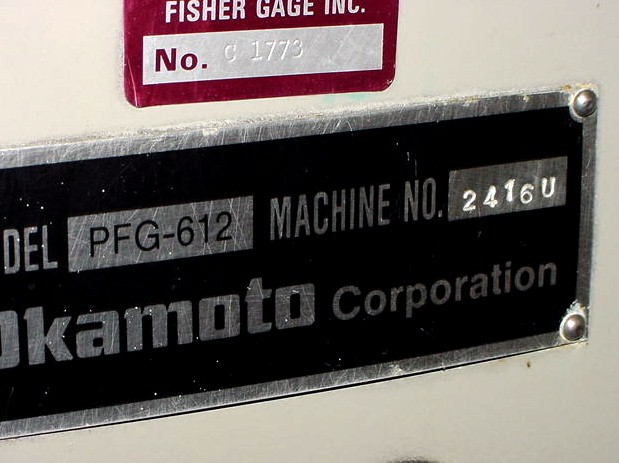

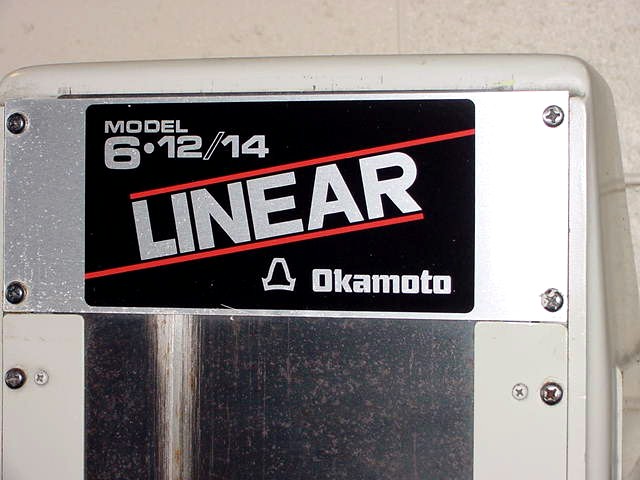

 MODEL: PFG-612      S/N: 2416-U      NEW: 1991

 WIDTH & LENGTH GROUND .......................... 6" X 12"
 TABLE TO SPINDLE CENTER ............................. 18"
 HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE .............. 11"
 LONGITUDINAL TABLE TRAVEL ........................... 14"
 CROSS TRAVEL ......................................... 8"
 GRINDING WHEEL CAPACITY ........... 8" X 1" X 1-1/4" BORE
 CROSS FEED PER REV. OF HANDWHEEL
 (.001" GRAD.) .................................... 0.100"
 CROSS FEED HANDWHEEL VERNIER READS TO............ 0.0001"
 VERTICAL FEED PER REV. OF HANDWHEEL
 (.0002" GRAD.) .................................. 0.0500"
 PPROX. WEIGHT ................................ 1,500 LBS.
 APPROX. DIMENSIONS ..................... 58" X 46" X 71"H

  EQUIPPED WITH:

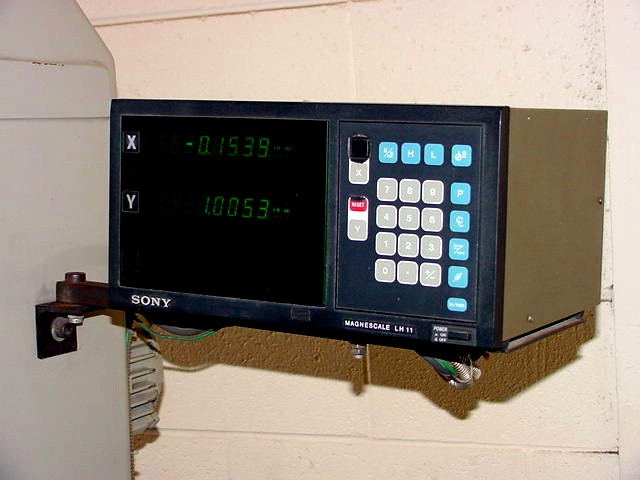

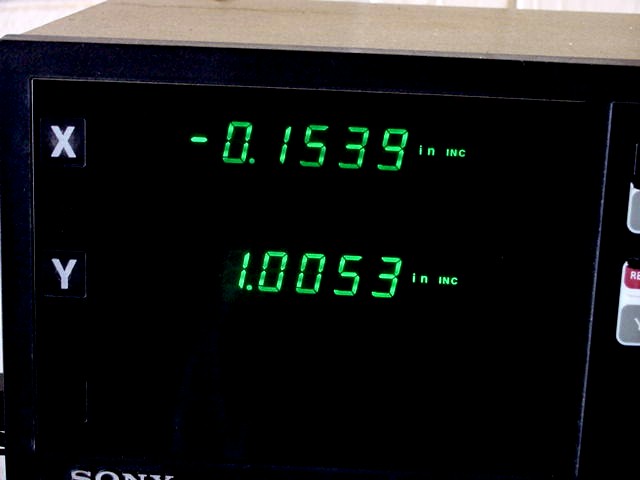

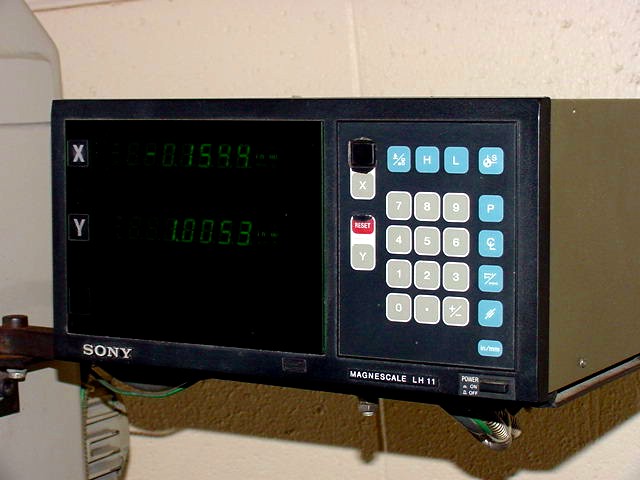

 SONY LH11-2R 2-AXIS DIGITAL READOUT

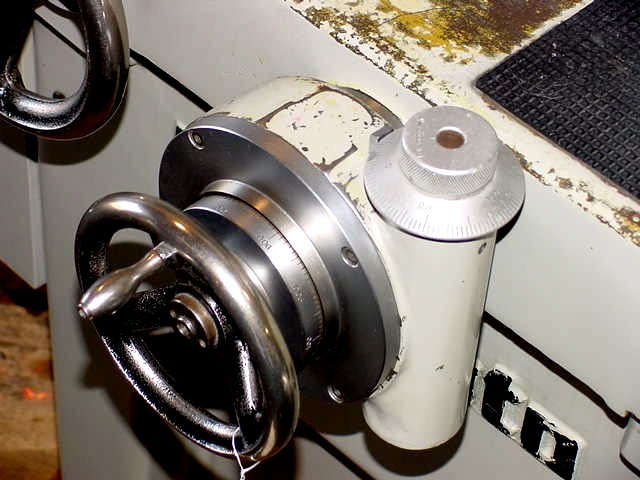

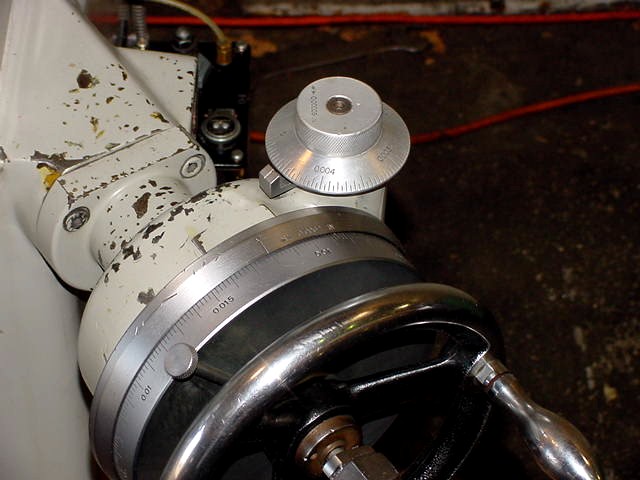

 FINE FEED KNOB FOR CROSS AXIS, .0001" GRAD.
 FINE FEED KNOB FOR VERTICAL AXIS, .00005" GRAD.
 LONGITUDINAL TABLE TRAVEL ON LINEAR BALL BEARINGS DRIVEN
  BY CABLE SYSTEM
 HARDENED AND GROUND WAYS ON TABLE, SADDLE AND COLUMN
 MANUALLY OPERATED ONE SHOT LUBRICATION SYSTEM

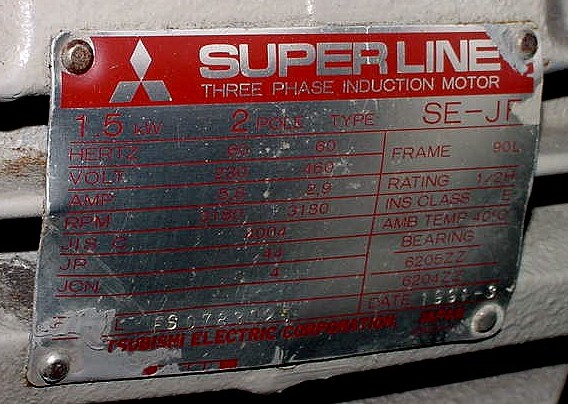

 2 H.P. 3/60/230-460 VOLT HIGH PRECISION CARTRIDGE-TYPE
  SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS

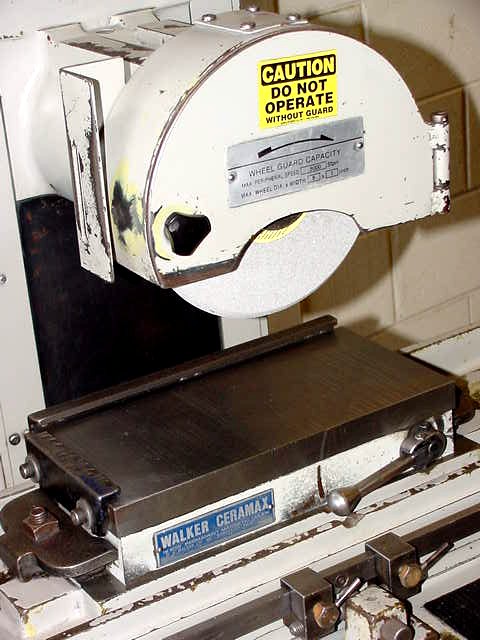

 6" X 12" WALKER CERAMAX FINE-DIVISION PERMANENT MAGNETIC
 MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

 SPECIAL NOTE:
 MACHINE CAN BE CHANGED OVER TO 230 VOLTS


 ** EXCELLENT CONDITION & APPEARANCE **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
