Reference Number: 141205

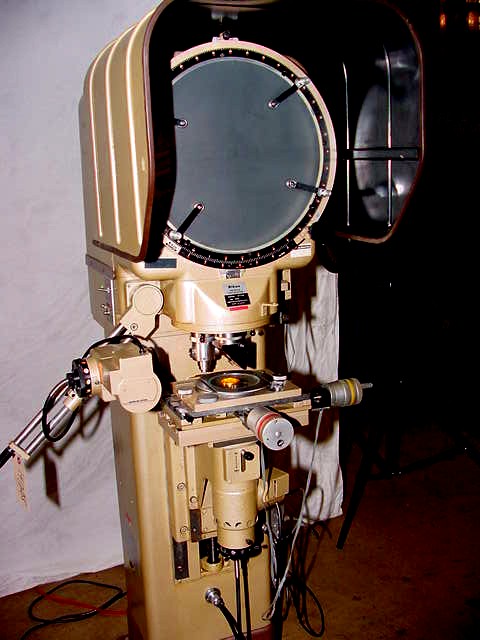

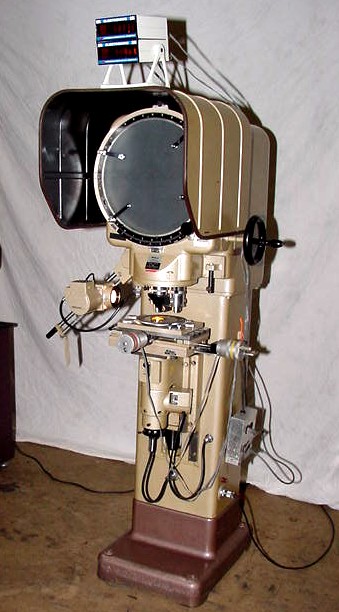

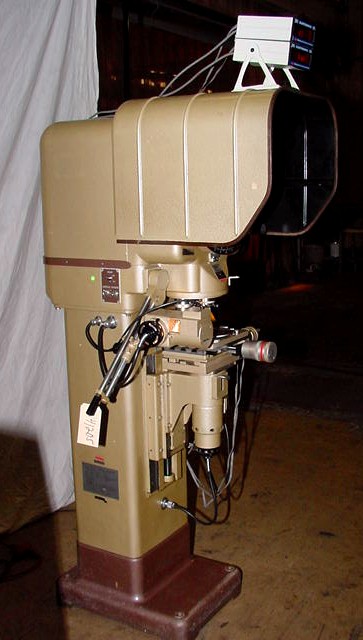

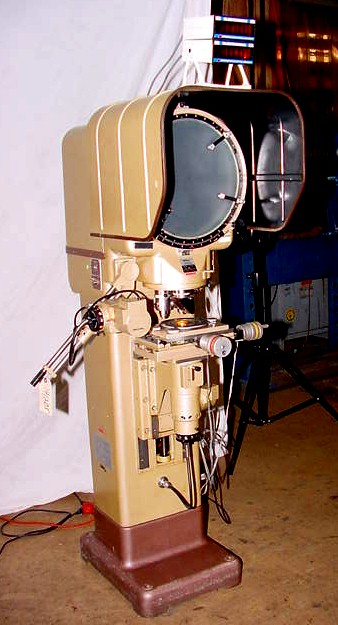

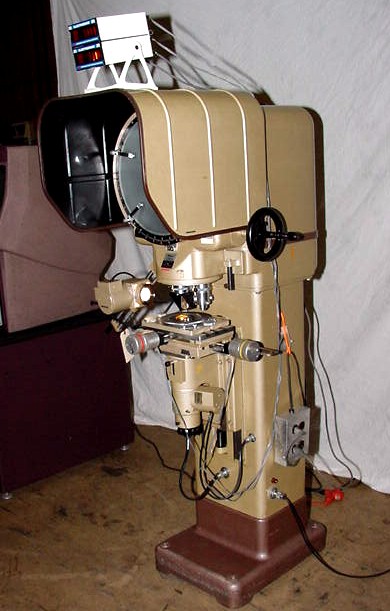

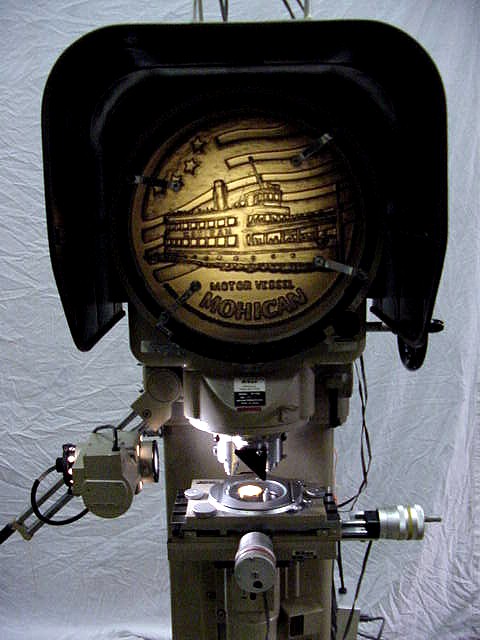

14" NIKON VERTICAL PROJECTION FLOOR TYPE OPTICALPrice: On Request
COMPARATOR

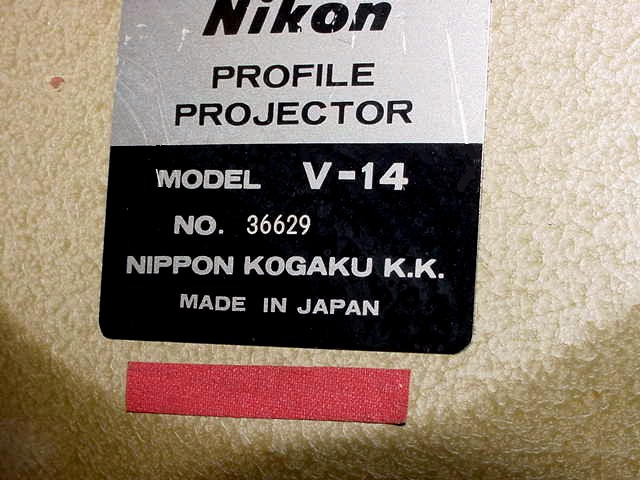

MODEL: V-14 S/N: 36629 NEW: 1981

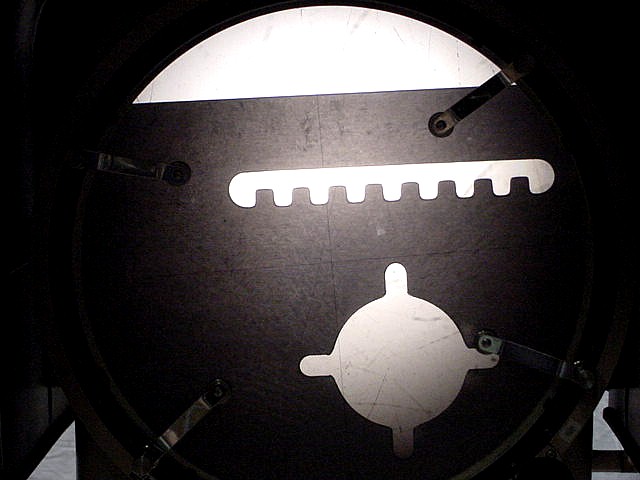

SCREEN DIAMETER ............................ 14"
PROTRACTOR SCREEN ROTATES .................. 360 DEG.
HEIGHT OF SPECIMEN MEASURABLE .............. 0 TO 6.14"
VERTICAL MOVEMENT TRAVEL ................... 11.42"
DEPTH OF OPTICAL AXIS TO INSTRUMENT BODY ... 7.28"

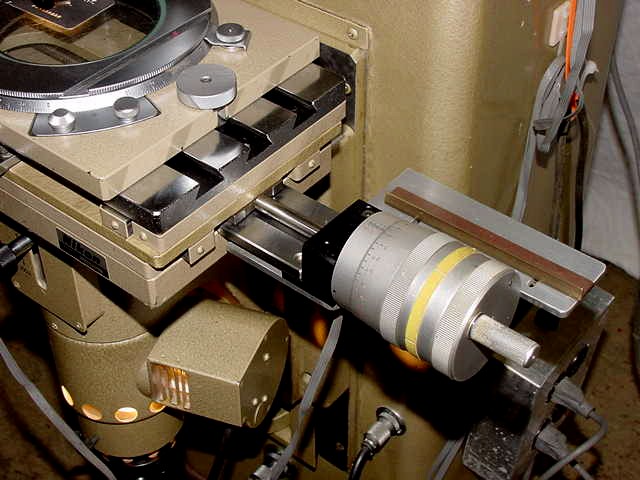

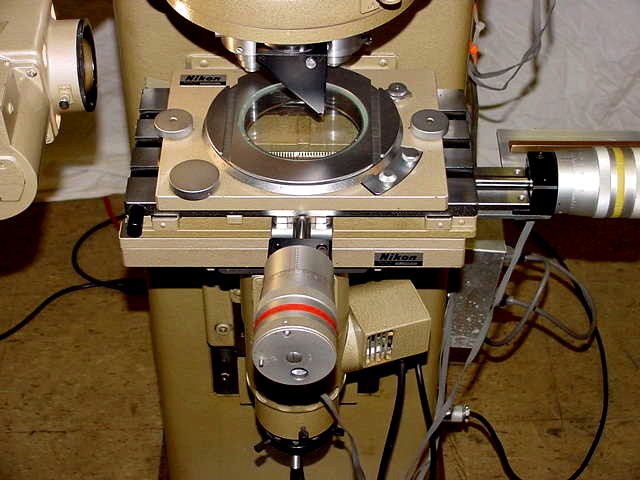

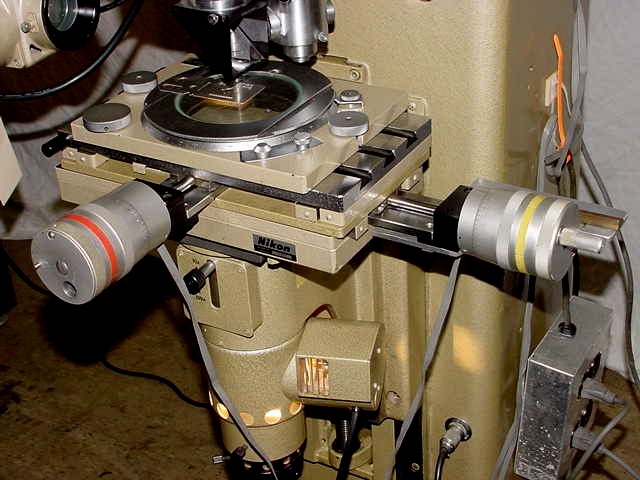

MICROMETER STAGE TYPE ...................... 9.5" x 5.25"
CROSS TRAVELLING RANGE ..................... 4" X 2"

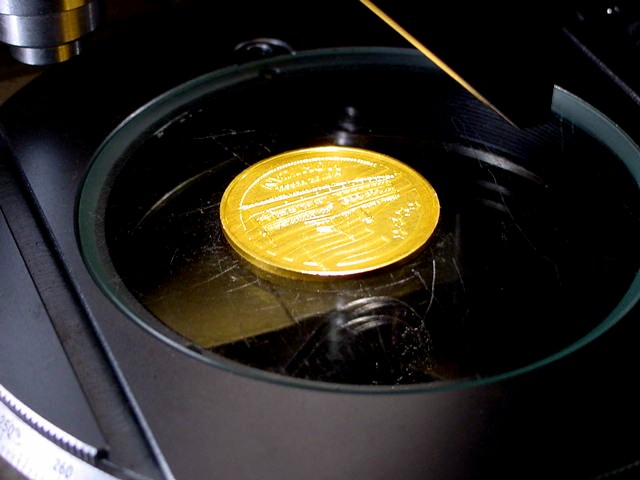

GLASS INSERT, DIAMETER ..................... 7.5" X 3.5"
APPROX. DIMENSIONS ......................... 30" X 40"
X 76"H
APPROX. MACHINE WEIGHT ..................... 750 LBS.
EQUIPPED WITH:

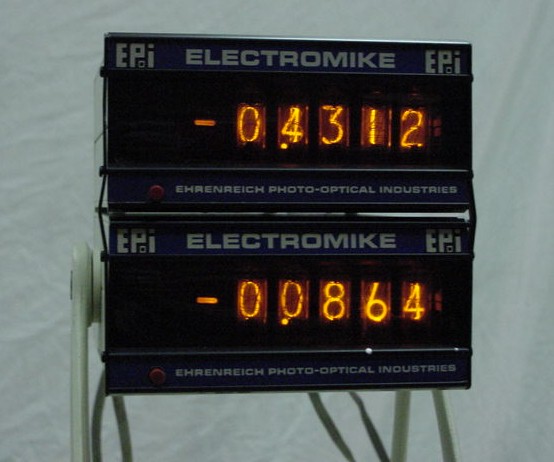

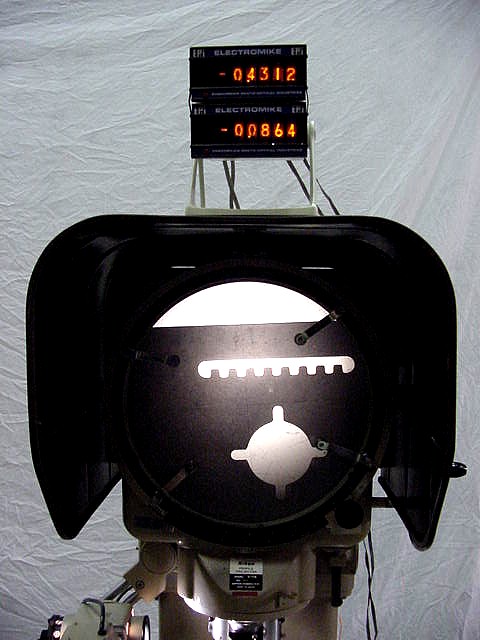

2-AXIS DIGITAL READOUT DISPLAY
NIKON "GONOMETER" ROTARY ATTACHMENT ON STAGE

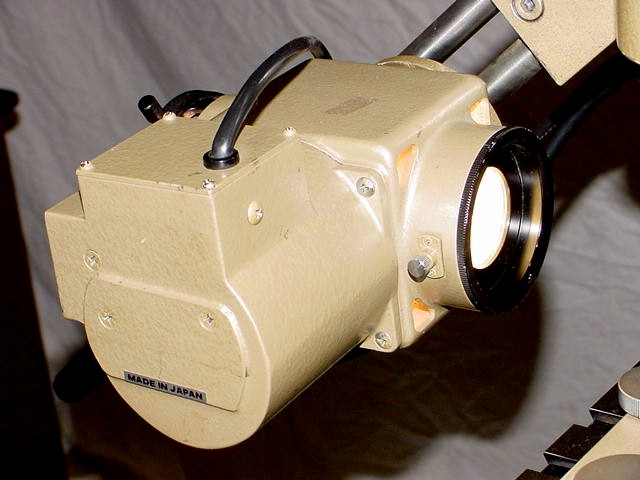

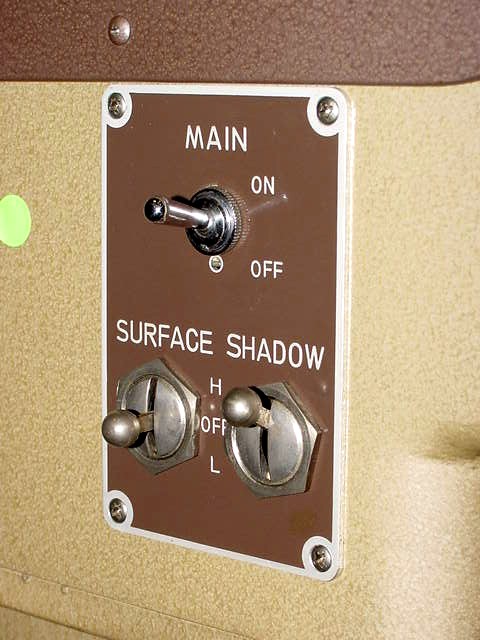

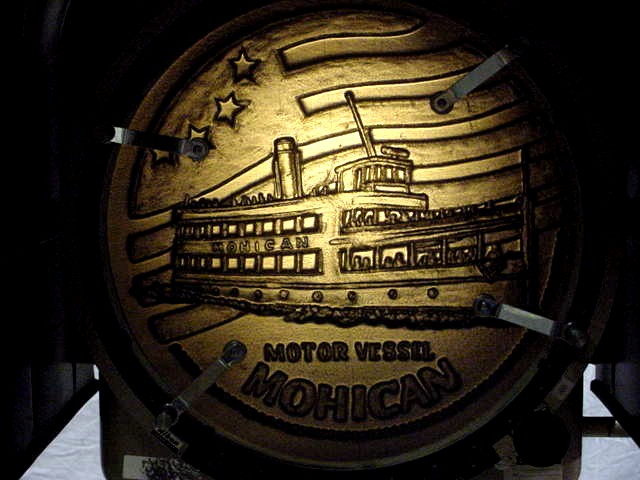

SURFACE & CONTOUR ILLUMINATION
LENS TURRET W/10X, 50X & 100X LENSES
TELECENTRIC OPTICAL SYSTEM W/CONDENSOR LENS

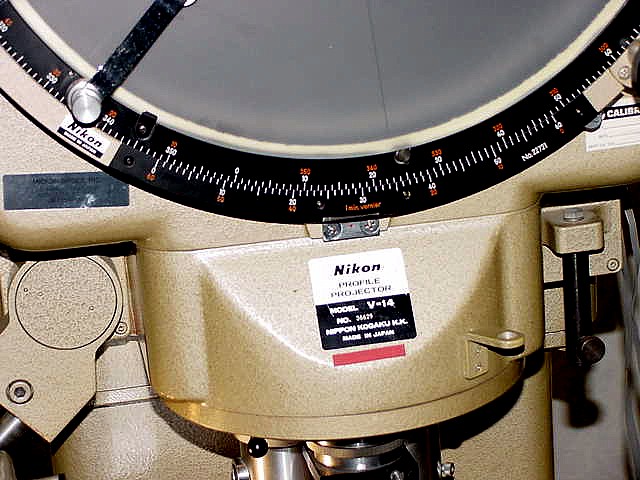

360 DEGREE ROTATABLE PROTRACTOR SCREEN (1 MINUTE VERNIER)

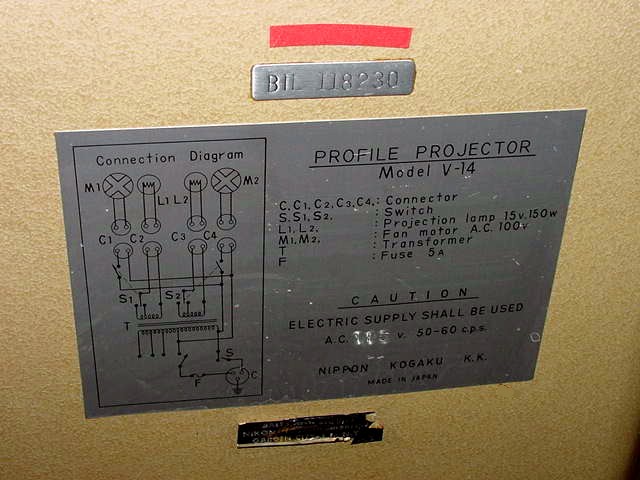

1 PHASE/60 CYCLE/115 VOLT ELECTRICS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
**** EXCEPTIONAL CONDITION ****
