Reference Number: 141211

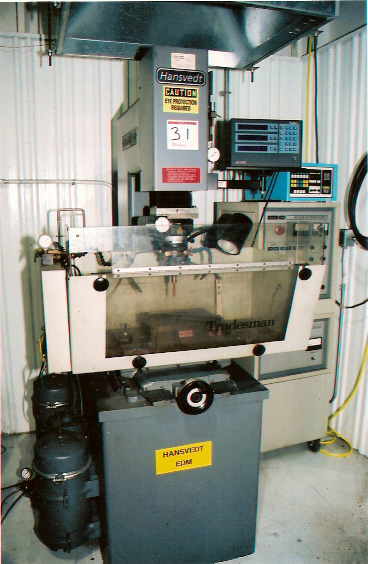

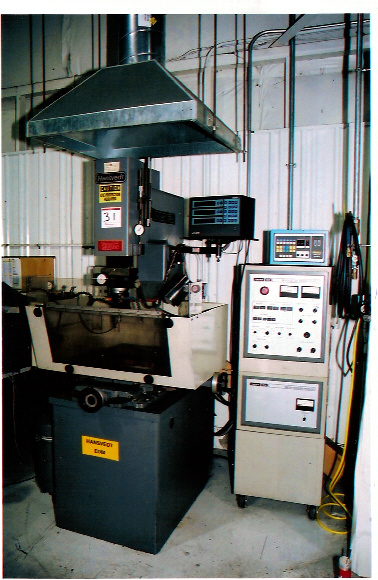

40 Amp Hansvedt Conventional Ram-Type EDM Machine
 Model:  CS-20,  Mfg.:  1994
 w/ Gromax Model 200A III Two-Axis CNC Orbiting System

 Table Size:                          20" x 12"
 Table travel,longitudinal:          13"
                      cross:          10"
 Max. Weight of Work Piece on table: 500 Lbs.
 Max. Electrode Weight:              75 Lbs.
 Ram Travel:                         8"
 Platen Size:                        5-3/4" x 4"
 Max. distance platen to work table: 18"
 Work tank size, inside dimensions:  35-1/2" x 20-1/2" x 13" deep
 Work tank capacity:                 18 gallons
 Reservoir capacity:                 45 gallons

 Equipped with:
 #COC-200A III GROMAX two-axis CNC orbicut system
  S/N: 47520875 with dial indicators for each axis
  and 30 lb. maximum electrode weight

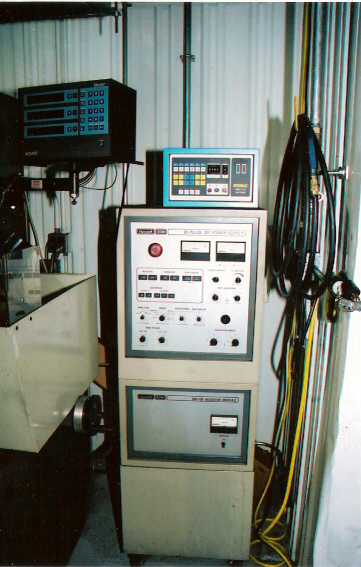

 #201 HANSVEDT "H-Pulse" 20 amp power supply,
  S/N: API7955 on separate roll-around stand
  with #SM155 20 amp single phase booster module
  S/N: A17720
 ACU-RITE Master G three-axis digital readout with
  .0001" resolution scales

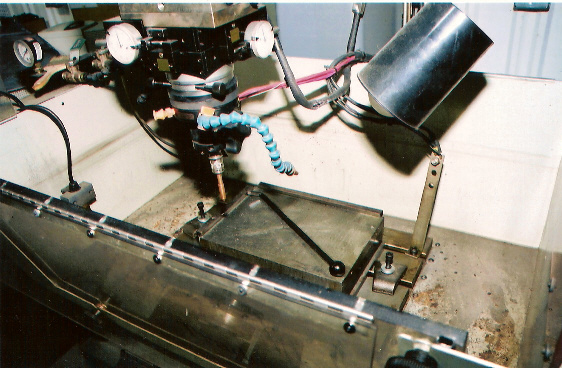

 SUNSPOT 20 mm electrode holder mounted to a low
  profile adapter plate
 DC servo motor and ball screw for drive for ram
 8" x 12" TAFT PIERCE permanent magnetic chuck

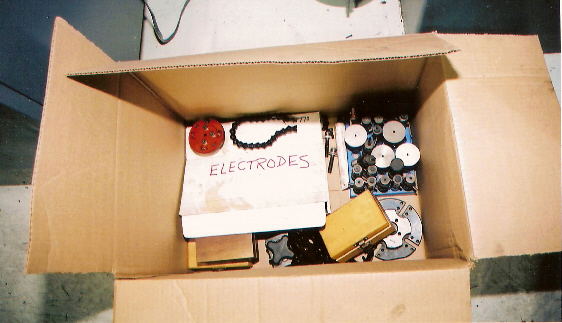

 Assorted electrode tooling & electrodes
 Single phase electrics for machine, power supply,
  digital readout and orbiting system
 Documentation for machine, power supply, digital
 readout and orbiting system

 Approx. Weight: 1,500 lbs
