Reference Number: 141219

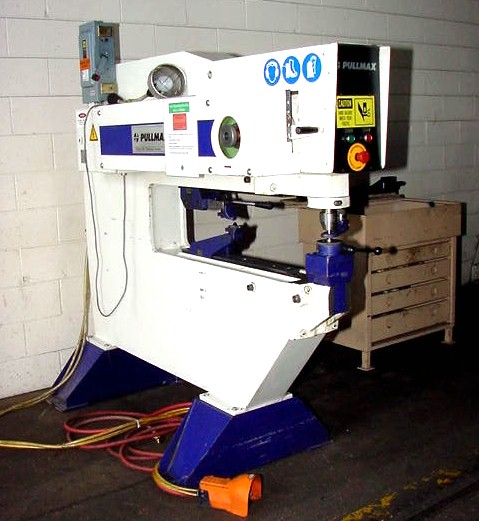

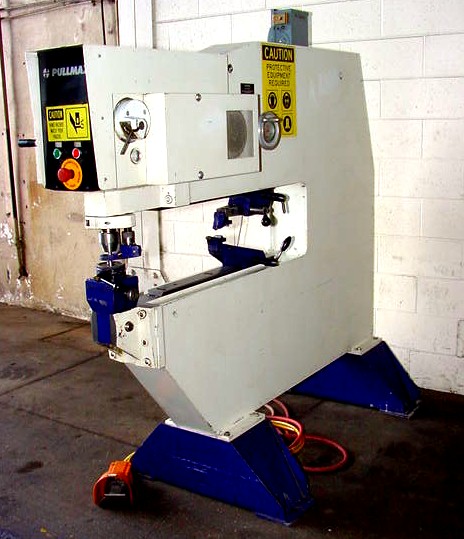

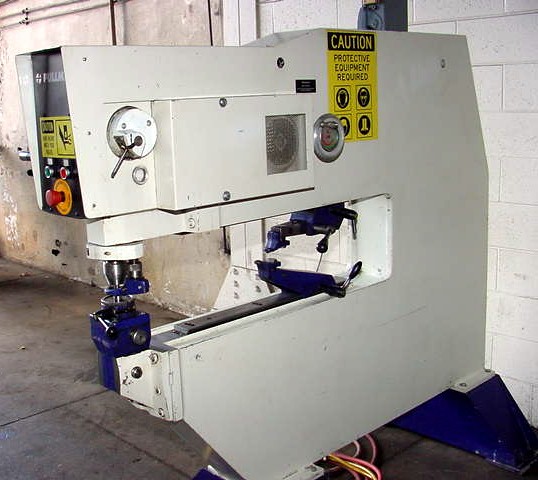

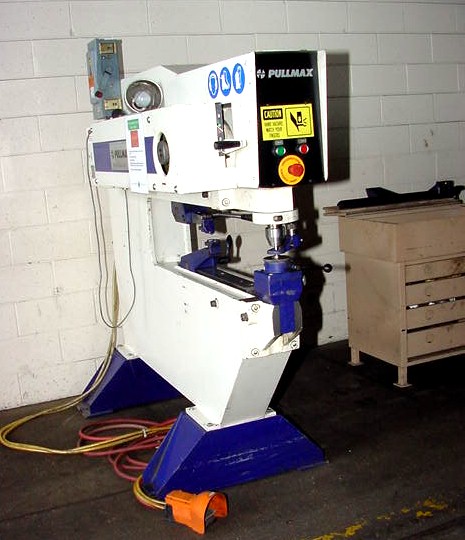

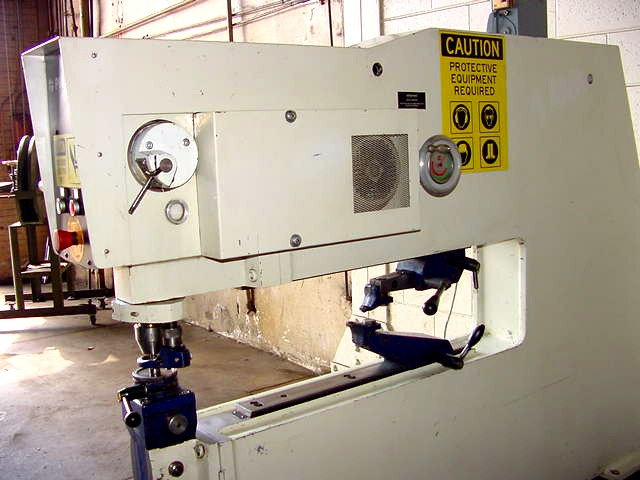

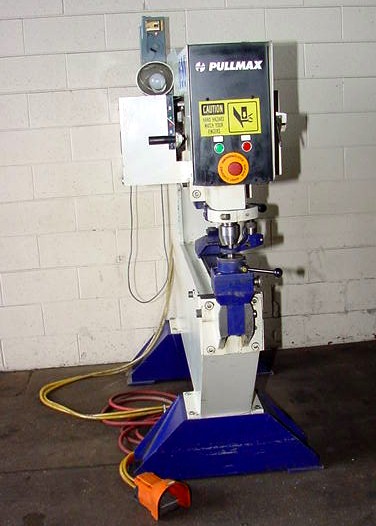

 PULLMAX UNIVERSAL MACHINE

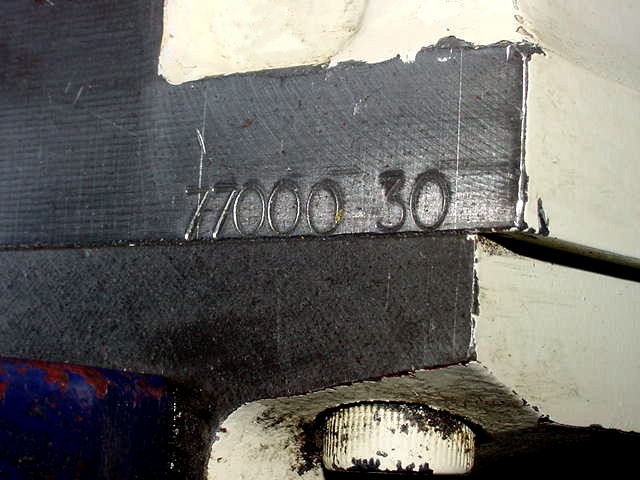

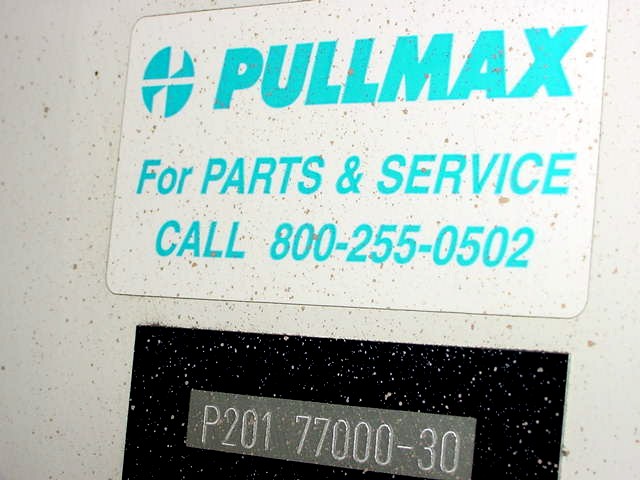

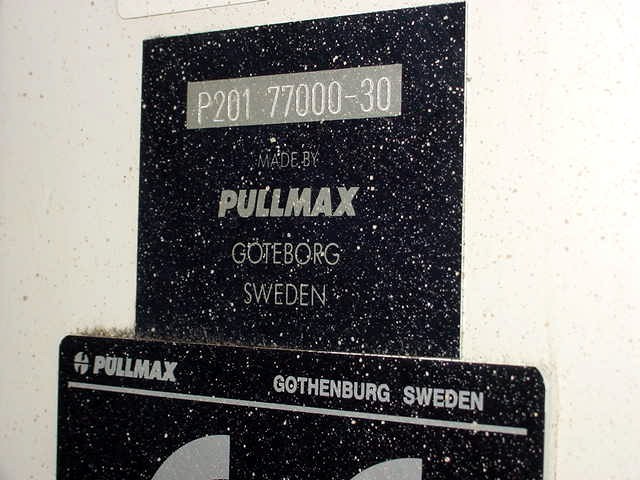

 MODEL P-201    S/N:  77000-30       NEW  1998
 Go to Pullmax Web Site to see a long video on this machine:
 http://www.pullmaxinc.com/query.html?pxus/p201
 then click on the video link.

 SHEARING, FROM EDGE, EDGE DISTANCE MAX. 3/4" .... 9/32"
 SHEARING, FROM EDGE, EDGE DISTANCE OVER 3/4" .... 7/32"
 MAXIMUM PLATE THICKNESS FOR NIBBLING ............ 3/16"
 CIRCLE CUTTING WITH CENTERING DEVICE WITHIN THROAT MINIMUM
 RADIUS .......................................... 5-5/16"
 CIRCLE CUTTING WITH CENTERING DEVICE WITHIN THROAT MINIMUM
 RADIUS WITH CENTER EXTENSION .................... 2"
 THROAT DEPTH .................................... 42"
 THROAT HEIGHT ................................... 10-1/2"
 TOTAL LENGTH .................................... 77"
 TOTAL WIDTH ..................................... 32"
 TOTAL HEIGHT .................................... 68"
 WEIGHT WITHOUT ACCESSORIES ...................... 2,300 LBS
 STROKE LENGTH ................................... .07"-.275"
 STROKES PER MINUTE .............................. 400-4000

 FEATURES:
 - FULLY CLOSED KNEE-JOINT MECHANISM WORKING IN OIL BATH.
 - REINFORCED LINK SYSTEM FOR BETTER ROTARY STIFFNESS.
 - 7 DIFFERENT STROKE LENGTHS BETWEEN .07-.275".
 - VARIATOR ADJUSTED STROKE FREQUENCY BETWEEN 400 AND 400
 SPM.
 - LOWER TOOL HOLDER BLOCK, COMPLETE, GIVES QUICK AND EASY
 TOOL CHANGE.

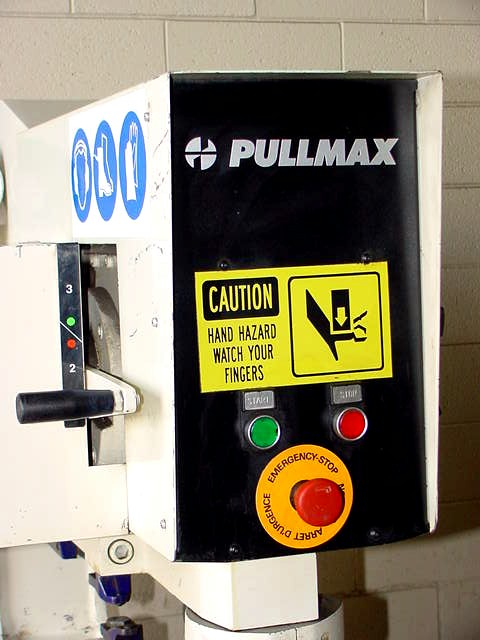

 - ELECTRIC EQUIPMENT OF CONTACTOR TYPE AND TRANSFORMER FOR
 24V SUPPLY VOLTAGE.
 - ELECTRIC MOTOR 1.8 KW, FOR 220 OR 380 VOLT, 50 C/S, 3
 PHASE AC.

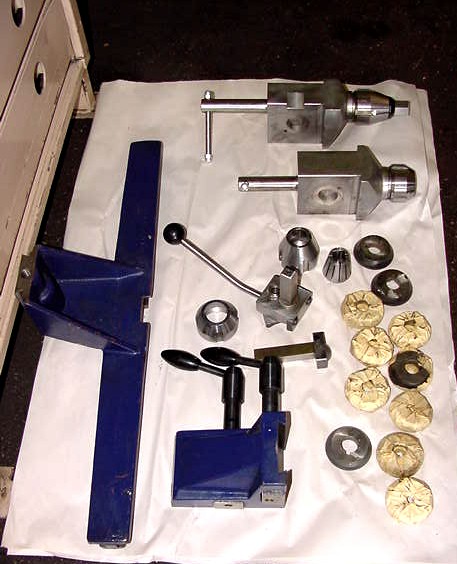

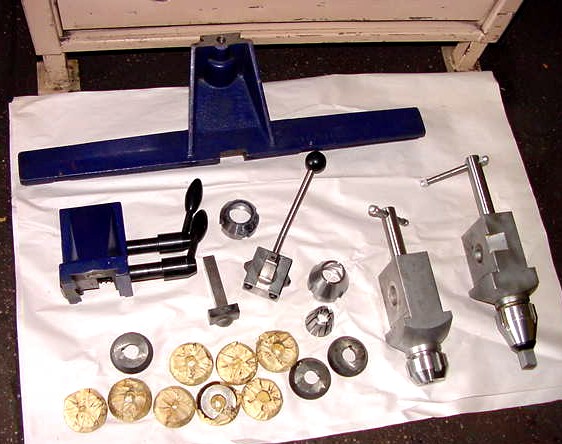

 EQUIPPED WITH:

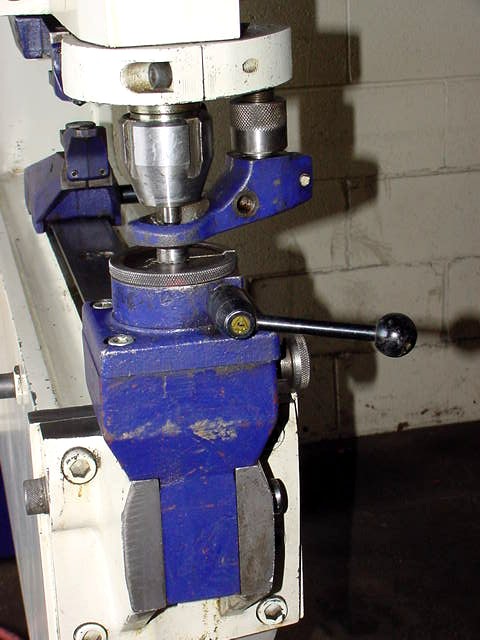

 - OFFSET AND STRAIGHT LOWER TOOL BLOCKS

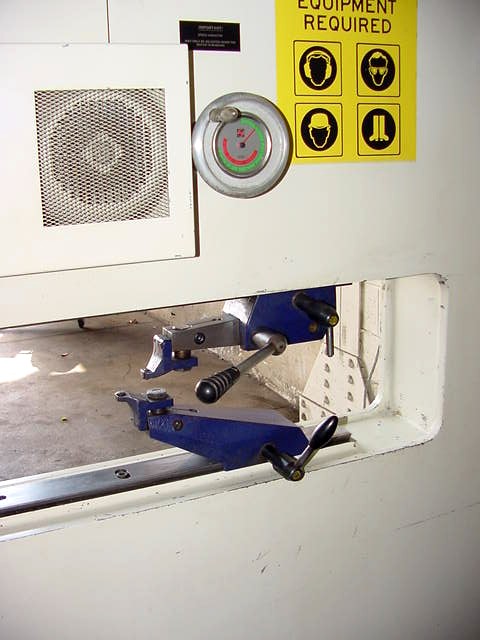

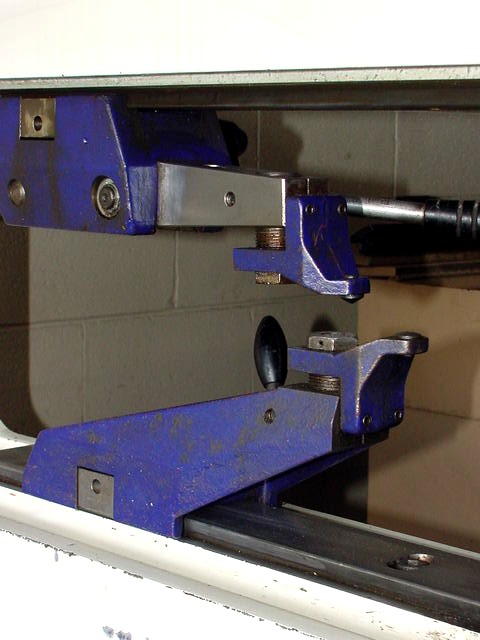

 - STRAIGHT CUTTING ATTACHMENT w/EDGE GUIDE
 - CIRCULAR CUTTING ATTACHMENT
 - LOUVRING TOOL AND BASE
 - NIBBLING ATTACHMENT

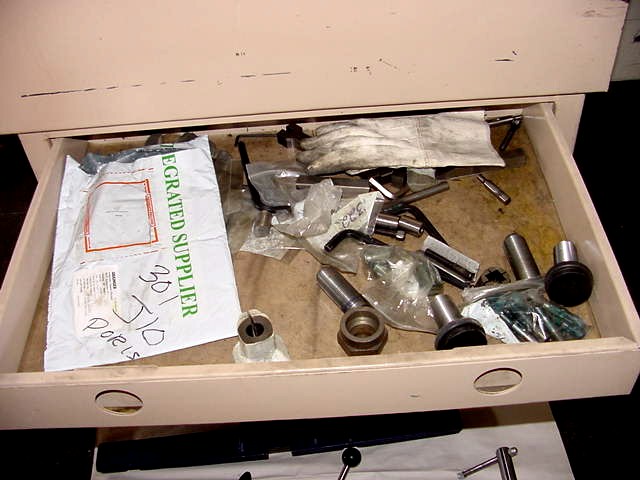

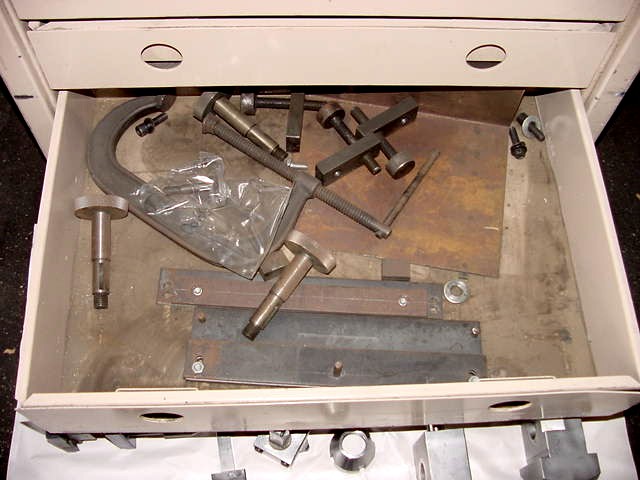

 - MISC. CUTTING TOOLS AND HOLDERS

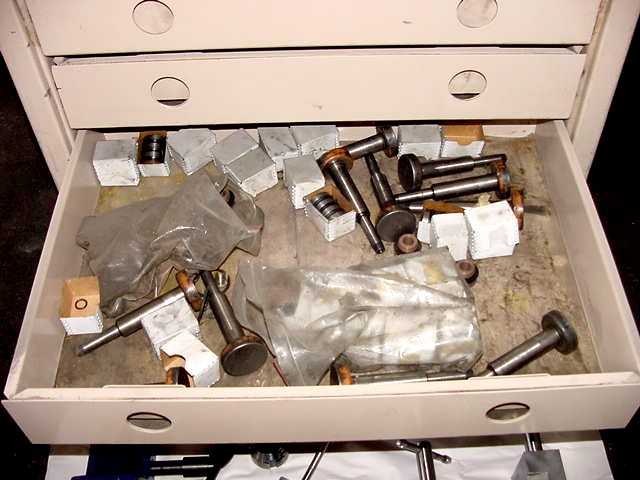

 - MISC. PUNCHES AND DIES

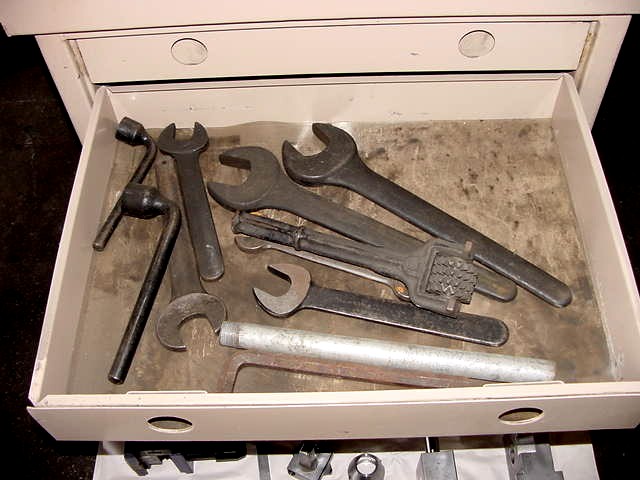

 - MISC. WRENCHES, COLLETS, ETC. (AS SHOWN)
