Reference Number: 141222

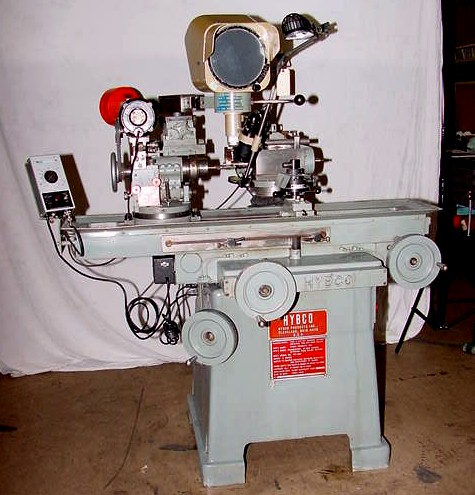

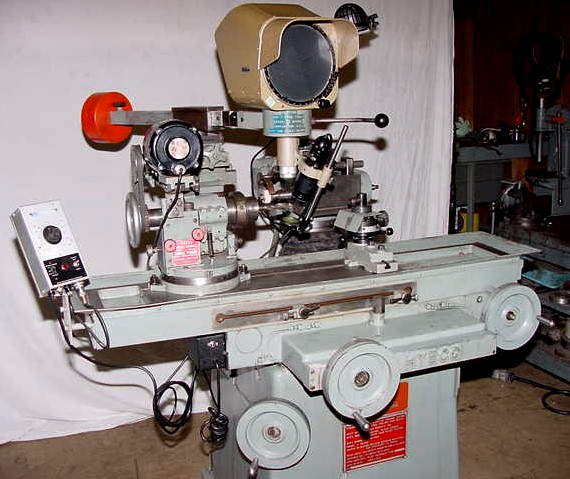

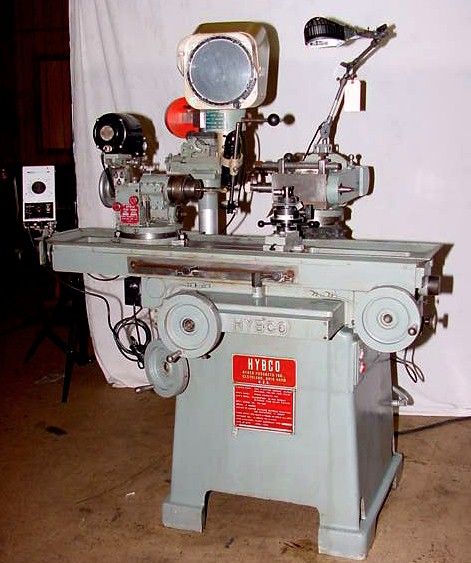

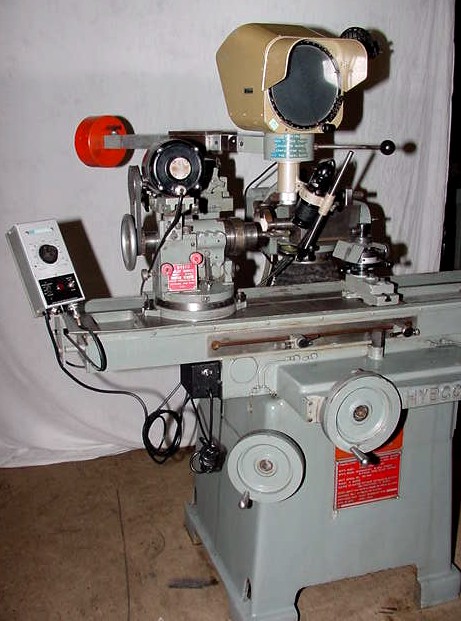

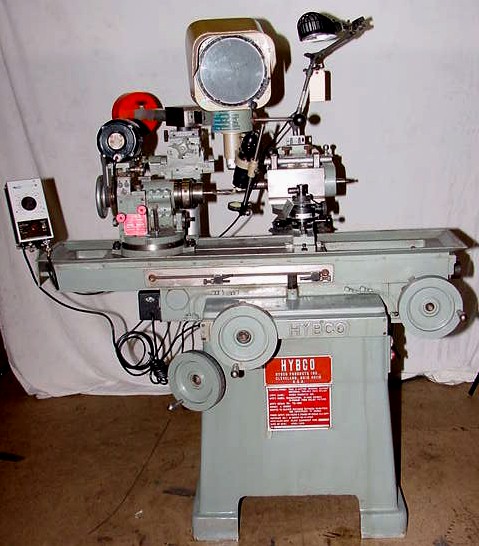

    HYBCO FORM RELIEVING GRINDER

  ********* OPTICAL COMPARATOR *********

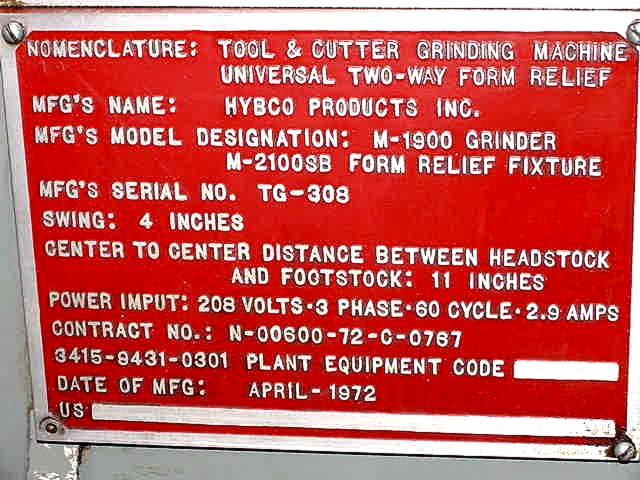

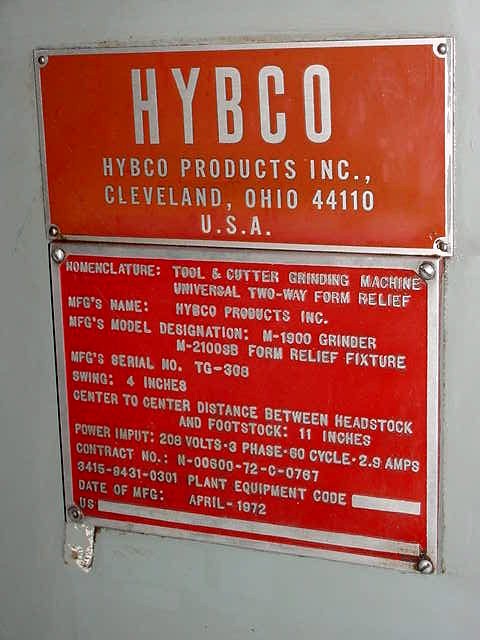

  MODEL:  M-1900     S/N: TG-308    NEW: 1972

 TABLE WORK SURFACE ........................... 6" X 36"
 LONGITUDINAL TABLE TRAVEL ......................... 14"
 CROSS TRAVEL ................................... 6-1/2"
 GRINDING SPINDLE, VERTICAL TRAVEL .............. 7-1/4"

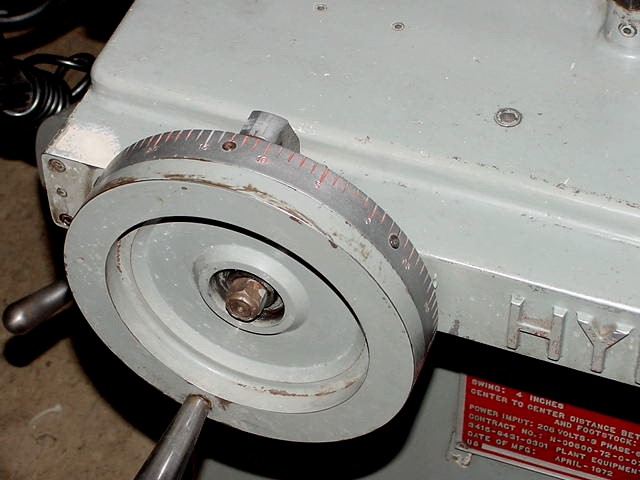

 HANDWHEELS, GRAD. ............................. 0.0005"
 GRINDER SPINDLE TILT ......... 25 DEGREES ABOVE & BELOW
 GRINDER SPINDLE INDEXES ................... 360 DEGREES
 GRINDING SPINDLE SPEEDS (2) ......... 3,800 & 6,400 RPM
 MAX. GRINDING WHEEL DIAMETER ....................... 7"
 GRINDING SPINDLE TAPER ....................3" PER 1 FT.

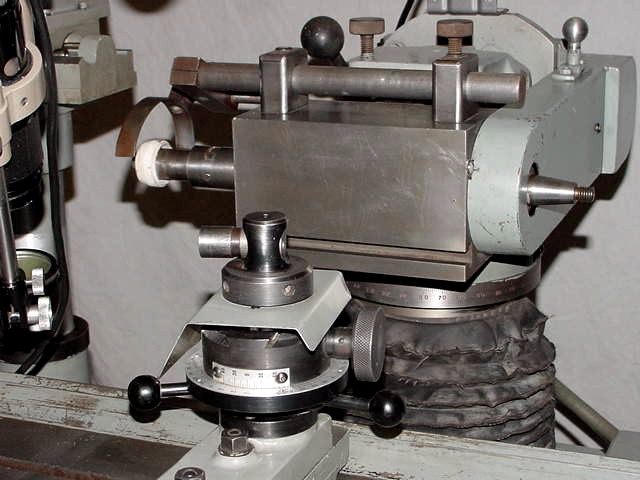

 MODEL #2100 MOTORIZED TWO-WAY RELIEVING FIXTURE:
 SPINDLE CENTER HEIGHT ............................. 4"
 STD. COLLET CAPACITY ......................... 1- 5/8"
 APPROX. WEIGHT OF MOTORIZED FIXTURE .......... 115 LBS.

 OPTICAL COMPARATOR:
 SCREEN DIAMETER ................................... 10"
 POSITIONING COMPOUND TRAVELS, CROSS ............... 2"
                              LONGITUDINAL ........ 2"
 MAGNIFICATION ........................... 20X & 31.25X

 APPROX. MACHINE WEIGHT ..................... 2,000 LBS.

 EQUIPPED WITH:
 FULL CAST IRON CONSTRUCTION
 TILTING WHEELHEAD SESIGN (+/- 25 DEGREES)
 ROLLER BEARING WAYS (LONGITUDINAL & CROSS)
 BALL SCREW FOR WHEELHEAD SLIDE
 GEAR BOX FOR LONGITUDINAL TRAVEL - FINE/COARSE SETTINGS

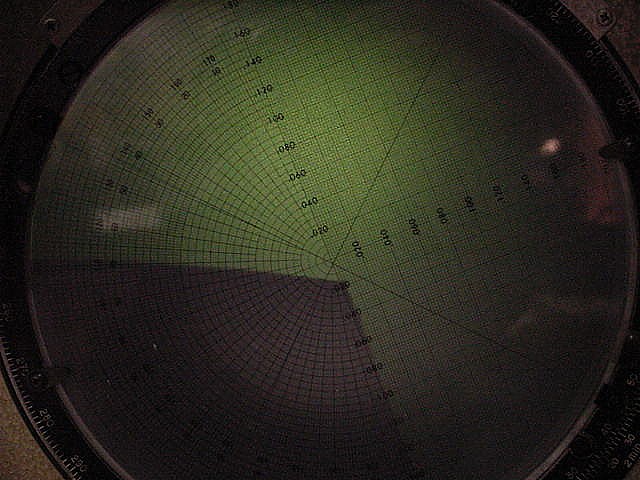

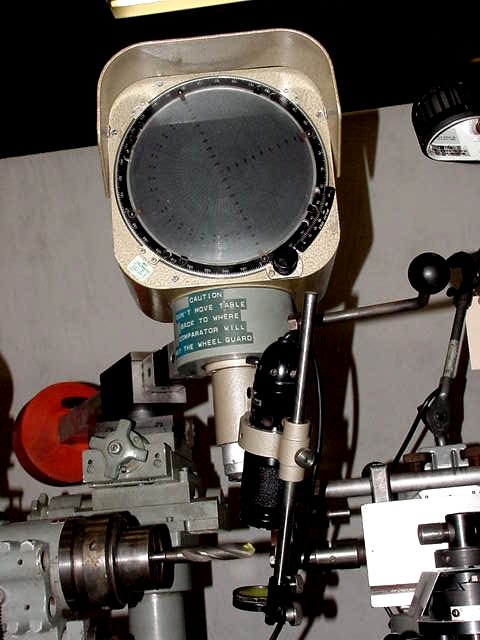

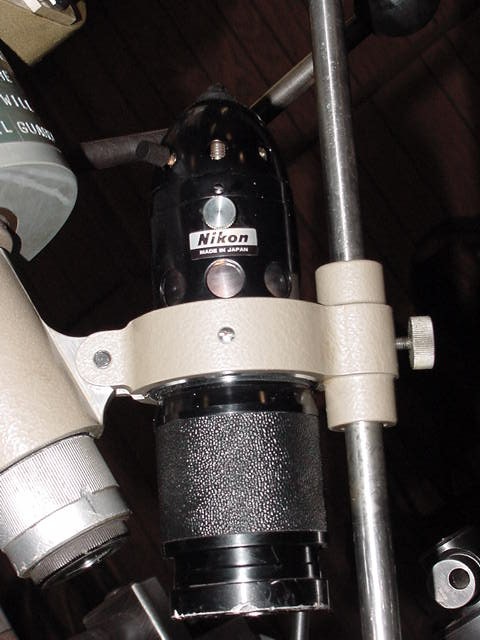

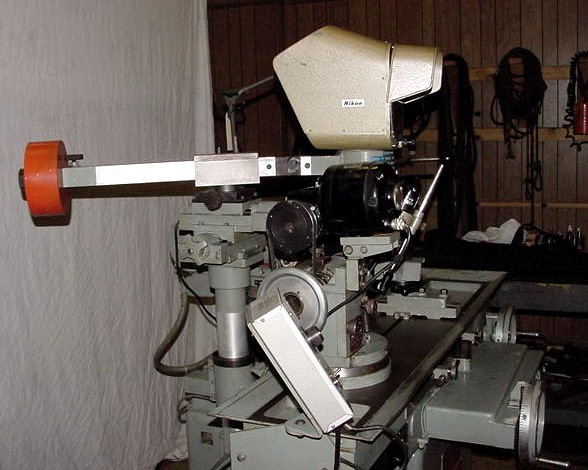

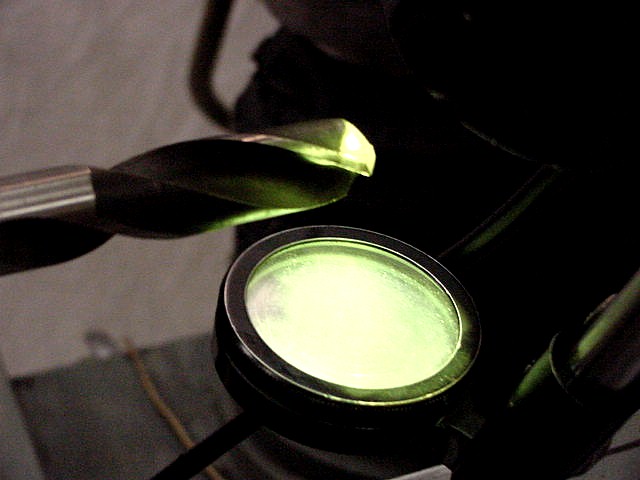

 10" "NIKON" OPTICAL COMPARATOR ATTACHMENT
  W/20X LENS & 31.25X LENSES
  COMPOUND CROSS FEED HANDWHEEL
  - GIVES THE OPERATOR A QUICK METHOD OF CHECKING TOOL
   DIAMETERS, LENGTHS, ANGLES, AND RADII RIGHT AT THE
   GRINDING WHEEL WITHOUT REMOVING THE TOOL FROM
   THE COLLET.

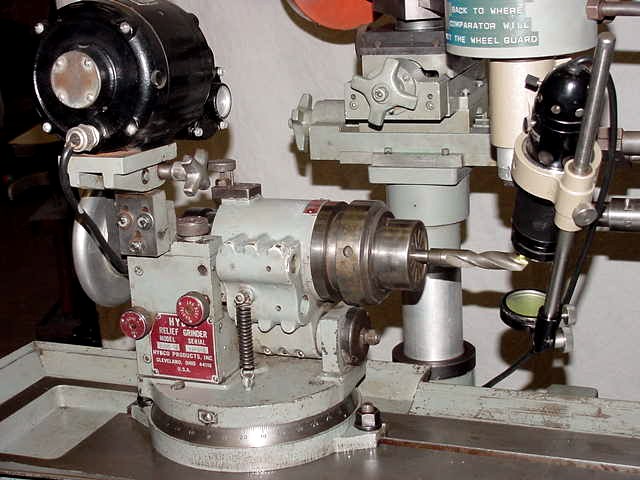

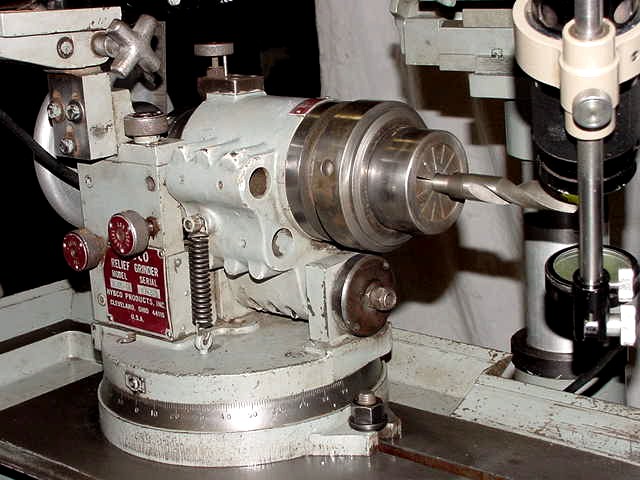

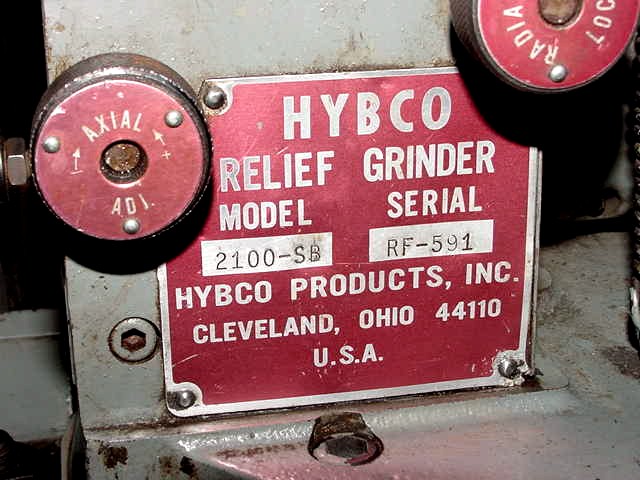

 #2100-SB (RF-591) HYBCO TWO-WAY MOTORIZED RELIEVING FIXTURE
  (RADIAL & AXIAL), WITH SWIVEL BASE, COLLET SPINDLE,

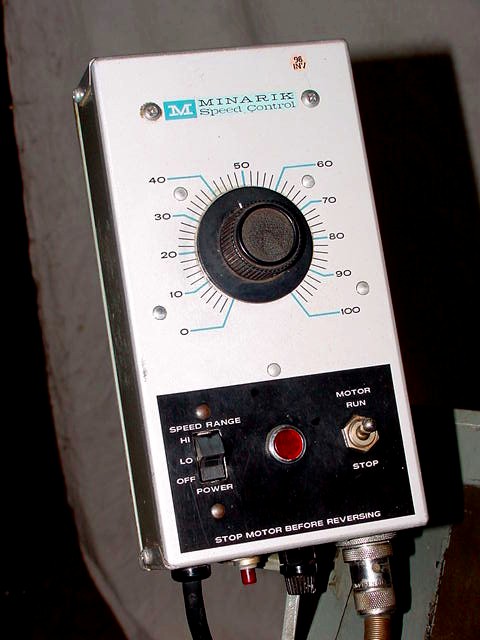

  & "MINARIK" ELECTRONIC VARIABLE SPEED RHEOSTAT CONTROL

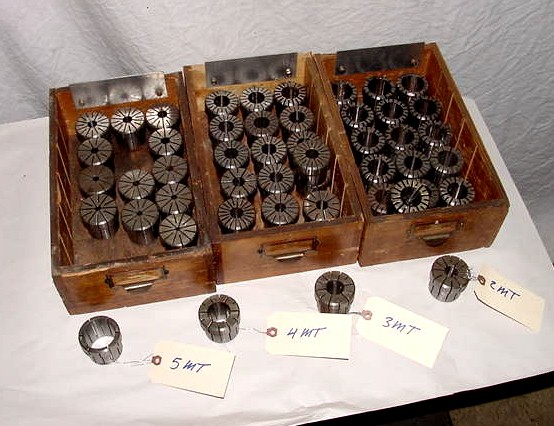

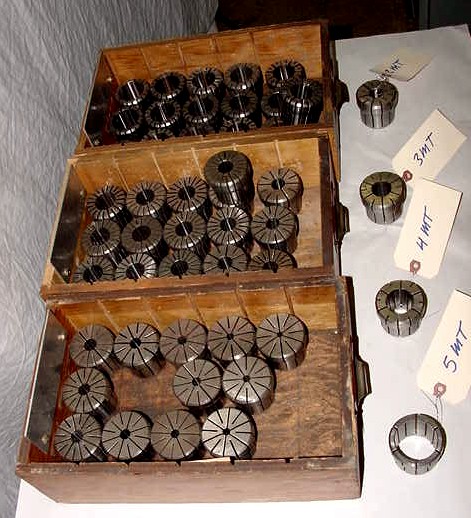

 (42) ERICKSON COLLETS ... UP TO 1- 5/8" CAPACITY
 COLLETS FOR #2MT, #3MT, #4MT & #5MT TAPER SHANK TOOLS
 VER NICE COMPLIMENT OF CAMS & INDEX PLATES
 TANGENT WHEEL DRESSER
 ONE-SHOT LUBRICATOR
 1.5 H.P./3/60/208-230-460 VOLT WHEELHEAD MOTOR
 MACHINE IS PRESENTLY WIRED FOR 208 VOLTS

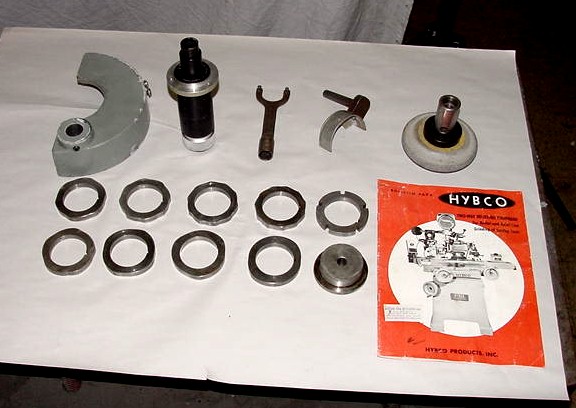

 TOOLING PACKAGE:
 1) TANGENT ANGLE WHEEL DRESSER

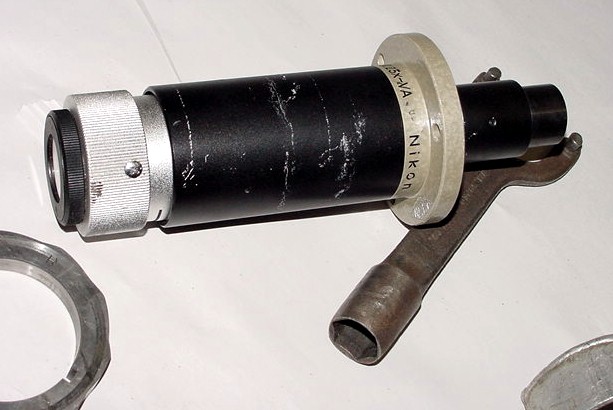

 1) NIKON 8" OPTICAL COMPARATOR, VM-8-A, WITH
   NIKON 20X LENS AND NIKON 31.25X LENS

 CAMS:
 #2, #3, #4, #5, #6, #8, #10, #11

 1) CIRCULAR CAM
 2) INDEX PLATES

 RANGE OF ERICKSON COLLECT FFROM  1"-19/32 to 1/4 , in 1/32" INCREMENTS, APPROX. 40

 SPECIAL NOTE:
 GOV'T STORAGE MACHINE.  VERY LOW USEAGE.  BEAUTIFUL,
  ALL ORIGINAL, EXCEPTIONAL MACHINE!

 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE  **
