Reference Number: 141246

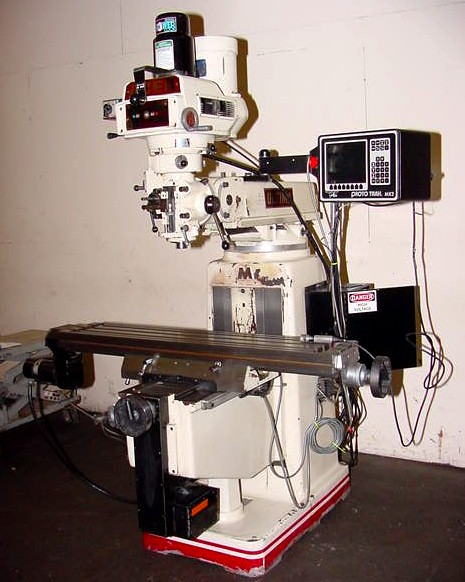

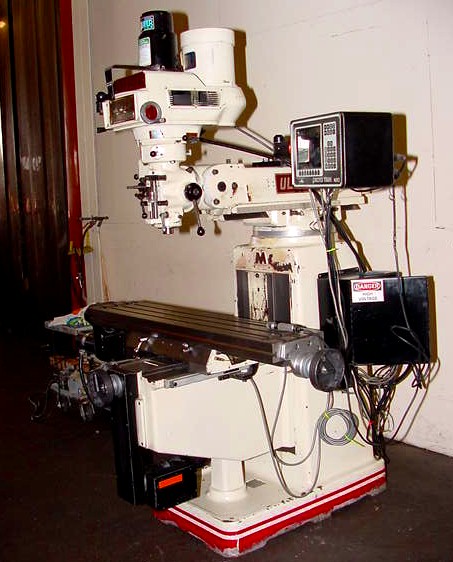

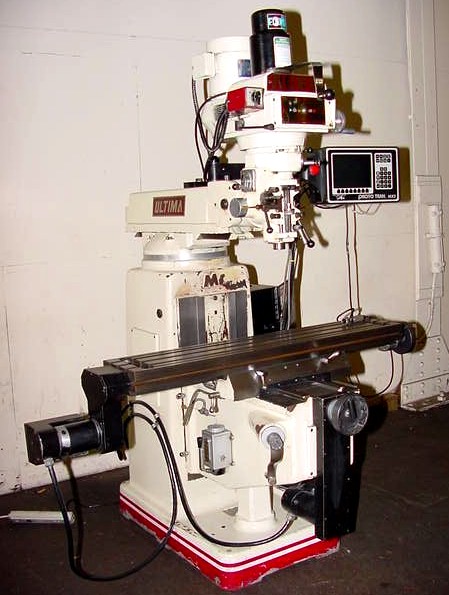

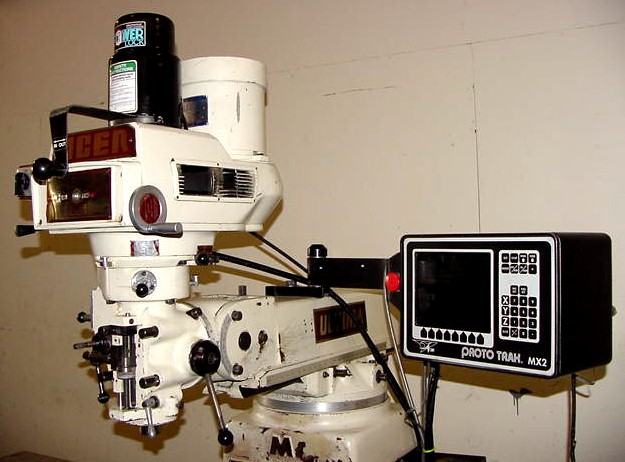

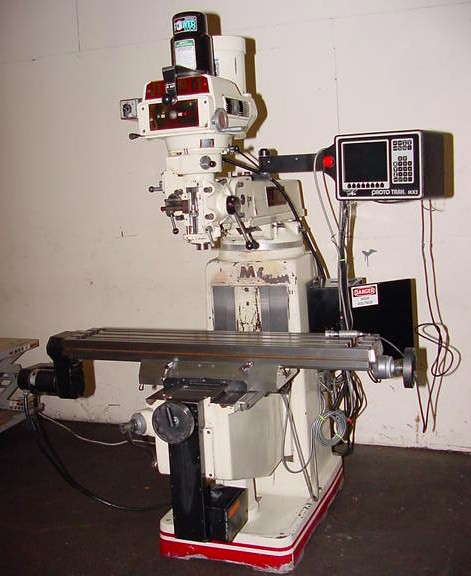

Price: $8,950ACER VERTICAL MILL
MODEL:ULTIMAX II 3VKH S/N: n/a, MFG: 1994
2-AXIS CNC PLUS MANUAL HANDWHEELS
RETROFITTED 1996
SPECIFICATIONS:

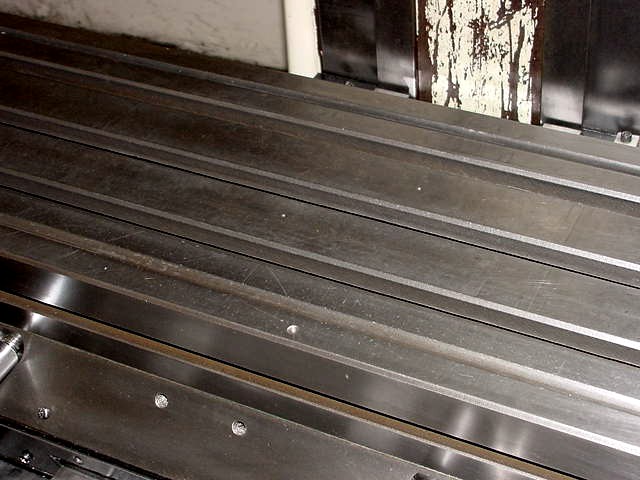

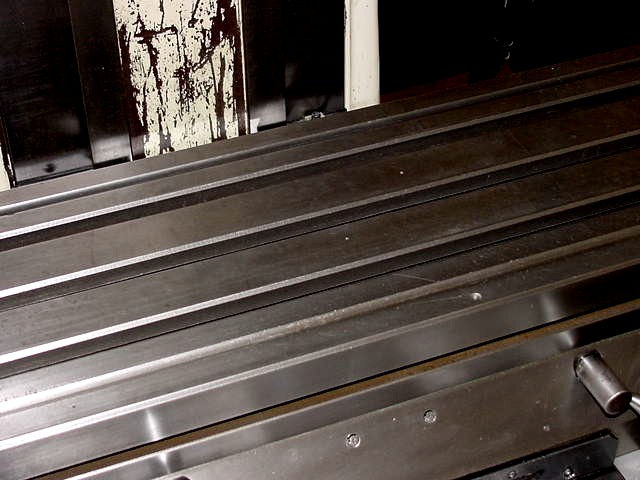

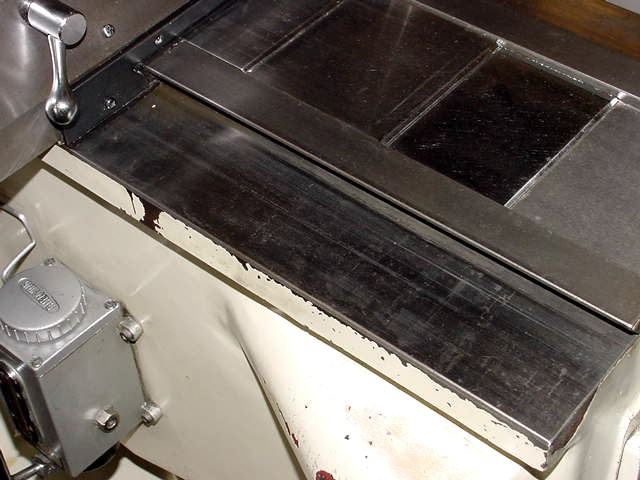

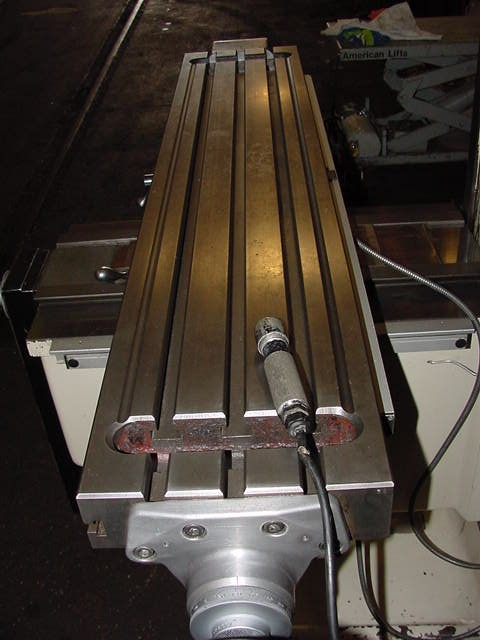

TABLE SIZE....................... 10" x 50"
TABLE TRAVEL (X-AXIS)............ 28.5"
SADDLE TRAVEL (Y-AXIS)........... 14"
QUILL TRAVEL (Z-AXIS)............ 4.5"
KNEE TRAVEL ..................... 16"
RAM TRAVEL ...................... 20"
SPINDLE TAPER.................... R-8
SPINDLE SPEED RANGE.............. 60 - 4200 RPM
MAXIMUM LOAD DISTRIBUTED ........ 500 LBS.
FLOOR AREA (DOORS CLOSED)........ 8' x 7'3"
HEIGHT........................... 6'9"
WEIGHT (WITH CONTROL)............ 3,250 LBS.
EQUIPPED WITH:

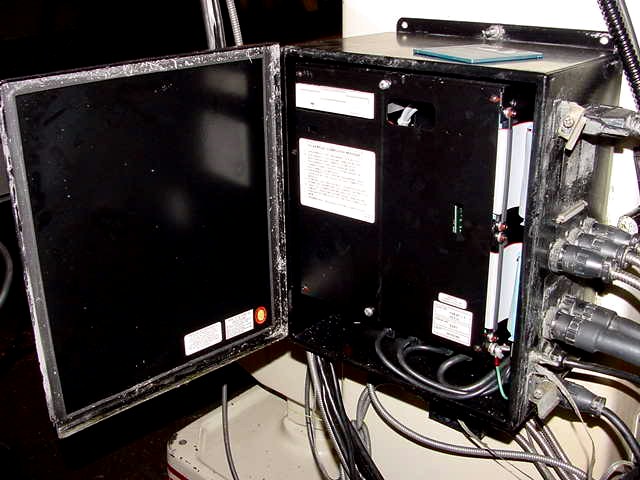

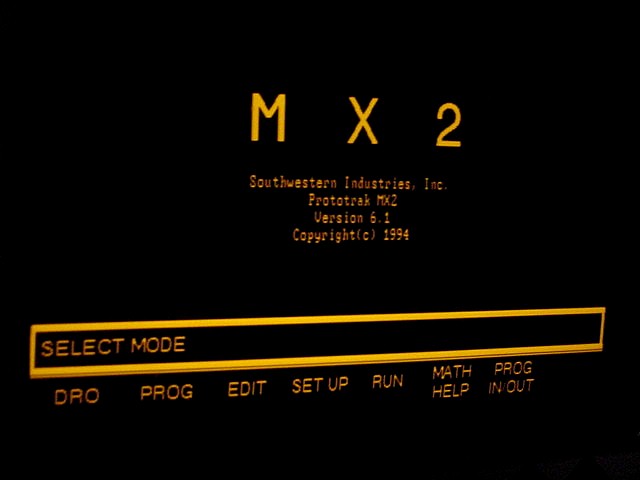

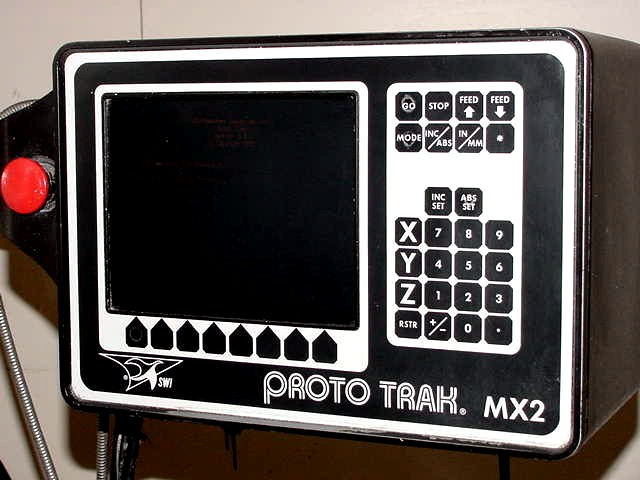

- SOUTHWESTERN INDUSTRIES: TRAK MX 2-AXIS CNC CONTROL SYSTEM
WITH SERVO MOTORS, MANUAL DATA INPUT 2-AXIS LINEAR &
CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD, BOLT HOLE
PATTERNS, PART GRAPHICS, DRILL, BORE, MIRROR & MUCH
MUCH MORE!
X & Y BALLSCREWS AND SERVO MOTORS

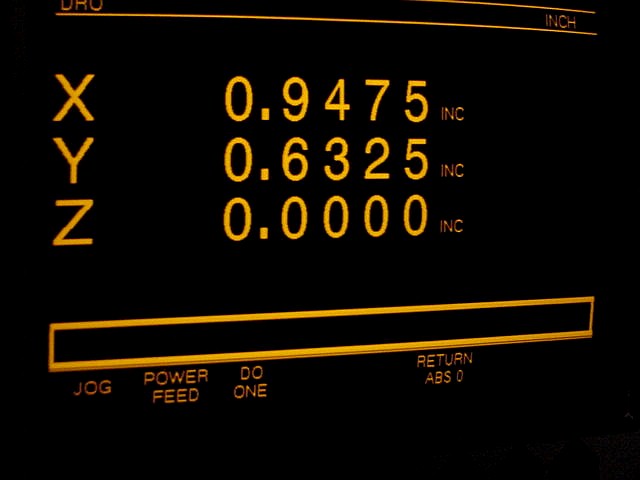

CONTROL ACTS AS 2-AXIS DRO IN MANUAL MODE
NOTE - Z AXIS SCALE IS MISSING - WAS THERE ORIGINALLY, BUT
IS GONE NOW - CAN BE REPLACED SO 3rd AXIS DRO FUNCTIONS

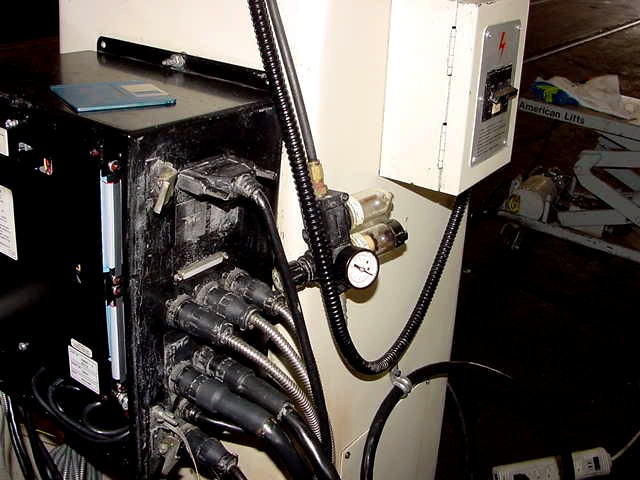

RS 232 PORT & FLOPPY DISC DRIVE

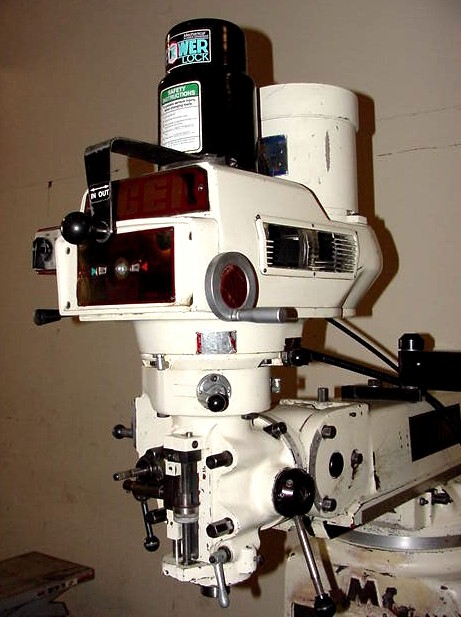

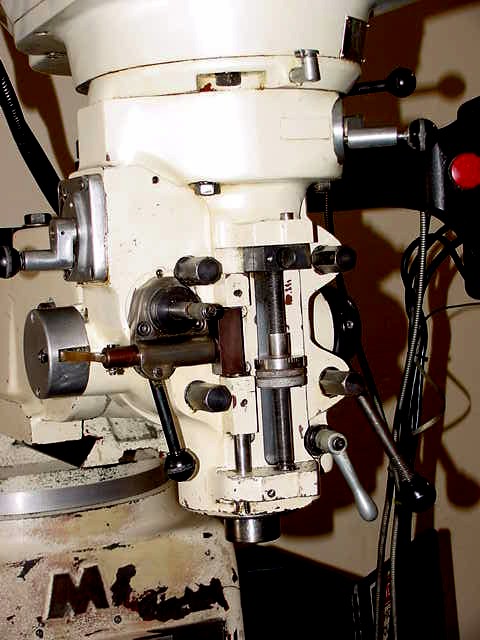

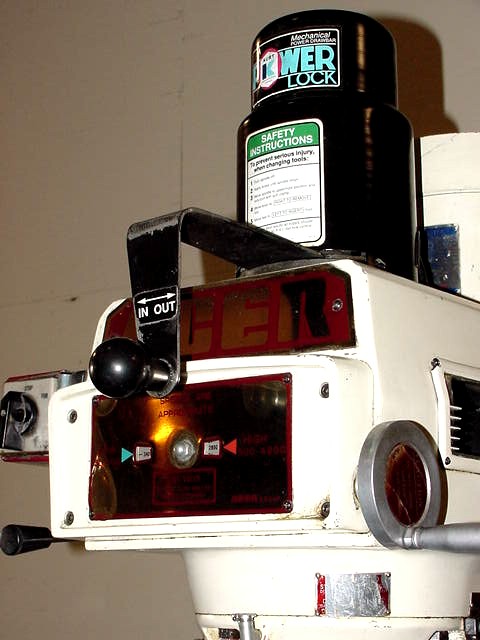

KURT POWER DRAW BAR
HARDENED & GROUND DOVETAIL WAYS

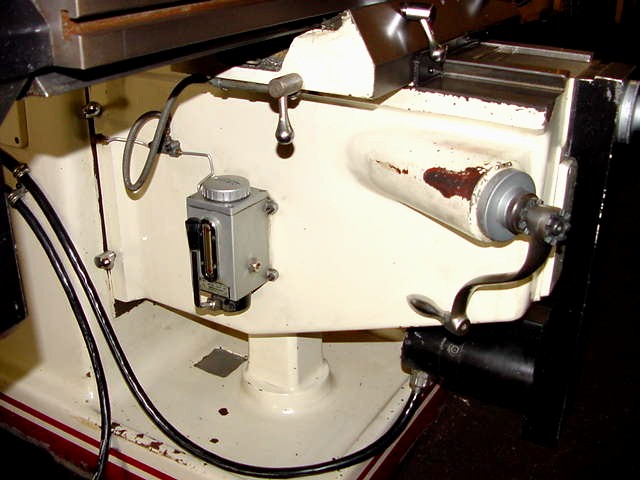

LUBRICATION SYSTEM
TRANSITION FROM TWO AXIS CNC TO MANUAL MACHINING
PERFECT FOR A TOOLROOM OR PROTO TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
CONDITION: **** EXCELLENT ****
