Reference Number: 141297a
Price: $29,500COMPLETE PRESS FEED LINE

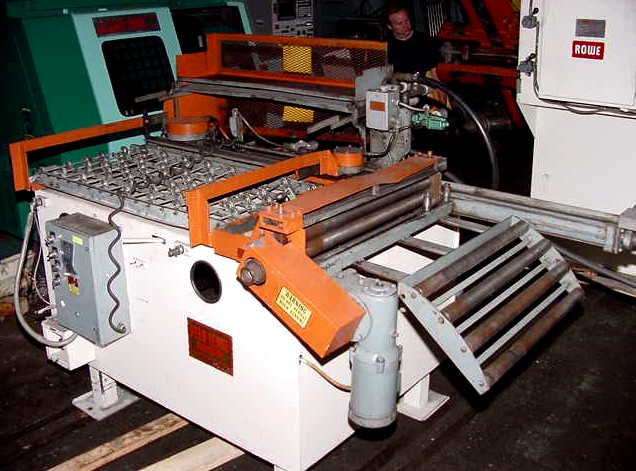

30" ROWE STRAIGHTENER MODEL SFDC-2-30 WIDTH ...................................... 30"
S/N 24469 NEW 1981
MAX. STOCK THICKNESS ....................... .150"
MIN. STOCK THICKNESS ....................... .020"
FEED RATE .................................. 7-100 FPM
STRAIGHTENING ROLLS ........................ 7
PINCH ROLLS ................................ 2 SETS
ROLL DIAMETER .............................. 3-1/2"
EQUIPPED WITH:
- EDDY CURRENT DIVE WITH ELECTRIC EYE
- ELECTRICAL CONTROLS
- ROLLS HARDENED, GROUND & MOUNTED ON ANTI-FRICTION BEARINGS
- MOTOR 7-1/2 HP / 1200 RPM / VOLT 230 / 3 PHASE
- AIR ENTRY AND EXIT PINCH ROLL
DIMENSIONS: 45" X 53" X 59"

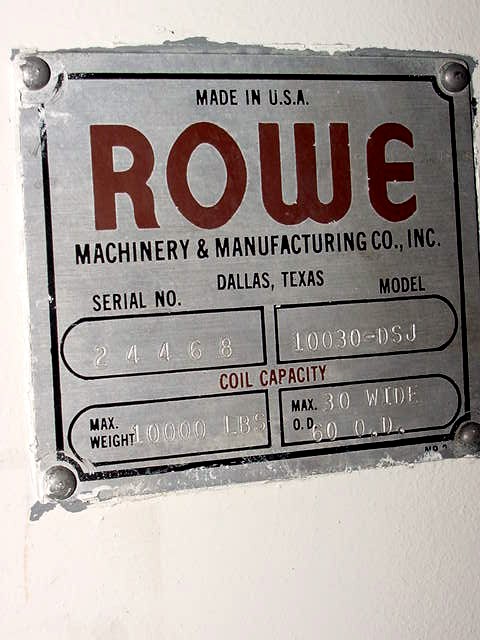

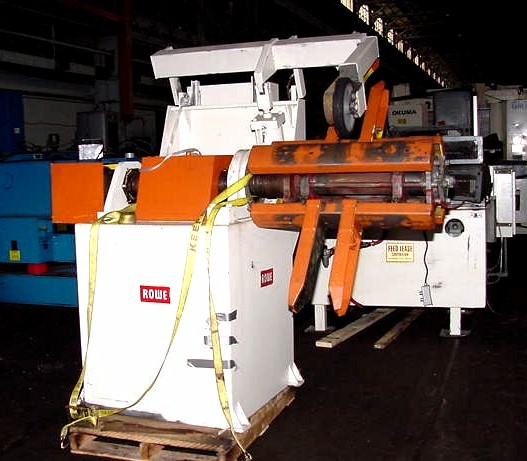

10,000 LB. ROWE NON-MOTORIZED UNCOILER CAPACITY ................................... 10,000 LBS.
MODEL 10030-DSJ NEW 1981 S/N 24468
MAXIMUM COIL WIDTH ......................... 30"
MAXIMUM COIL O.D. .......................... 60"
MIN./MAX. I.D. ............................. 15-3/4"-20-1/4"
EQUIPPED WITH:
- KEEPERS
- HYDRAULIC POWERED EXPANSION
- HYDRAULIC HOLDDOWN ARM
- 12 RPM JOY DRIVE
30" X 36" FEED LEASE PRESS FEED WIDTH ........................................... 30"
MODEL FL-1-3/4-30X36 S/N 2344 NEW 1981
STROKE .......(adjustable)....................... 36"
THICKNESS ....(w/straightener)................... .090
THICKNESS ....(w/o straightener)................. .120"
STROKES PER MINUTE .............................. 25 @ 36"
FEEDS RIGHT TO LEFT
CABINET MOUNTED
PRESS SIGNAL FEED CIRCUITRY
.(SEE QUOTES 141299, 141297 & 141296 FOR
MORE PICTURES OF THESE MACHINES AND
INDIVIDUAL QUOTES)
