Reference Number: 141319

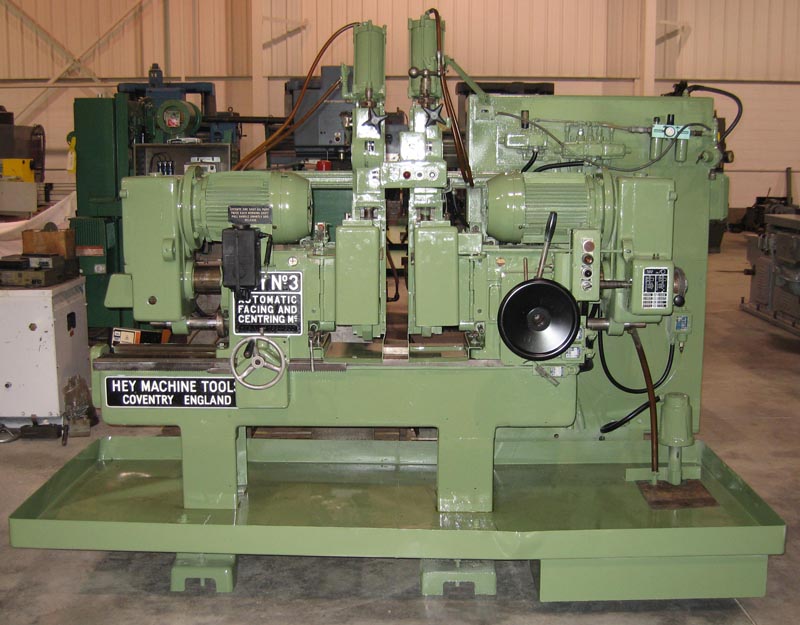

Price: On RequestHEY NO. 3 27" DOUBLE ENDED
FACING AND CENTERING MACHINE
NEW: 1978
SPECIFICATIONS:
MAXIMUM DIAMETER OF WORK: ....... 6.25"
MINIMUM DIAMETER OF WORK: ....... .25"
MAXIMUM WORKPIECE LENGTH: ....... 27"
MINIMUM LENGTH OF WORK: ......... 3"
MAXIMUM SWING OVER BED: ......... 21"
SPINDLE SPEEDS: ................. 65 TO 1430 RPM IN 18 STEPS
(CHANGE GEARS TO PRODUCE (1)
RPM RATE WILL BE SUPPLIED WITH MACHINE)
LENGTH OF FINE ADJUSTMENT
TO CUTTER: ................ 2"
FEED RATES IN THOUSANDTHS
OF AN INCH PER REV. OF SPINDLE: . (8) STEPS 0.001-0.018 IPR
RAPID TRAVERSE RATE:............. 250"/MIN.
APPROX WEIGHT ................... 8,600 LBS
APPROX DIMENSIONS ............... 54" X 110" X 70"
EQUIPPED WITH:
- (2) PNEUMATIC WORK HOLD VISES - SELF CENTERING
SPINDLE DRIVES - 10 HP EACH
- ELECTRICS: 3/50/420 VOLTS
- (1) PAIR OF COMBINATION FACING AND CENTERING CUTTER BODIES TO BE SUPPLIED WITH MACHINE.
- COOLANT SYSTEM
- LATERAL PART LOCATOR
- DUAL PALM BUTTON CYCLE START
