Reference Number: 141344
Price: On Request

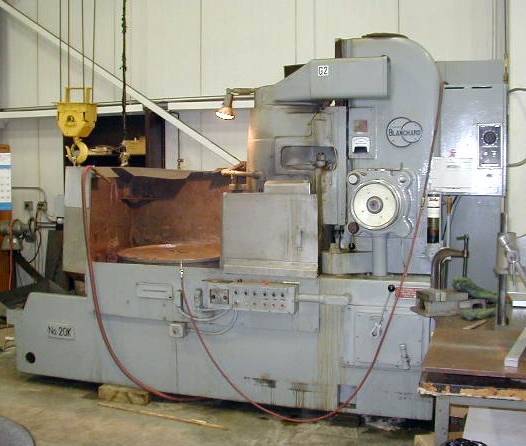

36" BLANCHARD ROTARY SURFACE GRINDER
MODEL: #20K-36 NEW: 1969
CHUCK DIAMETER .................................... 36"
SWING INSIDE GUARDS ............................... 38"
VERTICAL RANGE UNDER NEW WHEEL .................... 12"
MAXIMUM LOAD ON CHUCK ....................... 3,000 LBS
GRINDING WHEEL DIAMETER ........................... 20"
GRINDING WHEEL SPEED .......................... 720 RPM
CHUCK SPEEDS (6) .......................... 6 TO 33 RPM
INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"
APPROXIMATE DIMENSIONS.............12'L X 8'4"W X 9'1"H
APPROXIMATE WEIGHT ......................... 12,750 LBS
EQUIPPED WITH:
30 HP 3/60/230-460 VOLT SPINDLE MOTOR
12" VERTICAL RANGE (STANDARD)

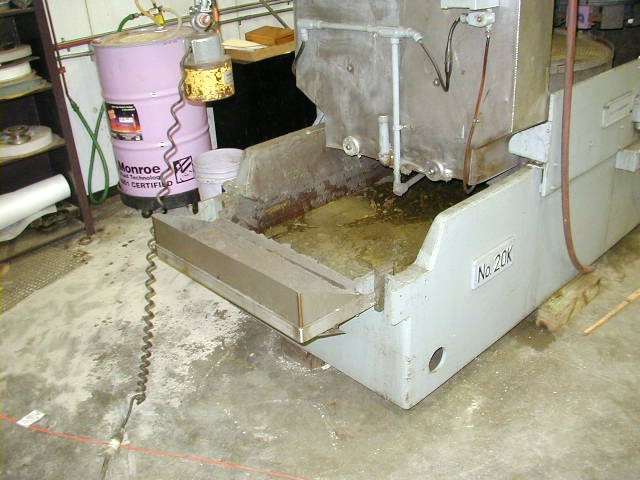

WET BASE w/SELF-CONTAINED COOLANT SYSTEM

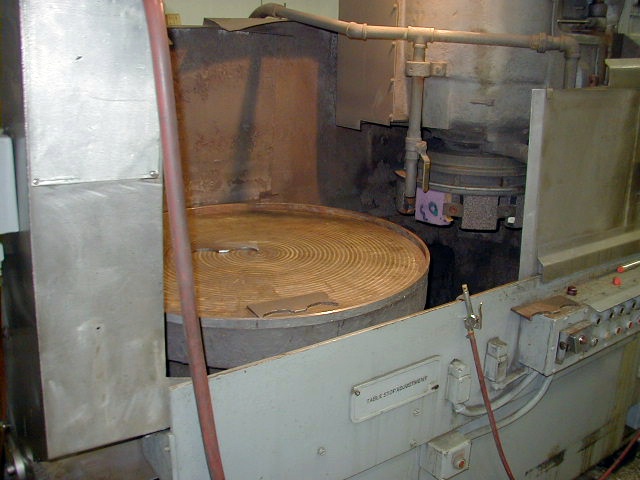

36" ELECTRO-MAGNETIC CHUCK (1/2" CHUCK LIFE)

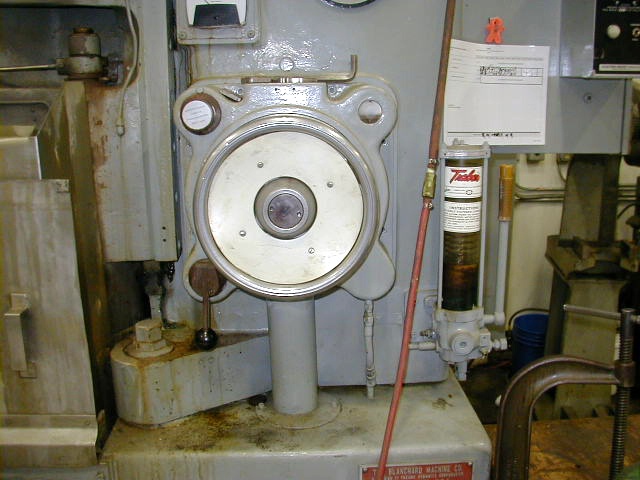

"TRABON" HAND-PUMP LUBRICATION SYSTEM FOR VERTICAL WAYS
& WHEELHEAD SPINDLE

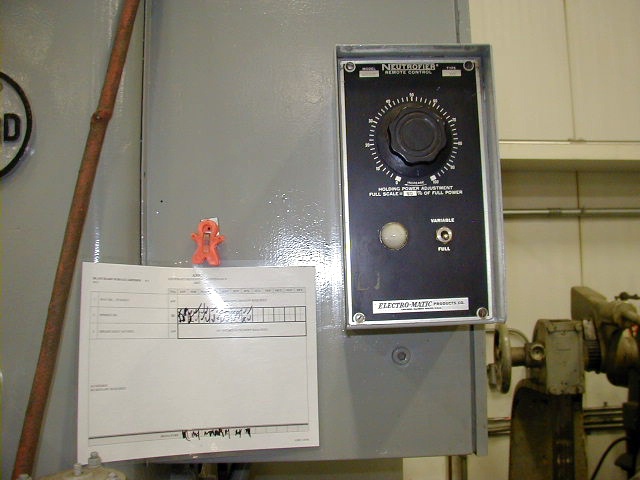

"ELECTRO-MATIC" VARIABLE HOLD NEUTROFIER CONTROL
20" DIAMETER SEGMENTED WHEEL (CORTLAND)
DRESSER
WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
INTERLOCKED WITH FEED.
PRESENTLY WIRED FOR 3/60/208 VOLTS
** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE**
** VERY GOOD CONDITION & APPEARANCE **
