Reference Number: 141372

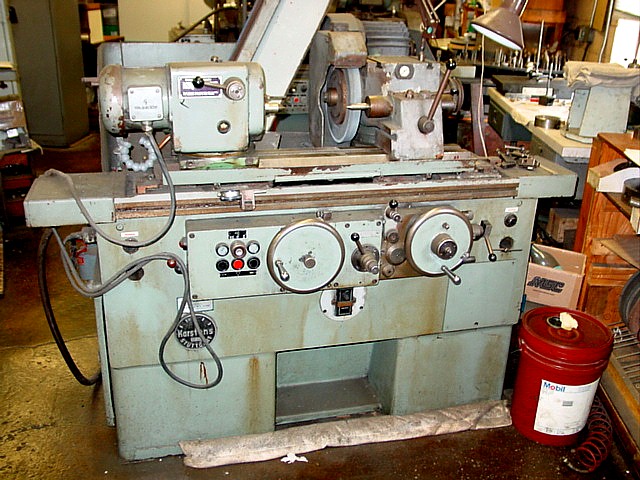

9.750" X 20" KARSTENS "MADE IN GERMAN" HIGH PRECISION
  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

  S/N: 1770        NEW: 1967

 GENERAL SPECIFICATIONS:
 MAX. SWING                        9- 3/4"
 DISTANCE BETWEEN CENTERS          20"
 TABLES SWIVELS, CCW               13- 1/2 DEG.
                CW                3 DEG.

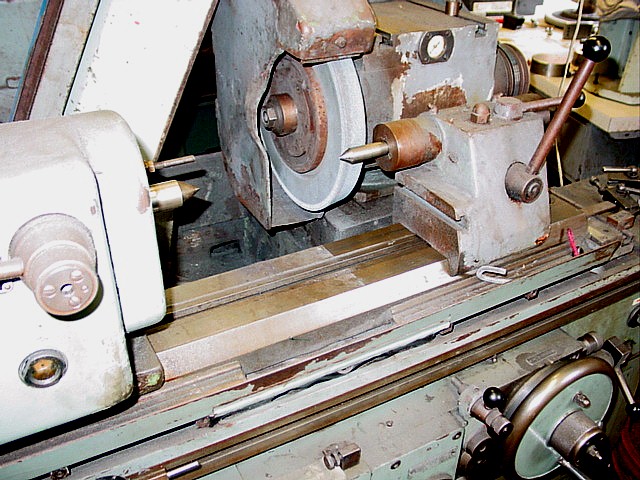

 WHEELHEAD
 SWIVELS:                          360 DEGREES
 GRINDING WHEEL:                   14" DIAMETER X 2"W MAX.
                                    x 5" BORE

 COARSE ADJUSTMENT OF UPPER WHEEL SLIDE IS MADE EASY BY DOVETAIL AND CLAMP

 AUTOMATIC INFEED:                 LEFT PICKFEED
                                  RIGHT PICKFEED
                                  LEFT & RIGHT PICKFEED
                                  NO PICKFEED

 SELECTION OF PLUNGE, CONTINUOUS INFEED RATE USING RATCHET
 & PAWL.  FEED RATE IS CONTROLLED ELECTRONICALLY BY
 FREQUENCY (THERE IS NO SPARK OUT TIMER)

 HANDWHEEL FOR INFEED 1 REV. : .010" EACH CAL. .0005"

 WORKHEAD
 VARIABLE SPEED:                   60 RPM TO 540 RPM
 SPINDLE:                          LIVE /DEAD
 MORSE TAPER:                      #4 MT

 APPROX. DIMENSIONS:               66"L-R X 48"W X 52"H
 APPROX. WEIGHT:                   4,250 LBS.

 EQUIPPED WITH:
 AUTOCYCLE (STARTED WITH SINGLE LEVER)
 HYDRAULIC TABLE TRAVERSE
 AUTO INFEED OF WHEELHEAD
 AUTO PLUNGE INFEED
 INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
 (2) WHEEL HUBS
 2-POINT STEADY REST
 ADAPTOR w/FACE PLATE FOR MOUNTING A CHUCK
 SET UP FOR COOLANT WITH GUARDS, SPIGOT ABOVE THE GRINDING
  WHEEL, BUT THE MACHINE DOES NOT HAVE THE COOLANT TANK,
  PUMP, HOSES & PLUG TO INTERFACE WITH THE MACHINE
 BRACKET BEHIND THE O.D. WHEEL FOR INTERNAL GRINDING,
  WITHOUT I.D. SPINDLE
 WIRED PRESENTLY FOR 220 VOLTS, 3 PHASE, 25 AMP FULL LOAD


 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
 ** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
