Reference Number: 141373

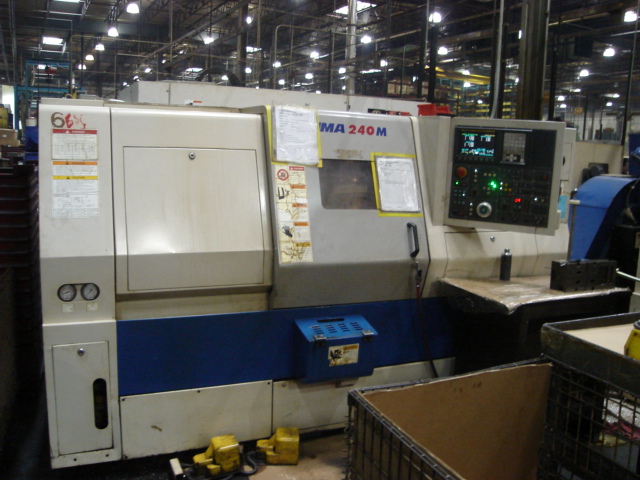

DAEWOO PUMA 240MB CNC TURNING AND MILL CENTERPrice: On Request
NEW:2004
Specifications:

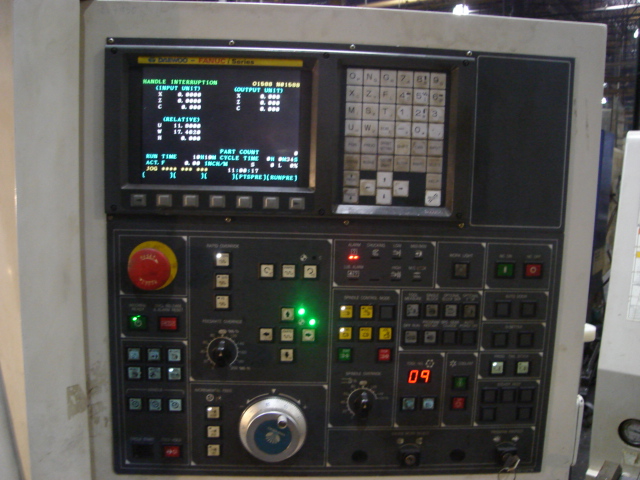

Control Fanuc 18i-TB
Swing Over Bed 21.7"
Swing Over Carriage 15.4"
Distance Between Centers 26.3"
Max Turn Diameter 13.8"
Max Turn Length 21.6"
Spindle Speed 45 to 4,500 RPM
Spindle Nose A2-6
Draw Tube ID 2.60"
Spindle Motor 25 HP
Standard Chuck Size 8.25"
X-Axis Travel 9.5"
Z-Axis Travel 17.3"
Rapid Traverse Rates 945X/ 1,200Z IPM
Number of Tools 12 All Live
Tailstock Quill Diameter 3"
Tailstock Quill Stroke 3.1"
Tailstock Spindle Taper MT #4
Machine Weight 9,470 Lbs
Machine Dimensions 124"L x 63"W
Equipped With:
Chip Conveyor Full C-Axis
Parts Catcher Live Tool Capable
Programmable Hydraulic Tailstock & Quill
Tool Setter
