Reference Number: 141377
Price: On Request

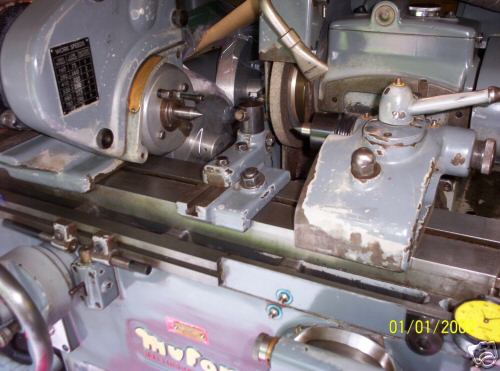

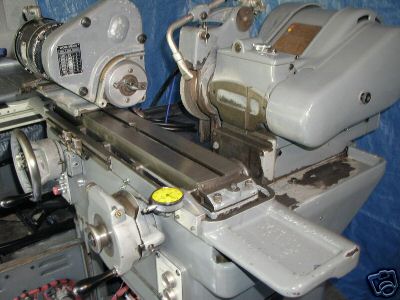

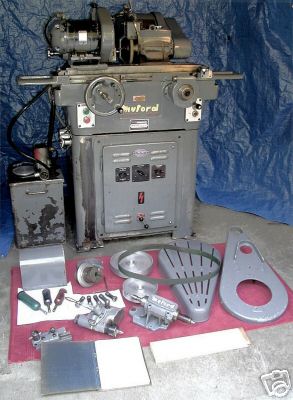

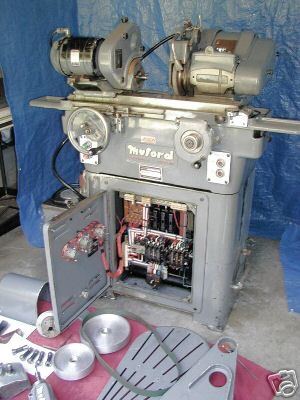

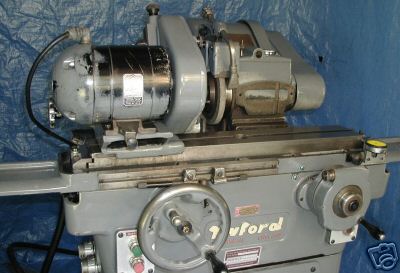

5" X 12" MYFORD "PRECISION" HAND FEED
PLAIN CYLINDRICAL GRINDER
** MYFORD I.D. ATTACHMENT AVAILABLE FOR THIS MACHINE **

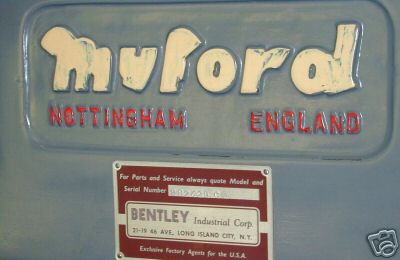

MODEL: MG12 S/N: S.824425CB NEW: 1968
MAXIMUM GRINDING DIAMETER .......................... 3"
SWING OVER TABLE ................................... 5"
MAXIMUM TABLE TRAVEL .......................... 13-3/4"
DISTANCE BETWEEN CENTERS .......................... 12"
TABLE SWIVELS EITHER WAY ...................... 10 DEG.
TABLE TRAVEL PER REV. OF HANDWHEEL .............. 0.44"
WHEELHEAD:
TOTAL TRAVEL BY FEEDSCREW .................... 3-7/8"
INFEED PER REV. OF HANDWHEEL ................. 0.025"
WHEELHEAD GRAD. (INFEED) .................... 0.0001"
FINE FEED TO DEAD STOP .................... 0.000025"
GRINDING WHEEL (RECESSED) ............. 10" X 1" X 3"
WHEEL SPINDLE SPPEDS (2) ...........2,200 & 2,500 RPM
WHEELHEAD MOTOR ................................ 2 HP

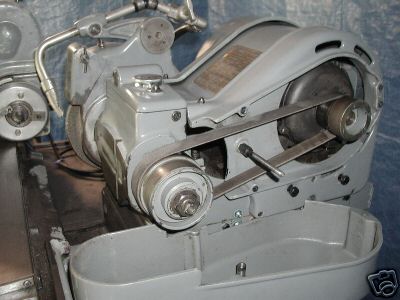

WORKHEAD:
WORKSPEEDS, INFINITELY VARIABLE ...... 100 TO 900 RPM
CAPACITY THRU STD. DRAW TUBE ................... 3/4"
MAXIMUM COLLET CAPACITY ........................ 3/4"
WORKHEAD MOTOR ............................... 1/4 HP
APPROXIMATE MACHINE WEIGHT ................. 2,000 LBS.

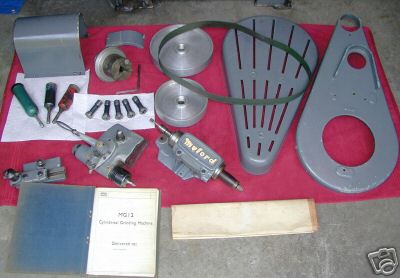

EQUIPPED WITH:
HAND FEEDS
DUAL LIVE/DEAD WORKHEAD
DRAW BAR w/ADAPTOR FOR COLLETS
(5) MYFORD COLLETS

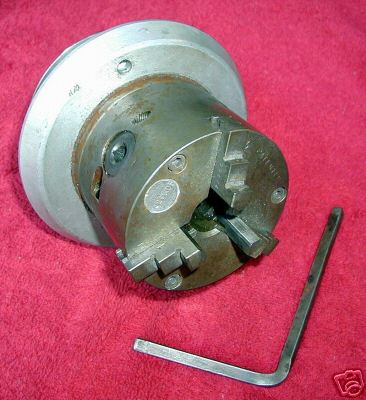

MOUNTING ADAPTOR w/3-JAW CHUCK

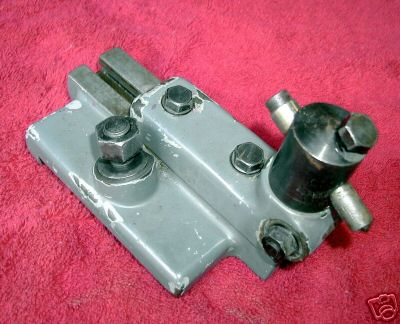

TABLE MOUNTED WHEEL DRESSER
COOLANT SYSTEM
(1) WHEEL FLANGE

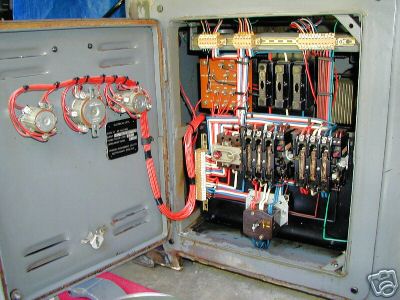

3/60/220-440 VOLT ELECTRICS
PRESENTLY WIRED FOR 3/60/220 VOLTS
SPECIAL NOTE:

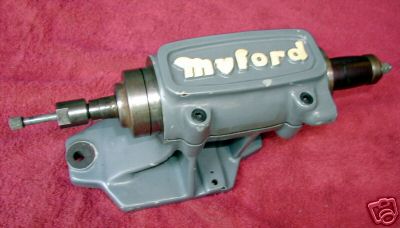

MYFORD I.D. GRINDING ATTACHMENT AVAILABLE FOR AN ADDITIONAL
CHARGE OF $1,950.
** EXCELLENT CONDITION & APPEARANCE * *
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
