Reference Number: 141387

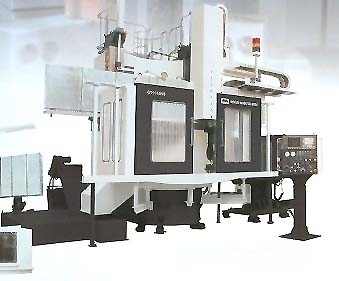

Price: On RequestNEW 63" SHENYANG CNC VERTICAL BORING MILL SPECIFICATIONS:
MODEL GTC 16090
WITH 12 AUTOMATIC TOOL CHANGER
TABLE DIAMETER ........................ 49"
MAX. SWING ............................ 63"
MAX. TURNING DIAMETER ................. 63"
MAX. TURNING HEIGHT ................... 47.24"
MAX. WORK PIECE WEIGHT ................ 17,600 LBS
MAX. TORQUE ........................... 20000 NM
RAM HEAD VERTICAL TRAVEL .............. 35.43"
RAM HEAD HORIZONTAL TRAVEL ............ -.59" - + 80.71"
RAM CROSS SECTION ..................... 8.66" X 8.66"
CUTTING TOOL SECTION .................. 1.57" X 1.57"
POSITION OF TURNING MAGAZINE .......... 12
MAX. WEIGHT OF EACH TOOL HOLDER ....... 99 LBS.
CUTTING FEED RATES .................... .0004-197 IPM
RAPID TRAVERSE RATE ................... 315 IPM
SPEED OF TABLE (2 RANGES) ............. 1 TO 312 RPM
EQUIPPED WITH:
- T-SLOTTED FACEPLATE WITH SET OF (4) FACEPLATE JAWS
- (1) RAM HEAD ON RAIL
- 12 AUTOMATIC TOOL CHANGER
- WORK LIGHT
- WAY COVERS
- OPERATOR'S LADDER
- 10 HP HORIZONTAL FEED MOTOR
- 10 HP VERTICAL FEED MOTOR
- 50/60 HP MAIN DRIVE MOTOR
- 3/60/440 VOLT ELECTRICS
- FANUC OI-TC CONTROL, PENDANT MOUNT
WARRANTY: 1 YEAR
DELIVERY: 9 MONTH
PRICE: C.I.F. DALIAN, CHINA ........... $376,250.00
OPTIONAL:
HYDRAULIC 4-JAW CHUCK
TURNING TURRET
CUTTING TURRET
COOLING DEVICE ........................ $ 1,500.00
CHIP CONVEYOR ......................... $ 4,375.00
SCALE FOR X,Z AXIS .................... $13,125.00
FANUC 18I CONTROL ..................... $13,125.00
