Reference Number: 141388

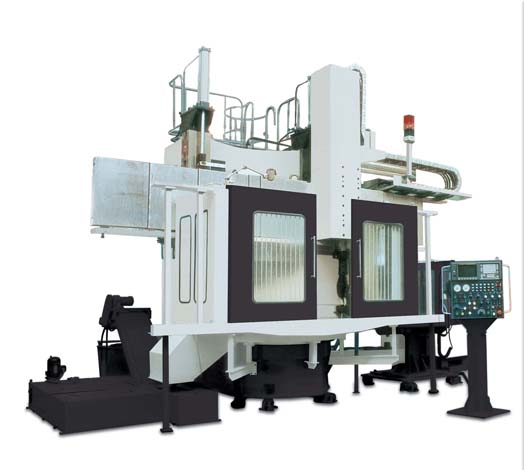

Price: On RequestNEW 80" SHENYANG CNC VERTICAL BORING MILL SPECIFICATIONS:
MODEL GTC 200100, TAC-16A
WITH 12 AUTOMATIC TOOL CHANGER,
TABLE DIAMETER ........................ 63"
MAX. SWING ............................ 78.74"
MAX. TURNING DIAMETER ................. 78.74"
MAX. TURNING HEIGHT ................... 63"
MAX. WORK PIECE WEIGHT ................ 17,600 LBS
MAX. TORQUE ........................... 20000 NM
RAM HEAD VERTICAL TRAVEL .............. 35.43"
RAM HEAD HORIZONTAL TRAVEL ............ -.59" - + 80.71"
RAM CROSS SECTION ..................... 8.66" X 8.66"
CUTTING TOOL SECTION .................. 1.57" X 1.57"
POSITION OF TURNING MAGAZINE .......... 12
MAX. WEIGHT OF EACH TOOL HOLDER ....... 99 LBS.
CUTTING FEED RATES .................... .0004-197 IPM
RAPID TRAVERSE RATE ................... 315 IPM
SPEED OF TABLE (2 RANGES) ............. 1 TO 254 RPM
APPROX. WEIGHT ........................ 57,320 LBS.
DIMENSIONS ............................ 284" x 217" x 228"H
EQUIPPED WITH:
- T-SLOTTED FACEPLATE WITH SET OF (4) FACEPLATE JAWS
- (1) RAM HEAD ON RAIL
- 12 AUTOMATIC TOOL CHANGER
- WORK LIGHT
- WAY COVERS
- OPERATOR'S LADDER
- 10 HP HORIZONTAL FEED MOTOR
- 10 HP VERTICAL FEED MOTOR
- 60/75 HP MAIN DRIVE MOTOR
- 3/60/440 VOLT ELECTRICS
- FANUC OI-TC CONTROL, PENDANT MOUNT
WARRANTY: 1 YEAR
DELIVERY: 11 MONTH
PRICE: C.I.F. DALIAN, CHINA ........... $442,750.00
OPTIONAL:
HYDRAULIC 4-JAW CHUCK
AUTOMATIC WORK PIECE MEASURING DEVICE . $21,875.00
CUTTING TOOL MEASURING DEVICE ......... $11,375.00
TURNING TURRET
CUTTING TURRET
COOLING DEVICE ........................ $1,500.00
CHIP CONVEYOR ......................... $4,375.00
ALARM LAMP
SCALE FOR X,Z AXIS .................... $13,125.00
FANUC 18I CONTROL ..................... $13,125.00
