Reference Number: 141430

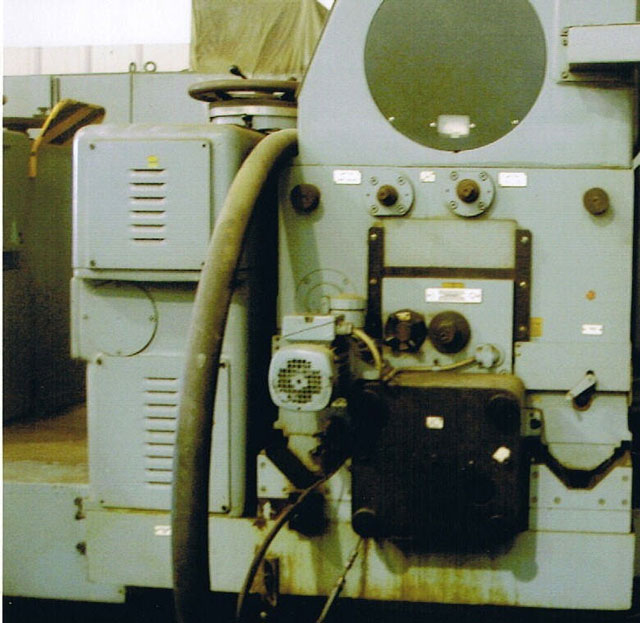

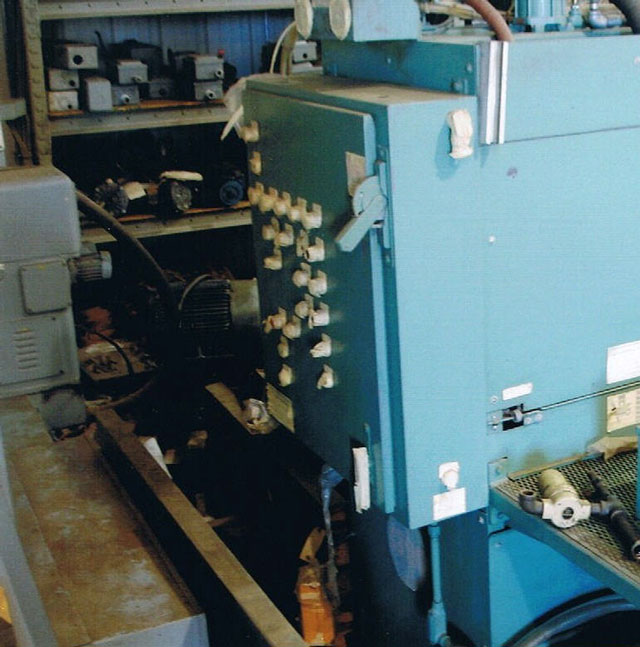

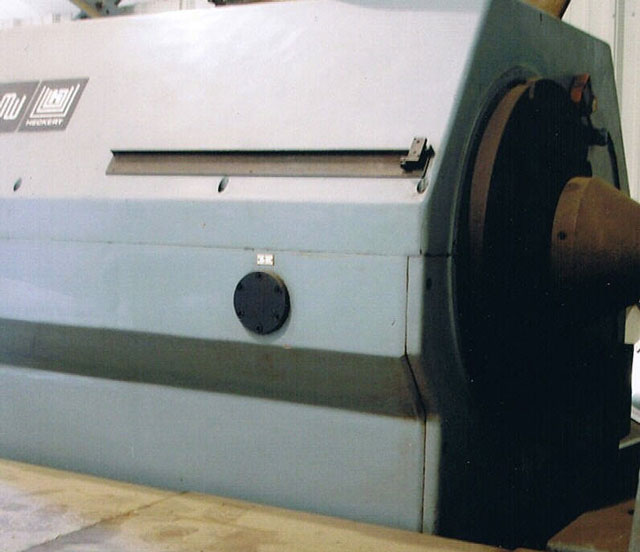

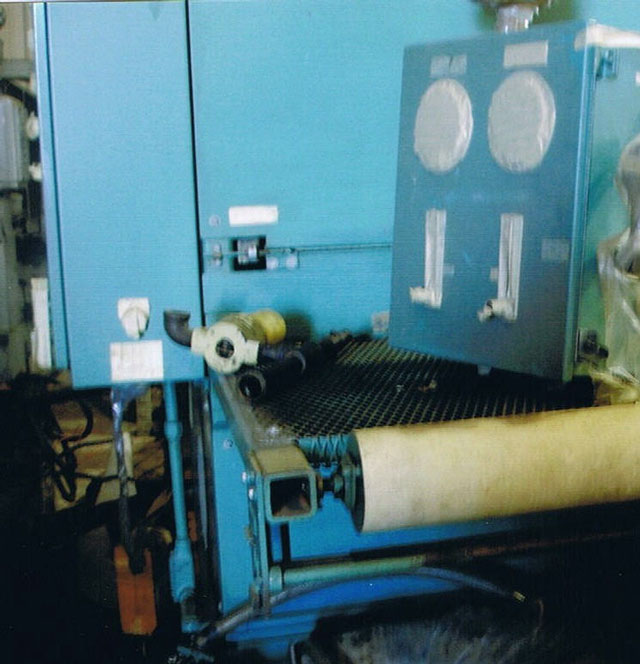

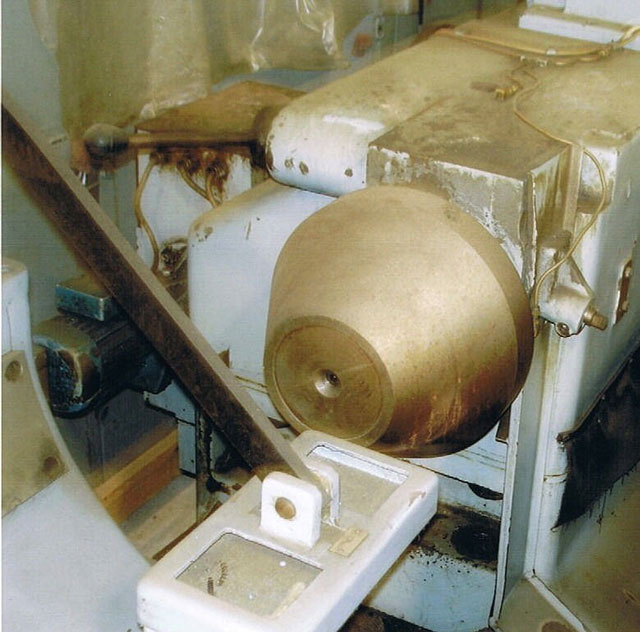

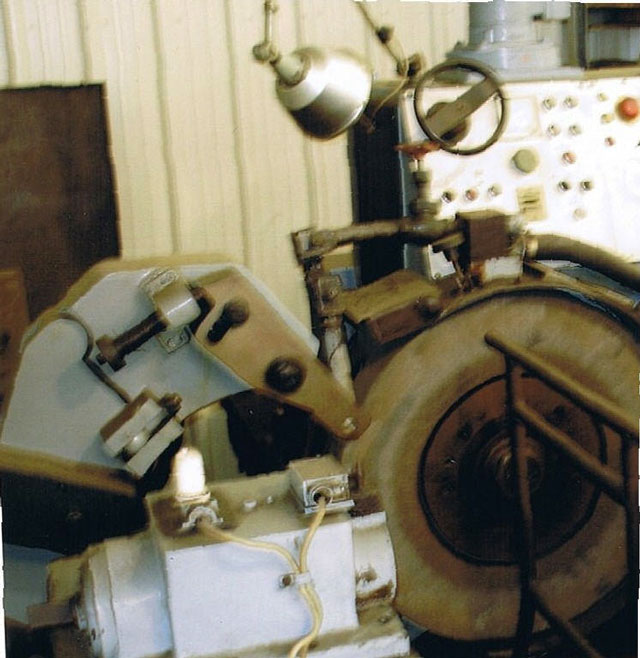

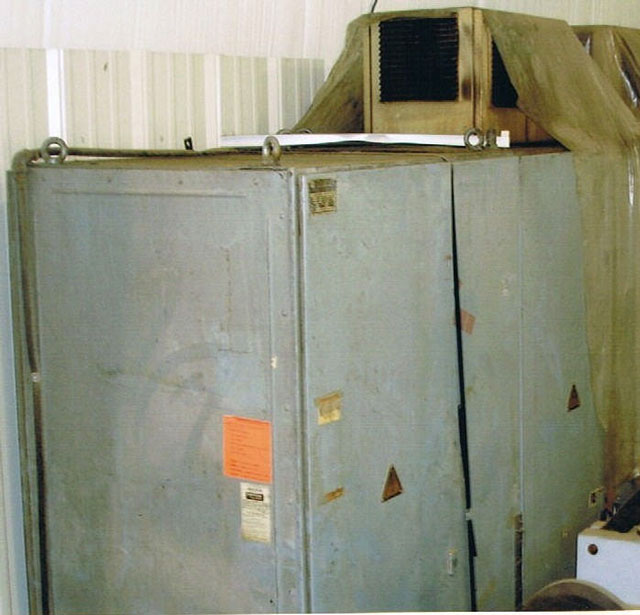

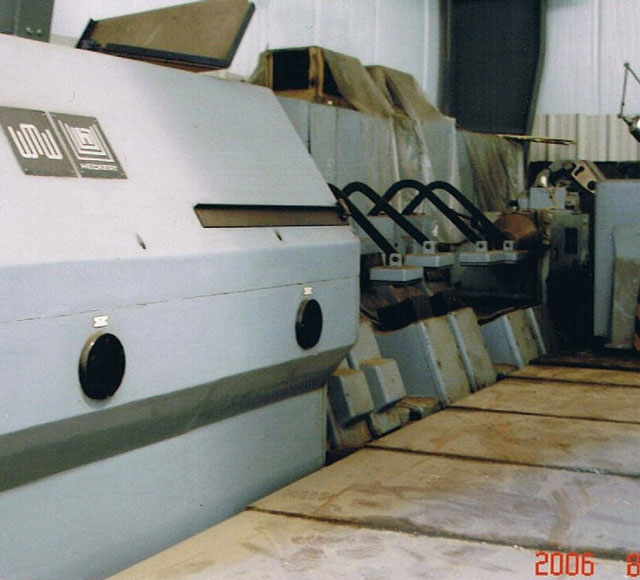

Price: On Request48" X 202" WMW ROLL GRINDER
NEW: 1989
MODEL:............................... SAXW 1000/2
MAX. GRINDING DIAMETER:.............. 48"
MINIMUM GRINDING DIAMETER:........... 0"
LENGTH OF WORK BETWEEN CENTERS:...... 16'8"
MAX.WEIGHT OF WORK IN STEDIEST:...... 48,488 LBS.
MAX. WEIGHT OF WORK BETWEEN CENTERS:. 22,040 LBS
ROTATIONAL SPEED OF WORK
INFINITELY VARIABLE:............... 60 TO 60 RPM
FEEDS OF GRINDING CARRIAGE
INFINITELY VARIABLE:............... 0,866 TO 88,18 IPM
RAPID TRAVERSE RATE OF GRINDING
CARRIAGE:.......................... 137.79"
MAX. WHEEL DIMENSIONS:............... 30" X 4" X 12"
MIN. WHEEL DIMENSIONS:............... 17.71" X 2.48
X 12"
RATIONAL SPEED OF WHEEL
INFINITELY VARIABLE
STANDARD DESIGN:..................... 450 TO 940 RPM
HIGH-SPEED GRINDING:................. 450 TO 1610 RPM
WHEEL INFEED TRAVEL:................. 17.32"
RAPID TRAVERSE RATE OF WHEEL INFEED:. 13.97
CONNECTED LOAD OF MACHINE:........... 85 KW
RATED VOLTAGE:....................... 460 V
CONTROL VOLTAGE:..................... 110/220
DIMENSIONS:.......................... 9' W X 92" H X 370" L
TOTAL WEIGHT:........................ 31.5 TON
EQUIPPED WITH:

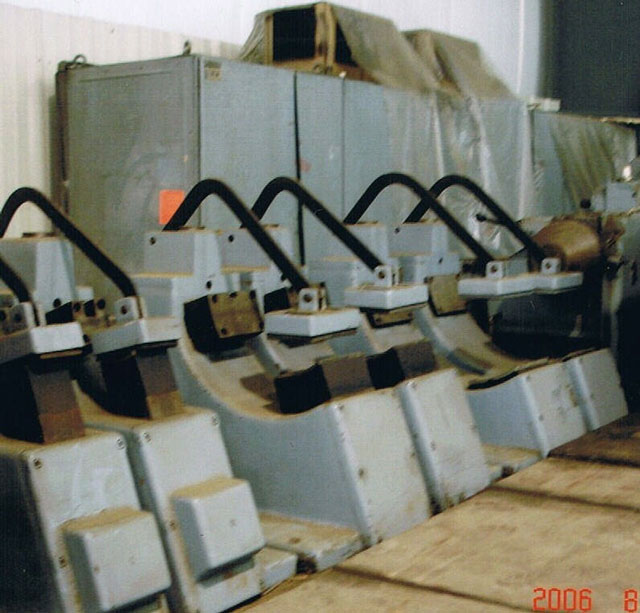

STEADY REST, CROWNING
