Reference Number: 141496

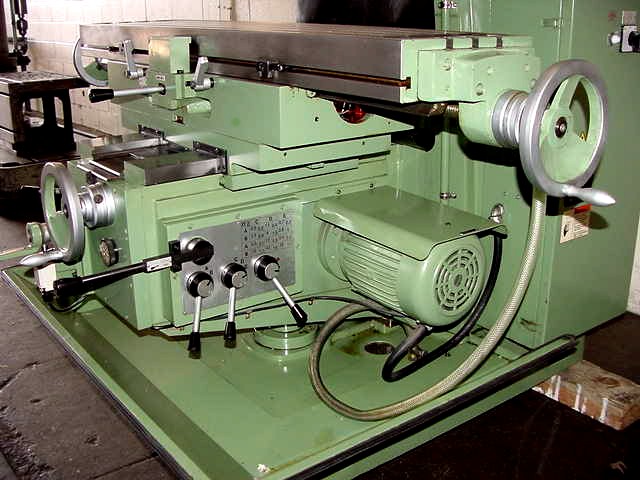

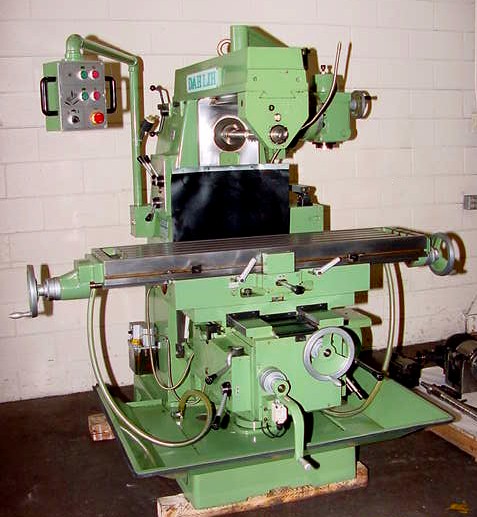

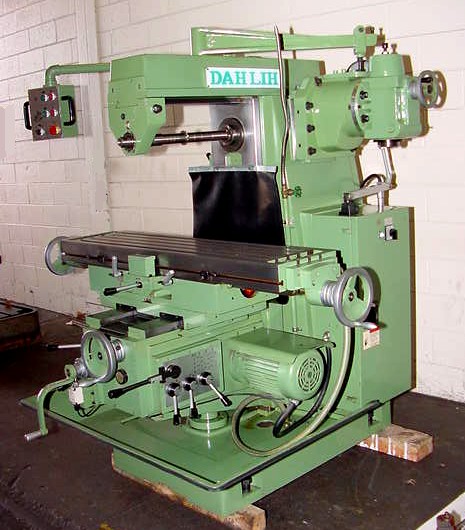

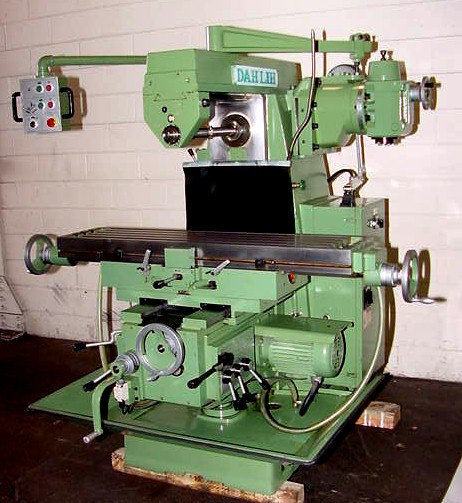

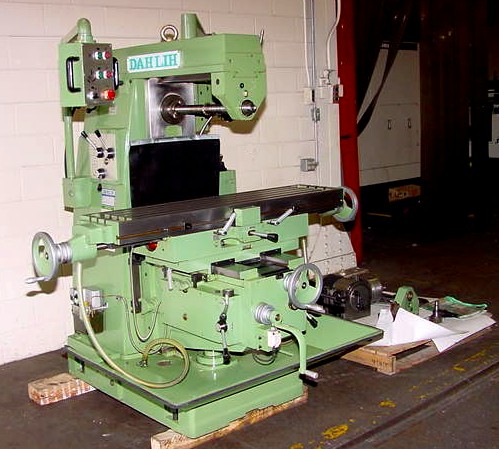

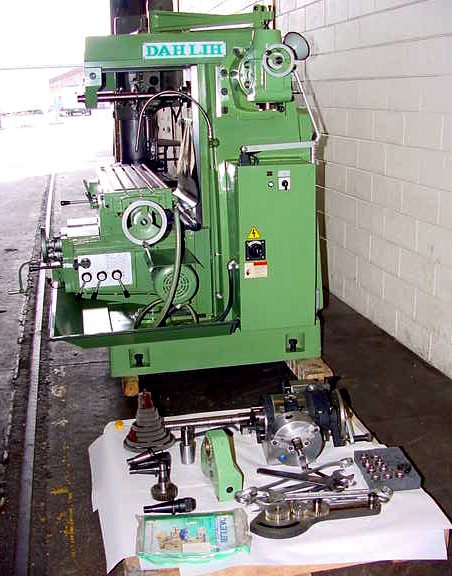

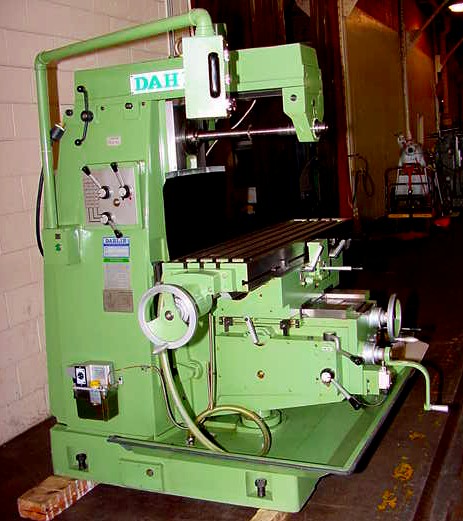

DAHLIH UNIVERSAL MILLING MACHINE

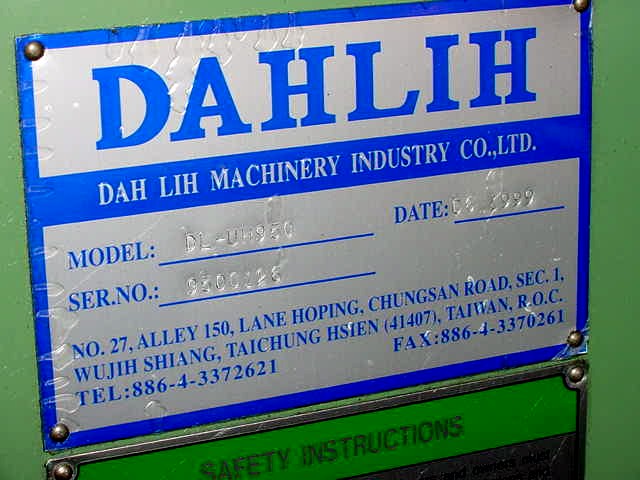

 MODEL: DL-VH950, S/N: 9500126, NEW: 1999

 SPECIFICATIONS:

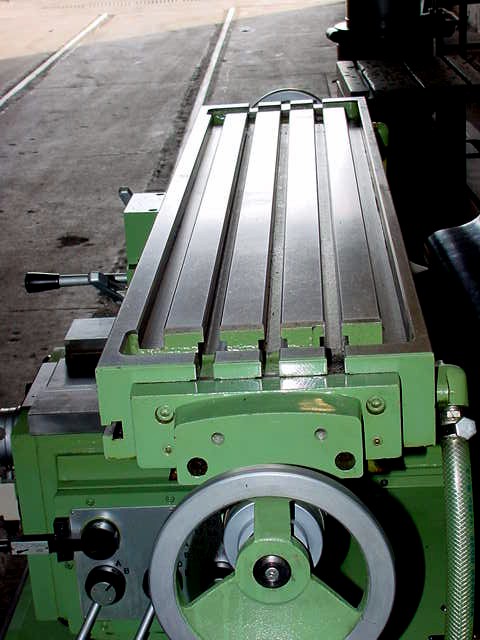

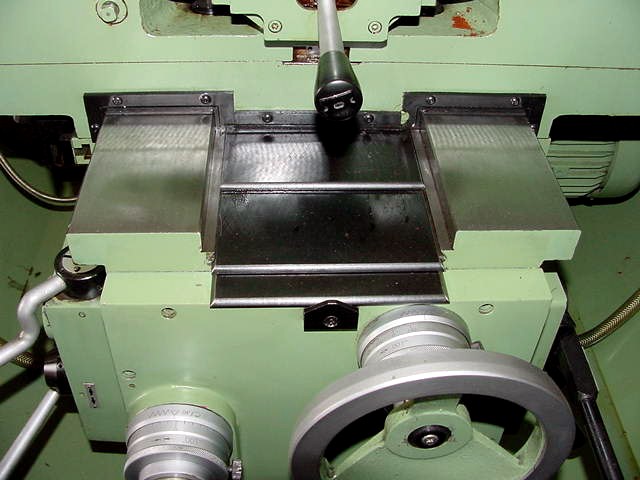

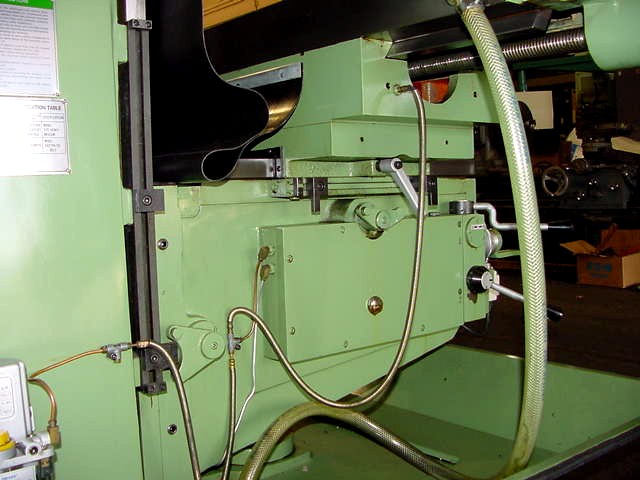

 TABLE:

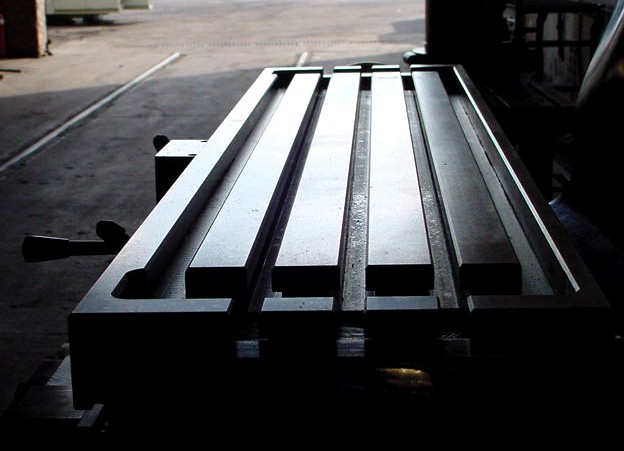

 WORKING SURFACE ...................... 53.1" X 12.3"
 LONGITUDINAL TRAVEL .................. 35.4"
 CROSS TRAVEL ......................... 13.8"
 VERTICAL TRAVEL ...................... 17.7"
 T-SLOTS (SIZE x NUMBER x DISTANCE) ... .63" X 3" X 2.36"

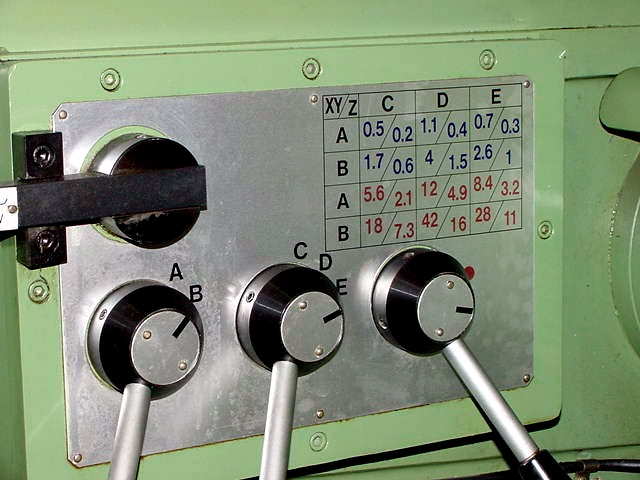

 LONGITUDINAL & CROSS FEEDS (12) ...... .5" - 41.3"/min
 VERTICAL FEEDS (12) .................. .2" - 16.1"/min
 RAPID LONGITUDINAL & CROSS TRAVERSE .. 127.5"/min
 RAPID VERTICAL TRAVERSE .............. 50.4"/min
 SWIVELING ANGLE (R&L) EACH SIDE ...... 45 DEGREES

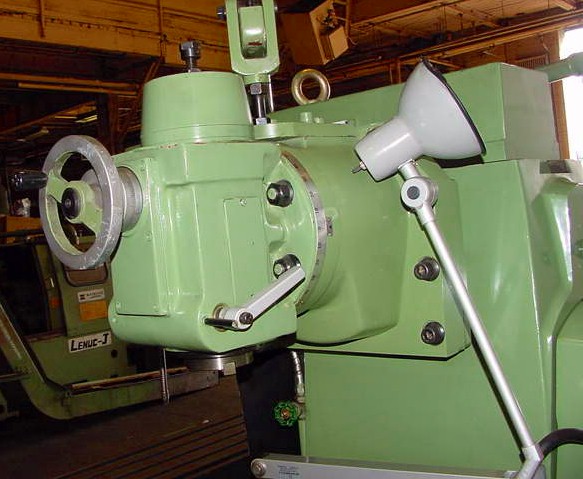

 VERTICAL MAIN SPINDLE (Vert Head w/ Boom):

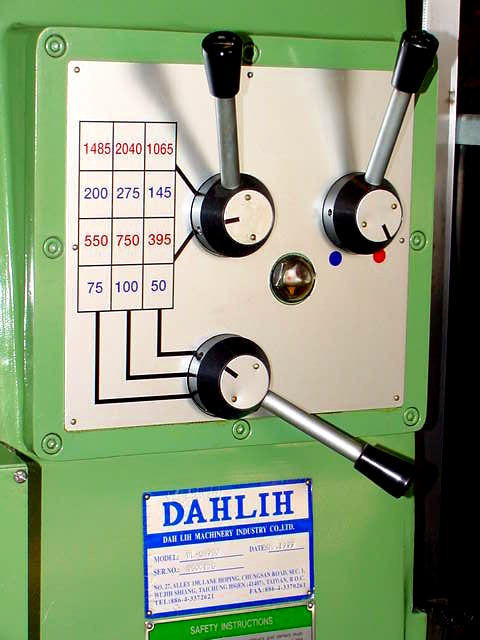

 SPINDLE SPEEDS ....................... 50 - 2040 RPM
 QUILL TRAVEL ......................... 2.3"
 TAPER OF SPINDLE NOSE ................ #40 NT
 SWIVELING ANGLE OF SPINDLE HEAD (R&L)  90 DEGREES
 DISTANCE OF SPINDLE END
     TO TABLE TOP ................... 0 - 14.5"
     TO COLUMN SURFACE .............. 12.4"

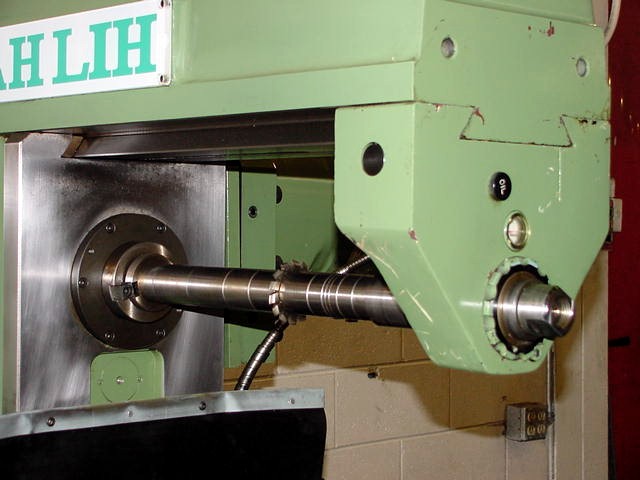

 HORIZONTAL MAIN SPINDLE
 SPINDLE SPEEDS ....................... 50 - 2040 RPM
 TAPER OF SPINDLE NOSE ................ #40 NT
 DIAMETER OF MILLING ARBOR ............ 1"
 DISTANCE OF SPINDLE CENTER
     TO TABLE TOP ................... 0 - 17.7"
     TO OVERARM BOTTOM .............. 5.3"

 MAX HEIGHT ........................... 70.9"
 FLOOR SPACE .......................... 113.4" X 61"
 APPROX WEIGHT ........................ 7,040 lbs

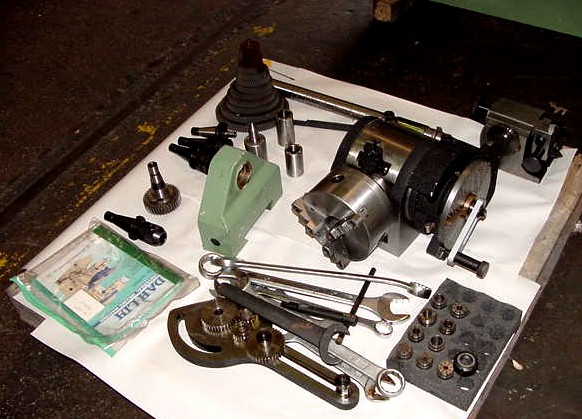

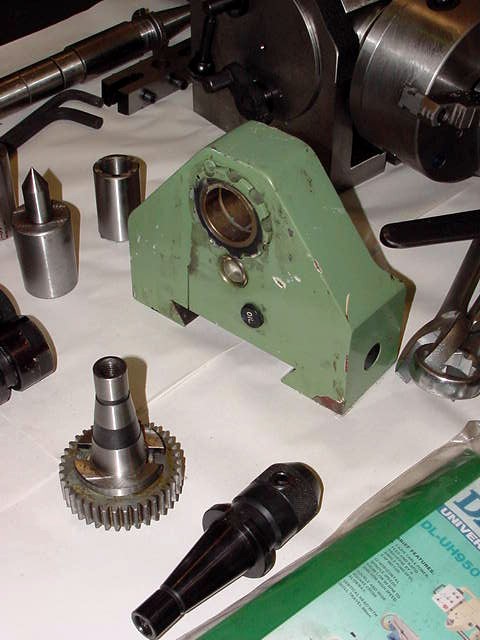

 EQUIPPED WITH:

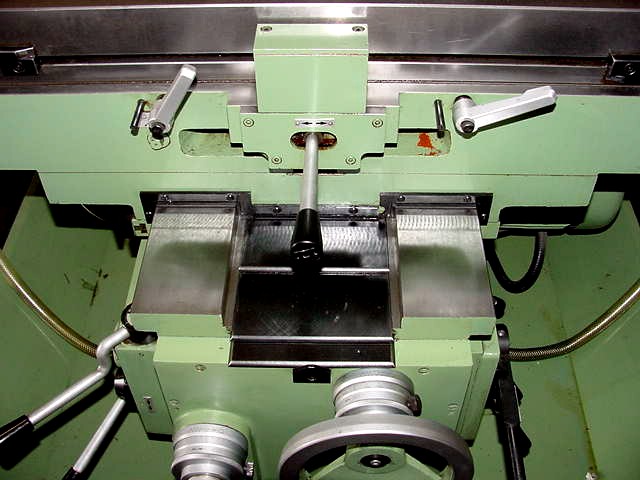

 - UNIVERSAL TABLE

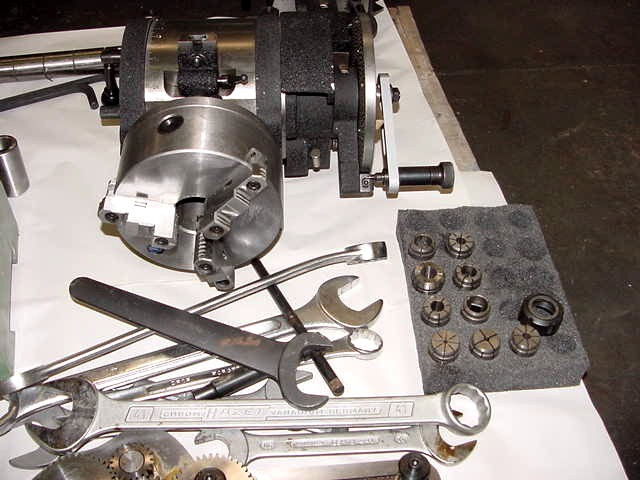

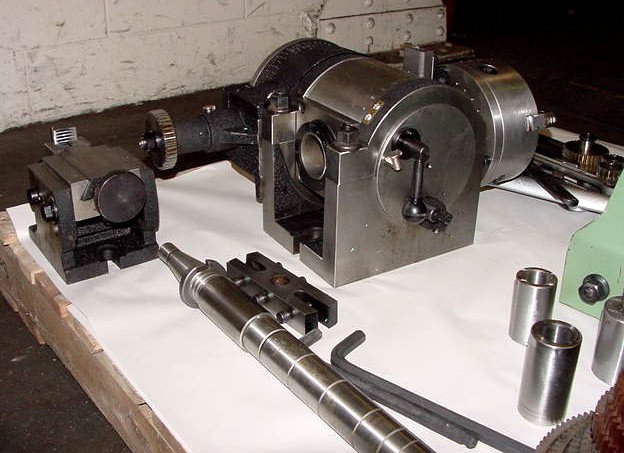

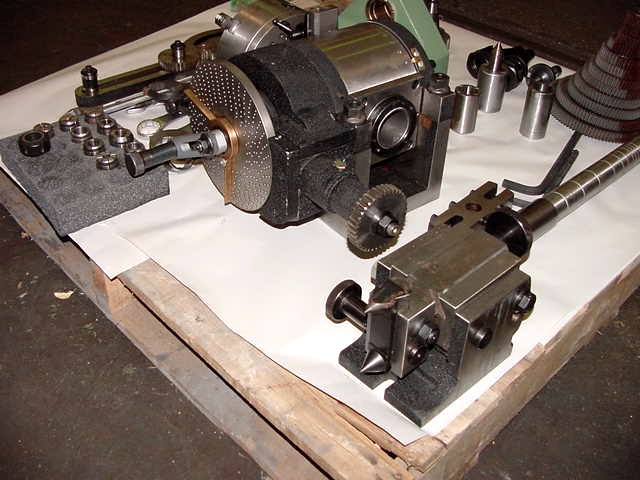

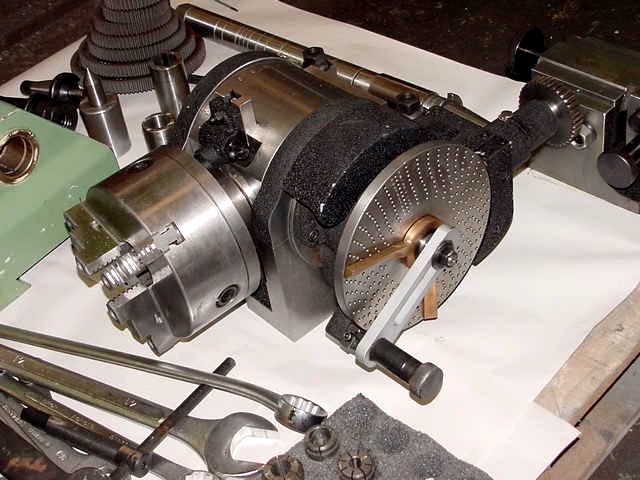

 - POWER TAKE OFF DIVIDING HEAD

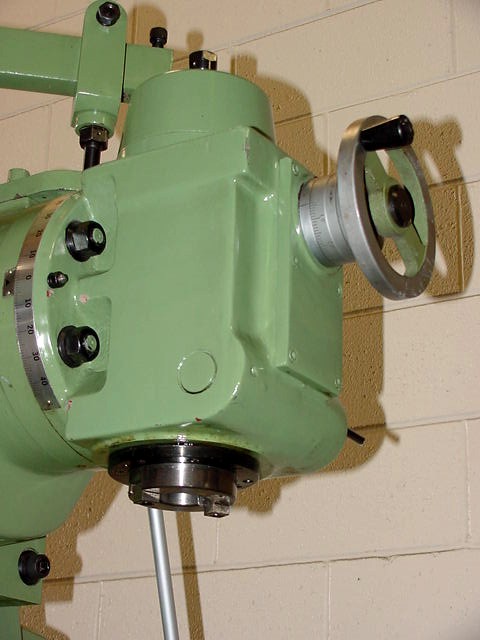

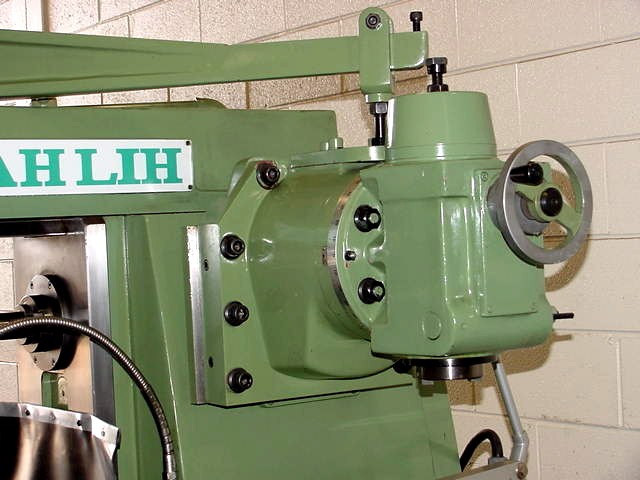

 - VERTICAL HEAD ON CRANE
 - (2) ARBOR SUPPORTS

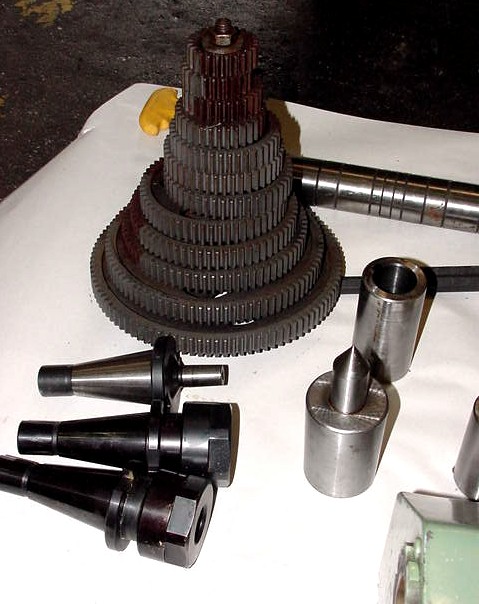

 - ARBORS
 - COOLANT PUMP
 - 5 HP HORIZONTAL SPINDLE MOTOR
 - 3 HP TABLE LONG, CROSS & VERTICAL FEED

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE!
