Reference Number: 141499

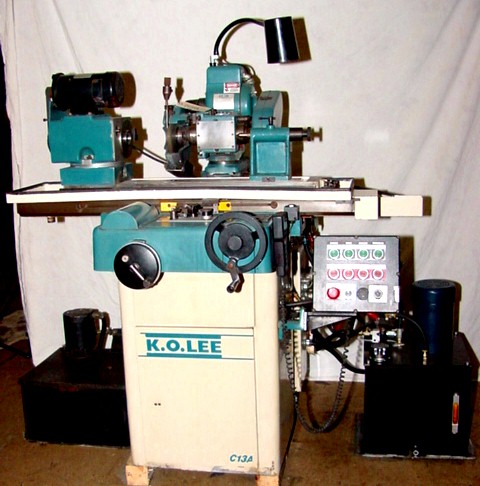

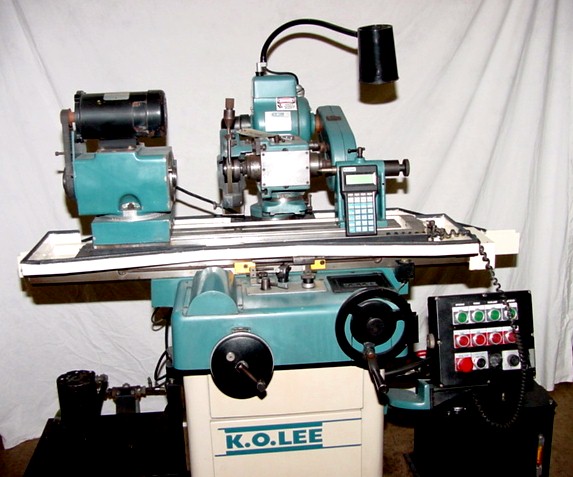

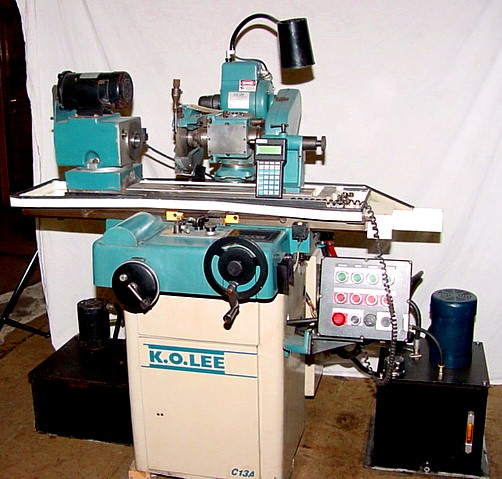

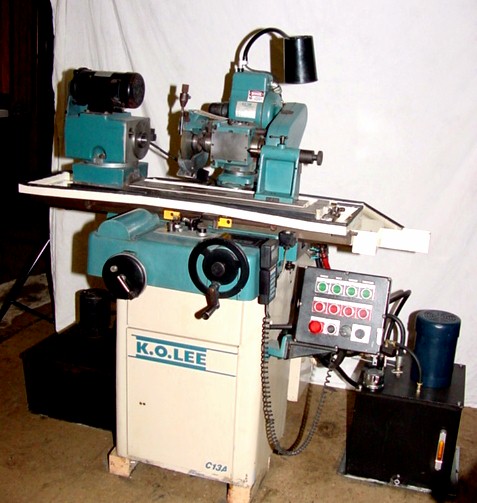

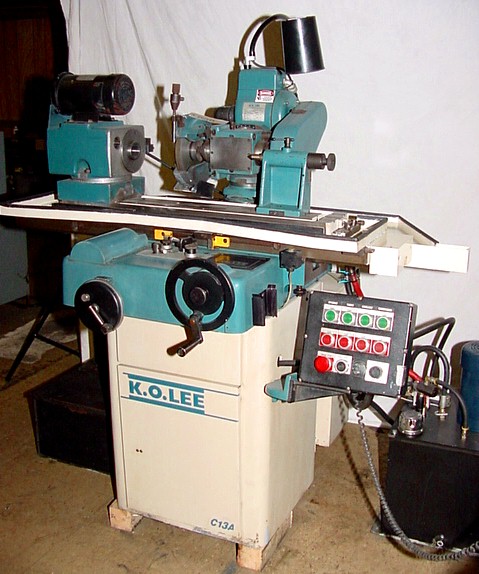

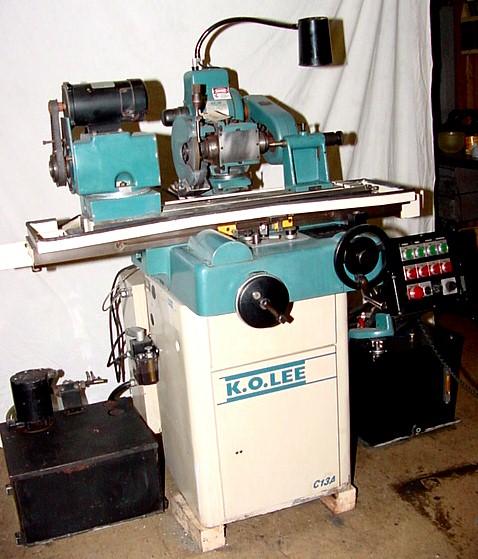

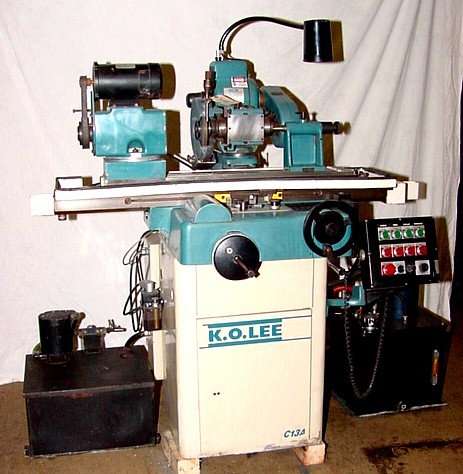

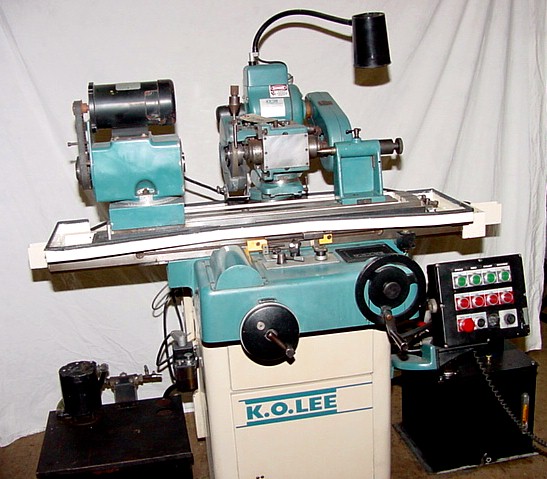

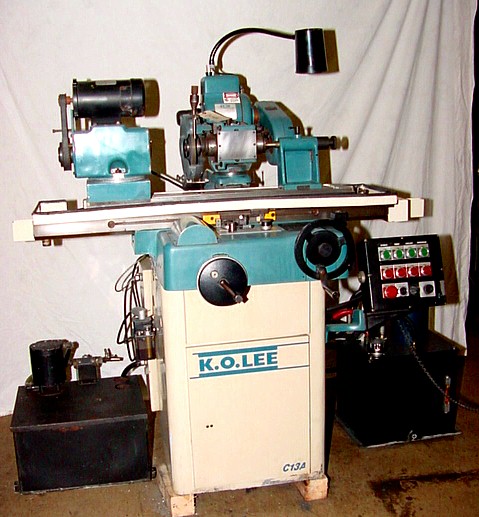

8" x 17" K.O. Lee Universal Cylindrical Grinder

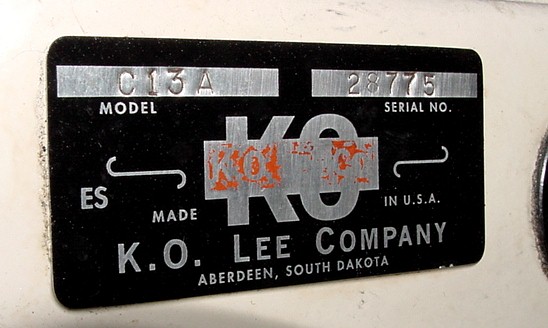

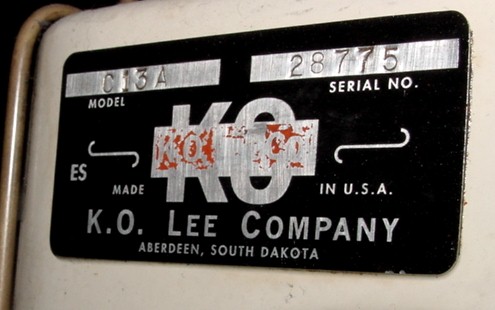

 Model: C13A       S/N: 28775       New: 1998

 The K.O. Lee C13 Universal Cylindrical Grinding
 machine has been designed to offer you an affordable
 approach to cylindrical grinding of the simplest to the most
 intricate of applications.

 Options, which include an internal grinding attachment,
 crossfeed digital readout, coolant systems, chucks,
 collet systems, etc., make the C13 one of the most
 versatile cylindrical grinding machines available today.
 The variety of models available makes the C13 at home
 not only in the toolroom, but also ideal for short run
 production needs.

  C13 Cylindrical Grinder
  Model C13
  Manual operation of the table movement is provided
  by a 5:1 ration handwheel.

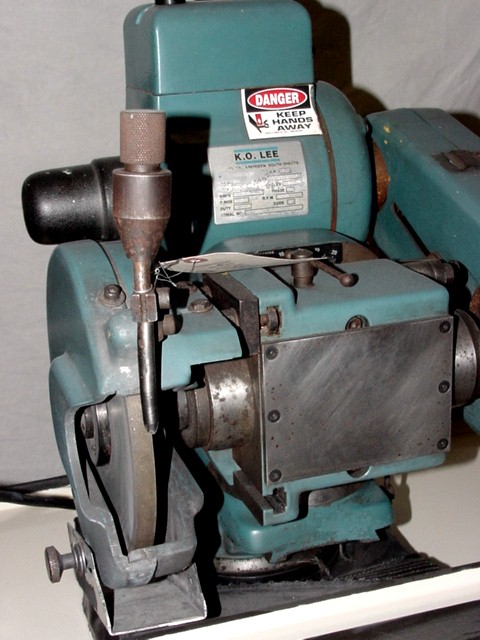

 Infeed of the C13's wheel is provided be a large handwheel
 with clear graduations on an adjustable slip ring, and
 includes a fine microfeed dial offering precise movement
 of the wheel for consistently accurate part size.

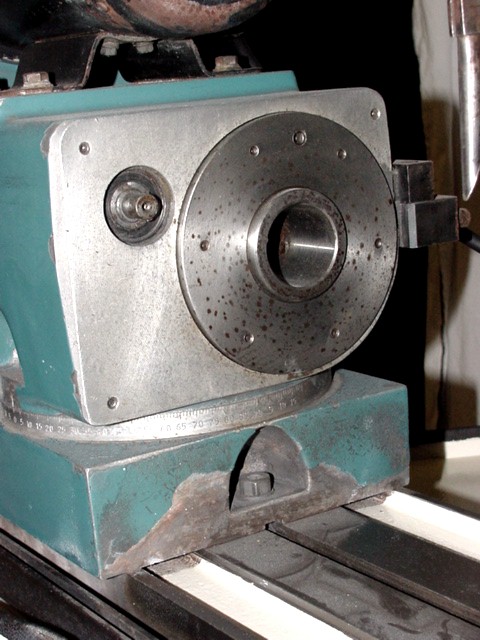

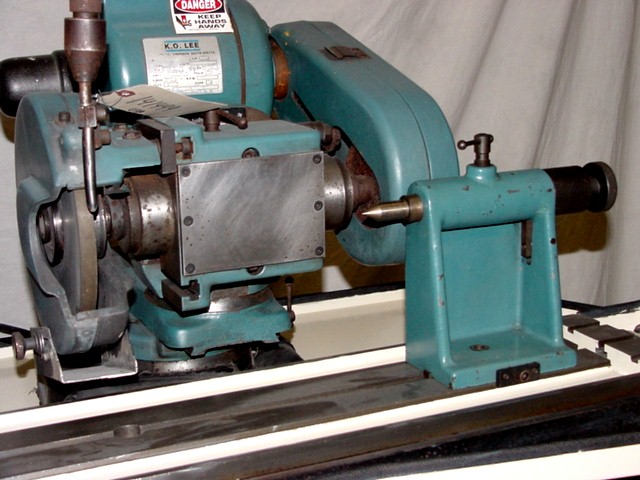

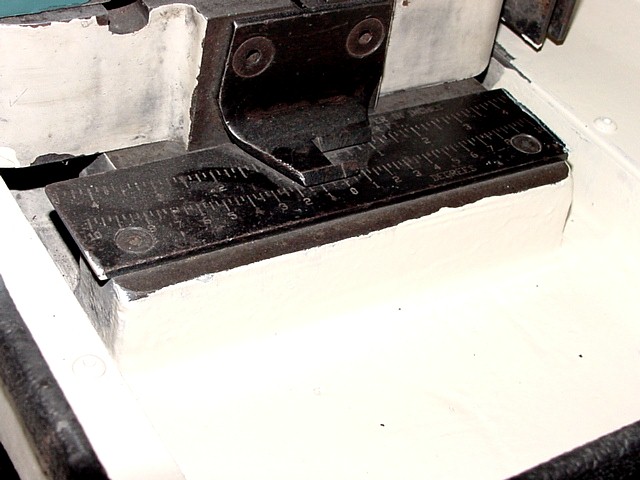

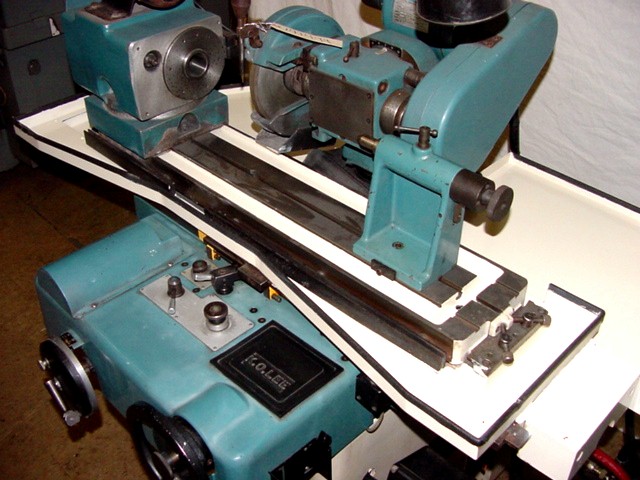

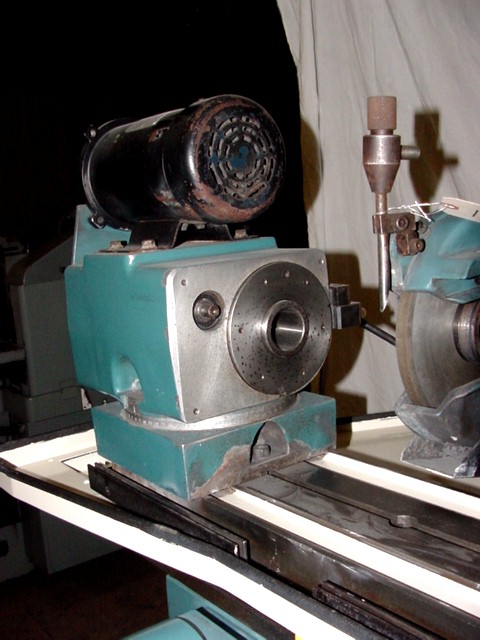

 The swiveling table, headstock, and wheelhead enable
 the C13 to be set up in a a multitude of configurations
 for almost any grinding application.

 Model C13H

 The C13H offers all the features of the C13 with the addition
 of automatic hydraulic operation of the table movement. The
 hydraulic system allows infinitely variable table speed control.

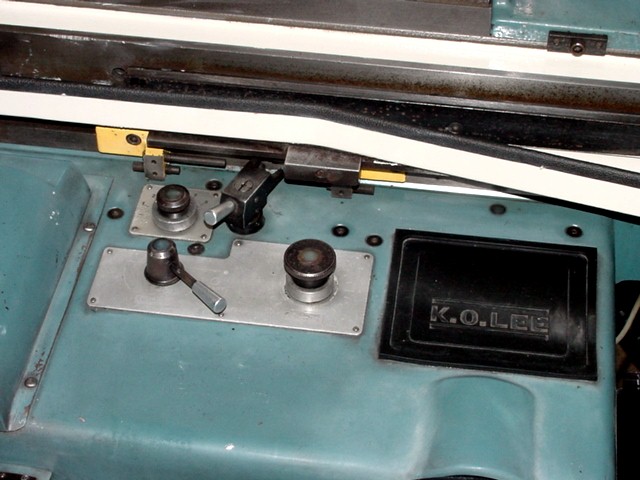

 Table reversal positions are easily changed using two
 adjustable table stops. Controls are available for table reversal
 dwell.

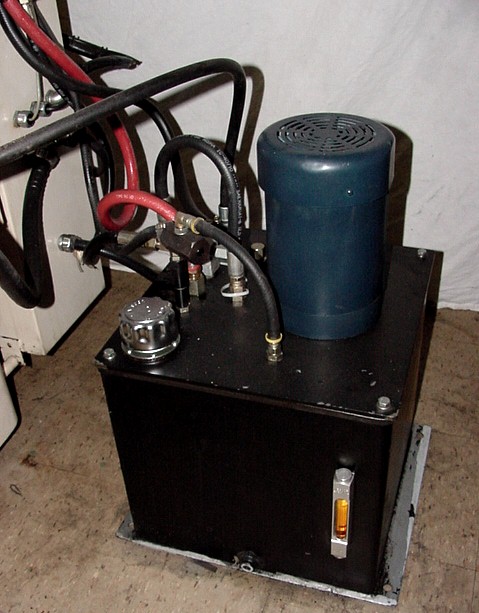

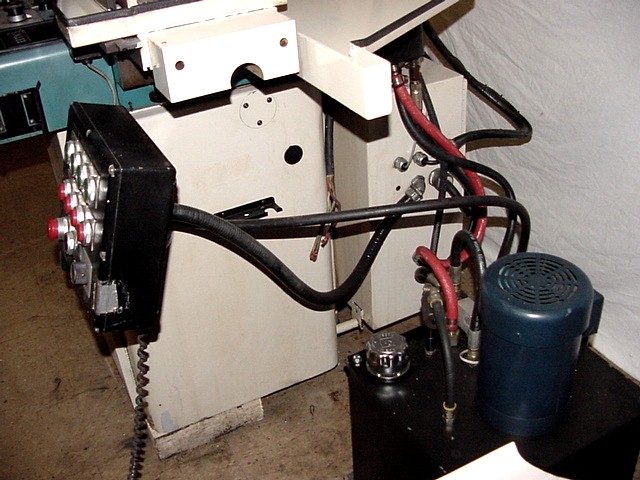

 To maintain the extreme accuracy of K.O. LEE grinders,
  the hydraulic pump mechanism is installed adjacent to
  the machine instead of within the base cavity to prevent
  heat buildup. The hydraulic power can be quickly disengaged
  for complete manual operation of the table if desired.

 Model: C13A

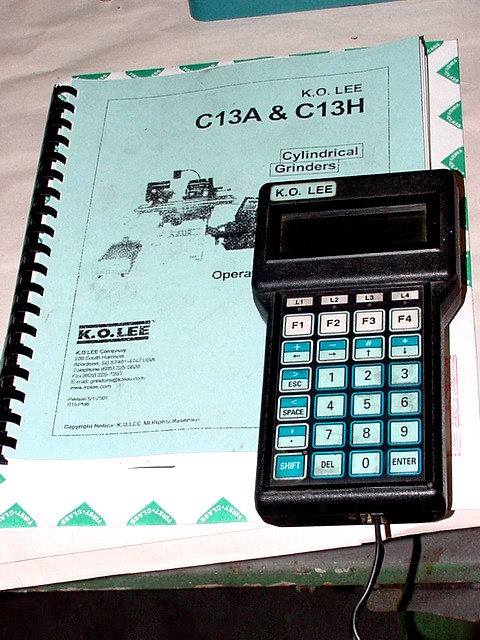

 The C13A offers all the features of the C13H with
 the addition of an uncomlicated microprocessor-based
 automatic infeed system. This feature allows the C13A
 to be set up in automatic mode for a totally hands-free
 grind cycle. Ideally suited for small production
 applications, the C13A is the answer to short run
 cylindrical grinding. Only six programmable parameters
 are necessary to completely specify a traverse of plunge
 grind cycle. The control features total distance,
 rapid traverse, rough increments, fine increments,
 sparkout passes, and an automatic return to zero start
 position. Incremental feed is not limited and can be
 programmed from 0.000010" (0.0002 mm) to several
 inches (mm). Complete jogging and setup features are
 provided for quick change over of parts or wheels.

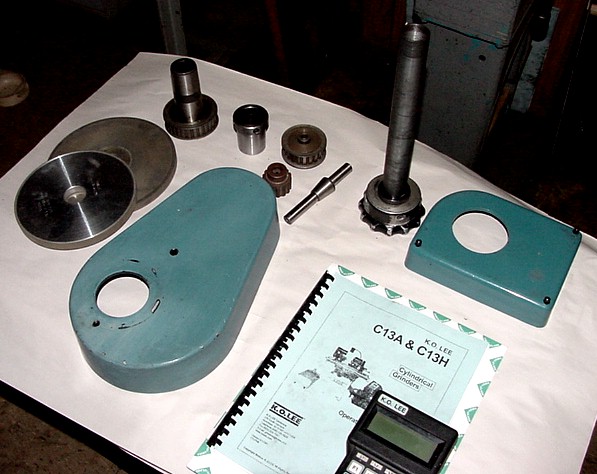

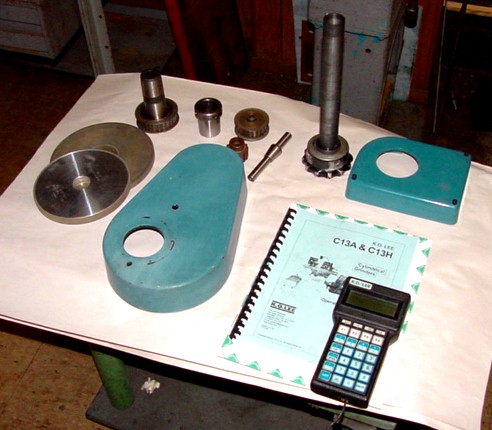

 Equipped With:
 (3) 8" Diamond Wheels

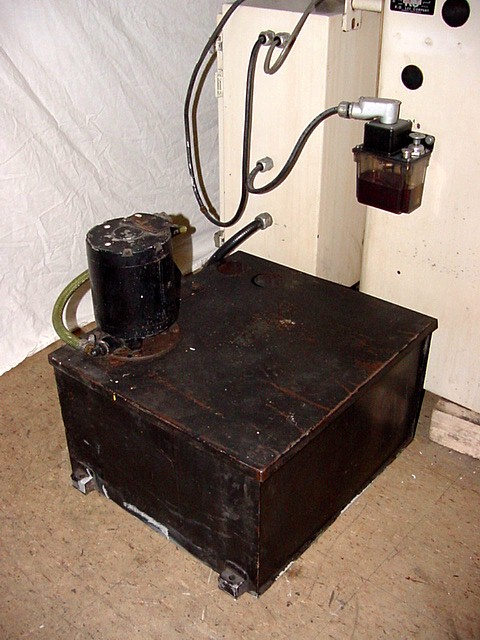

 Coolant System
 5C Collet Draw Bar

 ** Inspect Under Power in our Harrison, NJ Warehouse **

 ** Superb Condition & Appearance **
