Reference Number: 141548

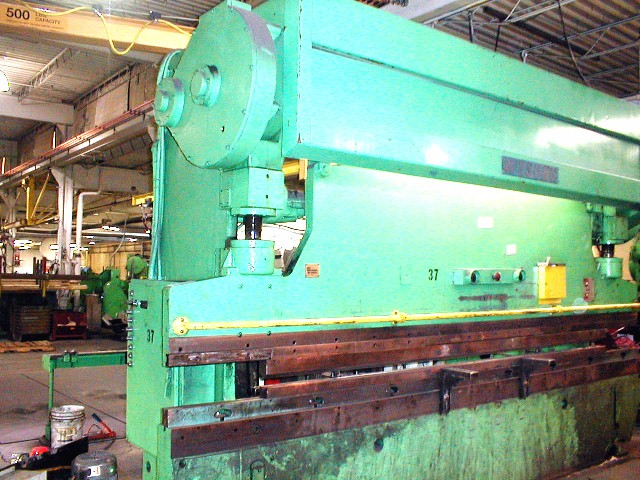

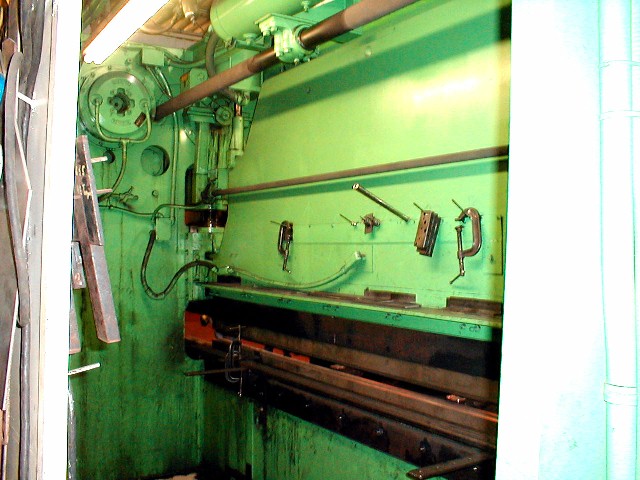

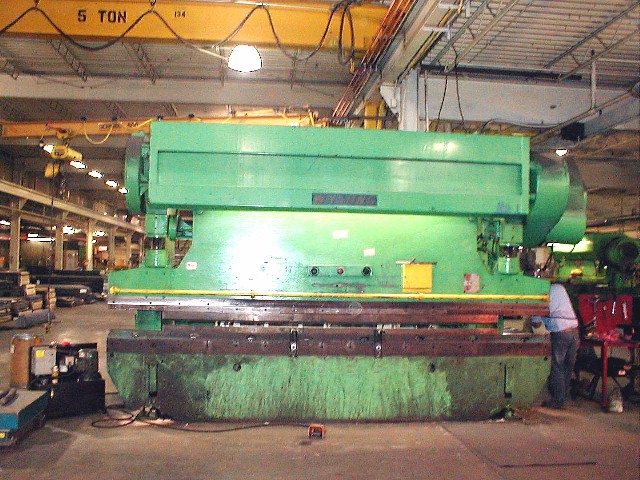

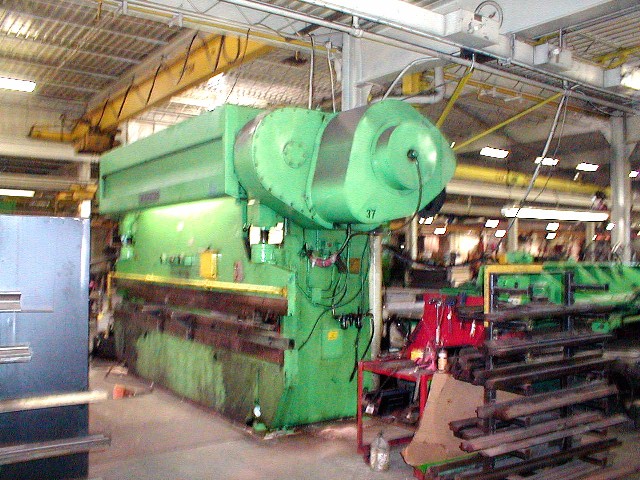

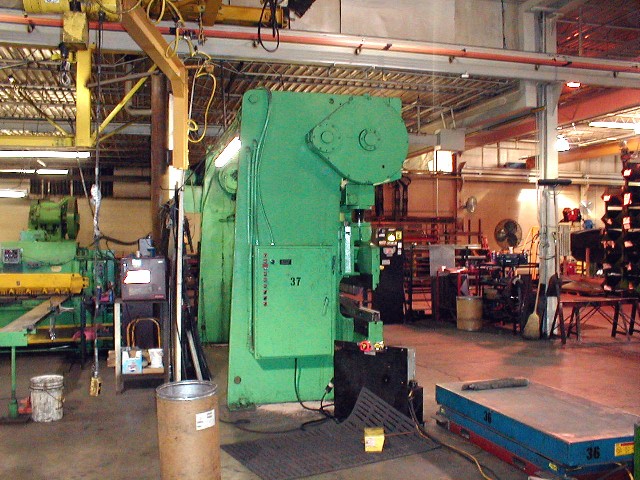

Price: $24,50016' x 225 TON WYSONG 225-12 MECH. PRESS BRAKE NEW 1978 MAX TONNAGE AT BOTTOME OF STROKE ...................... 225
BENDING CAPACITY ................................ 13' X 1/4"
................................ 9' X 5/16"
................................ 7' X 3/4"
OVERALL LENGTH OF BED AND RAM ......................... 16'
DISTANCE BETWEEN HOUSINGS ........................... 12'6"
MAXIMUM DIE SPACE ..................................... 12"
STROKE ................................................. 3"
RAM ADJUSTMENT ......................................... 5"
THROAT ............................................. 8-1/2"
SPEED .............................................. 30 SPM
EQUIPPED WITH:
- LOWER DIE HOLDER
- MOTORIZED RAM ADJUSTMENT WITH DIAL INDICATORS
- TOTALLY ENCLOSED TWIN DRIVE
- CENTRALIZED LUBE SYSTEM
- NON-METALLIC GIBS
- 15 HP 3/60/220-440 VOLT MOTOR AND CONTROLS
CONDITION: GOOD RUNNING ORDER
APPROX. WEIGHT 40,000 LBS.
REQUIRES 14" DEPTH OF PIT FOR FRONT APRON
DIMENSIONS: 244" L X 88" W X 126" H FROM FLOOR LEVEL
