Reference Number: 141552

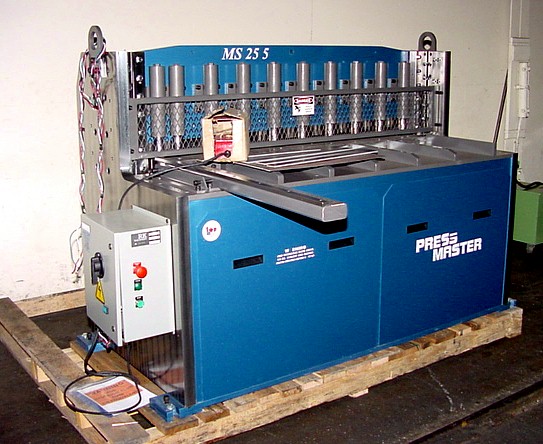

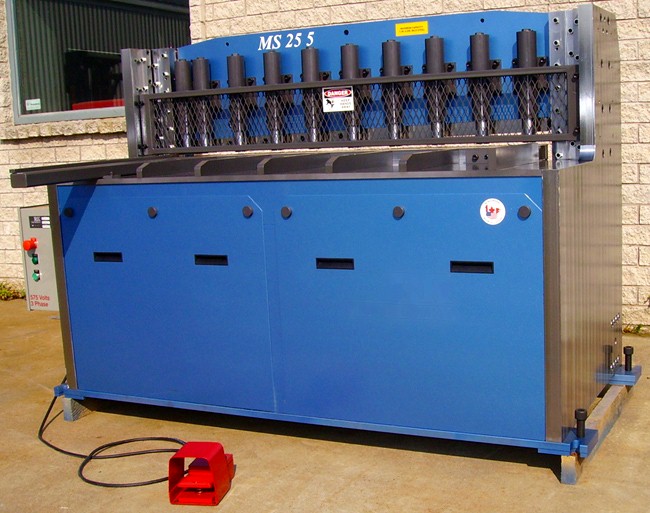

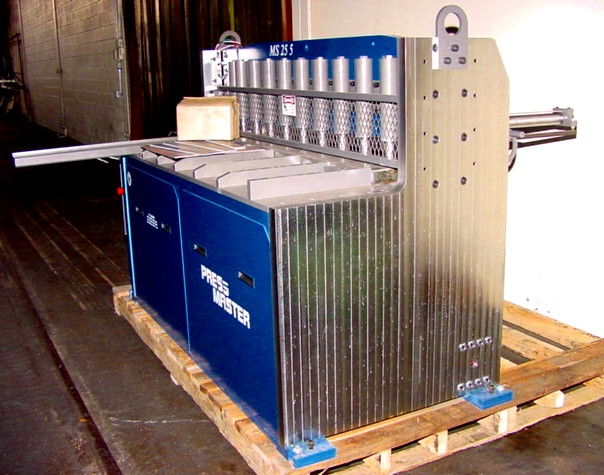

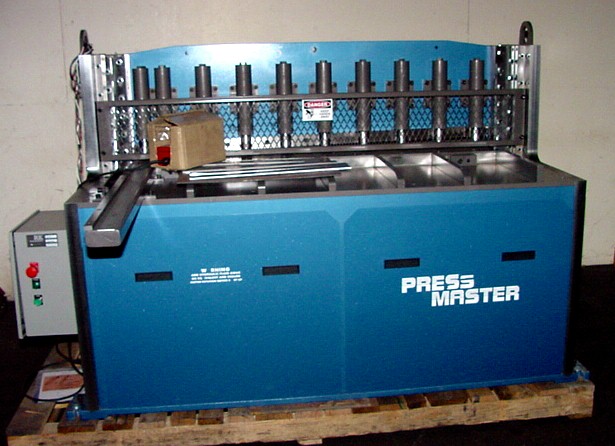

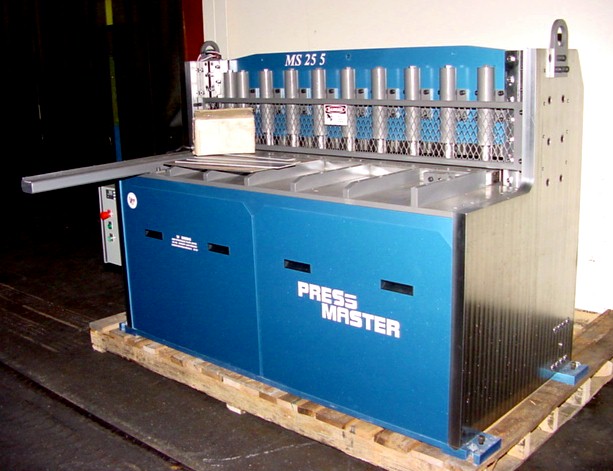

PRESSMASTER MODEL MS-25-5 HYDRAULIC SHEAR
 1/4" x 60.375" SHEAR
 BRAND NEW IN FACTORY CRATE
 This is probably the highest quality shear made!
 See this machine shearing 1/4" mild steel
 by cutting and pasting this link into your browser:
 http://www.youtube.com/watch?v=uGjskADgzxk

 CUTTING CAP. ........................ 1/4"
 CUTTING LENGTH ...................... 60.375"
 RAKE ANGLE .......................... .250 PER FT.
 SPM ................................. 18
 NUMBER OF HOLDDOWN CYLINDERS ........ 10
 MOTOR ............................... 10 HP 1760 RPM
 VOLTAGES AVAILABLE .................. 230/460/575
                                        3PH/60 HZ
 TABLE DEPTH ......................... 24.875"
 TABLE WORK HEIGHT ................... 35.500"
 FOOTPRINT ........................... 83" LX 37"W
 WEIGHT .............................. 6,200 LBS.
 HYDRAULIC FLUID...................... 42 GAL.

 STANDARD FEATURES:
 - LOW SPEED ELECTRIC MOTOR & LOW HYDRAULIC WORKING
 PRESSURE ENSURES LONG LIFE.
 - REMOTE FOOT PEDAL CONTROL, IF RELEASED ANYWHERE
 IN THE STROKE THE CROSSHEAD RETURNS TO "UP" POSTION.
 - BOTTOM BLADE CAN BE USED ON ALL 4 SIDES.
 - TOP BLADE HAS REVERSIBLE CUTTING EDGES WITH 5 DEG.
 BACK-BEVEL TO ENSURE A CLEAN CUT.
 - LOW RAKE ANGEL TO MINIMIZE WORKPIECE DISTORTION.

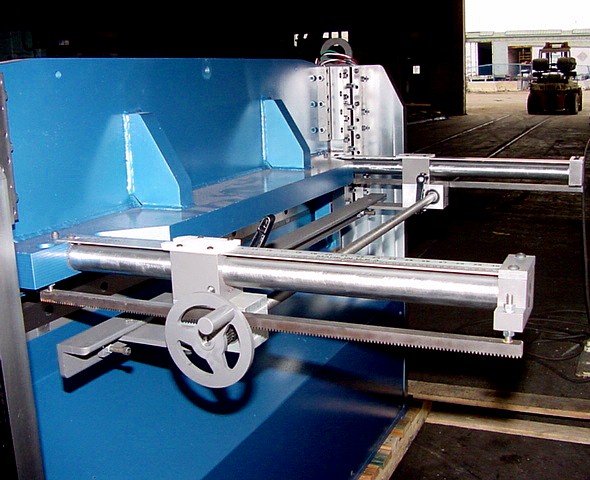

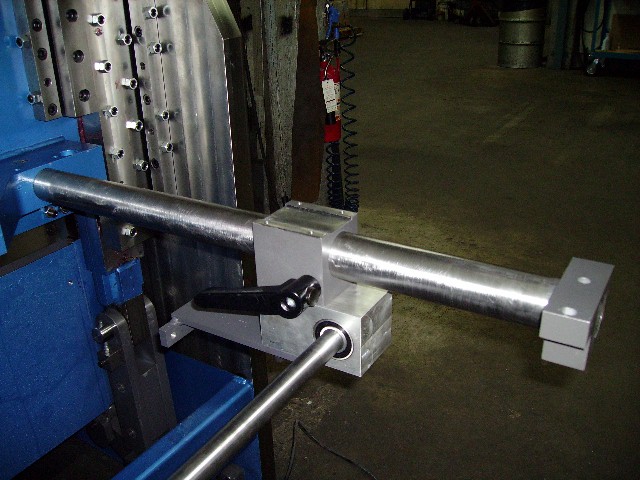

 - SQUARING ARM C/W MEASUREMENT INDICATOR.
  - FOR EASY HANDLING OF MATERIAL OUR 5 SUPPORT ARMS
 ARE ROUNDED, ALSO PREVENTING DAMAGE WHILE LOADING.
 - RACK & PINION PARALLEL DRIVEN MANUAL BACK-GUAGE
 WITH 26" TRAVEL.
 - FULLY ENCLOSED CONTROL PANEL C/W LOW VOLTAGE
 CONTROLS.
 - ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD
 IN THE INDUSTRY, & AVAILABLE THROUGHOUT NORTH AMERICA.

 AVAILABLE AT EXTRA COST OPTIONS:
 - A MOTORIZED FRONT OPERATED BACK GAUGE, WITH DIGITAL
  READOUT AND FINE HANDWHEEL ADJUSTMENT.  THIS DIGITAL
  READOUT FEATURES FRACTIONS OR DECIMALS AND AN
  INCH/METRIC SWITCHABLE DISPLAY......$5,000.00
