Reference Number: 141572

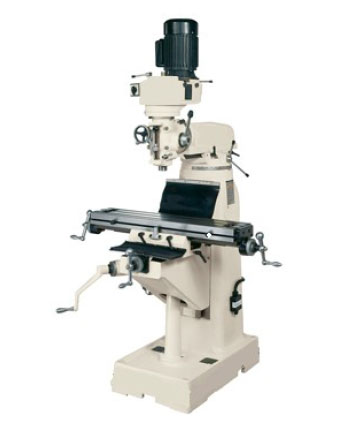

New Royal Mill Manual Milling Machine
  Model # RM-836-S1/3    Either Single or 3  phase
 The RM-836 model manual milling machines are designed for
 machine shops and homeowners alike. It is available with a single or
 three phase motor. The small table uses much less floor space than
 conventional milling machines making this a very popular model for
 home owners and second operations.

 SPECIFICATIONS:
 WORK TABLES 7-7/8" X 35-3/4"
 LONGITUDINAL TRAVEL- 22-1/4"
 CROSS TRAVEL- 9-1/2"
 KNEE TRAVEL- 14"
 T-SLOT CENTER DISTANCE - 2.5"
 SPINDLE MOTOR-  1-1/2 HP, 115/230V,1 PH or 230/460V 3 PH
 HEAD TYPE-STEP PULLEY
 (NUMBER OF SPEEDS) RPM- (5)240-1,550 RPM
 SPINDLE TAPER- R-8
 SPINDLE QUILL DIAMETER-3-3/8"
 SPINDLE COLLECT CAPACITY- 1/8" TO 7/8"
 MAX. SPINDLE TO TABLE-  13-3/4"
 MIN. SPINDLE TO TABLE-  5-1/4"
 MAX. SPINDLE CENTER TO COLUMN-   15-3/4"
 SPINDLE QUILL TRAVEL-   5"
 HEAD MOVEMENT-   90 DEG.  R TO L ONLY
 TRAVEL OF RAM-  10-1/2"
 MAXIMUM WORKPIECE WEIGHT-  550 LBS.
 OVERALL DIMENSIONS LxWxH-  55" X 52" X 78"
 NET WEIGHT APPROX.-  1,550 Lbs

 STANDARD ACCESSORIES:
 CHROME QUILL
 ONE SHOT LUBRICATION SYSTEM
 TOOL BOX W/ TOLS
 HARDENED AND GROUND TABLE
 DRAW BAR
 SCALE ON THE COLUMN
 WAY COVERS(FRONT AND REAR)

 OPTIONAL ACCESSORIES (CALL FOR PRICING):
 DRO
 POWER FEED
 VISE
 COLLET SET
 CLAMP LIT
 ROTARY TABLE
